DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-25

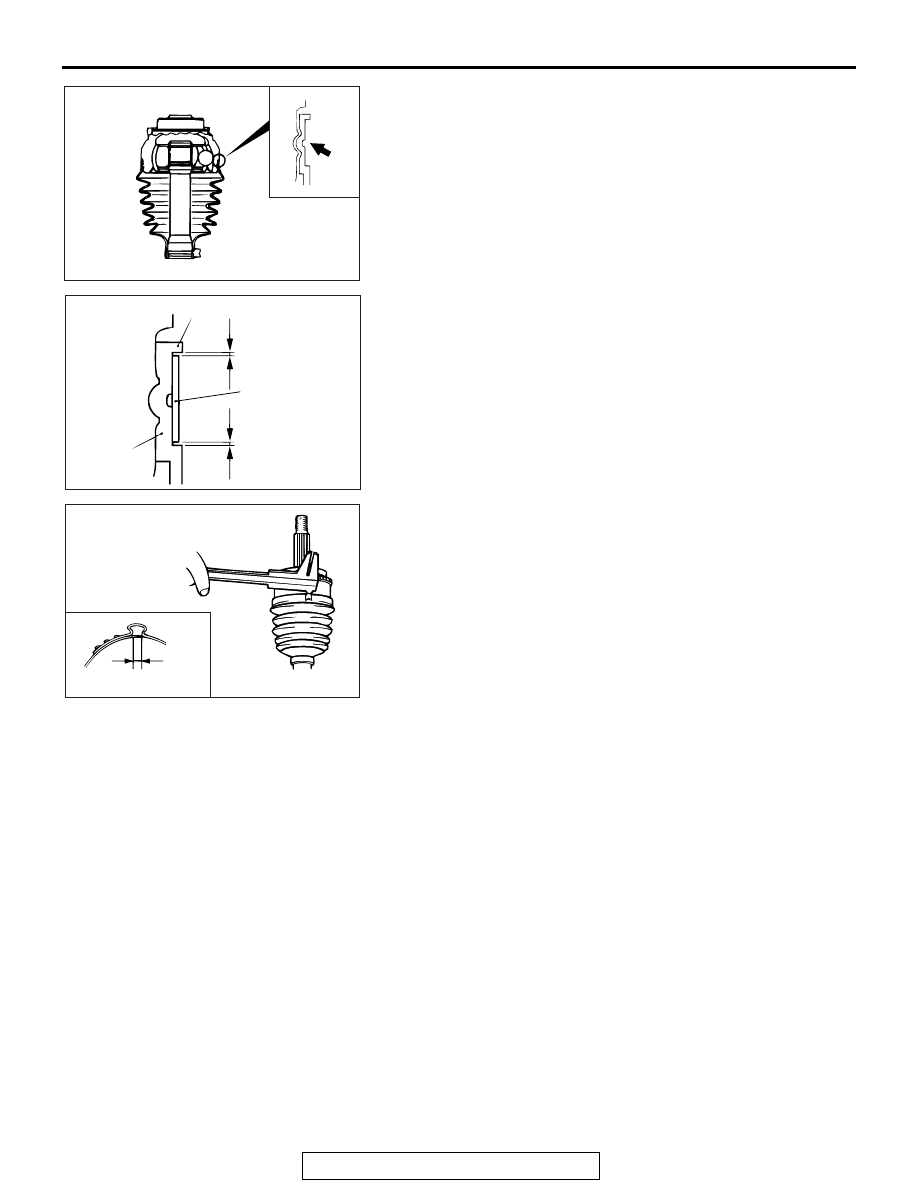

11.Align the center groove on the EBJ boot big end with the

EBJ case groove.

12.Follow the same procedure as in step 5 to adjust the size of

the opening (W) on the special tool so that it is at the
standard value.

Standard value (W): 3.2 mm (0.13 inch)

AC102665 AB

D

E

Boot

Projection

Boot band
(large)

13.Position the EBJ boot band (large) so that there is even

clearance at either end (D and E).

14.Use special tool MB991561 to crimp the EBJ boot band

(large) in the same way as in step 7.

AC102666

F

AB

15.Check that the crimping amount (F) of the boot band is at

the standard value.

Standard value (F): 2.4

 2.8 mm (0.10  0.11 inch)

If the crimping amount is larger than 2.8 mm (0.11

inch)
Readjust the value of (W) in step 12 according to
the following formula, and then repeat the opera-
tion in step 14.
W = 5.8 mm (0.23 inch)

 F

Example: If F = 2.9 mm (0.11 inch), then W = 2.9 mm
(0.11 inch)

If the crimping amount is smaller than 2.4 mm (0.10

inch)
Remove the EBJ boot band, readjust the value of
(W) in step 12 according to the following formula,
and then repeat the operations in steps 13 and 14
using a new EBJ boot band.
W = 5.8 mm (0.23 inch)

 F

Example: If F = 2.3 mm (0.09 inch), then W = 3.5 mm
(0.14 inch)

16.Check that the boot band is not sticking out past the place

where it has been installed. If the boot band is sticking out,
remove it and then repeat steps 13 to 15, using a new boot
band.

NOTES

33-1

GROUP 33

FRONT

SUSPENSION

CONTENTS

GENERAL INFORMATION . . . . . . . .

33-2

FASTENER TIGHTENING



SPECIFICATIONS . . . . . . . . . . . . . . .

33-2

GENERAL SPECIFICATIONS . . . . . .

33-3

SERVICE SPECIFICATIONS. . . . . . .

33-3

FRONT SUSPENSION DIAGNOSIS .

33-4

INTRODUCTION TO FRONT SUSPENSION
DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

33-4

FRONT SUSPENSION DIAGNOSIS
TROUBLESHOOTING STRATEGY . . . . . .

33-4

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

33-4

SYMPTOM PROCEDURES . . . . . . . . . . . .

33-4

SPECIAL TOOLS. . . . . . . . . . . . . . . .

33-6

ON-VEHICLE SERVICE. . . . . . . . . . .

33-7

FRONT WHEEL ALIGNMENT CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

33-7

LOWER ARM BALL JOINT LOOSENESS



CHECK  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33-8

BALL JOINT DUST COVER CHECK  . . . . .

33-8

STRUT ASSEMBLY . . . . . . . . . . . . . .

33-10

REMOVAL AND INSTALLATION  . . . . . . . .

33-10

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

33-11

DISASSEMBLY AND REASSEMBLY . . . . .

33-11

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

33-14

LOWER ARM  . . . . . . . . . . . . . . . . . . .

33-15

REMOVAL AND INSTALLATION  . . . . . . . .

33-15

LOWER ARM CHECK. . . . . . . . . . . . . . . . .

33-16

LOWER ARM BALL JOINT DUST COVER
REPLACEMENT . . . . . . . . . . . . . . . . . . . . .

33-16

STABILIZER BAR. . . . . . . . . . . . . . . .

33-17

REMOVAL AND INSTALLATION  . . . . . . . .

33-17

STABILIZER LINK CHECK . . . . . . . . . . . . .

33-18

GENERAL INFORMATION

TSB Revision

FRONT SUSPENSION

33-2

GENERAL INFORMATION

M1332000101198

The MacPherson strut type suspension is adopted.

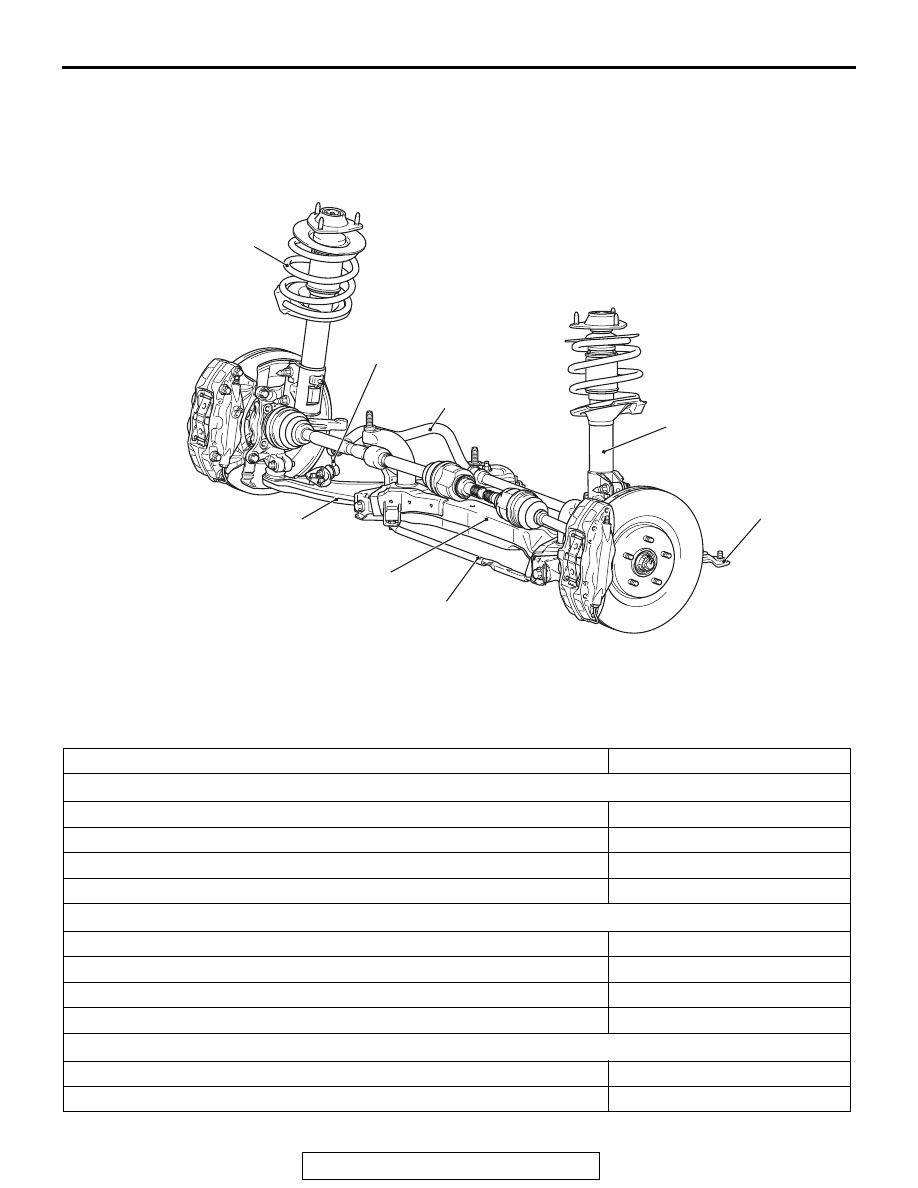

CONSTRUCTION DIAGRAM

AC703648 AC

Strut assembly

Stabilizer bar

Stabilizer link

Coil spring

Lower arm

Front axle crossmember

Crossmember brace

Lower brace bar

FASTENER TIGHTENING SPECIFICATIONS

M1332008500335

Item

Specification

Lower arm assembly
Lower arm to crossmember connection bolt (Front)

110

± 11 N⋅ m (81 ± 8 ft-lb)

Lower arm to crossmember connection nut (Rear)

110

± 11 N⋅ m (81 ± 8 ft-lb)

Lower arm to knuckle connection nut

71

± 10 N⋅ m (53 ± 7 ft-lb)

Lower arm to stabilizer link bracket connection bolt

39

± 5 N⋅ m (29 ± 4 ft-lb)

Stabilizer bar
Stabilizer fixture bolt

31

± 4 N⋅ m (23 ± 3 ft-lb)

Stabilizer link bracket to Lower arm connection bolt

39

± 5 N⋅ m (29 ± 4 ft-lb)

Stabilizer to stabilizer link connection nut

39

± 6 N⋅ m (29 ± 4 ft-lb)

Stabilizer bracket to stabilizer link connection nut

39

± 6 N⋅ m (29 ± 4 ft-lb)

Strut assembly
Strut assembly self-locking nut

61

± 9 N⋅ m (45 ± 7 ft-lb)

Strut assembly to body connection nut

45

± 7 N⋅ m (33 ± 5 ft-lb)
