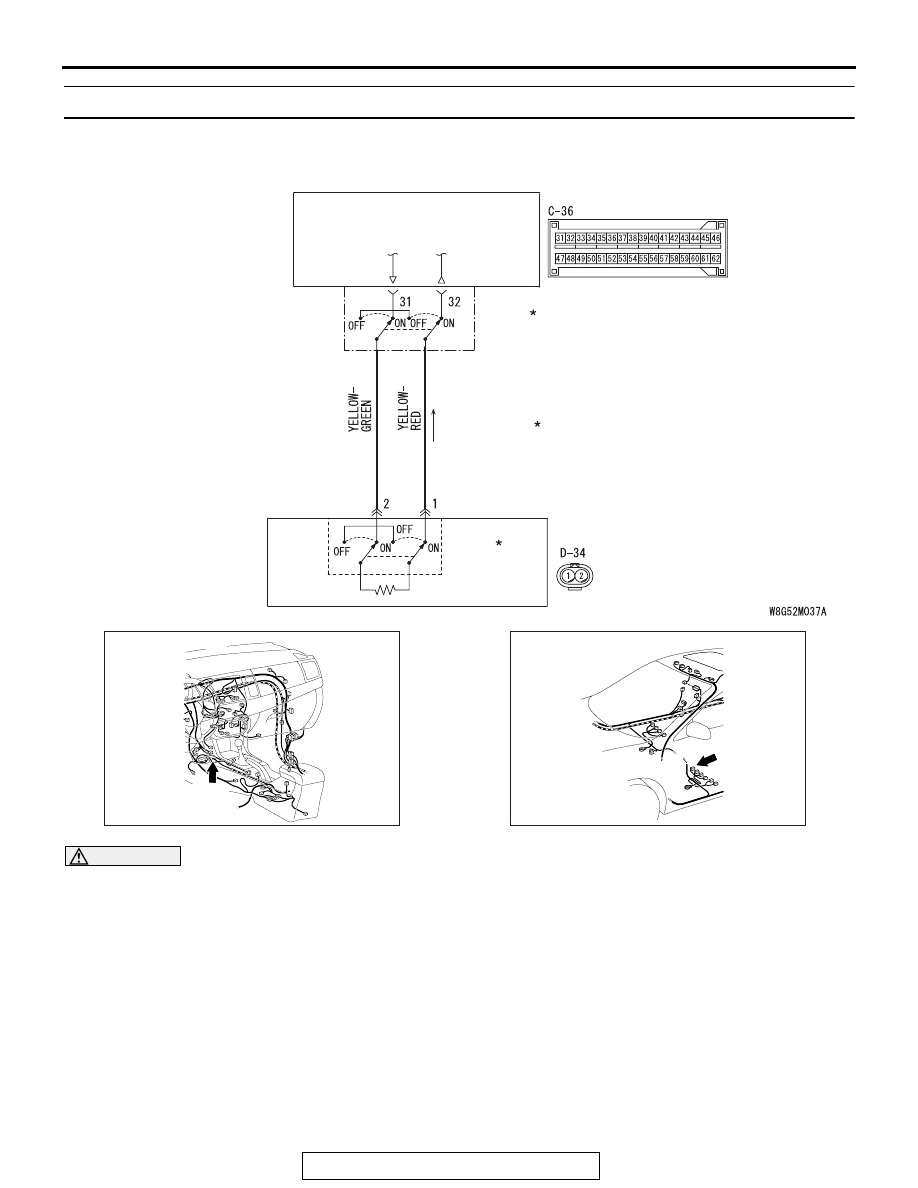

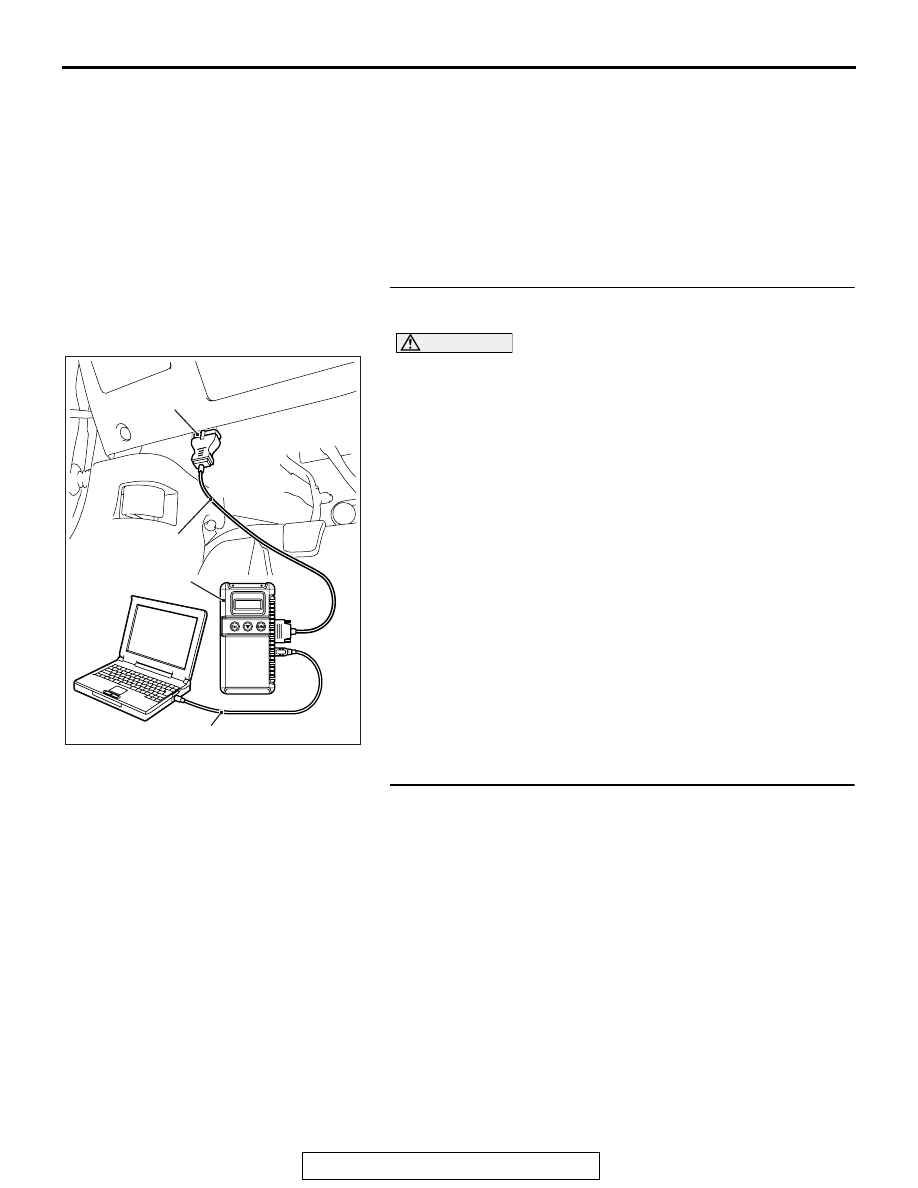

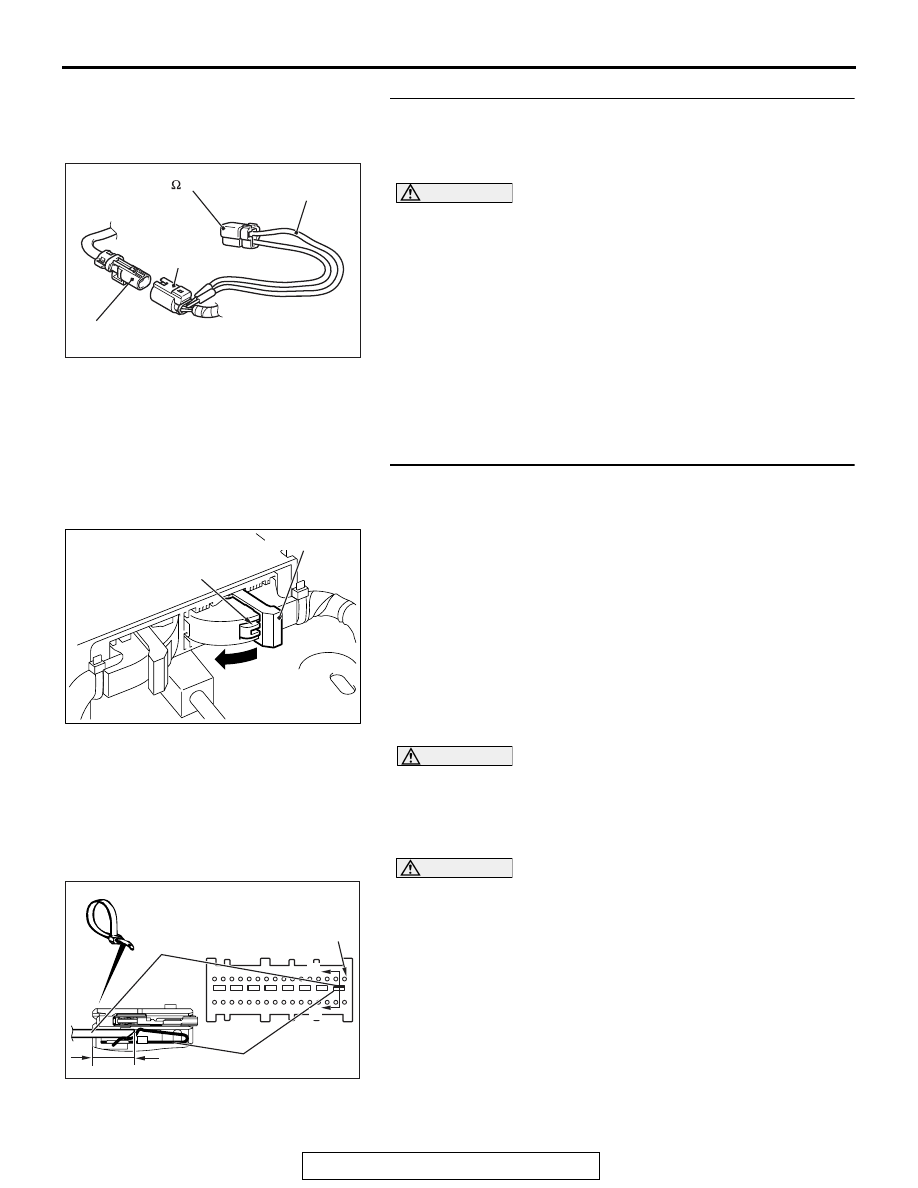

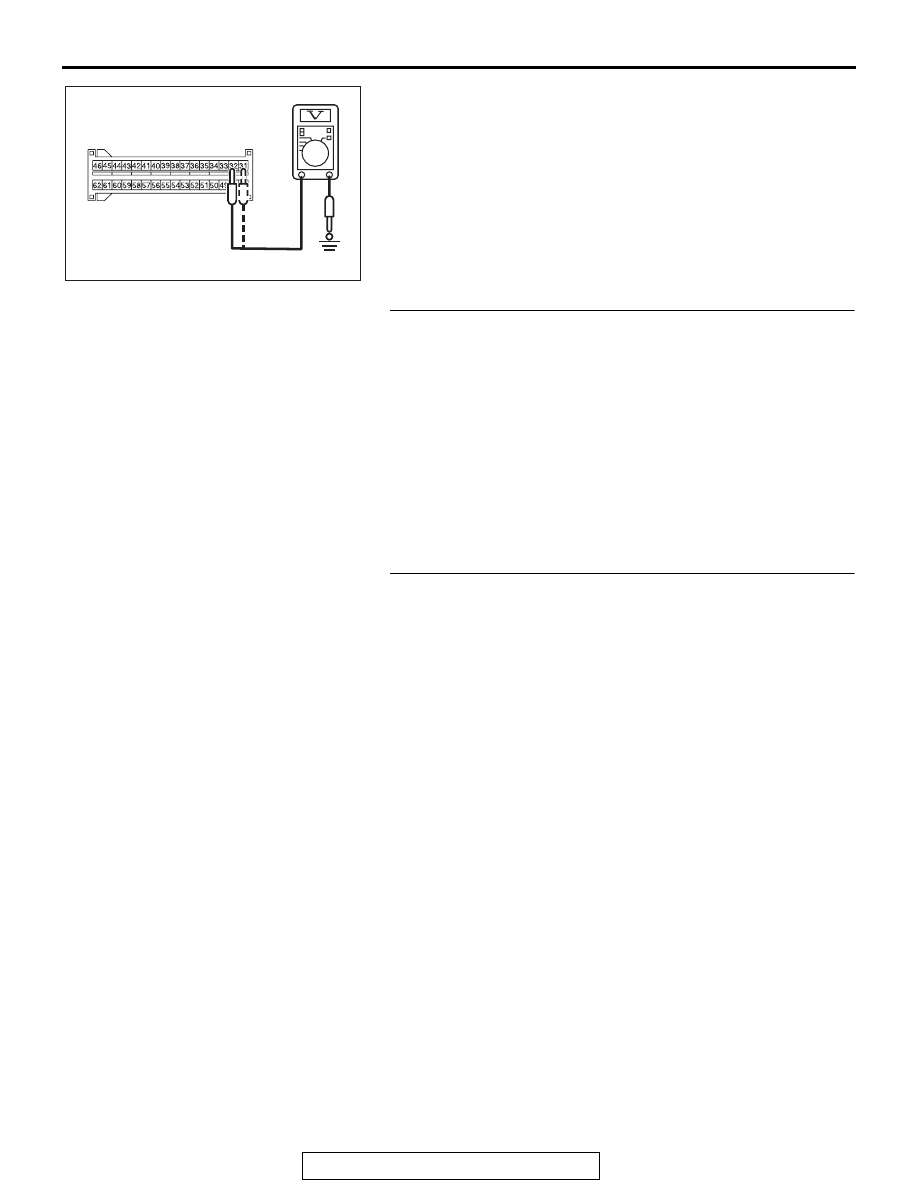

SRS AIR BAG DIAGNOSIS TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-183 DTC B1C28: Side-air bag Module (LH) (Squib) System (Shorted to Squib Circuit Power Supply) CAUTION If DTC B1C28 is set in the SRS-ECU, always diag- . CIRCUIT OPERATION • The SRS-ECU judges how severe a collision is by detecting signals from the side impact sensor • The ignition signal is input to the side-air bag module to inflate the side-air bag. . DTC SET CONDITIONS This DTC is set if there is abnormal resistance . TROUBLESHOOTING HINTS • Damaged wiring harnesses or connectors • Short to the power supply in the side-air bag module (LH) (squib) harness • Malfunction of the SRS-ECU SIDE-AIR BAG MODULE CONNECTOR CONNECTOR SRS-ECU Side-airbag Module (Squib) (LH) Circuit NOTE : CONNECTOR COUPLED : ON CONNECTOR UNCOUPLED : OFF AC708951AD Connector: C-36 C-36 (Y) AC708954 AD Connector: D-34 D-34 (Y) |
