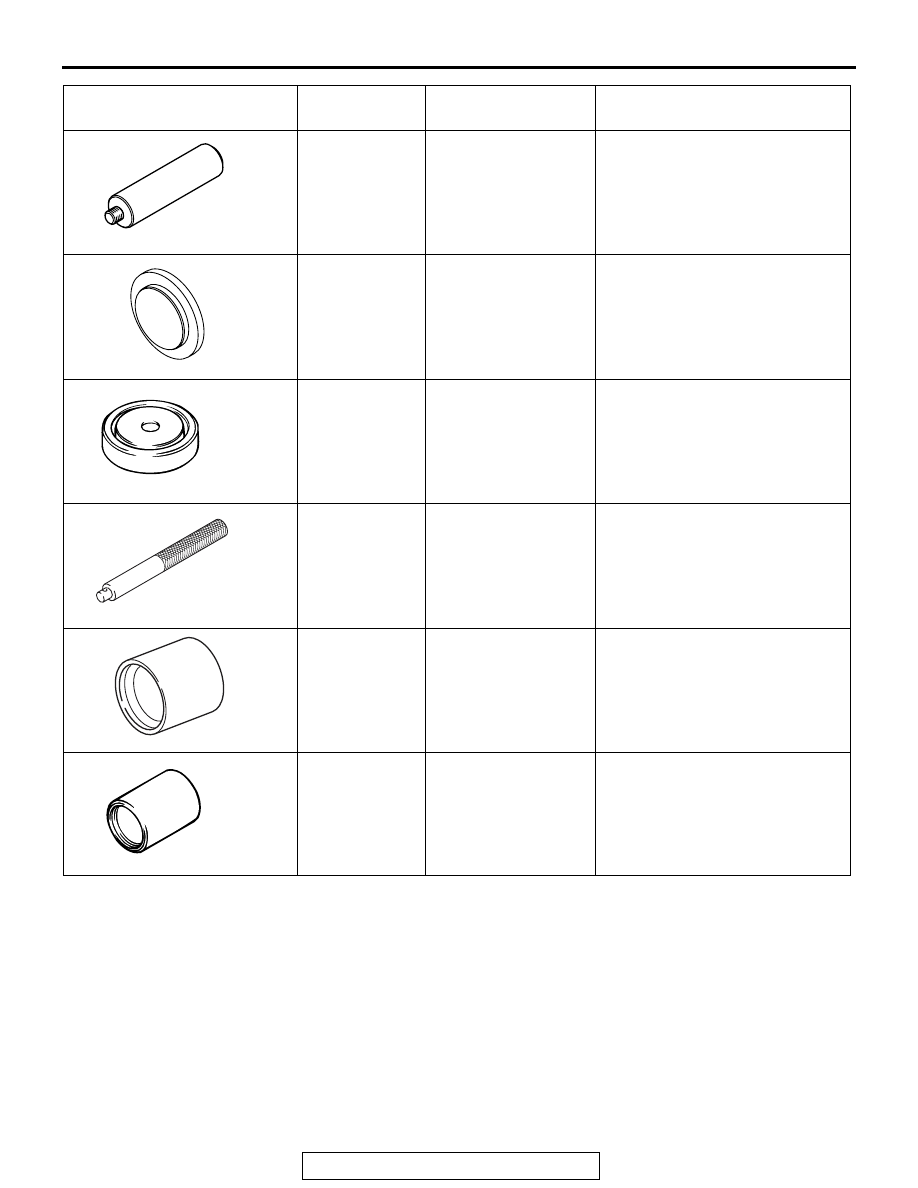

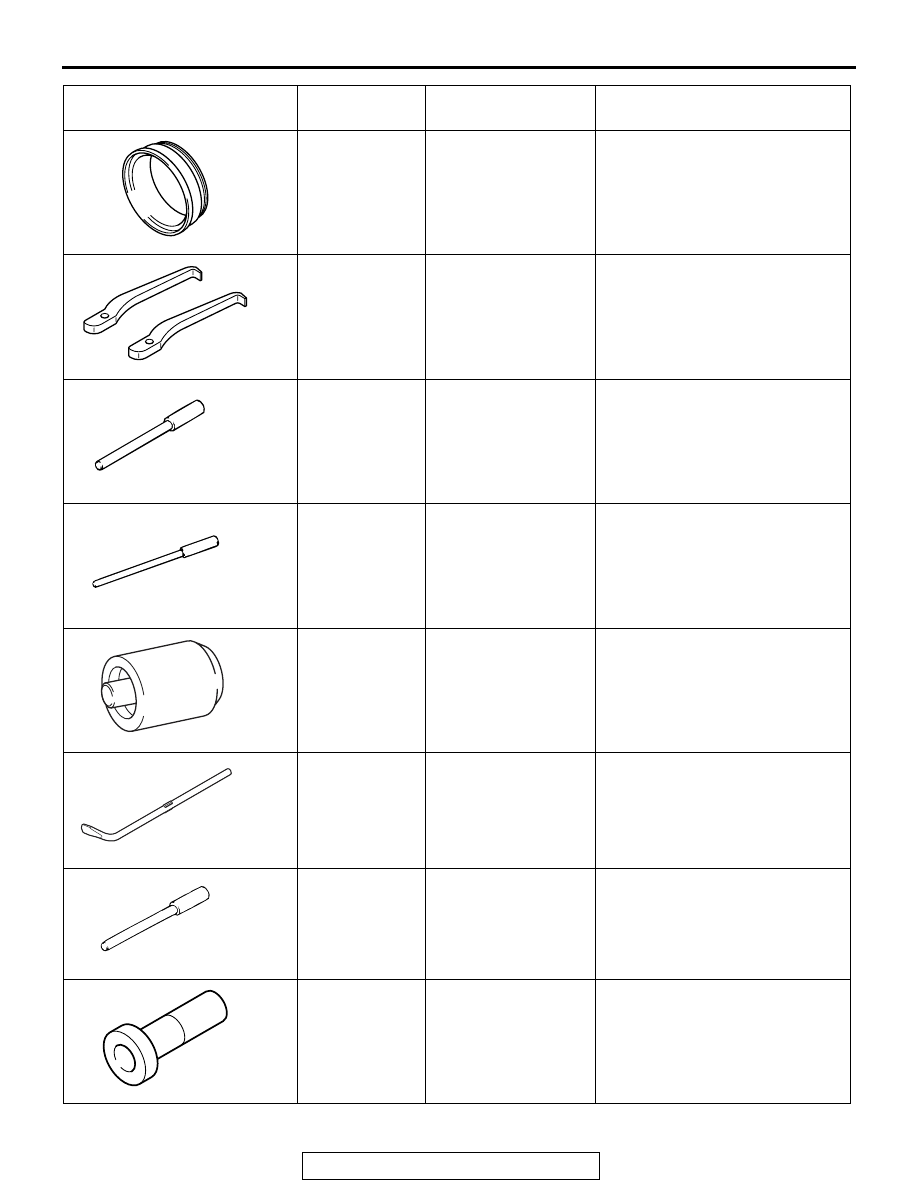

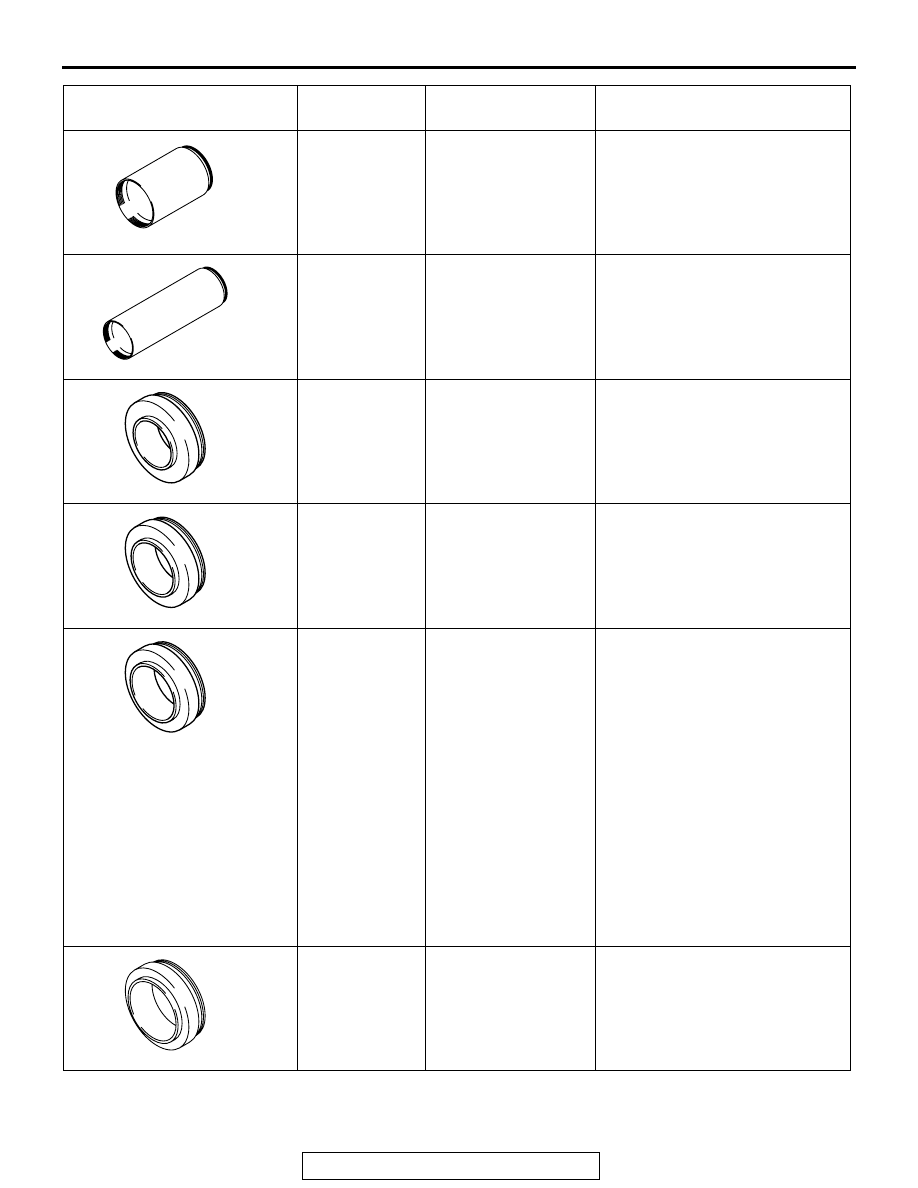

SPECIAL TOOLS

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-9

MD998813
Installer-100

General service tool

Use with installer cap and
installer adapter

MD998814
Installer-200

MIT304180

Use with installer cap and
installer adapter

MD998819
Installer adapter
(40)

General service tool

• Installation of taper roller

bearing

• Installation of output shaft 5th

speed gear

MD998821
Installer adapter
(44)

MD998821

Installation of output shaft 4th
speed gear

MD998822
Installer adapter
(46)

−

• Installation of input shaft

3rd-4th speed synchronizer
sleeve and 3rd-4th speed
synchronizer hub

• Installation of input shaft 5th

speed synchronizer sleeve
and 5th speed synchronizer
hub

• Installation of input shaft 4th

speed gear sleeve

• Installation of input shaft 5th

speed gear sleeve

• Installation of input shaft taper

roller bearing

• Installation of output shaft 3rd

speed gear

MD998824
Installer adapter
(50)

General service tool

• Installation of output shaft 1st

gear sleeve

• Installation of output 1st-2nd

speed synchronizer hub

• Installation of output 2nd

speed gear sleeve

Tool

Tool number
and name

Supersession

Application

SPECIAL TOOLS

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-10

MD998830
Installer adapter
(66)

−

Removal of center differential
taper roller bearing

MD999566
Claw

General service tool

Removal of control housing oil
seal

MB990947

MB990947
Lower arm push
arbor

MB990947-01 or
general service tool

Removal of control housing slide
ball bearing

MB990984
Mount bushing
remover and
installer arbor

−

Installation of control housing
slide ball bearing

MB991246
Lower arm
bushing arbor

−

Installation of control housing oil
seal

MB991946
Pry bar

−

Removal of oil guide

MB990883

MB990883
Rear
suspension
bushing arbor

MB990883-01 or
general service tool

• Removal of slide ball bearing

• Installation of slide ball bearing

MD999547
Oil seal installer

−

• Installation of oil guide

• Installation of center

differential taper roller bearing

Tool

Tool number
and name

Supersession

Application

SPECIAL TOOLS

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-11

MB992075
Handle

−

Installation of oil seal

MB992271
Oil seal installer

−

Installation of oil seal

MB991115
Oil seal installer

MB991015-01

Installation of center differential
oil seal

MB990938
Installer bar

MB990938-01

Installation of center differential
oil seal

MB992272
Bearing installer

−

Installation of center differential
taper roller bearing

MB990847

MB990847
Rear
suspension
bushing
remover and
installer base

MB990847

Installation of center differential
taper roller bearing

Tool

Tool number
and name

Supersession

Application

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-12

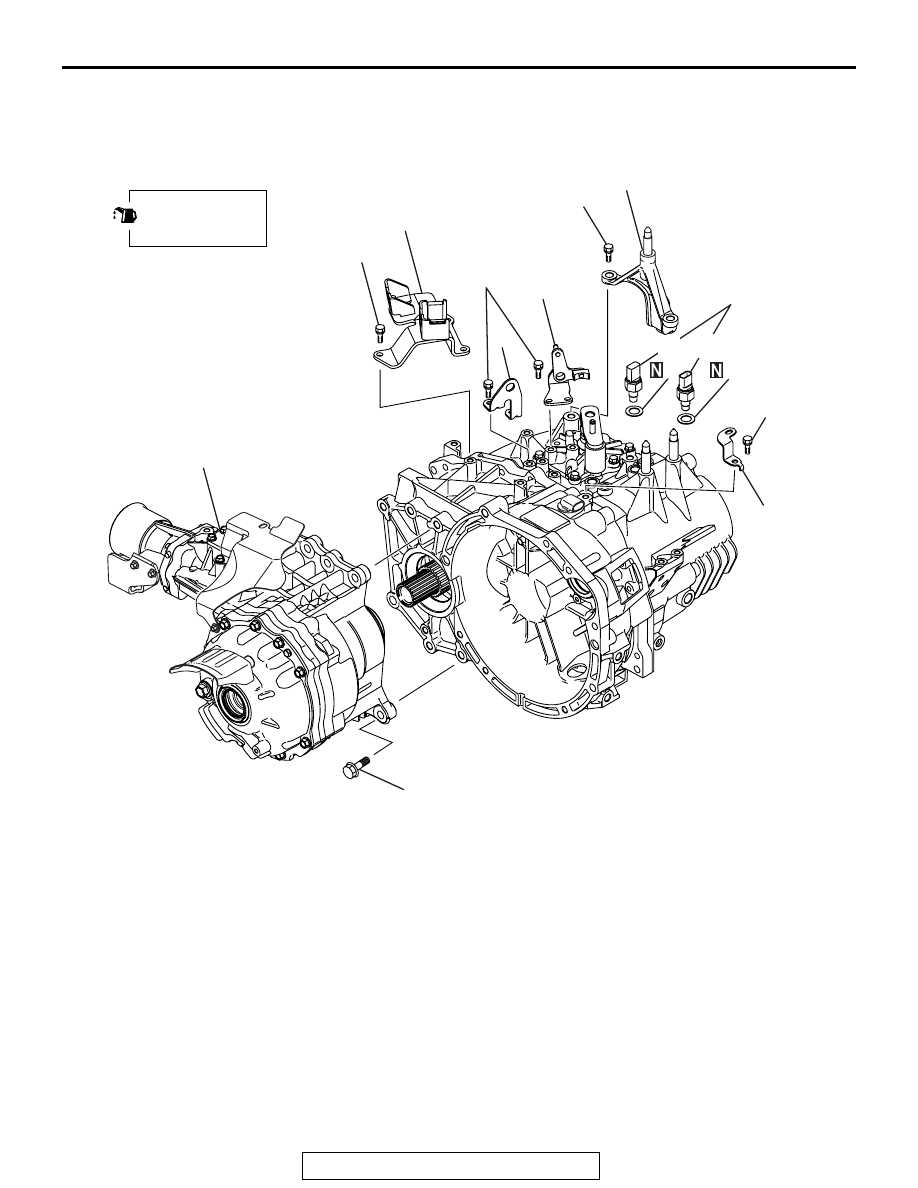

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1222016500042

AK703151

AC

3

10

4

2

1

9

8

6

7

5

69 ± 9 N·m
51 ± 6 ft-lb

24 ± 4 N·m
17 ± 2 ft-lb

24 ± 4 N·m
17 ± 2 ft-lb

24 ± 4 N·m
17 ± 2 ft-lb

32 ± 2 N·m
24 ± 1 ft-lb

50 ± 5 N·m
37 ± 3 ft-lb

Apply gear oil to
all moving parts
before installation.

Removal steps

1. Transfer assembly

>>J<<

2. Shift cable bracket
3. Stud adapter
4. Hanger bracket

>>I<<

5. 1st-2nd speed rail switch

6. Gasket

>>I<<

7. Back-up light switch
8. Gasket
9. Harness bracket
10. Select lever

Removal steps (Continued)
