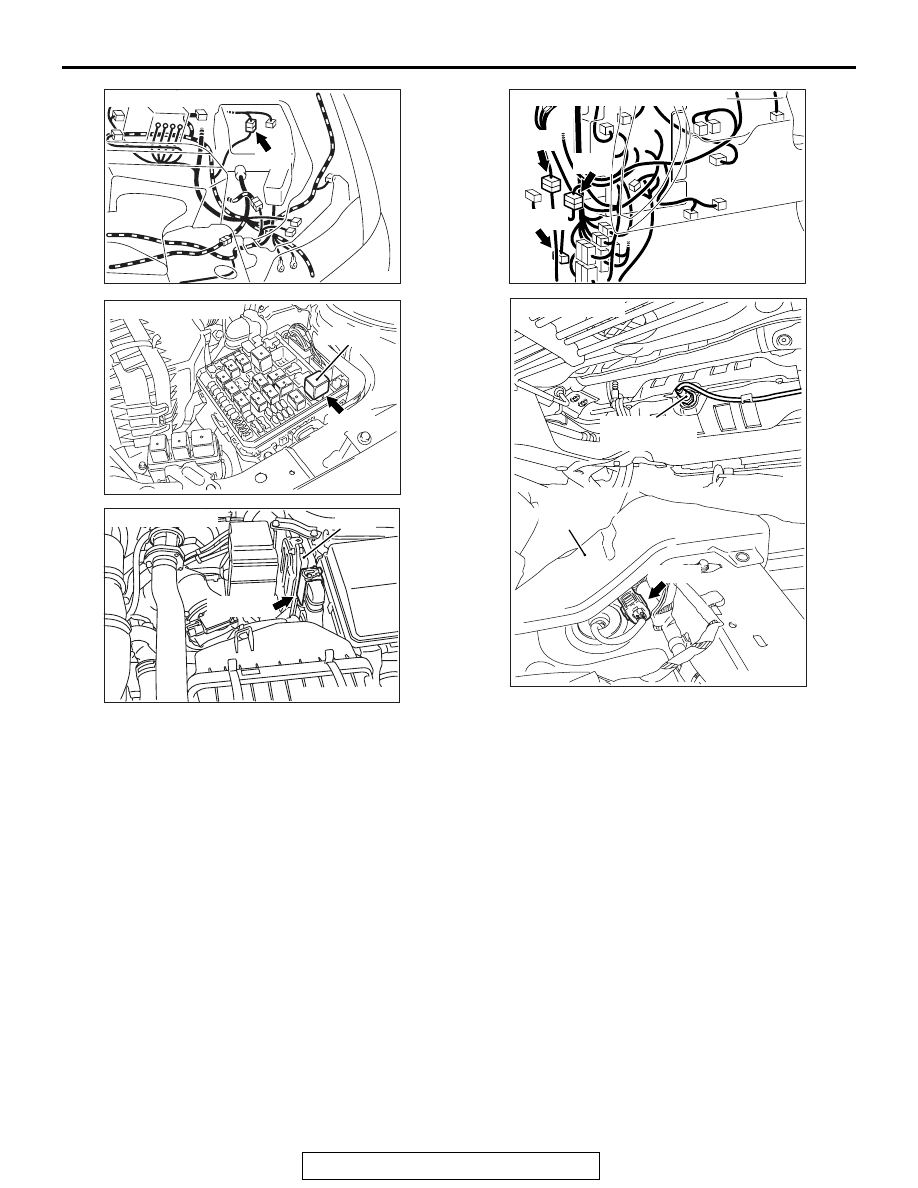

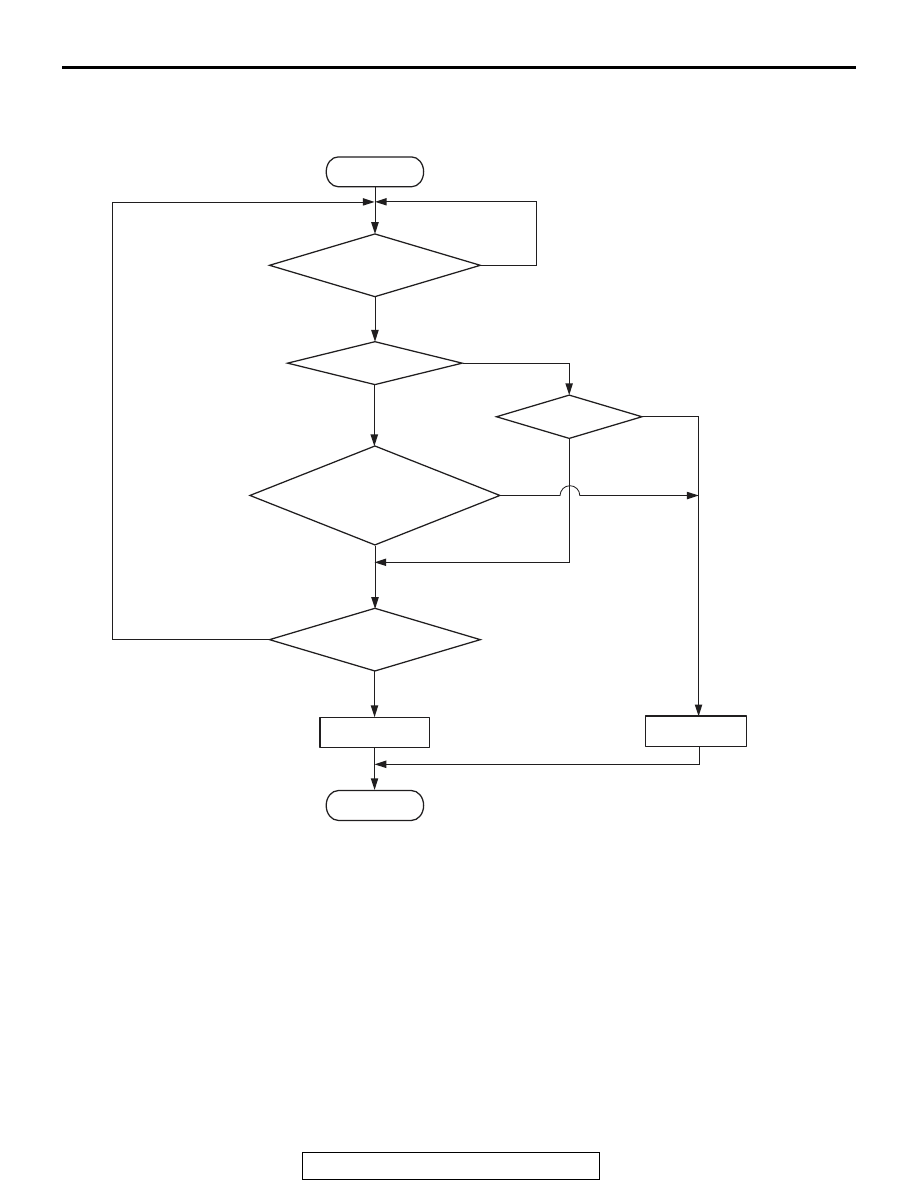

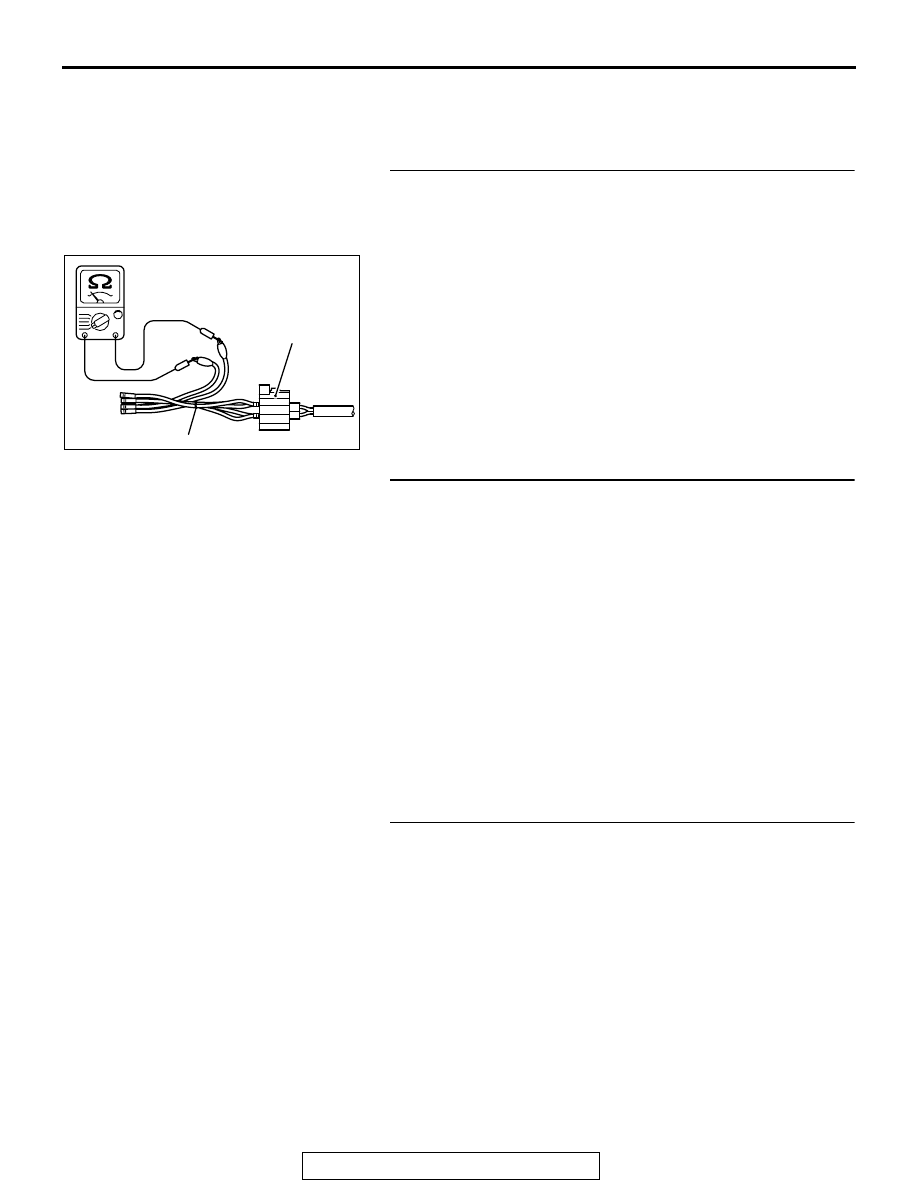

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) 13A-85 . CIRCUIT OPERATION • Power is supplied from the MFI relay (terminal No. 2) to the heated oxygen sensor (rear) heater. • The ECM (terminal No. 35) controls continuity to the heated oxygen sensor (rear) heater by turn- . TECHNICAL DESCRIPTION • The ECM checks whether the heater current is within a specified range when the heater is ener- . DESCRIPTIONS OF MONITOR METHODS Heated oxygen sensor heater (rear) current is out of specified range. . MONITOR EXECUTION Continuous . MONITOR EXECUTION CONDITIONS Other Monitor (There is no temporary DTC stored in memory for the item monitored below) • Not applicable Sensor (The sensor below is determined to be normal) • Not applicable . AK704229AB Connector: A-13 A-13 AK704226 Connector: A-34X MFI relay A-34X AB AK704227 Connector: B-09 ECM B-09 (GR) AB AK704231 Connectors: C-43, C-45 and C-47 C-47 C-45 C-43 (B) AB AK704232 Heated oxygen Connector: D-35 D-35 (B) AB Rear heater |
