OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL

11B-27

OIL PAN AND TIMING CHAIN CASE

REMOVAL AND INSTALLATION

M1113026300613

AK702229AC

1

2

3

4

5

6

2.5 ± 0.4 N·m
22 ± 3 in-lb

11

10

5.5 ± 0.5 N·m
49 ± 4 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

45 ± 5 N·m
33 ± 3 ft-lb

15

24 ± 4 N·m
18 ± 2 ft-lb

8

7

39 ± 5 N·m
29 ± 3 ft-lb

12

9

14 ± 2 N·m
124 ± 17 in-lb

13

13 ± 1 N·m
115 ± 8 in-lb

17

14

29 ± 2 N·m
21 ± 1 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

16

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

→

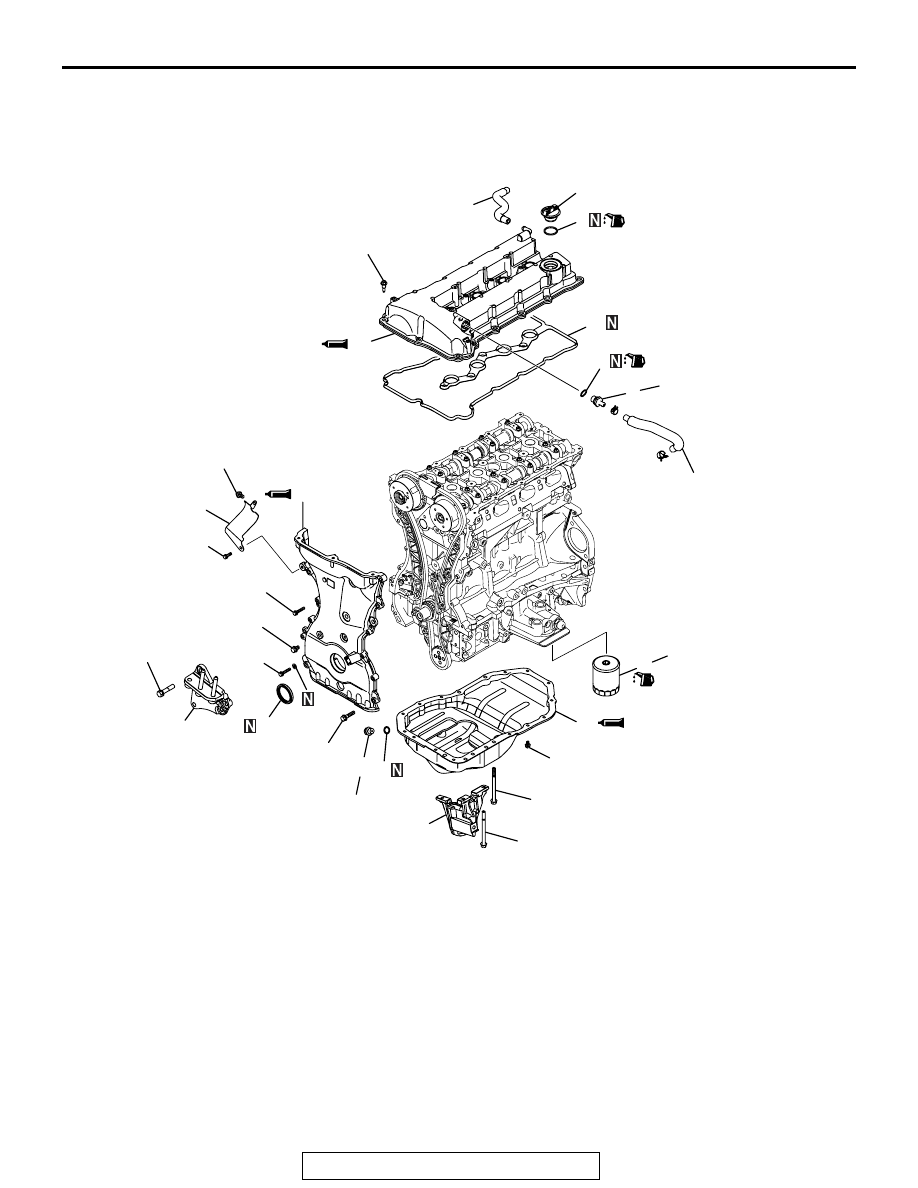

Removal steps

1. Breather hose
2. PCV hose
3. PCV valve
4. O-ring
5. Oil filler cap
6. O-ring
7. Oil drain plug
8. Oil drain plug gasket

<<A>> >>E<<

9. Oil filter

>>D<<

10. Cylinder head cover
11. Cylinder head cover gasket
12. Air compressor bracket

<<B>> >>C<<

13. Oil pan
14. Engine support bracket

>>B<<

15. Front oil seal
16. Engine oil control valve heat

protector

<<C>> >>A<<

17. Timing chain case

Required Special Tools:

• MB991610: Oil Filter Wrench

• MD998727: Oil Pan FIPG Cutter

• MB991448: Bush Remover And Installer Base

Removal steps (Continued)

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL

11B-28

REMOVAL SERVICE POINTS

.

<<A>> OIL FILTER REMOVAL

AK703592AC

MB991610

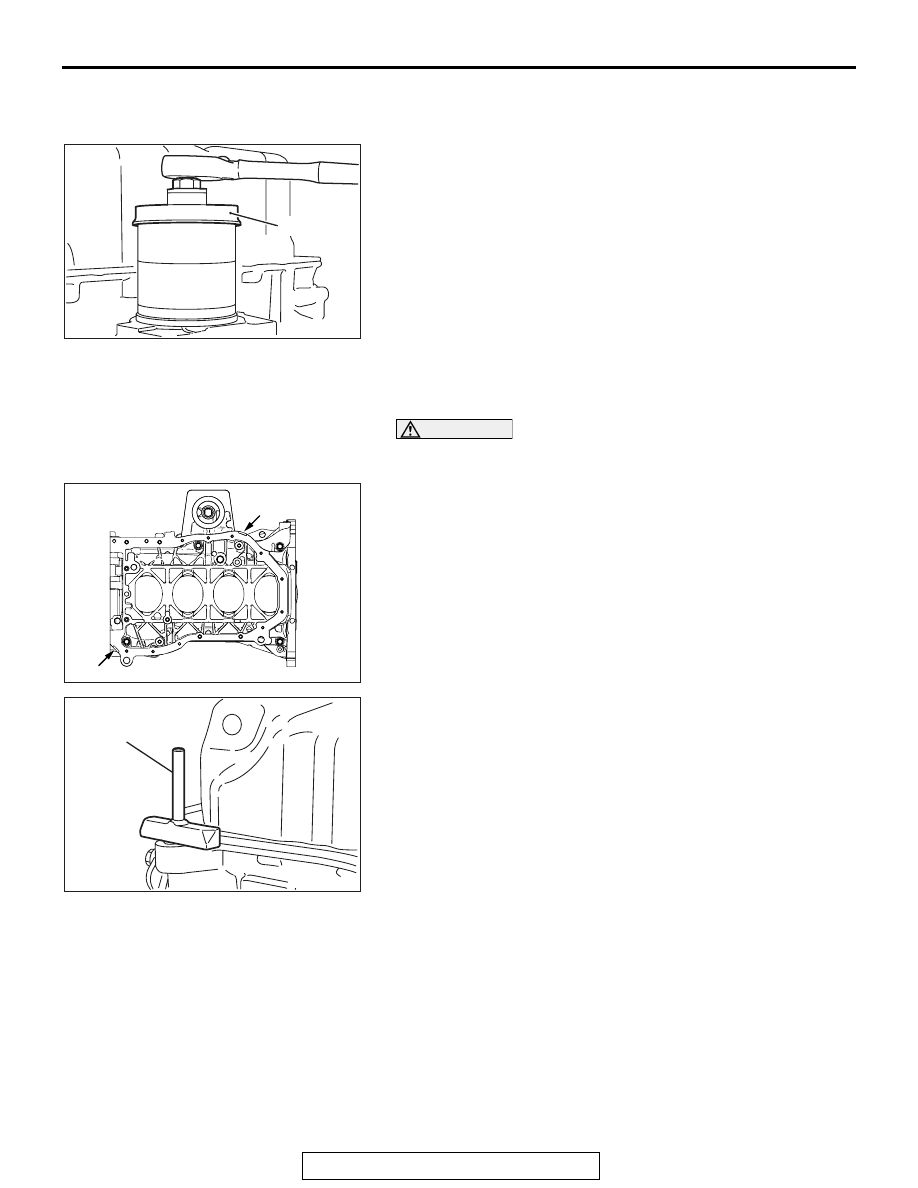

Use special tool MB991610 to remove the oil filter.

.

<<B>> OIL PAN REMOVAL

1. Remove oil pan tightening bolts.

CAUTION

Lightly tap the oil pan FIPG cutter to drive in, taking care
not to damage the ladder frame and oil pan sealed area.

AK702205AC

Groove

Groove

2. Lightly tap special tool MD998727 to drive in the illustrated

groove of the oil pan and ladder frame.

AK502732AD

MD998727

3. Lightly tap and slide special tool MD998727 to remove the

oil pan.

.

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL

11B-29

<<C>> TIMING CHAIN CASE REMOVAL

AK502907

Hammer

AD

If the timing chain case is difficult to remove, insert a hammer
handle as shown in the illustration and lightly pry it.

INSTALLATION SERVICE POINTS

.

>>A<< TIMING CHAIN CASE INSTALLATION

CAUTION

• Completely remove all the old liquid gasket, which

might be remaining in the installation hole, the O-ring
groove or among the components such as the cylinder
head gasket.

• Sufficiently check that there is no residual oil on the

place where degreasing is performed. If fingerprints are
left, do not touch it with bare hands after the degreas-
ing, since the oils from your fingers will harm the seal
ability.

1. Completely remove liquid gasket adhering to the timing

chain case, cylinder block and cylinder head.

2. Using white gasoline and so on, degrease the surface where

the liquid gasket is applied and the contact surface between
the cylinder block and the cylinder head.

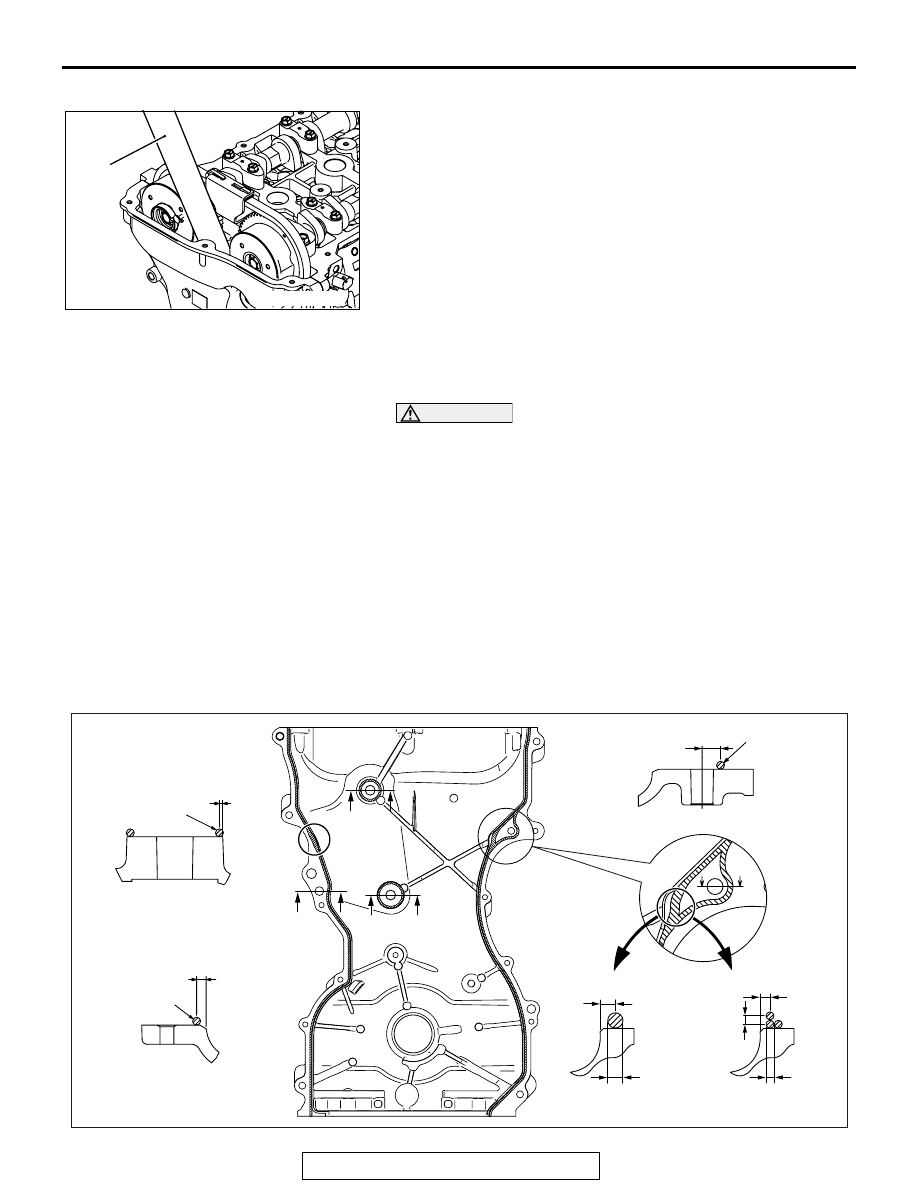

AK703733

D

A

A

B-B view

A-A view

D

AD

B

A

A

G

C

C-C view

C

B

B

7.5 ± 0.5 mm
(0.30 ± 0.02 in)

3.0 ± 0.5 mm
(0.12 ± 0.02 in)

2.5 mm
(0.10 in)

1.0 ± 0.5 mm
(0.04 ± 0.02 in)

Ø2.5 ± 0.5 mm
(0.10 ± 0.02 in)

4.5 ± 0.5 mm
(0.18 ± 0.02 in)

3.0 ± 0.5 mm
(0.12 ± 0.02 in)

Ø2.5 ± 0.5 mm
(0.10 ± 0.02 in)

Ø2.5 ± 0.5 mm
(0.10 ± 0.02 in)

Ø4.5 ± 0.5 mm
(0.18 ± 0.02 in)

Ø2.5 ± 0.5 mm
(0.10 ± 0.02 in)

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL

11B-30

CAUTION

Install the timing chain case within three minutes after
applying liquid gasket.
3. Apply liquid gasket (Three bond 1217G [Mitsubishi Genuine

Part No.1000A923] or equivalent) of 2.5

± 0.5 mm (0.10 ±

0.02 inch) in thickness to the timing chain case. For
illustrated A locations, however, apply liquid gasket of 4.5

±

0.5 mm (0.18

± 0.02 inch) in diameter or liquid gasket of 2.5

± 0.5 mm (0.10 ± 0.02 inch) by putting one on top of another

as shown in the illustration.

AK703734AD

4. Completely remove the sealant remaining on the gasket

which is the three-plane mating surface between the
cylinder head and the cylinder block. Use the white gasoline
to degrease them.

5. The engine oil remaining at the cylinder gasket overflows

from the three-plane mating surface described in Section 4.
Apply the liquid gasket (Three bond 1217G [Mitsubishi
Genuine Part No.1000A923] or equivalent) to this area as
soon as grease is removed.

6. Install the timing chain case.
