Mitsubishi Evolution X. Manual - part 1259

AC708725

AB

N

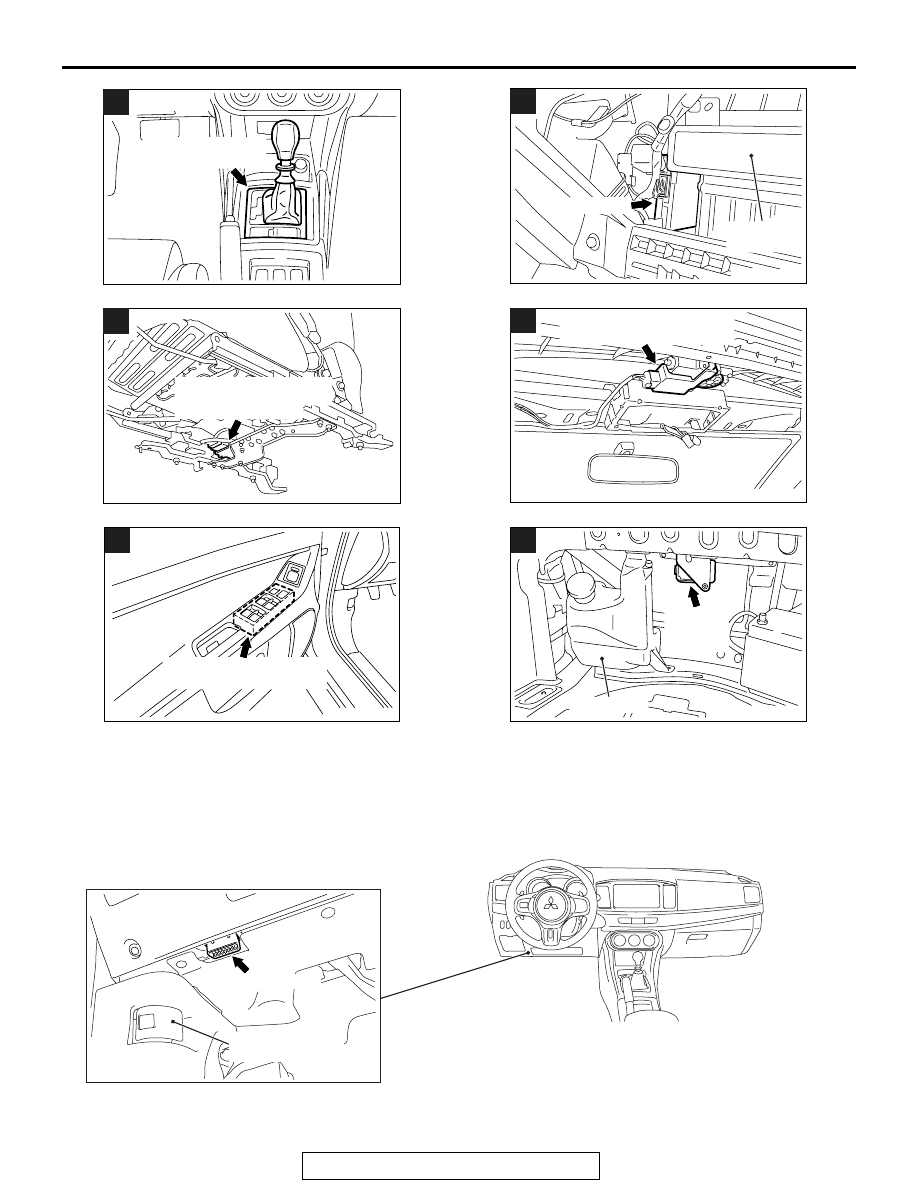

Shift lever
(incorporating CPU)

<TC-SST>

AC605628

AF

O

A/C-ECU

Heater unit
assembly

AC709127

AB

Front seat assembly (RH)
(incorporating occupant
classification-ECU)

P

AC605642

AL

Sunroof assembly
(incorporating sunroof-ECU)

Q

AC605639

AG

Power window main switch
(incorporating CPU)

R

AC708728

AB

S

Receiver
antenna
assembly

Washer tank

INSPECTION TERMINAL

TSB Revision

COMPONENT LOCATIONS

70-7

INSPECTION TERMINAL

M1701000200990

AC708718

AC708717

AB

Data link connector

Hood lock release
handle

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-8

SENSOR

M1701000601601

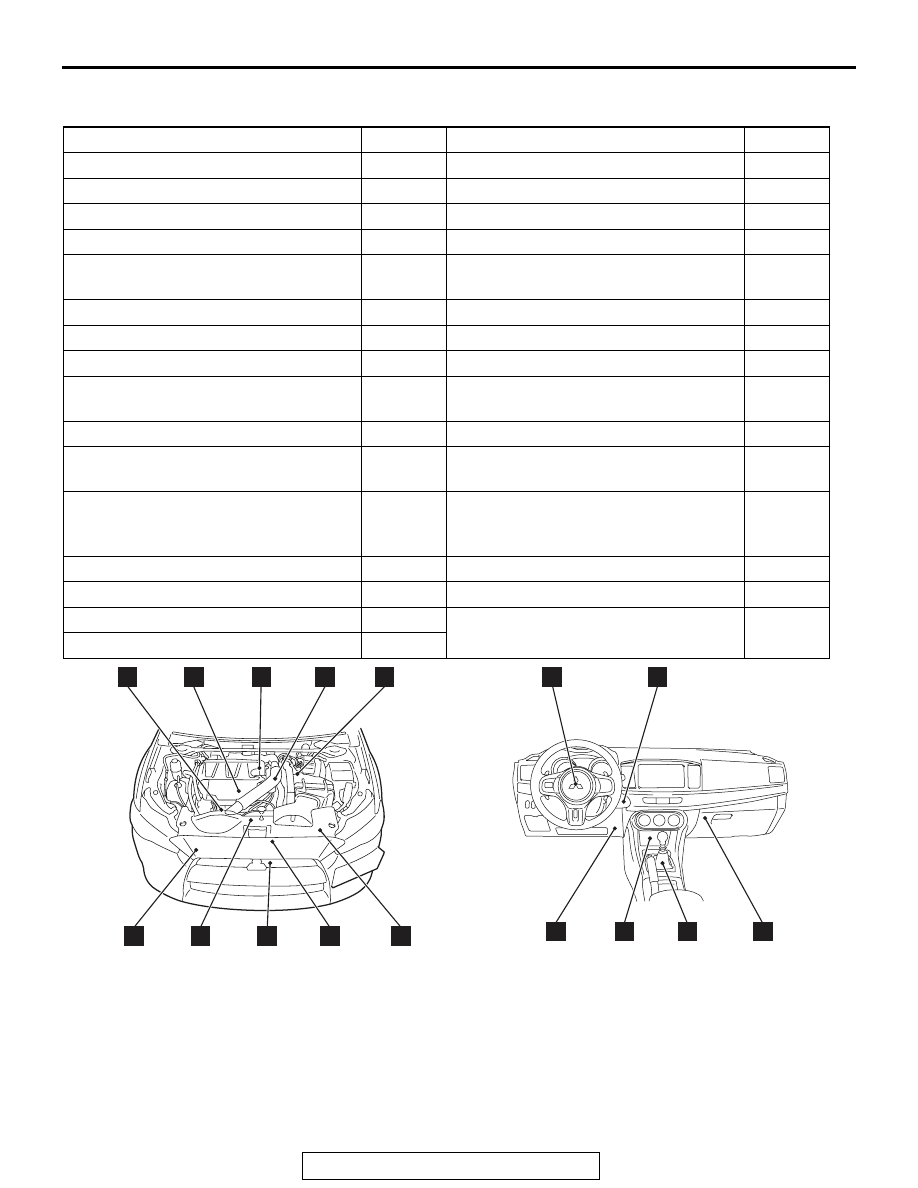

Name

Symbol

Name

Symbol

A/C pressure sensor

F

Intake air temperature sensor 2

B

Accelerator pedal position sensor

M

Intake camshaft position sensor

B

Ambient air temperature sensor

H

Interior temperature sensor

L

Crankshaft position sensor

I

Knock sensor

G

Engine coolant temperature sensor

D

Lighting control sensor <Vehicles with
automatic light>

R

Exhaust camshaft position sensor

C

Manifold absolute pressure sensor

A

Fin thermo sensor

P

Mass airflow sensor

E

Front impact sensor

J

Pressure sensor

U

Front passenger’s seat (incorporating
weight sensor)

Q

Rear wheel speed sensor

a

Front wheel speed sensor

V

Seat slide sensor

X

Fuel level sensor (sub)

T

Shift lever (incorporating shift position
sensor) <TC-SST>

O

Fuel pump module (incorporating fuel
level sensor (main) and fuel tank
temperature sensor)

Z

Side impact sensor

Y

Fuel tank differential pressure sensor

Z

Steering wheel sensor

K

G and yaw rate sensor

N

Unlock sensor <Vehicles with KOS>

S

Heated oxygen sensor (Front)

W

Throttle body assembly (incorporating
throttle position sensor)

B

Heated oxygen sensor (Rear)

W

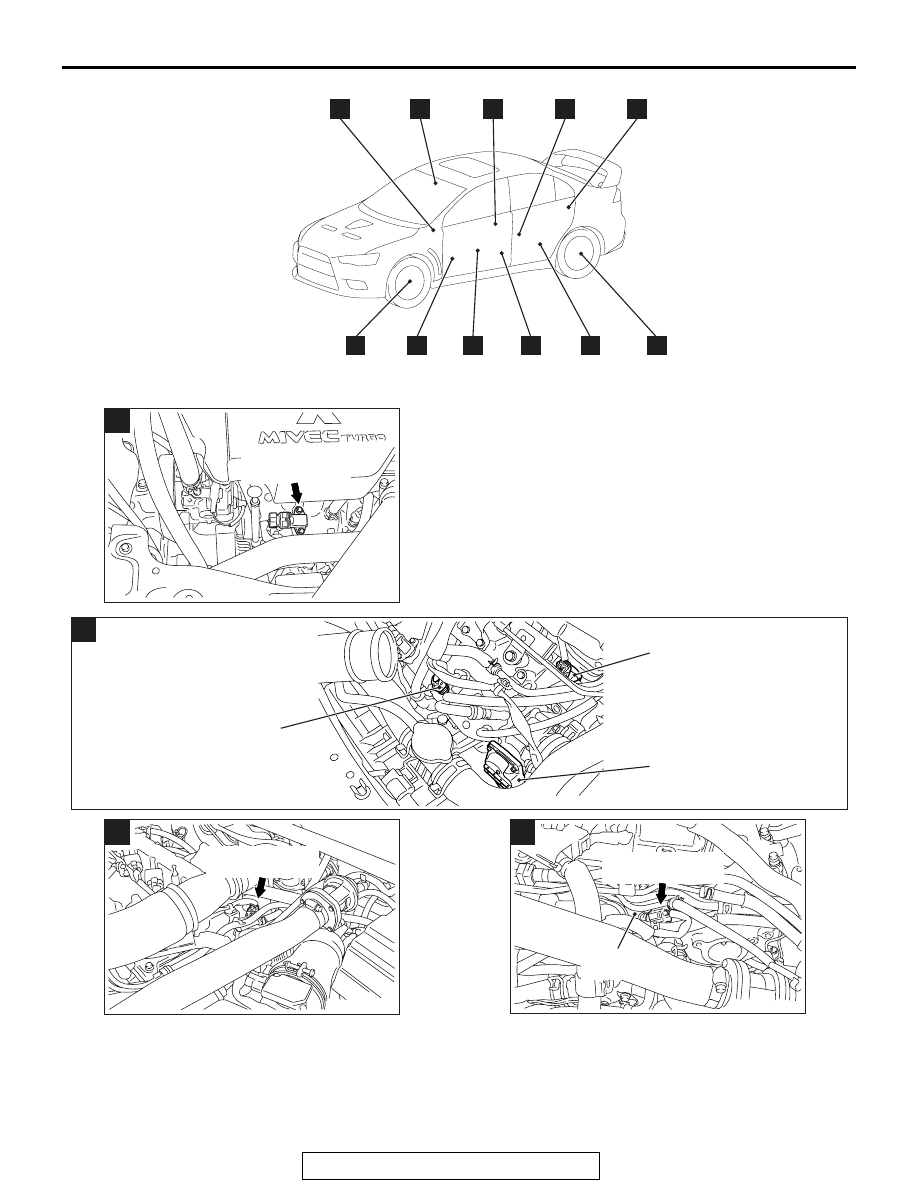

AC708720

A

K

L

D

B

F

C

I

E

G

H

P

N

O

M

J

AD

*

AC705160AF

Q

R

S

T

V

W

Y

Z

a

*

*

*

X

U

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-9

NOTE: The * symbols indicate equipped at both sides.

AC705169AC

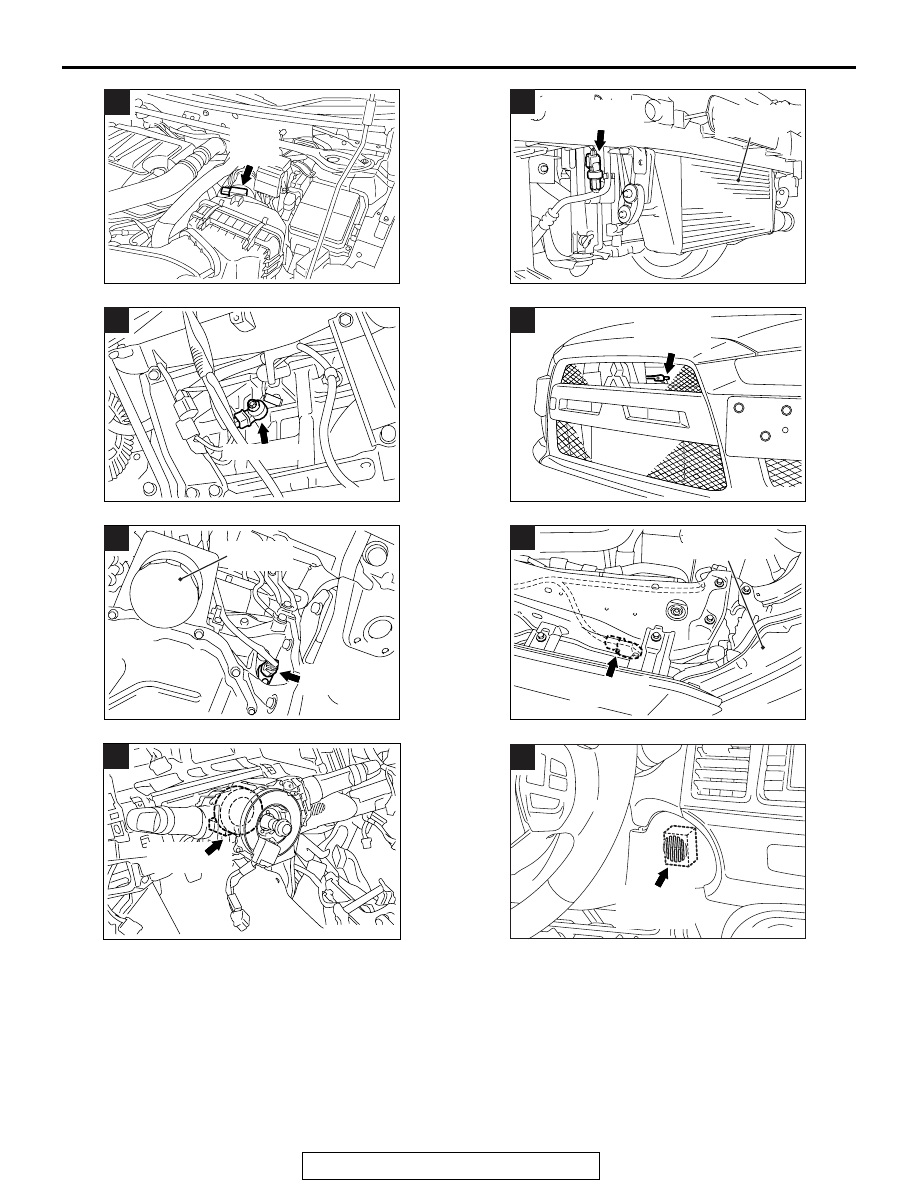

A

Manifold absolute
pressure sensor

AC705483

AC

B

Intake air
temperature
sensor 2

Intake camshaft
position sensor

Throttle body assembly
(incorporating throttle
position sensor)

AC705959AC

C

Exhaust camshaft
position sensor

AC705489AC

D

Engine coolant
temperature sensor

Thermostat
case

AC705473

E

AC

Mass
airflow
sensor

AC705964AC

A/C pressure
sensor

F

Intercooler
assembly

AC705474

AC

G

Knock sensor

AC705476

AC

H

Ambient air
temperature
sensor

AC705480

AC

I

Engine oil
filter

Crankshaft
position sensor

AC703999

AE

J

Headlight
assembly (LH)

Front impact
sensor

AC612154

AH

Steering
wheel sensor

K

AC605671

Interior
temperature
sensor

L

AG

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-10
