IGNITION KEY REMINDER TONE ALARM <VEHICLES WITHOUT KOS>

TSB Revision

CIRCUIT DIAGRAMS

90-330

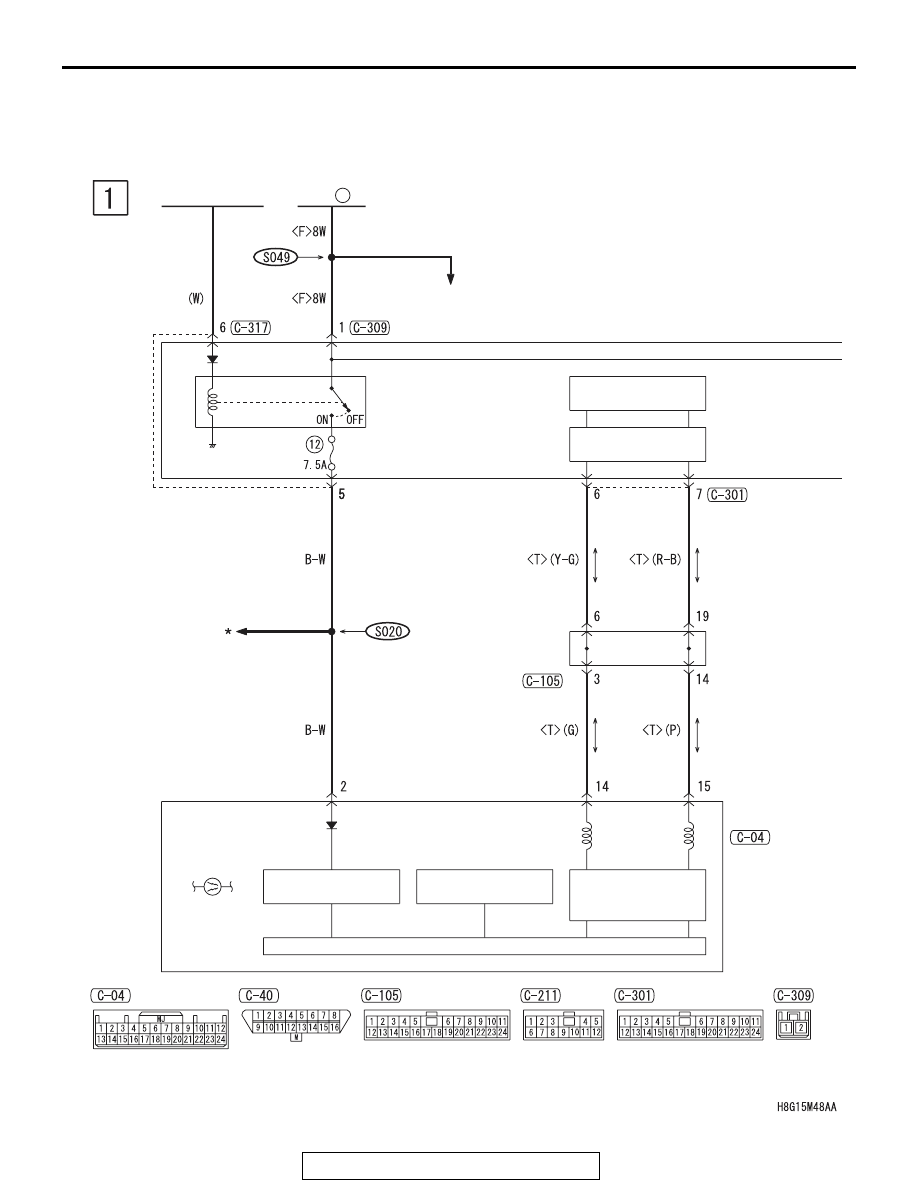

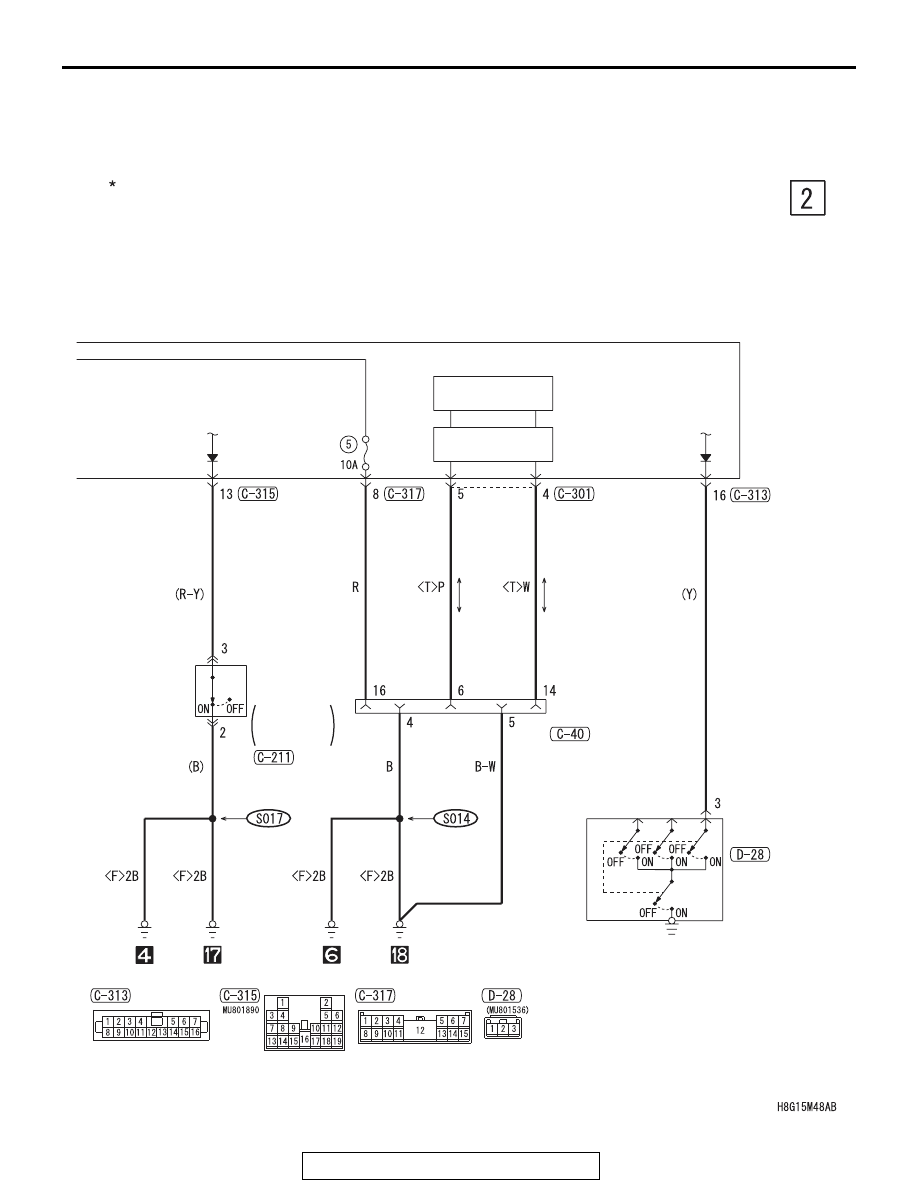

IGNITION KEY REMINDER TONE ALARM

<VEHICLES WITHOUT KOS>

M1901011301642

ETACS-
ECU

FRONT SIDE

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

INTERFACE
CIRCUIT

JOINT
CONNECTOR
(CAN1)

TONE ALARM

CAN DRIVE
CIRCUIT

CAN
TRANSCEIVER
CIRCUIT

INTERFACE
CIRCUIT

LCD

(KEY REMINDER)

CPU

COMBINATION
METER

HEATED
SEAT

IGNITION KEY REMINDER TONE ALARM <VEHICLES WITHOUT KOS>

TSB Revision

CIRCUIT DIAGRAMS

90-331

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

FRONT DOOR
SWITCH (LH)

WHEN
REMOVING
KEY: ON

DATA LINK
CONNECTOR

:

NOTE

KEY
REMINDER
SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

·ABS, ASC, ACD, AYC AND S-AWC
·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·COOLING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE COMPARTMENT LIGHT
 AND IGNITION KEY HOLE ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING TONE ALARM

·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE ALARM
·TC-SST
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

IGNITION KEY REMINDER TONE ALARM <VEHICLES WITH KOS>

TSB Revision

CIRCUIT DIAGRAMS

90-332

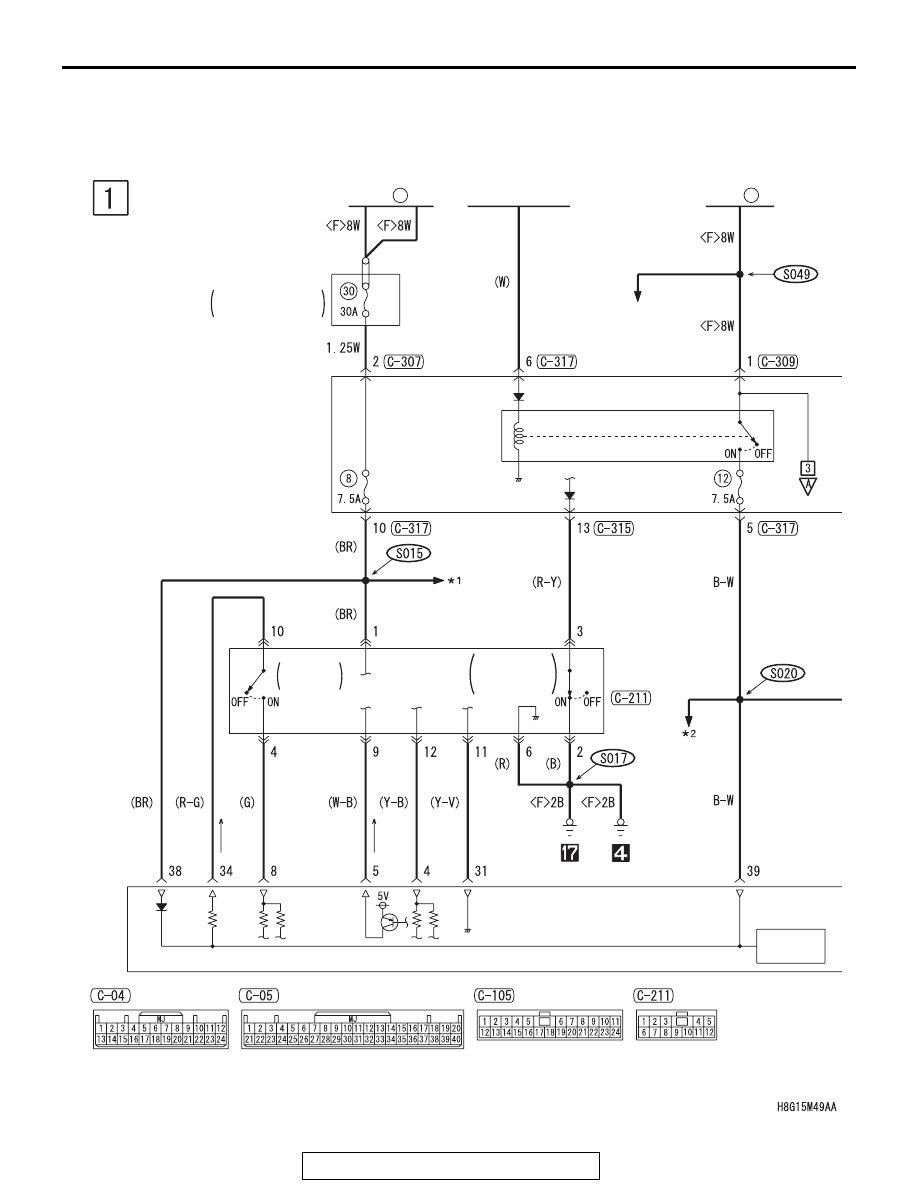

IGNITION KEY REMINDER TONE ALARM

<VEHICLES WITH KOS>

M1901011301653

WHEN
REMOVING
KEY: ON

KEY
REMINDER
SWITCH

ETACS-
ECU

FUSIBLE
LINK

36

IGNITION
SWITCH (IG1)

IG1
RELAY

FUSIBLE
LINK

34

PUSH
SWITCH

POWER
SUPPLY

RELAY BOX

ENGINE
COMPARTMENT

HEATED
SEAT
