AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-225

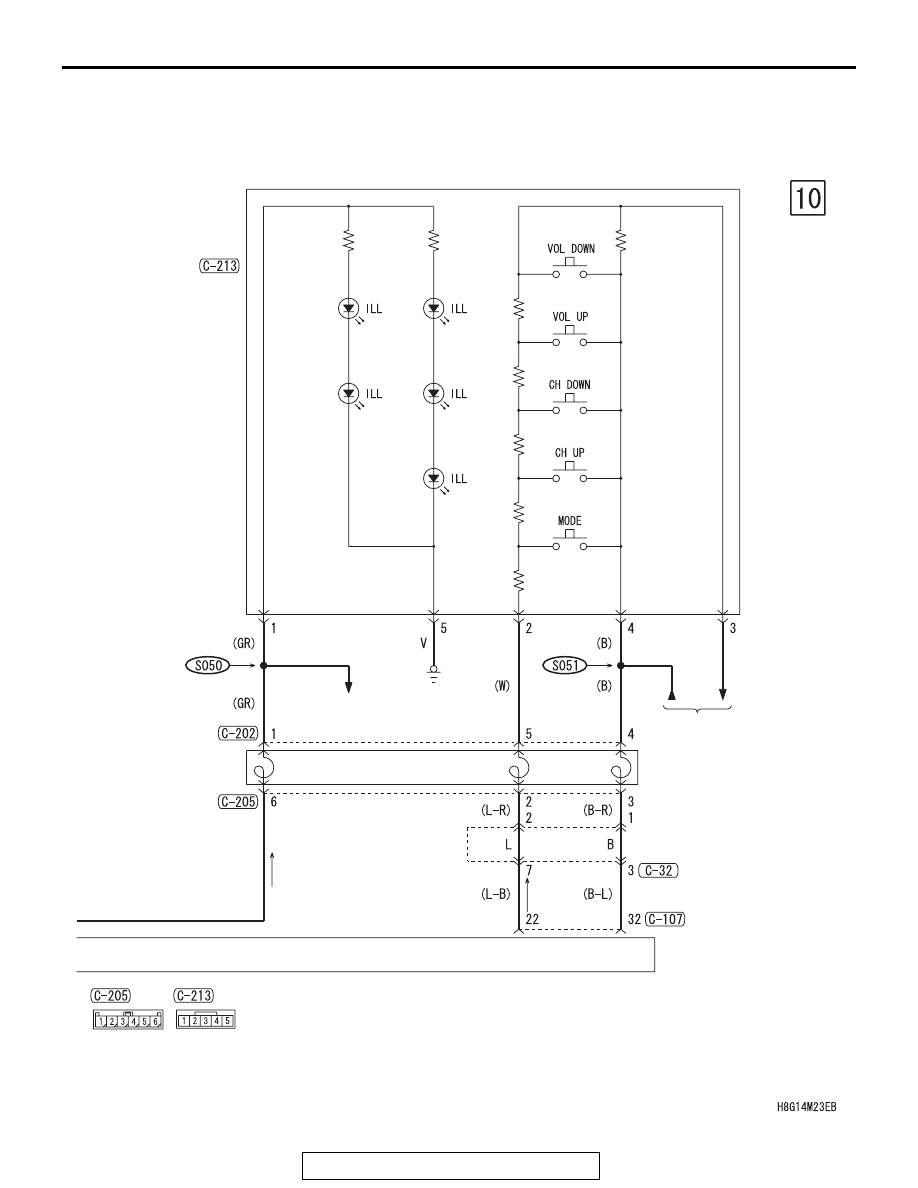

CLOCK
SPRING

STEERING
WHEEL AUDIO
REMOTE
CONTROL
SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

·AUTO-CRUISE
 CONTROL SYSTEM
·HANDS FREE SYSTEM

HANDS FREE
SYSTEM

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-226

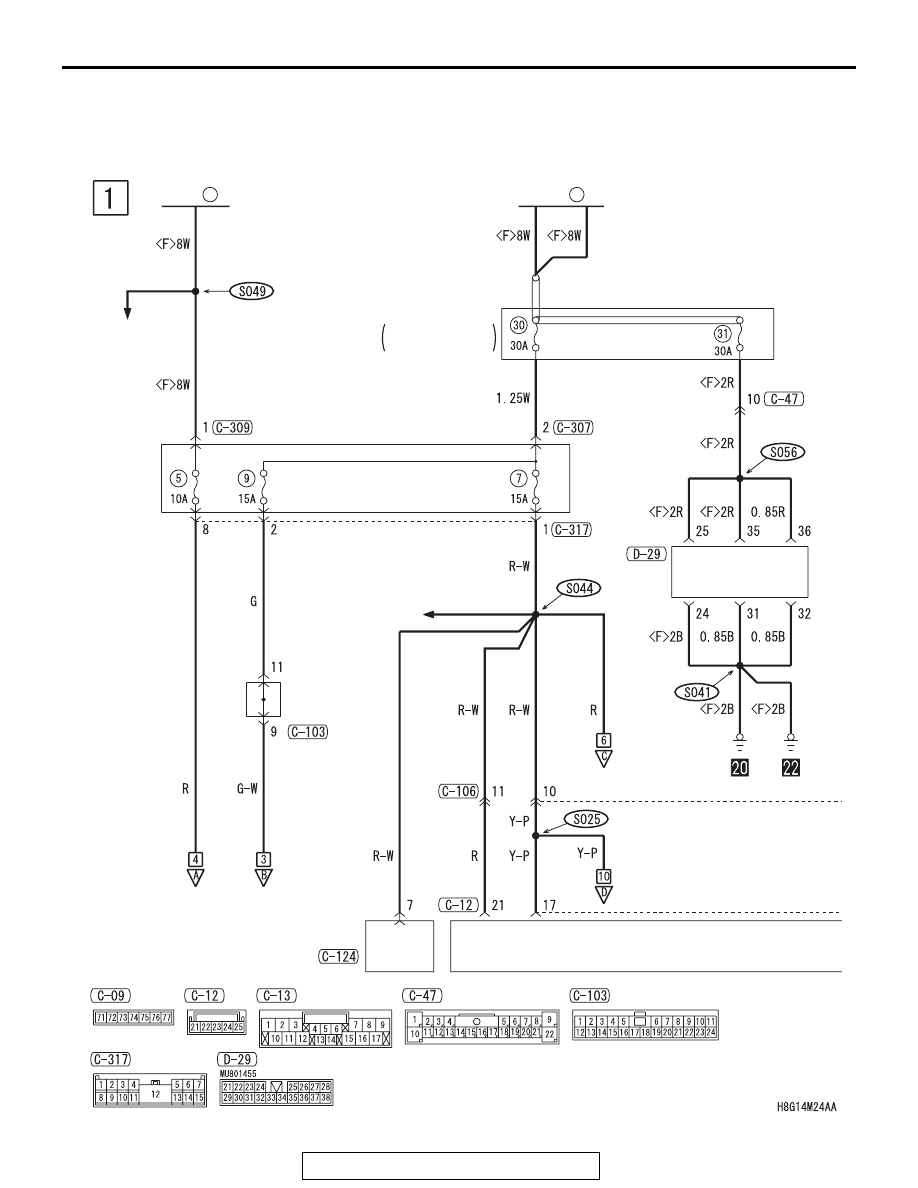

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

SATELLITE
RADIO
TUNER

<VEHICLES WITH SATELLITE RADIO TUNER>

(FUSE     )

7

ETACS-ECU

POWER
SUPPLY

JOINT
CONNECTOR (CAN1)

RADIO AND CD PLAYER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-227

NOTES

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

TSB Revision

CIRCUIT DIAGRAMS

90-228

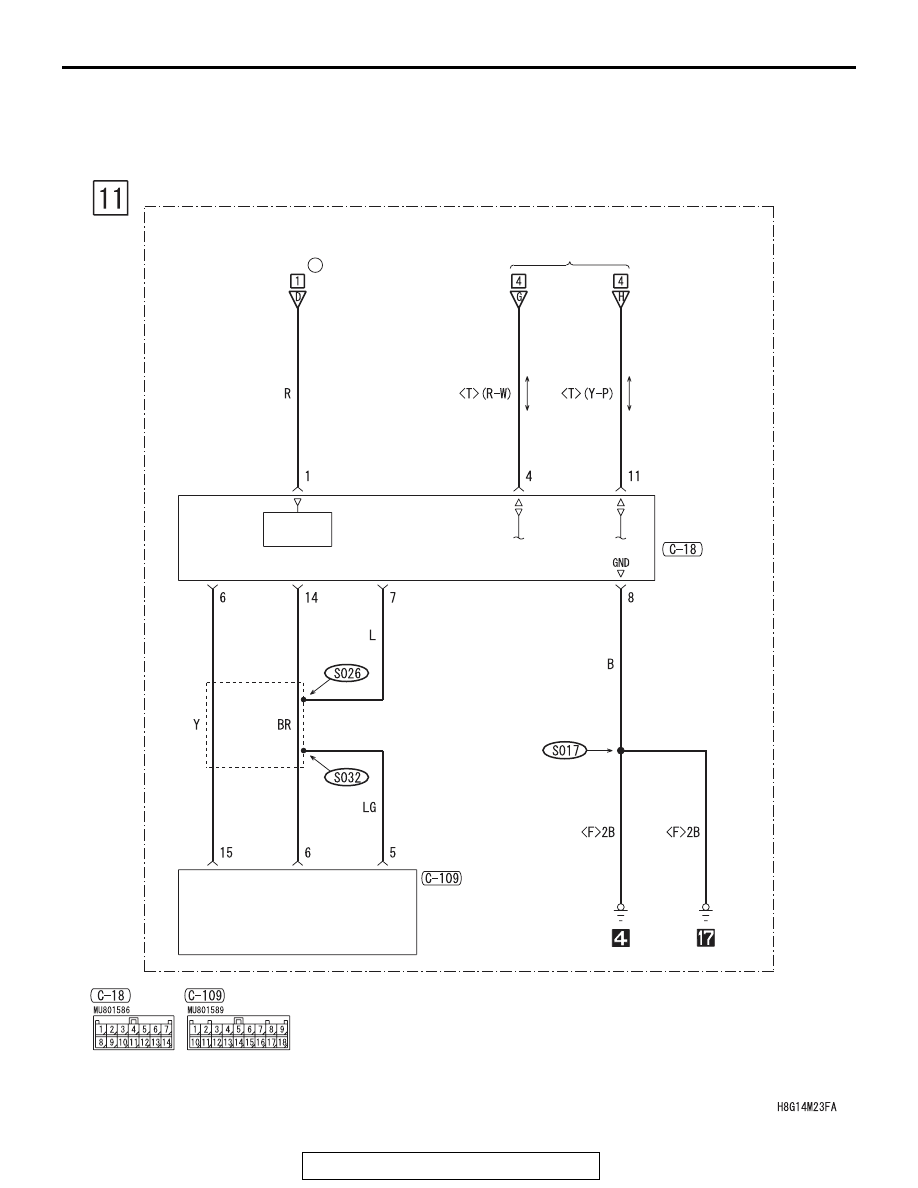

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

M1901007500394

FUSIBLE
LINK

34

FUSIBLE
LINK

36

ETACS-
ECU

AUDIO AMPLIFIER

MULTIVISION DISPLAY

RELAY BOX

ENGINE
COMPARTMENT

HANDS FREE
SYSTEM

JOINT
CONNECTOR
(3)

CENTER
PANEL UNIT

HEATED
SEAT
