AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-193

POWER
SUPPLY

(FUSE     )

9

INTERFACE CIRCUIT

INTERFACE
CIRCUIT

BACK
LIGHT

INTERFACE CIRCUIT

JOINT
CONNECTOR (3)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

·ABS, ASC, ACD,
 AYC AND S-AWC
·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·HANDS FREE SYSTEM
·HEADLIGHT
 LEVELING SYSTEM
·HEATED SEAT
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)

·AUDIO SYSTEM
·TURN-SIGNAL
 LIGHT AND HAZARD
 WARNING LIGHT

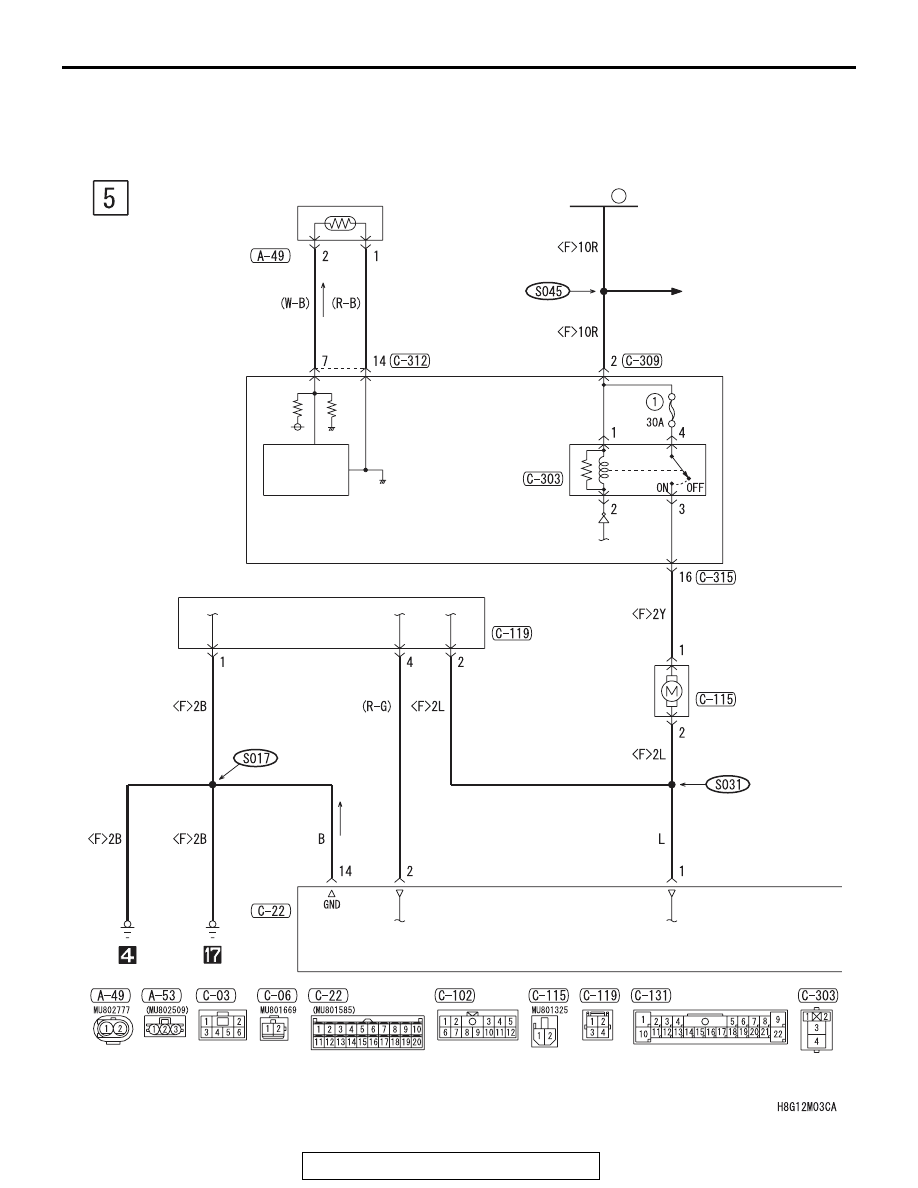

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-194

AIR CONDITIONING SYSTEM (CONTINUED)

REAR
WINDOW
DEFOGGER

AMBIENT AIR
TEMPERATURE
SENSOR

37

FUSIBLE
LINK

ETACS-ECU

ANALOG
INTERFACE
CIRCUIT

BLOWER
RELAY

POWER
TRANSISTOR

BLOWER
MOTOR

A/C-ECU

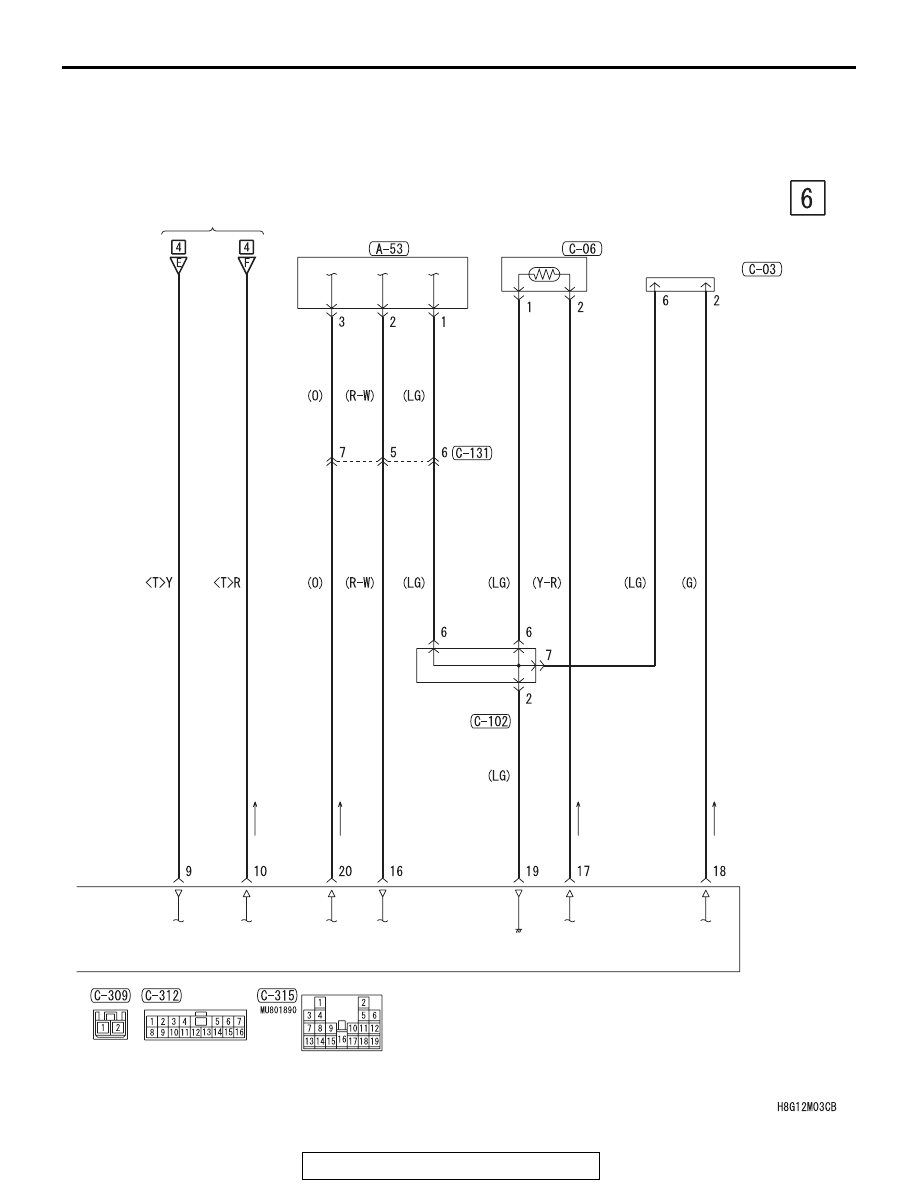

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-195

A/C
CONTROL PANEL

A/C PRESSURE
SENSOR

INTERIOR
TEMPERATURE
SENSOR

NO
CONNECTION

JOINT
CONNECTOR
(2)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

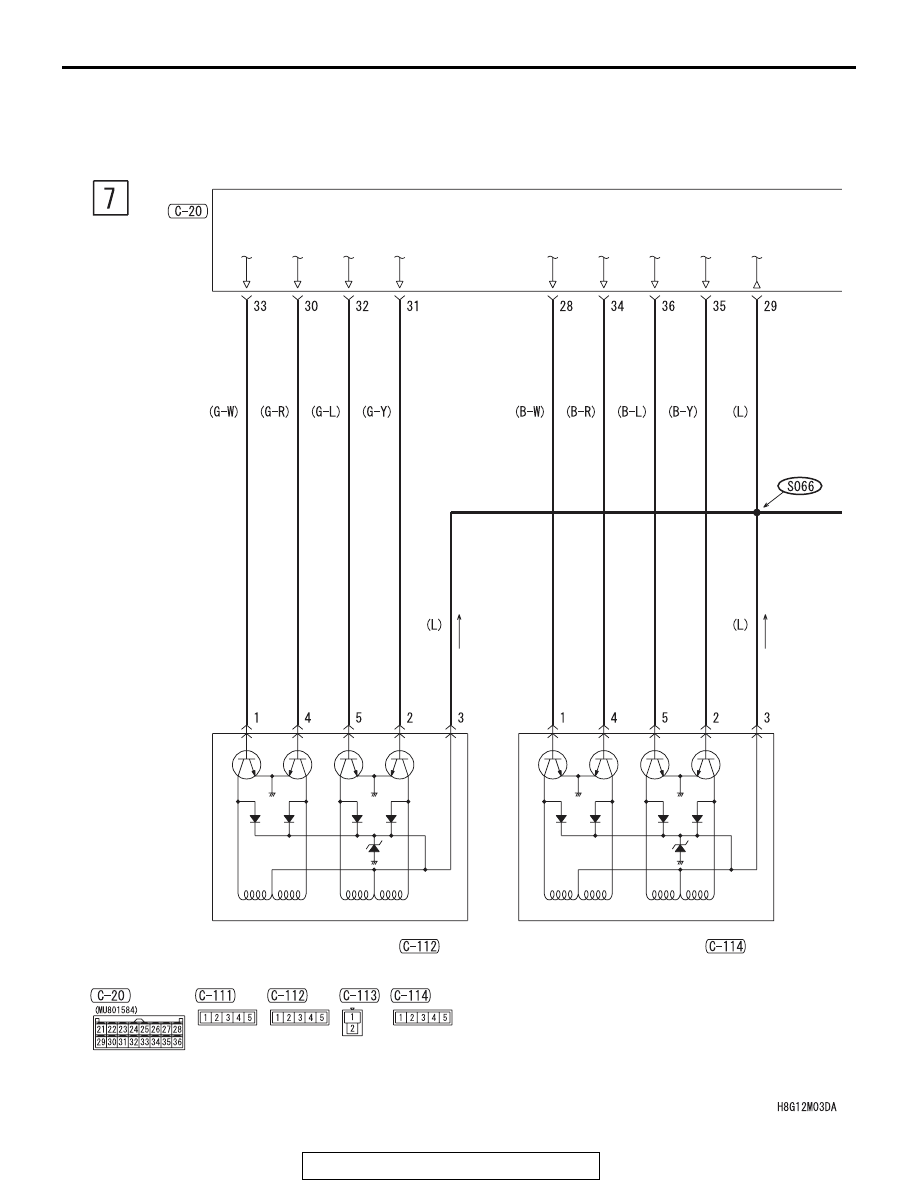

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-196

AIR CONDITIONING SYSTEM (CONTINUED)

MODE SELECTION
DAMPER CONTROL MOTOR

AIR MIXING
DAMPER CONTROL MOTOR

A/C-ECU
