Mitsubishi Evolution X. Manual - part 1163

AC607744

Connector
symbol

-301
thru
-317

C

ETACS-ECU

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

C-301

C-302

C-303

C-308

C-309

C-310

C-311

C-317

C-316

C-312

C-314

C-313

C-315

AD

C-304

C-305

C-306

C-307

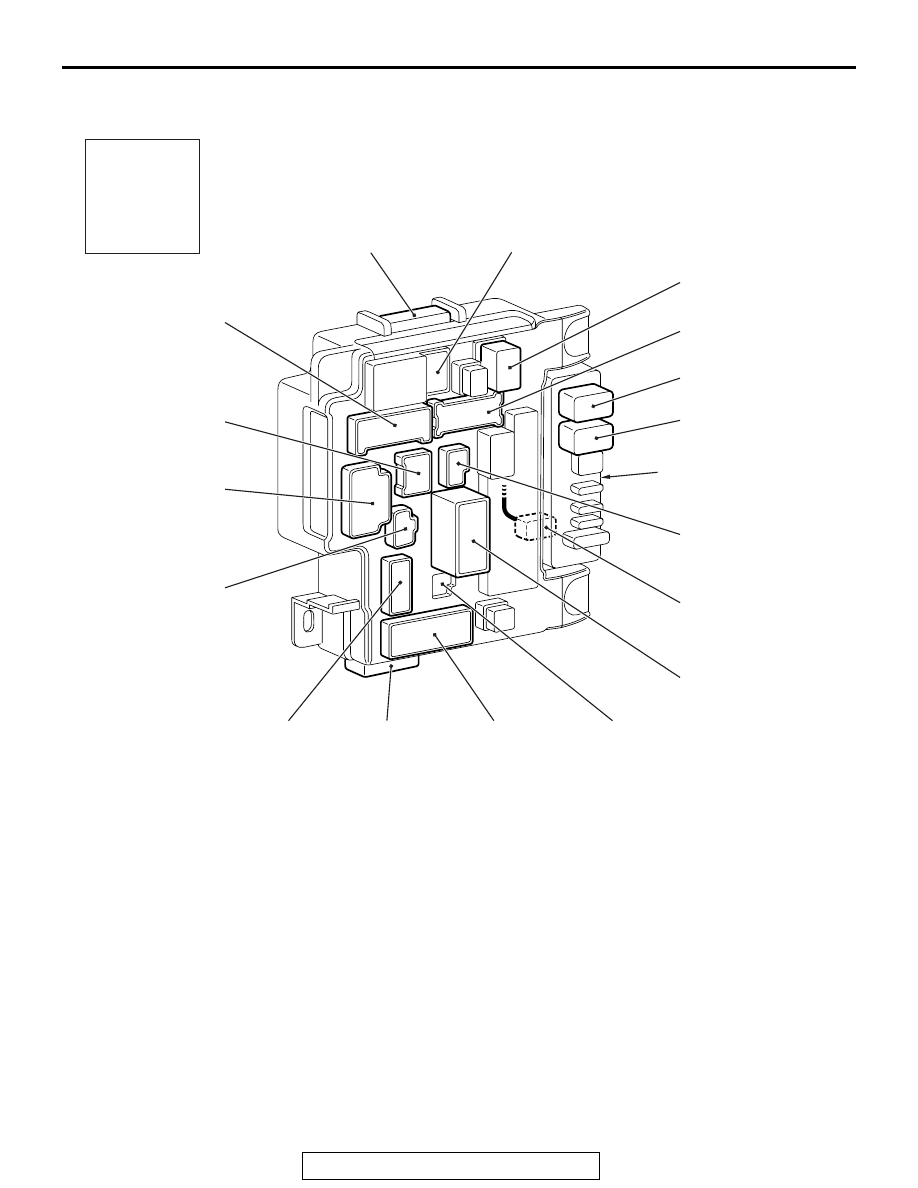

Relay box

C-301 (24)

Instrument panel wiring harness and
ETACS-ECU combination

C-302 (4)

No connection

C-303 (4)

Blower relay

C-304 (16)

Front wiring harness and ETACS-ECU
combination

C-305 (4)

Heated seat relay

C-306 (4)

Rear window defogger relay

C-307 (2-B)

Front wiring harness and ETACS-ECU
combination

C-308 (1-GR)

Instrument panel wiring harness and
relay box combination

C-309 (2-B)

Front wiring harness and ETACS-ECU
combination

C-310 (4)

No connection

C-311 (20)

Floor wiring harness and ETACS-ECU
combination

C-312 (16)

Front wiring harness and ETACS-ECU
combination

C-313 (16-BR) Floor wiring harness and ETACS-ECU

combination

C-314 (2)

Floor wiring harness and ETACS-ECU
combination

C-315 (19)

Instrument panel wiring harness and
ETACS-ECU combination

C-316 (6)

Roof wiring harness and ETACS-ECU
combination

C-317 (15)

Instrument panel wiring harness and
ETACS-ECU combination

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-15

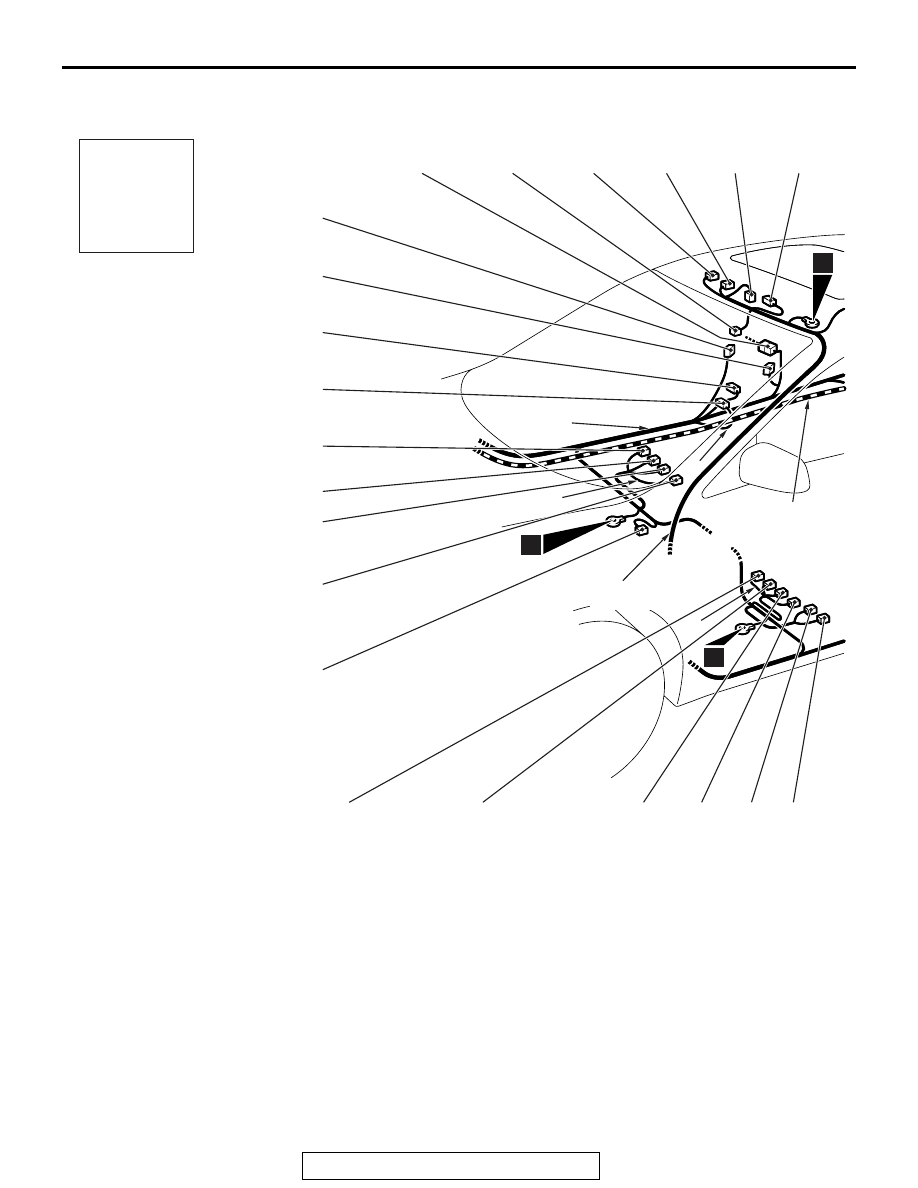

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-16

FLOOR AND ROOF

M1801000902947

AC708219

AC704967

AC704965

AC708219

AC704967

AC704965

Y

Y

Y

7

D-01

D-02

D-03

D-04

D-05

D-06

AB

D-29

D-30

D-31

D-32

D-33

D-34

D-35

D-36

D-37

D-38

D-39

D-40

D-41

D-42

D-43

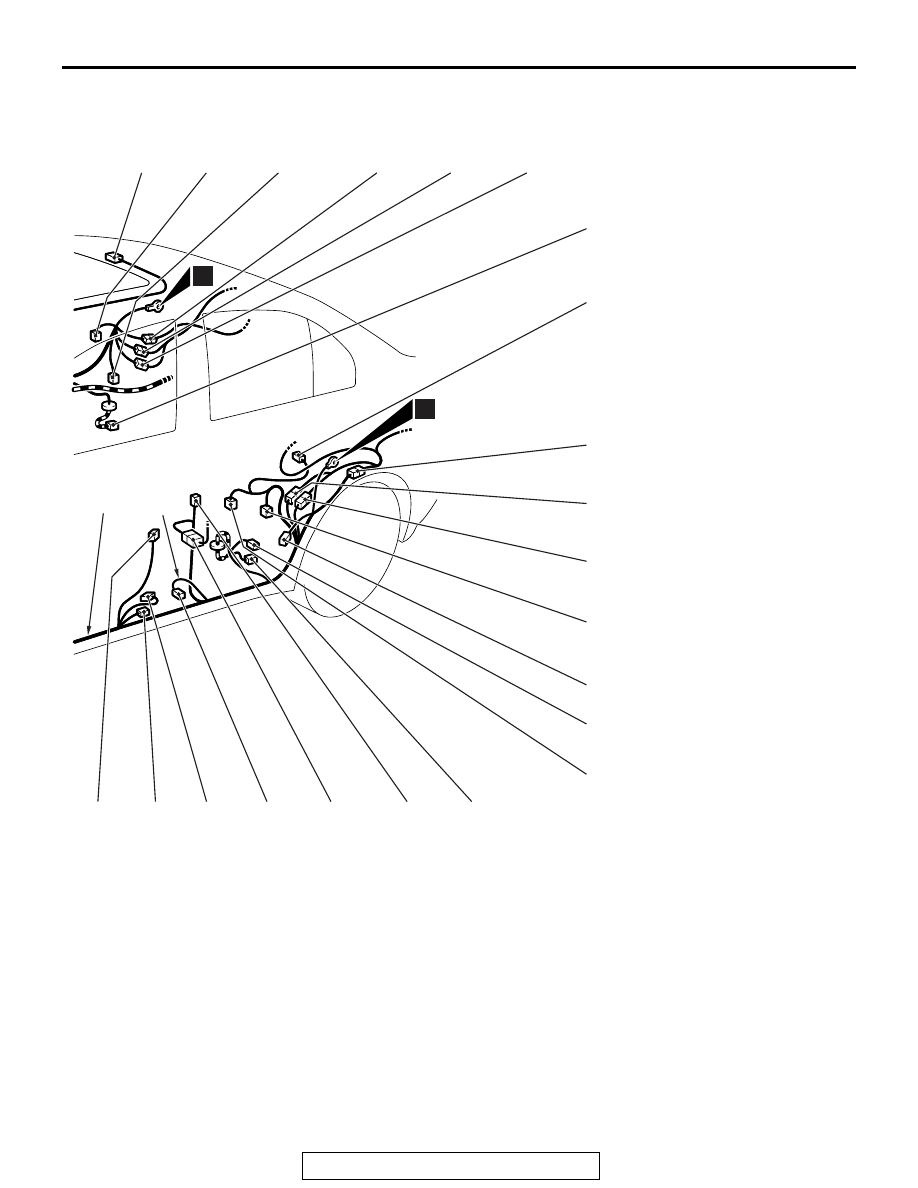

Roof wiring
harness

Floor wiring
harness

Battery (+)
wiring harness

Connector
symbol

D

20

8

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-01

(10)

Floor wiring harness and rear door
wiring harness (RH) combination

D-02

(4)

Lighting control sensor <Vehicles with
automatic light>

D-03

(3)

Front dome light

D-04

(3)

Microphone unit

D-05

(6-B)

Sunroof switch

D-06

(10-GR) Sunroof motor assembly

D-07

(2-GR)

Rear dome light

D-08

(3)

Rear door switch (RH)

D-09

(2-B)

Rear wheel speed sensor (RH)

D-10

(2-Y)

Floor wiring harness and rear floor
wiring harness (RH) combination

D-11

(22)

Floor wiring harness and rear floor
wiring harness (RH) combination

D-12

(1-GR)

Floor wiring harness and rear floor
wiring harness (RH) combination

D-13

(2)

Fuel level sensor (sub)

D-14

(12)

Receiver antenna assembly

D-15

(2-Y)

Floor wiring harness and rear floor
wiring harness (LH) combination

D-16

(18)

Floor wiring harness and rear floor
wiring harness (LH) combination

D-17

(24-BR) Floor wiring harness and rear floor

wiring harness (LH) combination

D-18

(2-B)

Rear wheel speed sensor (LH)

D-19

(3)

Rear door switch (LH)

D-20

(2-B)

Washer motor

D-21

(3-B)

Fuel tank differential pressure sensor

AC708220

AC704966

AC708220

AC704966

D-07

D-08

D-09

AB

Y

22

D-13

D-15

D-14

D-16

D-17

D-18

D-19

D-20

D-21

D-22

D-23

D-24

D-25

D-26

D-27

D-28

D-10

D-11

D-12

10

Floor wiring
harness

D-22

(5-GR)

Fuel pump module

D-23

(3)

Outside transmission antenna
assembly (Driver's side)

D-24

(10)

Floor wiring harness and rear door
wiring harness (LH) combination

D-25

(2-B)

Seat belt pre-tensioner (LH)

D-26

(2-Y)

Side impact sensor (LH)

D-27

(12-B)

Joint connector (5)

D-28

(3)

Front door switch (LH)

D-29

(18)

Audio amplifier

D-30

(14)

Audio amplifier

D-31

(4-B)

Heated seat assembly (LH)

D-32

(2-GR)

Seat slide sensor

D-33

(4-B)

Seat belt switch (Driver's side)

D-34

(2-Y)

Side-airbag module (squib) (LH)

D-35

(4-B)

Heated oxygen sensor (Rear)

D-36

(2-Y)

Side-airbag module (squib) (RH)

D-37

(2-B)

Seat belt switch (Passenger's side)

D-38

(4-B)

Heated seat assembly (RH)

D-39

(6)

Front seat assembly (RH)

D-40

(2-B)

Seat belt pre-tensioner (RH)

D-41

(2-Y)

Side impact sensor (RH)

D-42

(3)

Outside transmission antenna
assembly (Passenger's side)

D-43

(3)

Front door switch (RH)

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-17

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-18

DOOR

M1801001402310

AC605712

E-01

Connector
symbol

E

E-02

E-03

E-04

E-05

E-06

E-07

E-08

E-09

E-10

E-11

E-12

E-13

E-14

E-15

E-16

E-17

E-18

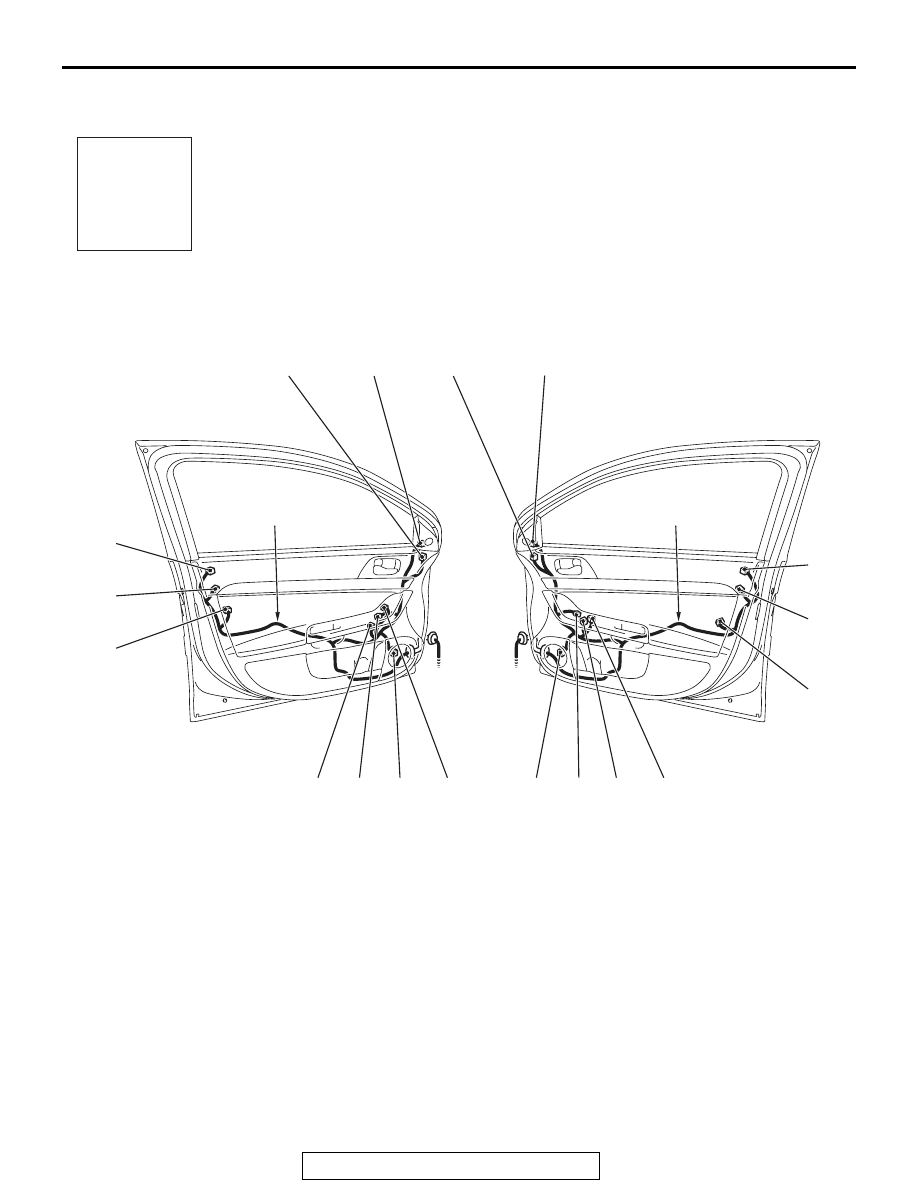

Front wiring door
harness (LH)

Front wiring door
harness (RH)

AC

Connector color code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue

NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

(Driver's side)

FRONT DOOR

(Passenger's side)

E-01

(10)

Door mirror assembly (LH)

E-02

(2-B)

Tweeter (LH)

E-03

(10)

Door mirror assembly (RH)

E-04

(2-B)

Tweeter (RH)

E-05

(6)

Unlock sensor (RH) <Vehicles with
KOS>

E-06

(2-GR)

Lock switch (RH) <Vehicles with
KOS>

E-07

(6-B)

Front door lock actuator (RH)

E-08

(4)

Front power window sub switch

E-09

(8)

Front power window sub switch

E-10

(6-GR)

Front power window motor (RH)

E-11

(2)

Front door speaker (RH)

E-12

(11-L)

Remote controlled mirror switch

E-13

(2)

Front door speaker (LH)

E-14

(6-GR)

Front power window motor (LH)

E-15

(19)

Power window main switch
