CONTROLLER AREA NETWORK (CAN)

54C-87

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES : Repair the wiring harness between shift lever

connector C-27 and joint connector (CAN3) C-127.

NO :  Check shift lever connector C-27, and repair if

necessary. If the shift lever connector is in good
condition, replace the shift lever.

STEP 16. Using scan tool MB991958, diagnose the CAN
bus line. (checking the TC-SST-ECU for internal short to
ground)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect transaxle assembly connector B-107.

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-88

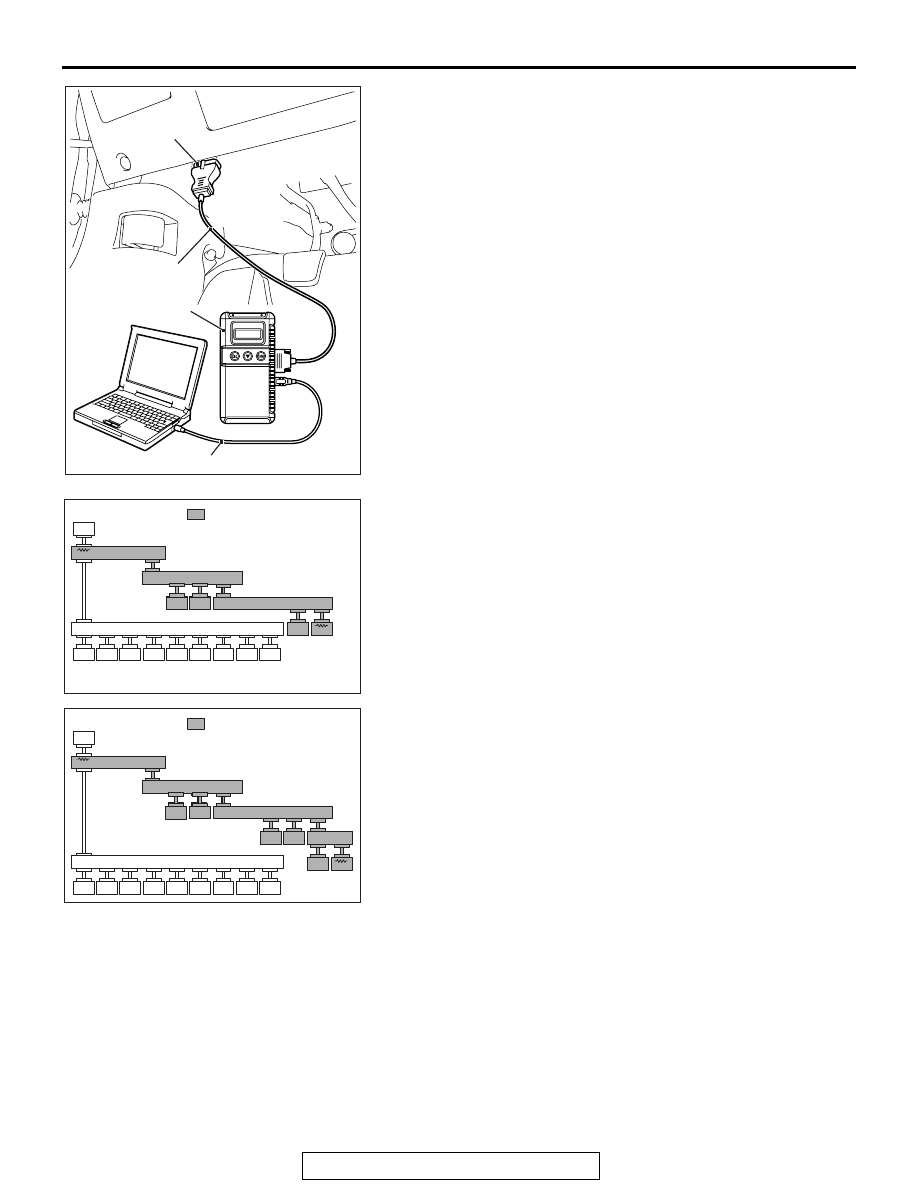

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES : Repair the wiring harness between transaxle

assembly connector B-107 and joint connector
(CAN4) A-14.

NO :  Check transaxle assembly connector B-107, and

repair if necessary. If the transaxle assembly
connector is in good condition, replace the transaxle
assembly.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-89

DIAGNOSTIC ITEM 6: Diagnose when the scan tool cannot receive the data sent by S-AWC-ECU.

CAUTION

When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

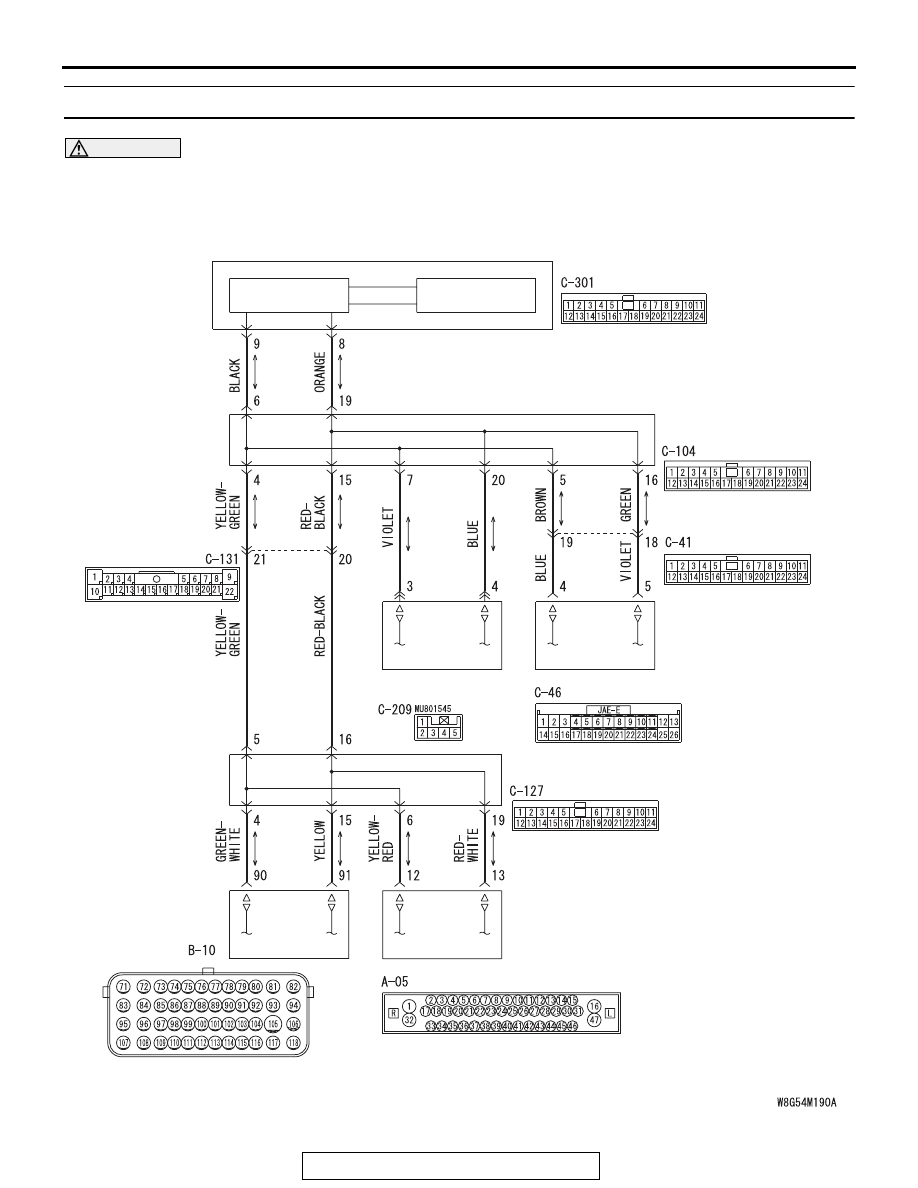

CAN-C Communication Circuit <M/T>

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

ASC-ECU

STEERING
WHEEL SENSOR

S-AWC-ECU

ENGINE
CONTROL
MODULE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-90

TRANSAXLE
ASSEMBLY

ENGINE
CONTROL
MODULE

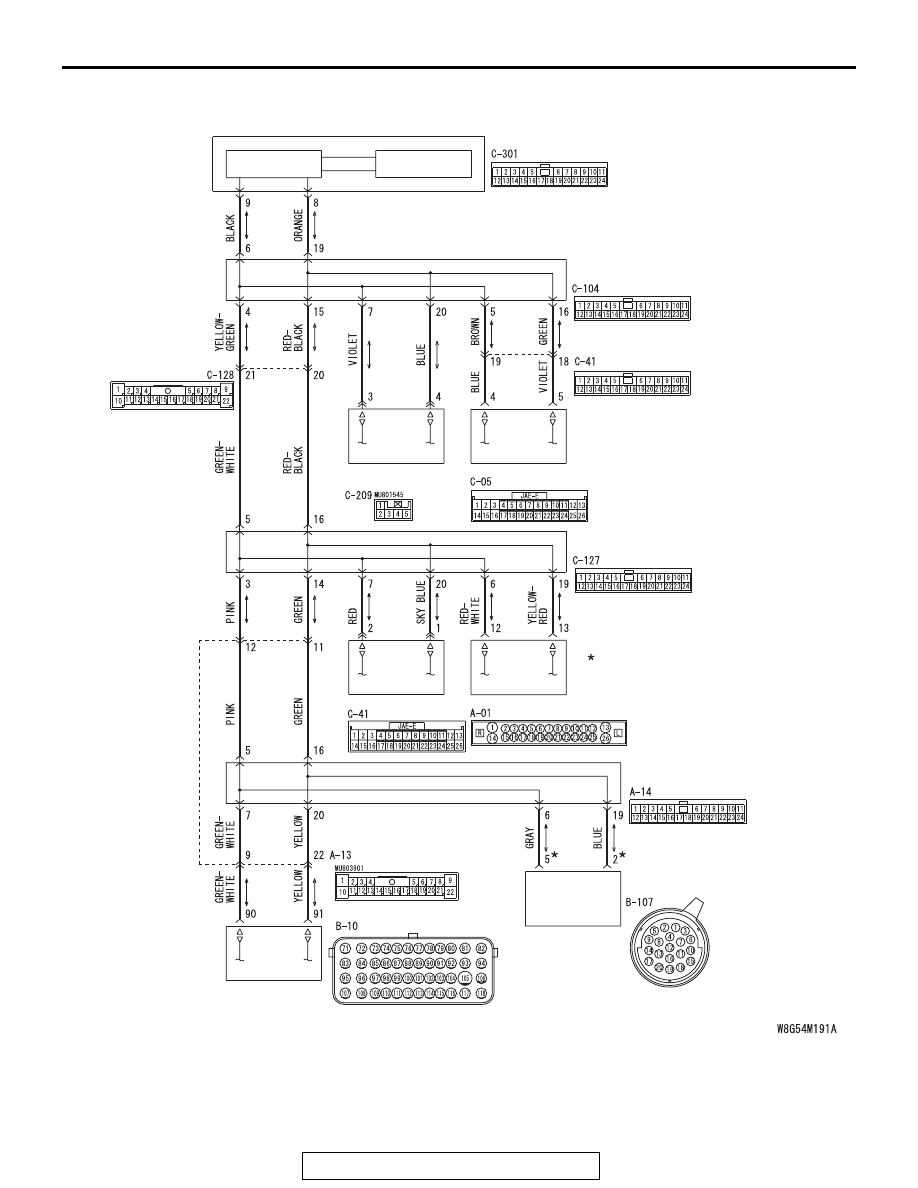

CAN-C Communication Circuit <TC-SST>

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

JOINT CONNECTOR
(CAN4)

SHIFT LEVER

ASC-ECU

STEERING
WHEEL SENSOR

S-AWC-ECU

NOTE

: THE TERMINAL NUMBERS DESCRIBED

IN THE CIRCUIT DIAGRAM AGREE WITH
THE NUMBERS MAKED ON THE
TRANSAXLE ASSEMBLY CONNECTOR AND
HARNESS SIDE CONNECTOR.
