LIGHTING

TSB Revision

CHASSIS ELECTRICAL

54A-15

INTERIOR LIGHT

.

INTERIOR LIGHT DIMMER CONTROL FUNCTION (THE INITIAL CONDITION:



30 SECONDS)

When the interior light switch is set to the DOOR
position, ETACS-ECU controls the interior light as
follows.

1. When the ignition switch is OFF:

By opening any door, the light turns ON (100%),
and dims (50%) when the door is closed, then
and turns off after 30 seconds.
However, when the ignition switch is turned ON
or the door lock is operated, the lights turn off at
that time.

2. When the ignition switch is ON:

By opening any door, the light (100%) turns ON
and OFF when the door is closed.

3. When all doors are closed, and the ignition key is

removed

*

:

By removing the ignition key with all doors
closed, the light turns ON 50%, and turns off after
30 seconds. However, for the vehicles with
TC-SST, the light is not illuminated if the ignition
key is removed before the engine stops running
(approximately 1 second) since the ignition
switch was turned to the OFF position.

By inserting the ignition key again or operating
the door lock with the light lit, the lights turns off.

NOTE:

.

•

*

: For the vehicles with KOS, it is operated the

same way when the IG knob is turned to OFF or
when the emergency key is removed from the
key cylinder. However, for vehicles with TC-SST,
the light is turned off after approximately 1 sec-
ond (after engine stops running) since the IG
knob was turned OFF.

•

For the vehicles with the keyless entry system,
the delayed light-off time and the operation times
of the keyless entry interior light answer back can
be changed by the Customization Function
(Refer to

P.54A-17

).

.

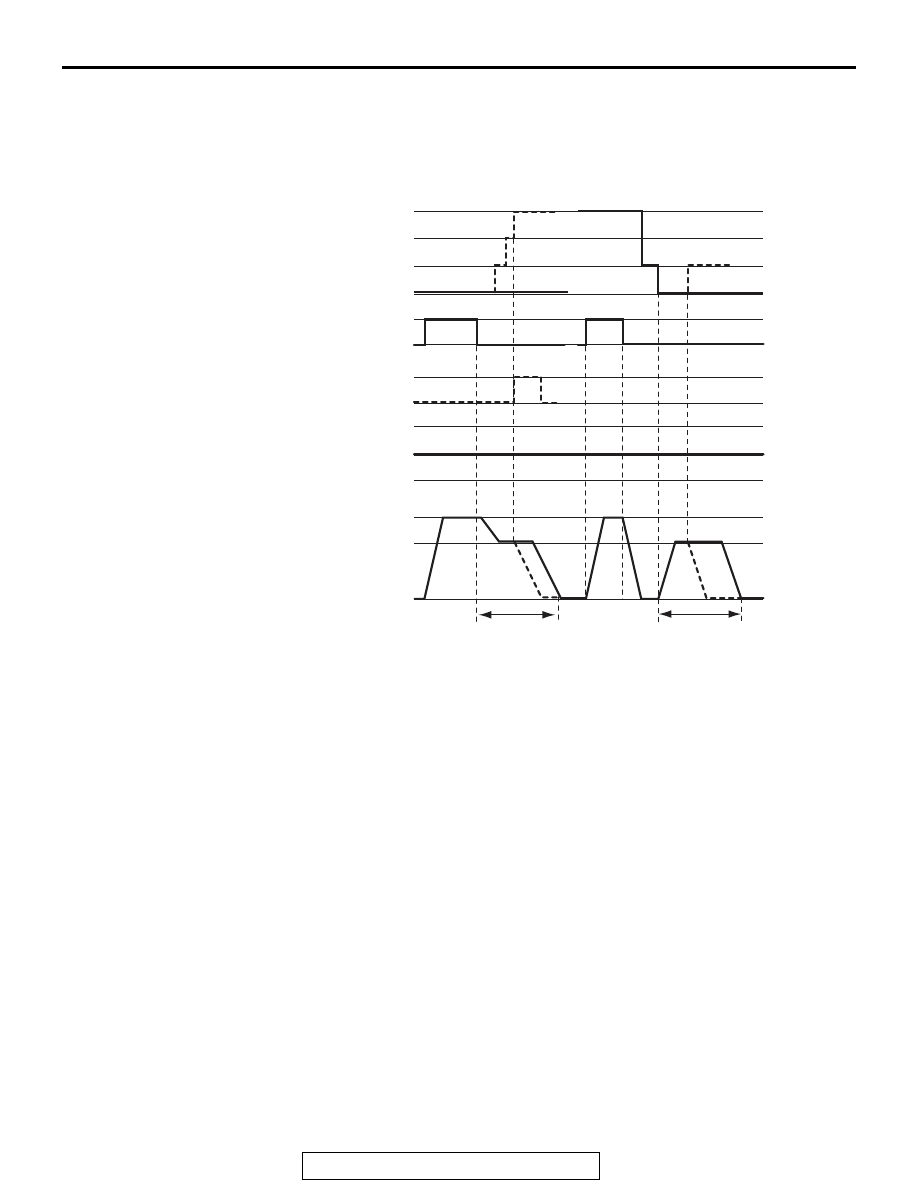

AC607917 AC

(All closed) OFF

(Any one open) ON

ON

OFF

Key removed

ACC

LOCK

UNLOCK

OFF

Door switch

(Unlock) OFF

(Lock) ON

Driver's door lock
actuator switch (lock switch)

Ignition switch

100%

0%

50%

Interior light brightness

Keyless entry
lock or unlock signal

30 seconds

30 seconds

LIGHTING

TSB Revision

CHASSIS ELECTRICAL

54A-16

INTERIOR LIGHT AUTOMATIC-SHUTOFF FUNCTION (THE INITIAL CONDITION: 30
MINUTES)

When an interior light such as the dome light [all inte-
rior lights connecting to the dome light fuse (the front
dome light, the rear dome light, and the ignition key
cylinder illumination lights)] is lit, but either one of the
conditions is met, the interior light is turned off auto-
matically for preventing the battery discharge caused
by the unattended operation or the door-ajar.

• After 30 minutes with the interior light lit while the

ignition switch is OFF, the light turns off automati-
cally.

• After 30 minutes with any door opened while the

ignition switch is OFF, the light turns off automati-
cally.

• After the auto-turn OFF, the interior light returns

to the illumination state when the doors are
opened/closed, keyless entry transmitter switch
is operated, or ignition switch is turned to ACC
position. After returning, the light turns OFF after
30 minutes, when the interior light auto turn off
condition is met.

NOTE: The interior light automatic shut-off time can
be adjusted by the Customization Function (Refer to

P.54A-17

).

.

IGNITION KEY CYLINDER ILLUMINATION LIGHT CONTROL FUNCTION

The ETACS-ECU controls the ignition key cylinder
illumination light as described below.

• With the ignition switch OFF, the light is illumi-

nated when the driver's door is opened, and it is
turned off 30 seconds after the driver's door is
closed. However, the light is turned off if the igni-
tion switch is turned ON or doors are locked
within 30 seconds.

AC302243AC

ON

OFF

ACC

Ignition switch

(All closed) OFF

(Any one open) ON

Door switch

(Illuminated) ON

(Extinguished) OFF

Interior light

t: Within 30 minutes

T: 30 minutes

T

T

t

t

t

AC710753

T

T

T

T

AB

(Closed) OFF

(Opened) ON

ON

OFF

(Key removed) ON

(Key inserted) OFF

 (Illuminated) ON

(Extinguished) OFF

Driver's seat door switch

UNLOCK

LOCK

Driver's seat door

Key reminder switch

Ignition key cylinder
illumination light output

Ignition switch

T: 30 seconds

LIGHTING

TSB Revision

CHASSIS ELECTRICAL

54A-17

• When the ignition key is removed from the igni-

tion key cylinder, the light illuminates for 30 sec-
onds.

*

 However, for the vehicles with TC-SST, the

light is not illuminated if the ignition key is
removed before the engine stops running
(approximately 1 second) since the ignition
switch was turned to the OFF position.

NOTE:

*

: For the vehicles with KOS, it is operated

the same way when the steering lock is locked or
when the emergency key is removed from the key
cylinder.

CUSTOMIZATION FUNCTION

M2544300700374

By operating the ETACS system or MMCS of scan
tool MB991958, the following functions can be pro-
grammed. The programmed information is held even
when the battery is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting content

ACC power
auto cut

Time to ACC power
cut-off when the
ignition switch is in
the ACC position

Disable

No function (default)

30 min

30 minutes

60 min

60 minutes

Turn power
source

Adjustment of
turn-signal light
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort flasher
function

Disable

No function

Enable

With function (default)

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Sensitivity for
auto light

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with auto light>

Level 1(+)bright

High-high ambient brightness

Level 2

High ambient brightness

Level 3

Standard ambient brightness (default)

Level 4(

−)dark

Low ambient brightness

Level 5(

−)dark

Low-low ambient brightness

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-18

COMBINATION METER

GENERAL INFORMATION

M2545500200428

The combination meter offers the following advan-
tages.

• Speedometer and tachometer are arranged sepa-

rately on the cylindrical shaped panel, achieving
a sporty layout with which the zero position of
needle indicator is arranged directly downward.
Also, white is adopted for the needle color to
improve visibility.

• New font style that offers good visibility and

sporty feel has been adopted, and the color is
made to bright white that offers a good contrast
with the background matt black, securing excel-
lent visibility suitable for any driving condition
encountered during daytime and nighttime.

• With the tachometer, the needle movement is

made highly responsive to the engine speed.

• Multi information display has been adopted which

displays various information, such as the S-AWC
control level display, by the operation of multi
information meter switch.

• By switching the display color of multi information

display to red or yellow, the warning level is indi-
cated.

• The service reminder function has been adopted

which notifies the users of the next periodic
inspection timing using the driving distance and
elapsed time.

• By operating the rheostat switch, the brightness

of the meter and illumination can be adjusted in
eight steps.

• The layout has been simplified by displaying what

is required to meet the legislative requirements
with the indicator, and by displaying other things
with multi information display.

• A tone alarm is integrated in the combination

meter so that the alarm contents or the operation
status of switches can be checked with the tone
alarm sound.

• To assure the LCD display responsiveness and

brightness even under a low-temperature condi-
tion, the LCD heater has been adopted.

Dome light
delay timer with
door

Adjustment of
interior light delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Headlight auto
cut customize

Adjustment of
headlight automatic
shutdown function

Disable

No function

Enable (C-spec.)

With function (default)

Interior light
auto cut timer

Adjustment of
interior light
automatic shutdown
function operation
time

Disable

No function

3 min

3 minutes

30 min

30 minutes (default)

60 min

60 minutes

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting content
