MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-373

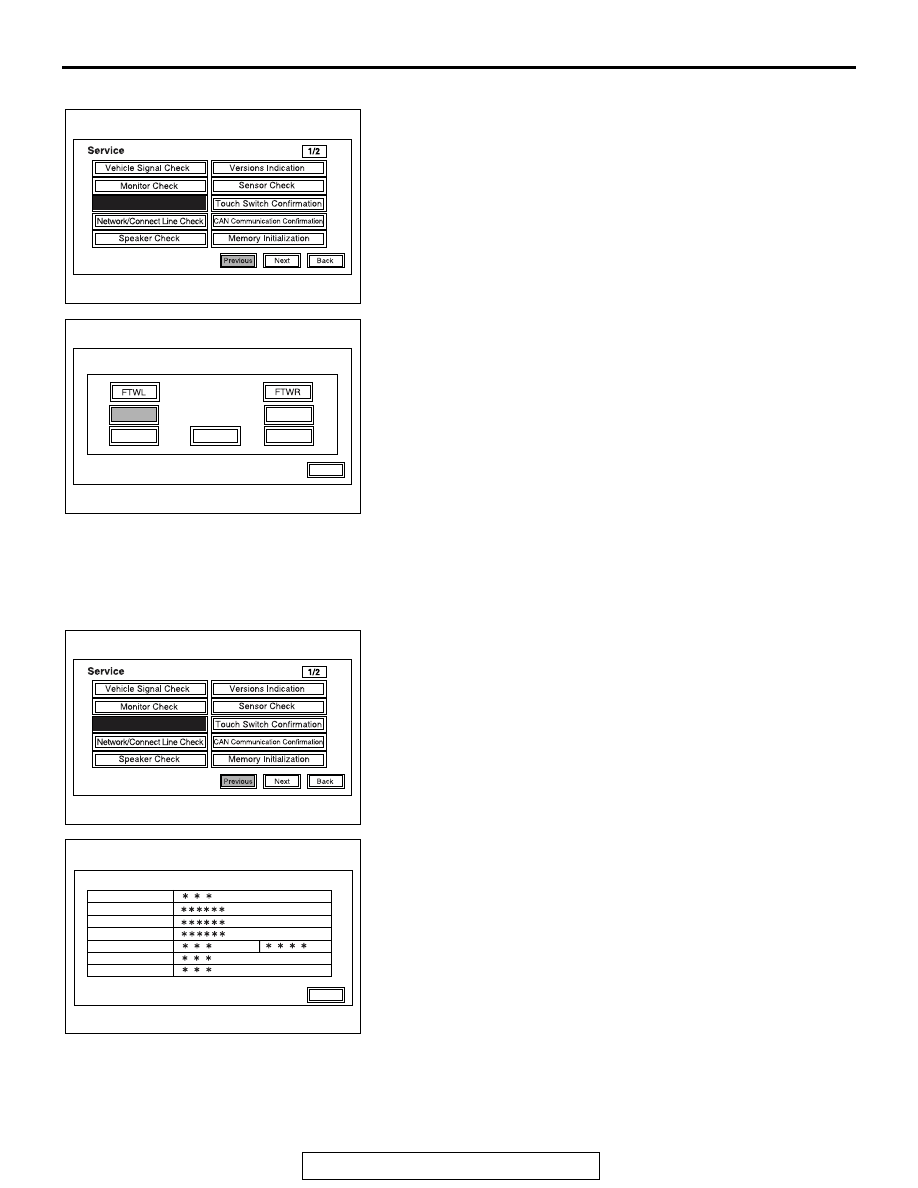

SPEAKER CHECK

1. Select "Speaker Check" on "Service" screen.

2. Select a speaker to be checked, and play test tone through

the speaker.
NOTE:

.

•

The number of the speakers being displayed depends on
how many speakers are connected.

•

Volume cannot be adjusted while test tone is being
played.

•

During the test, only the selected speaker sounds. If
"Back" is selected during the test, the test tone will disap-
pear.

.

VERSIONS INDICATION

Displays versions indication (Loader, Application, Audio Micro-
computer, Navi Sub Microcomputer, Map Data, Monitor, and
CAN BOX).

1. Select "Versions Indication" on "Service" screen.

2.3.Versions indication is displayed.

.

AC611541

AB

Speaker Check

F L

R L

F R

R R

RW

Back

AC611716

AB

AC611541

AB

AC610673

Version Information

Loader

Application

Navi Sub Microcomputer

Audio Microcomputer

Map Data

Monitor

CAN BOX

Back

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-374

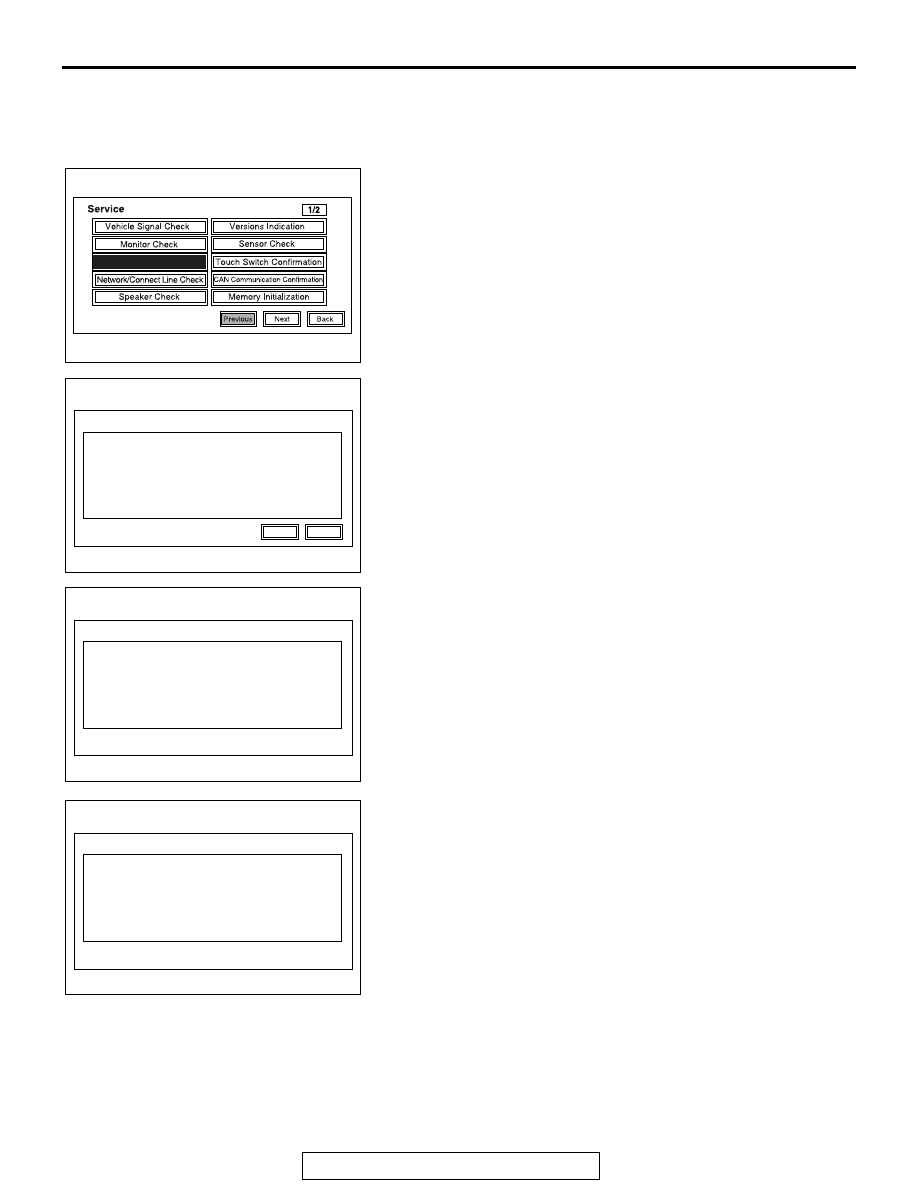

SENSOR CHECK

The speed sensor and gyro sensor will be checked, depending
on the vehicle conditions such as driving condition, stationary
condition and travel direction change.
1. Select "Sensor Check" on "Service" screen.

2. The sensor check with the vehicle stationary will be

executed in accordance with the screen.

3. The sensor check with the vehicle in motion will be executed

in accordance with the screen.

AC611541

AB

Back

Start

Sensor Check

You can check the sensors.
Please don't move your car until after 5 seconds. After this you
can move your car by changing the directions. lf you are ready.
please push Start

AC606311

Sensor Check

Please don't move your car.

AC606332

Sensor Check

Please move more than 10m

while changing direction of the car.

AC606334

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-375

4. When the sensor checks are complete, the screen will

display the check results.

NOTE: If there is "NG" or "N/A" as the check results, select
"NG Code" on the "Sensor Check" screen. Then "NG code
Indication" screen will show the NG code.
NG CODE REFERENCE TABLE FOR SENSOR CHECK

.

Back

NG Code

Sensor Check

Gyro Sensor

Speed Sensor

NG

OK

AC606335

Sensor
classification

NG code
No.

Error items

Gyro sensor

1

Offset error while the vehicle is
stationary (lower limit error)

2

Offset error while the vehicle is
stationary (upper limit error)

5

Output error during driving

Speed sensor 6

Output error while the vehicle is
stationary

Back

NG Code Indication

Gyro Sensor

5

AC606336

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-376

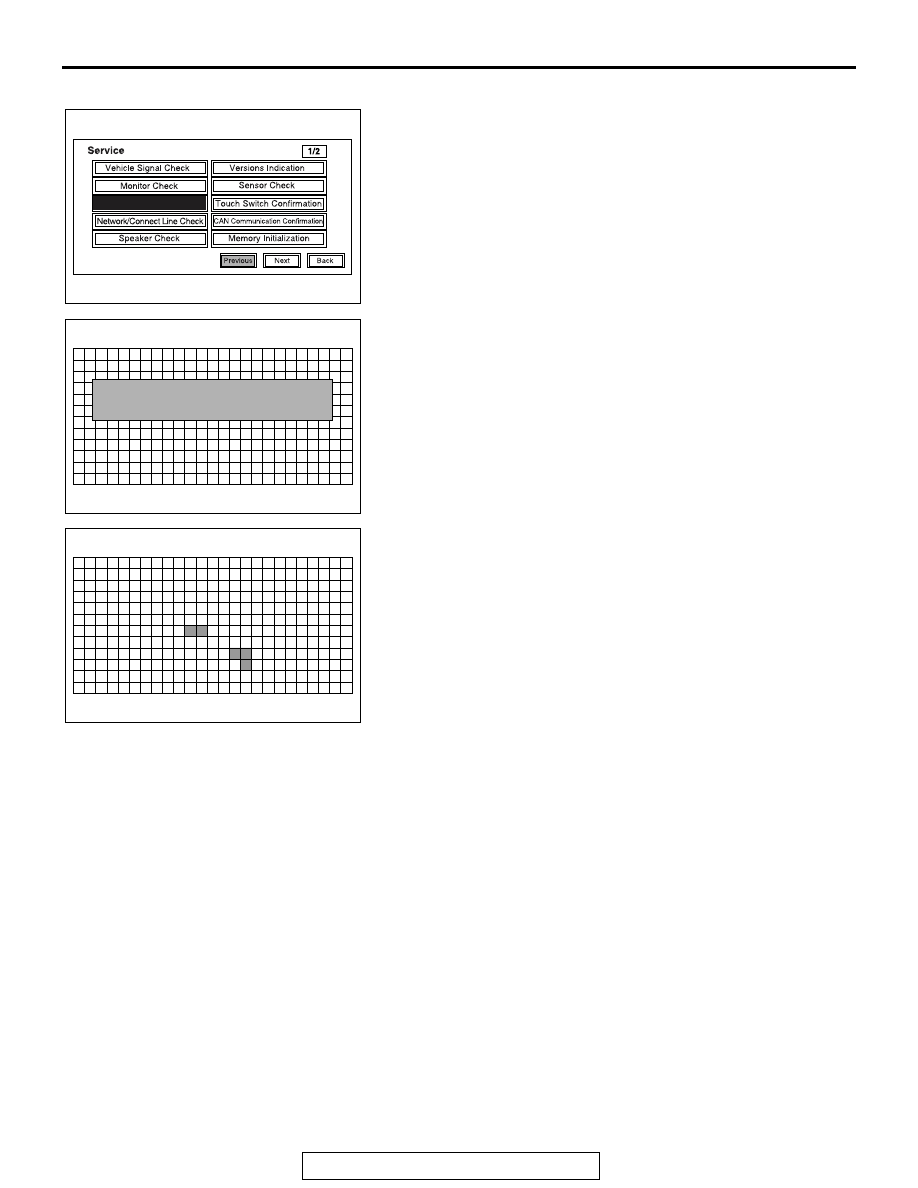

TOUCH SWITCH CONFIRMATION

1. Select "Touch Switch Confirmation" on "Service" screen.

2. If you touch the screen, the color of the dotted coordinate at

the touched area will be changed.

.

AC611541

AB

If you complete the touch switch confirmation.

please push [MENU]

AC606337

AC611394
