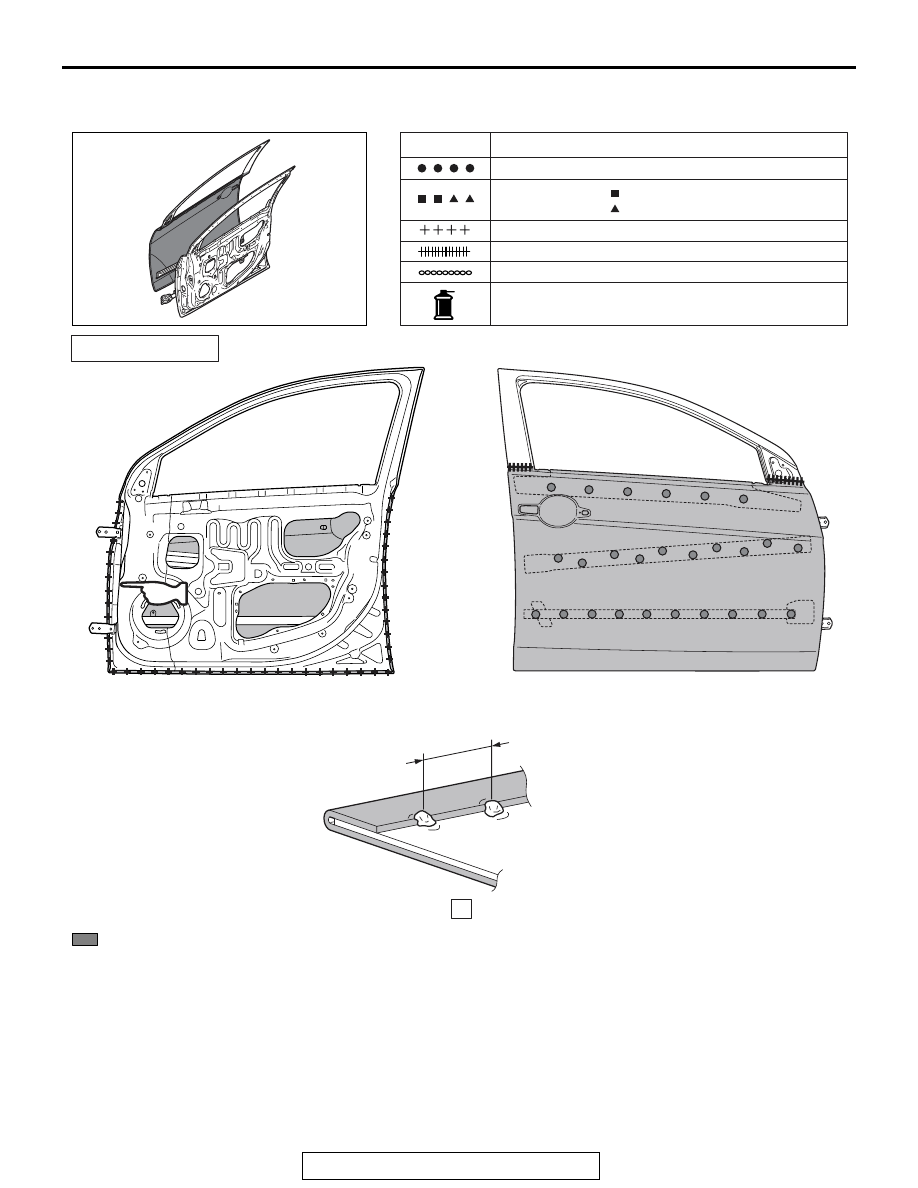

FRONT DOOR OUTER PANEL (WELDED TYPE)

TSB Revision

WELDED PANEL REPLACEMENT

3-46

FRONT DOOR OUTER PANEL (WELDED TYPE)

M4030001500671

Adhesive: Urethane body sealer

Brand: 3M

™ AAD Part No.08360 or equiva-

lent

NOTE: After hemming the front door outer panel, MIG spot weld the flange overlap section at a pitch of 50
mm (1.97 inches).

AB601289

AC

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB700976

A

REPAIR WELDS

 50 mm
(1.97 in)

: Adhesive

AB

A

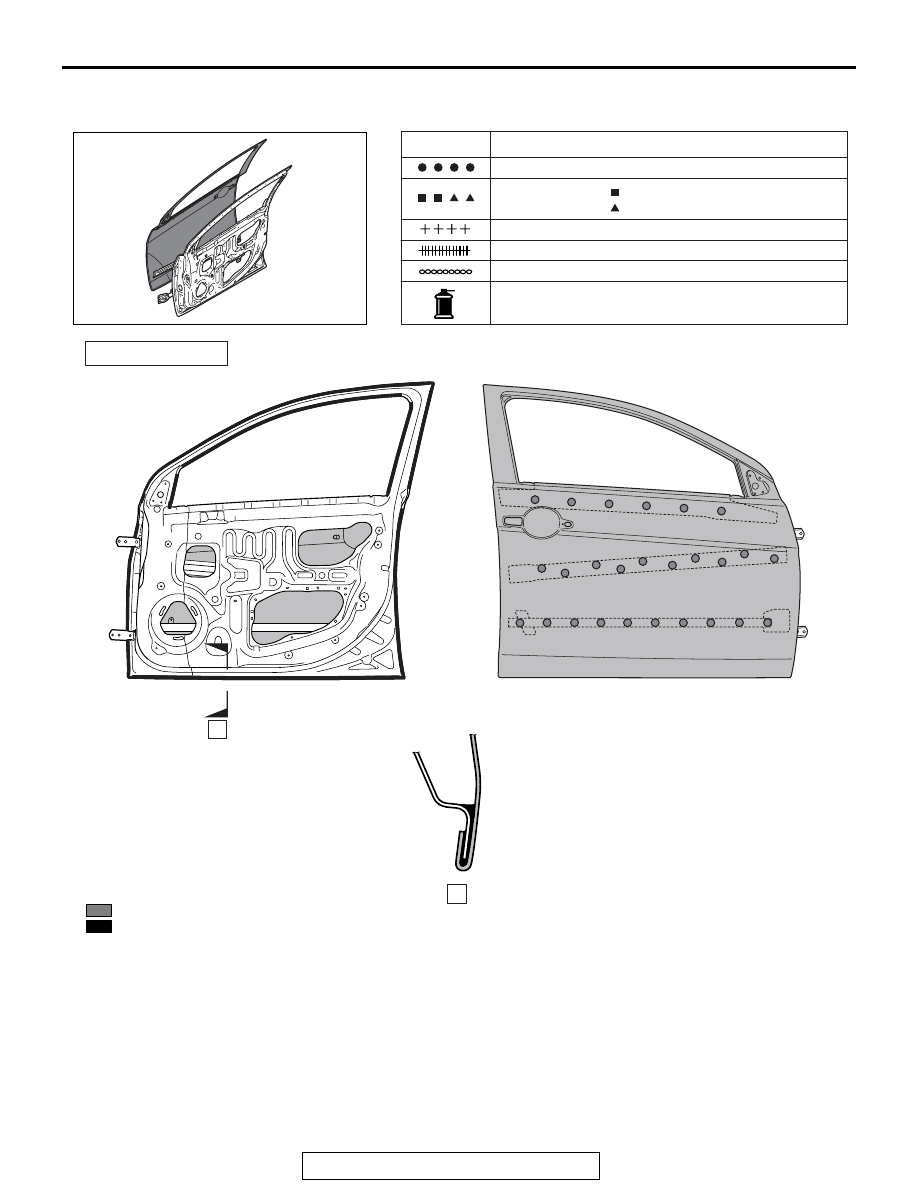

FRONT DOOR OUTER PANEL (ADHESION TYPE)

TSB Revision

WELDED PANEL REPLACEMENT

3-47

FRONT DOOR OUTER PANEL (ADHESION TYPE)

M4030001700686

• Adhesive 1: Urethane body sealer

Brand: 3M

™ AAD Part No.08360 or equiv-

alent

• Adhesive 2: Epoxyayresin adhesive

Brand: 3M

™ AAD Part No.8115 or equiva-

lent

NOTE ON REPAIR WORK

.

INSTALLATION

1. When installing the front door outer panel, grind and remove

the paint from the bonded surface of the outer panel to

ensure the bonding strength. After the removal, degrease it.

2. Install the outer panel and hem it. Wipe off the excessive

adhesive and finish it.

AB601288

AD

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB700977

REPAIR WELDS

: Adhesive 1

AB

A

: Adhesive 2

A

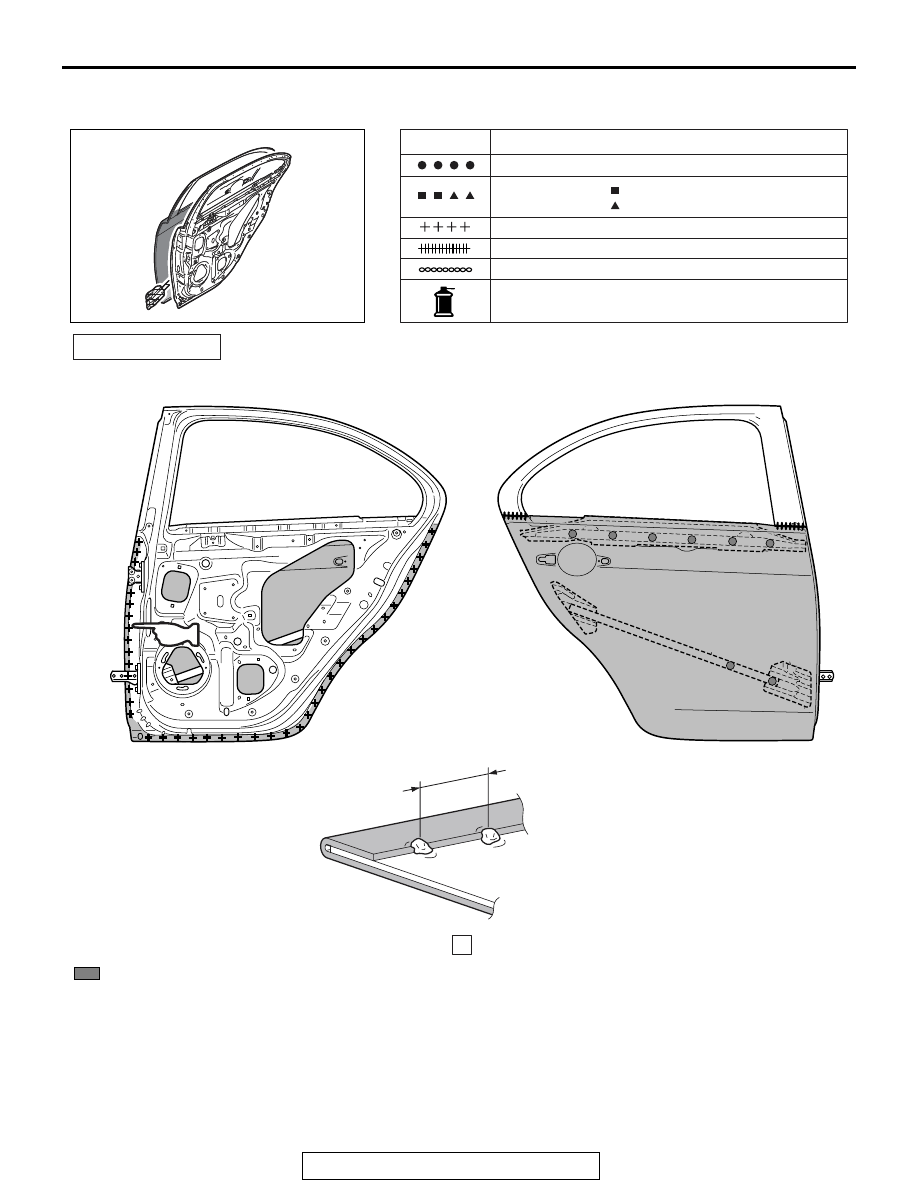

REAR DOOR OUTER PANEL (WELDED TYPE)

TSB Revision

WELDED PANEL REPLACEMENT

3-48

REAR DOOR OUTER PANEL (WELDED TYPE)

M4030001600548

Adhesive: Urethane body sealer
Brand: 3M

™ AAD Part No.08360 or equiva-

lent

NOTE: After hemming the front door outer panel, MIG spot weld the flange overlap section at a pitch of 50
mm (1.97 inches).

AB700852 AB

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB700542

A

A

AB

REPAIR WELDS

 : Adhesive

50 mm

(1.97 in)

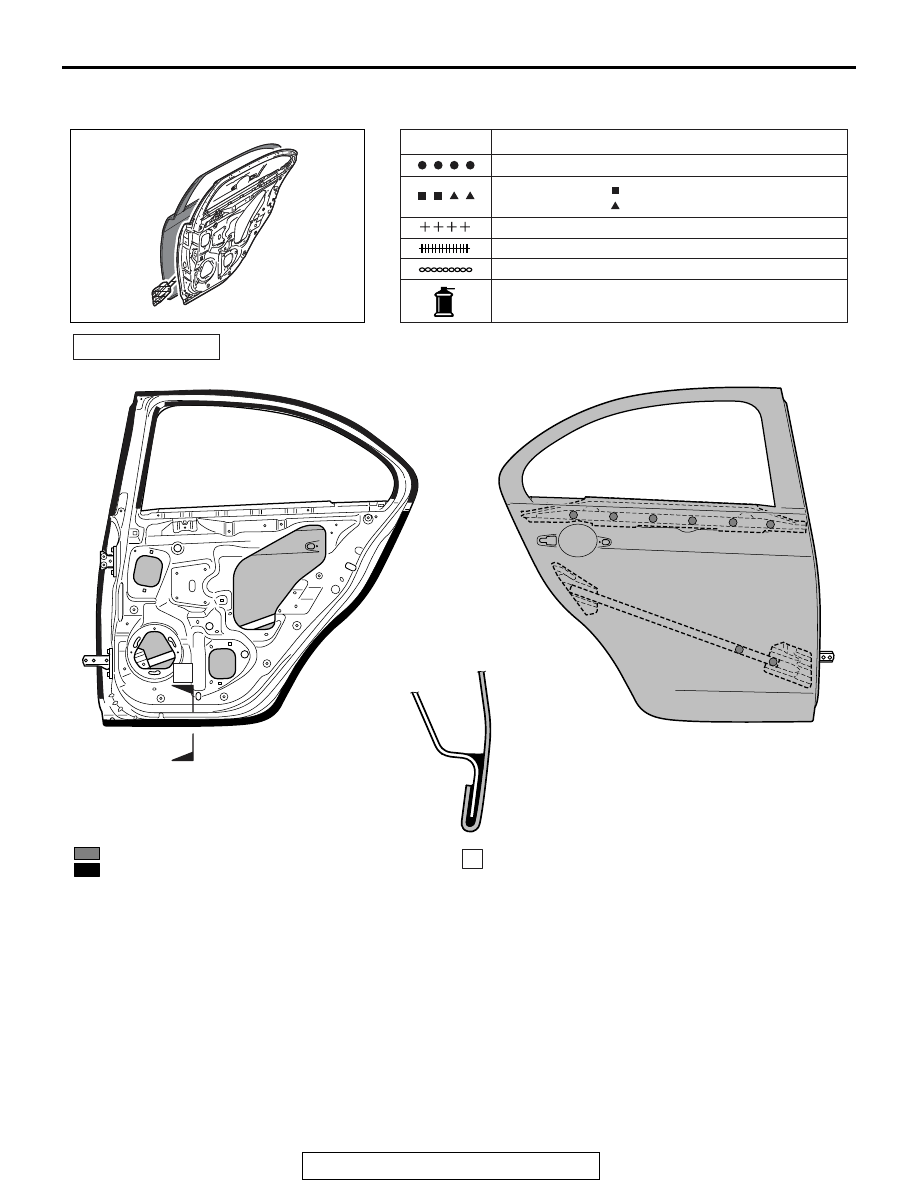

REAR DOOR OUTER PANEL (ADHESION TYPE)

TSB Revision

WELDED PANEL REPLACEMENT

3-49

REAR DOOR OUTER PANEL (ADHESION TYPE)

M4030001800520

• Adhesive 1: Urethane body sealer

Brand : 3M

™ AAD Part No.08360 or equiv-

alent

• Adhesive 2: Epoxyayresin adhesive

Brand : 3M

™ AAD Part No.8115 or equiva-

lent

NOTE ON REPAIR WORK

.

INSTALLATION

1. When installing the rear door outer panel, grind and remove

the paint, etc. from the bonded surface of the outer panel to
ensure the bonding strength. After the removal, degrease it.

2. Install the outer panel and hem it. Wipe off the excessive

adhesive and finish it.

AB700853AB

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB700543

A

AB

A

REPAIR WELDS

: Adhesive 1
: Adhesive 2
