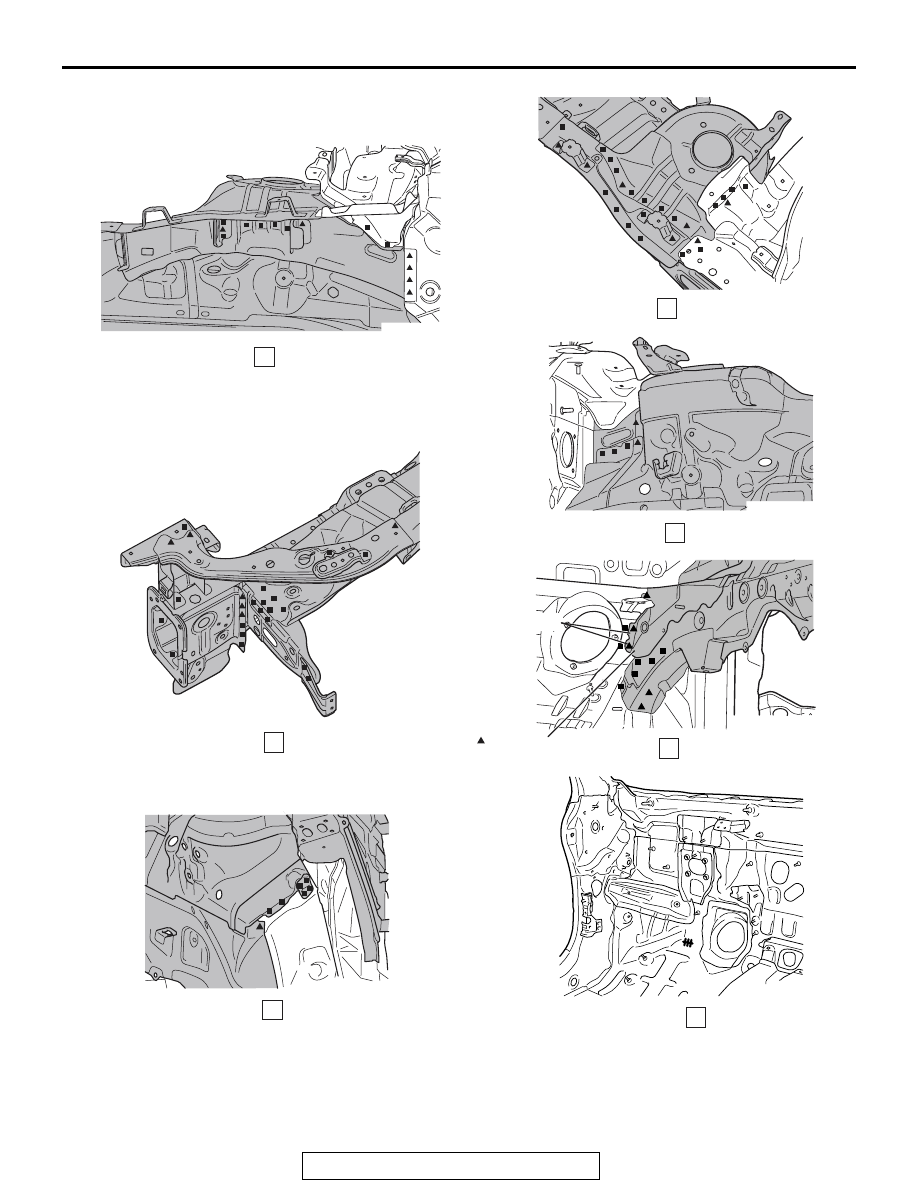

FENDER SHIELD

TSB Revision

WELDED PANEL REPLACEMENT

3-6

AB700933

E

F

G

H

I

AB

Right side

only

D

J

(With the upper frame to front pillar brace,
Fender shield frame upper outer
and front deck frame upper outer removed)

Right side

FENDER SHIELD

TSB Revision

WELDED PANEL REPLACEMENT

3-7

NOTE: Partial replacement of the front upper frame is possible
depending on the range of damage. When performing partial
replacement, cut the fender shield frame upper outer 152 mm
(6.0 inches) forward of the positioning hole center, and cut the
front upper frame inner 25 mm (0.98 inches) forward of the
positioning hole center.

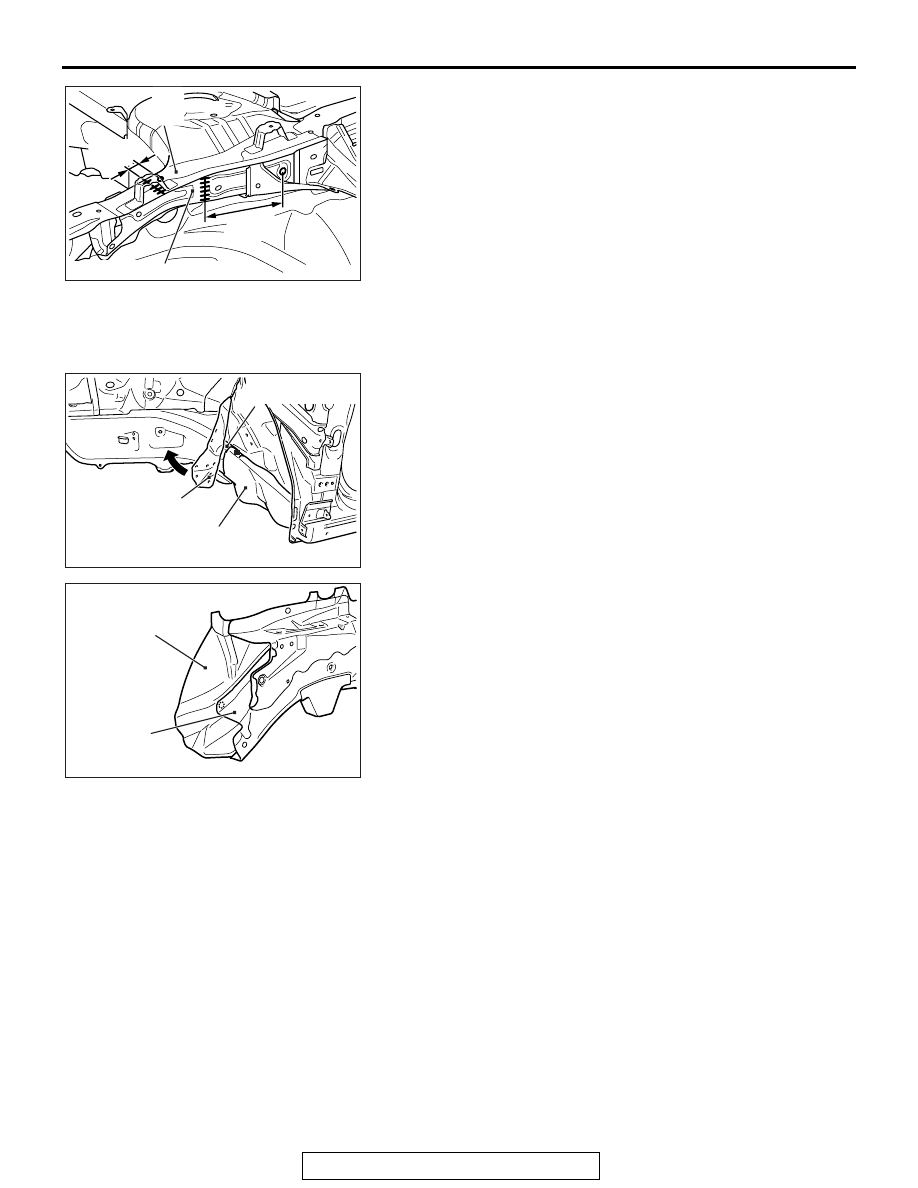

NOTE ON REPAIR WORK

.

REMOVAL

Turn up the front sidemember outer as shown to cut off the
welded point between the front sidemember inner and the front
body frame to side sill brace.

.

INSTALLATION

When installing the new front sidemember, align the hole of the
front sidemember brace lower with the front sidemember outer
to make a hole because the front sidemember outer prevents
the front sidemember inner and front sidemember brace lower
from being welded. Then, weld the front sidemember outer,
front sidemember inner, and front sidemember brace lower.

AB700935

152 mm

 (6.0 in)

25 mm

(0.98 in)

AB

Front
upper frame
inner

Fender shield frame upper outer

AB700299AB

Front sidemember
outer

Front body frame
to side sill brace

Front sidemember
inner

AB601423

Front
sidemember
inner

AB

Front
sidemember
outer

FRONT SIDEMEMBER (PARTIAL REPLACEMENT)

TSB Revision

WELDED PANEL REPLACEMENT

3-8

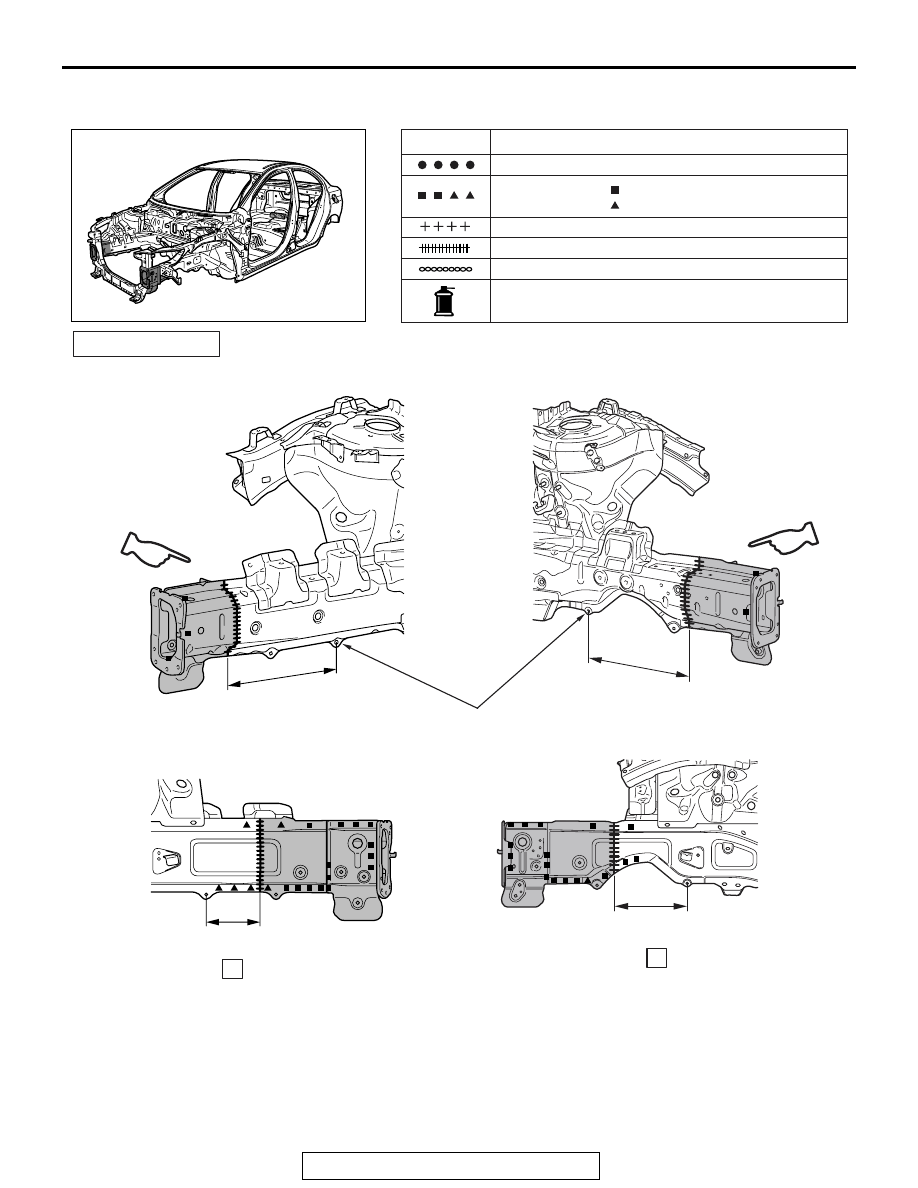

FRONT SIDEMEMBER (PARTIAL REPLACEMENT)

M4030000100700

NOTE:

.

•

Refer to the Front End Crossmember section on

P.3-3

 for the welding point with front end crossmember.

•

Refer to the Fender Shield section on

P.3-4

 for the welding points with the front fender Shield front.

AB700422

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB

AB700444

AB

135 mm
(5.3 in)

REPAIR WELDS

A

B

275 mm
(10.8 in)

(Right side)

(Left side)

315 mm
(12.4 in)

210 mm
(8.3 in)

A

B

Engine room side cover
mounting hole

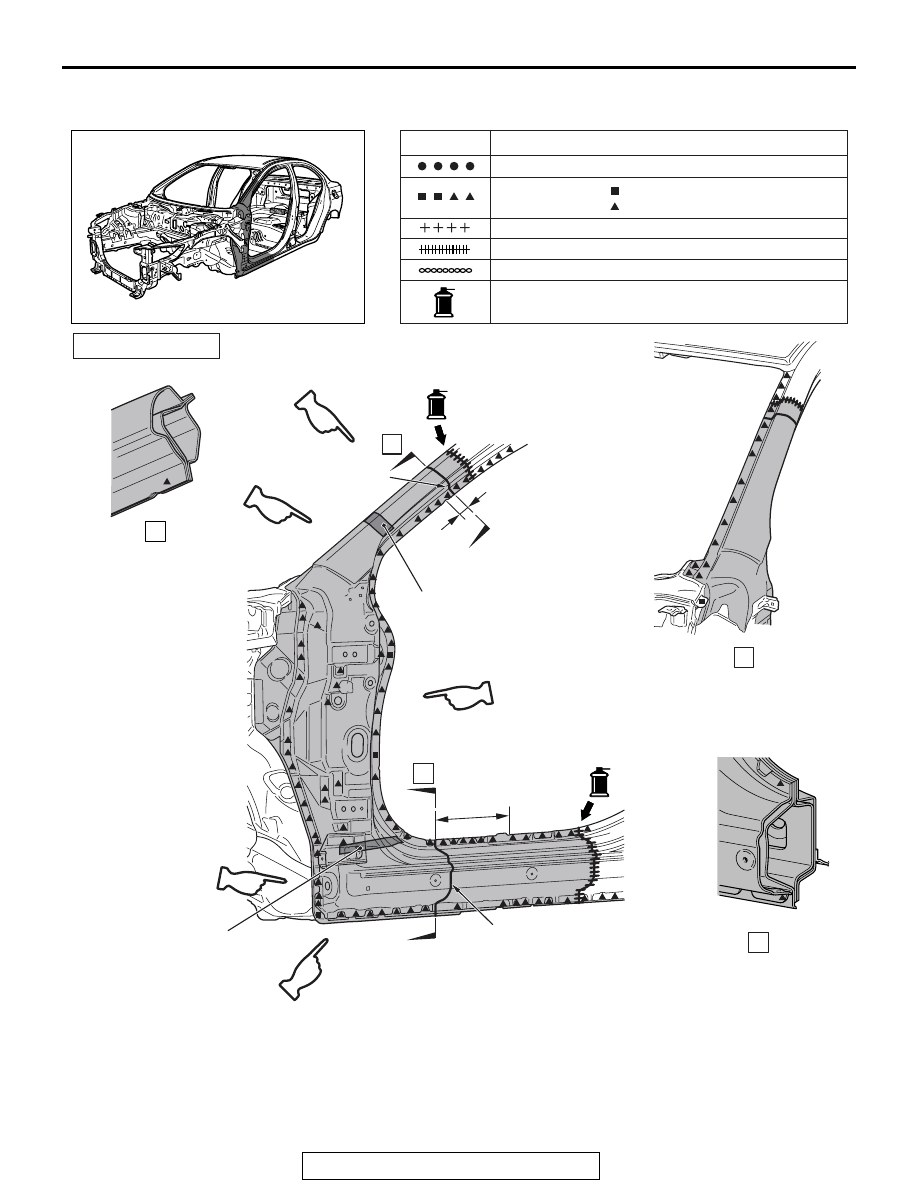

FRONT PILLAR

TSB Revision

WELDED PANEL REPLACEMENT

3-9

FRONT PILLAR

M4030005001563

NOTE: Refer to the Fender Shield section on

P.3-4

 for the welding points with the upper frame to front pillar

brace and front deck frame upper outer.

AB700423

AB

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB700449

A

B

C

C

AB

B

E

D

A

F

G

REPAIR WELDS

40 mm

(1.57 in)

230 mm

(9.05 in)

Cutting position

Cutting position

Sound dampening
foam material

Sound dampening
foam material

(With the upper frame to front pillar brace
and front deck frame upper outer removed)
