Mitsubishi Lancer Evolution X. Manual - part 588

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-309

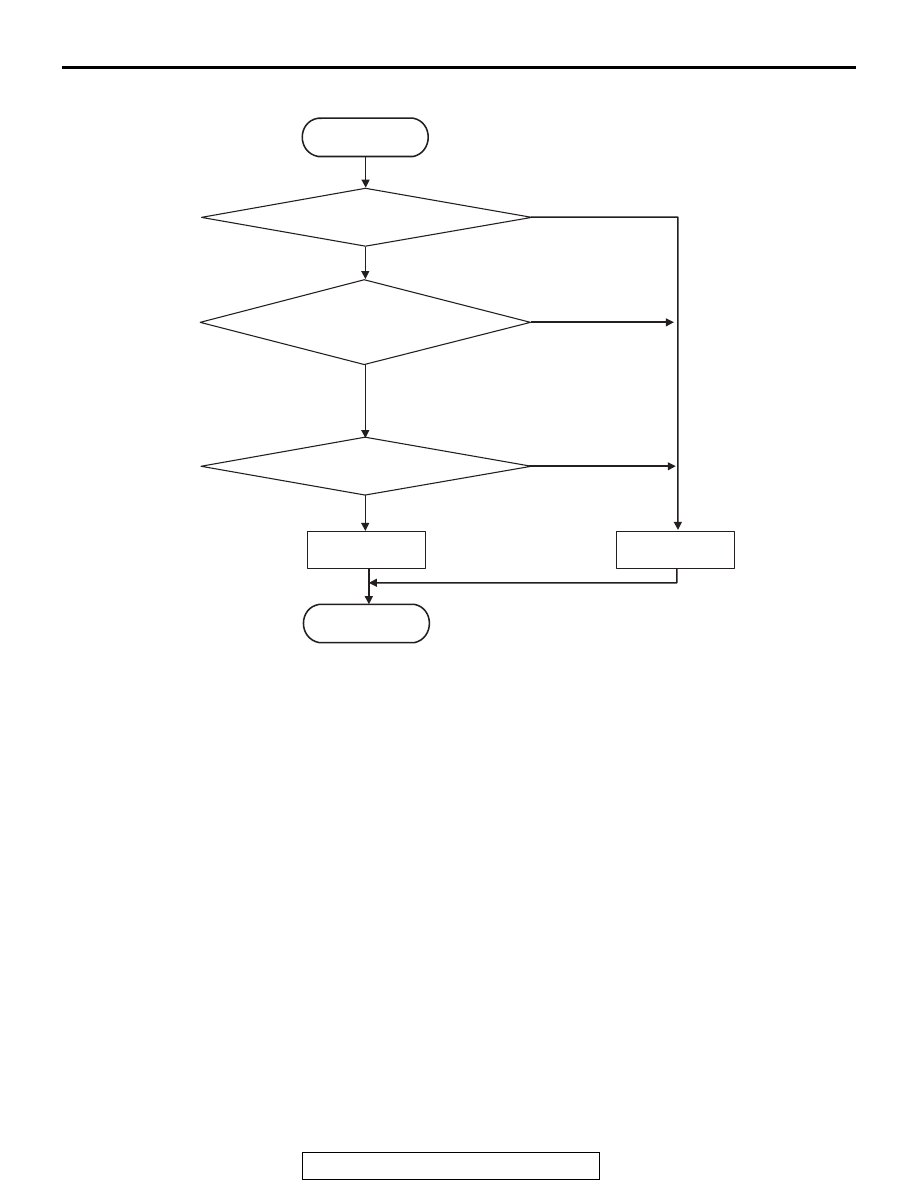

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.
• Voltage of battery: 16.5 V or less.
• Clutch / shift switching solenoid 1: OFF.

JUDGMENT CRITERIA

• FET (Field Effect Transistor) output: (Battery volt-

age − 2 V) or more. (160 millisecond)

.

OBD-II DRIVE CYCLE PATTERN

The FET channel output remains (Battery voltage − 2

V) or less for 160 milliseconds.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU
• Malfunction of clutch/shift switching solenoid 1

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827 M.U.T.-III USB Cable
• MB991910 M.U.T.-III Main Harness A

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C −

Troubleshooting

P.54C-15

.) After repairing the CAN

bus line, go to Step 2.

AC710667

START

No

Good

Malfunction

END

Monitoring condition met

Continuous failure
for 160 msec

No

Yes

Yes

Yes

No

FET* output
> Battery voltage - 2 V

*FET : Field Effect Transistor

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-310

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P2739 set?

YES : Replace the mechatronic assembly. (Refer to

P.22C-421

.)

NO :  Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P2742: Fluid Temperature Sensor System (Output low range out)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the output of the fluid tem-
perature sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The output is determined to be too low.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P2743: Fluid temperature sensor system (Output

high range out)

• P1808: TC-SST-ECU temperature, fluid tempera-

ture sensor system (Correlation error)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-311

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.
• Voltage of battery: 16.5 V or less.

JUDGMENT CRITERIA

• Fluid temperature: − 39° C (− 38.2° F) or less. (400

millisecond)

.

OBD-II DRIVE CYCLE PATTERN

The fluid temperature remains − 39° C (− 38.2° F) or

more for 400 milliseconds.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827 M.U.T.-III USB Cable
• MB991910 M.U.T.-III Main Harness A

AC710593

START

No

Yes

Yes

Good

Malfunction

END

Monitoring condition met

No

Continuous failure
for 400 msec

No

Fluid temperature < -50 ˚C (-58 ˚F)

Yes

AC

Fluid temperature < -39 ˚C (-38.2 ˚F)

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-312

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C −

Troubleshooting

P.54C-15

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
30 seconds after turning ON the ignition switch, check that the
DTC is reset.
Q: Is DTC No. P2742 set?

YES : Replace the mechatronic assembly. (Refer to

P.22C-421

.)

NO :  Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P2743: Fluid Temperature Sensor System (Output high range out)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the output of the fluid tem-
perature sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The output is determined to be too high.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P2742: Fluid temperature sensor system (Output

low range out)

• P1808: TC-SST-ECU temperature, fluid tempera-

ture sensor system (Correlation error)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
