MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-13

NOTE: If the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates
because of a malfunction of the engine control module (ECM), communication between the scan tool
MB991958 (M.U.T.-III sub assembly) and the ECM is impossible. In this case, the diagnostic trouble code
cannot be read.
NOTE: After the ECM has detected a malfunction, the Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) illuminates when the engine is next turned on and the same malfunction is
re-detected. However, for items marked with a "*1" in the diagnostic trouble code number column, the Mal-
function Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates only on the first
detection of the malfunction.
NOTE: The codes marked with a "*2" in the diagnostic trouble code number column have the following two
conditions for illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine
Lamp).

• In case that the misfire causing the damaged catalyst is detected, the Malfunction Indicator Lamp (SER-

VICE ENGINE SOON or Check Engine Lamp) is illuminated at the time.

• In case that the misfire deteriorating the exhaust gas is detected, the Malfunction Indicator Lamp (SER-

VICE ENGINE SOON or Check Engine Lamp) is illuminated when the same malfunction is redetected
after the next engine start.

NOTE: After the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates,
it will be switched off under the following conditions.

• When the ECM monitored the powertrain malfunction three times* and met set condition requirements, it

detected no malfunction. *: In this case, "one time" indicates from engine start to next engine start.

• For misfiring or a fuel trim malfunction, when driving conditions (engine speed, engine coolant tempera-

ture, etc.) are similar to those when the malfunction was first recorded.

• The illuminated MIL for the vehicle identification number related faults is extinguished when the vehicle

identification number is detected.

NOTE: Sensor 1 of the heated oxygen sensor indicates the sensor mounted at a position closest to the
engine, and sensor 2 of the heated oxygen sensor indicates the sensor mounted at the position second clos-
est to the engine.

P2128*

1

Accelerator pedal position sensor (sub) circuit high input

P2135*

1

Throttle position sensor (main and sub) range/performance problem

P2138*

1

Accelerator pedal position sensor (main and sub) range/performance problem

P2195

Heated oxygen sensor (front) inactive

P2228*

1

Barometric pressure circuit low input

P2229*

1

Barometric pressure circuit high input

P2252

Heated oxygen sensor offset circuit low voltage

P2253

Heated oxygen sensor offset circuit high voltage

U0101*

1

TC-SST-ECU time-out <TC-SST>

U0121*

1

ASC-ECU time-out

U0141*

1

ETACS-ECU time-out

U1180*

1

Combination meter time-out

DTC

ITEM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-14

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When the special tool MB991824 is energized, spe-
cial tool MB991824 indicator light will be illuminated in a
green color.

7. Start the M.U.T.-III system on the personal computer.

NOTE: Disconnecting the scan tool MB991958 is the
reverse of the connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES.

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

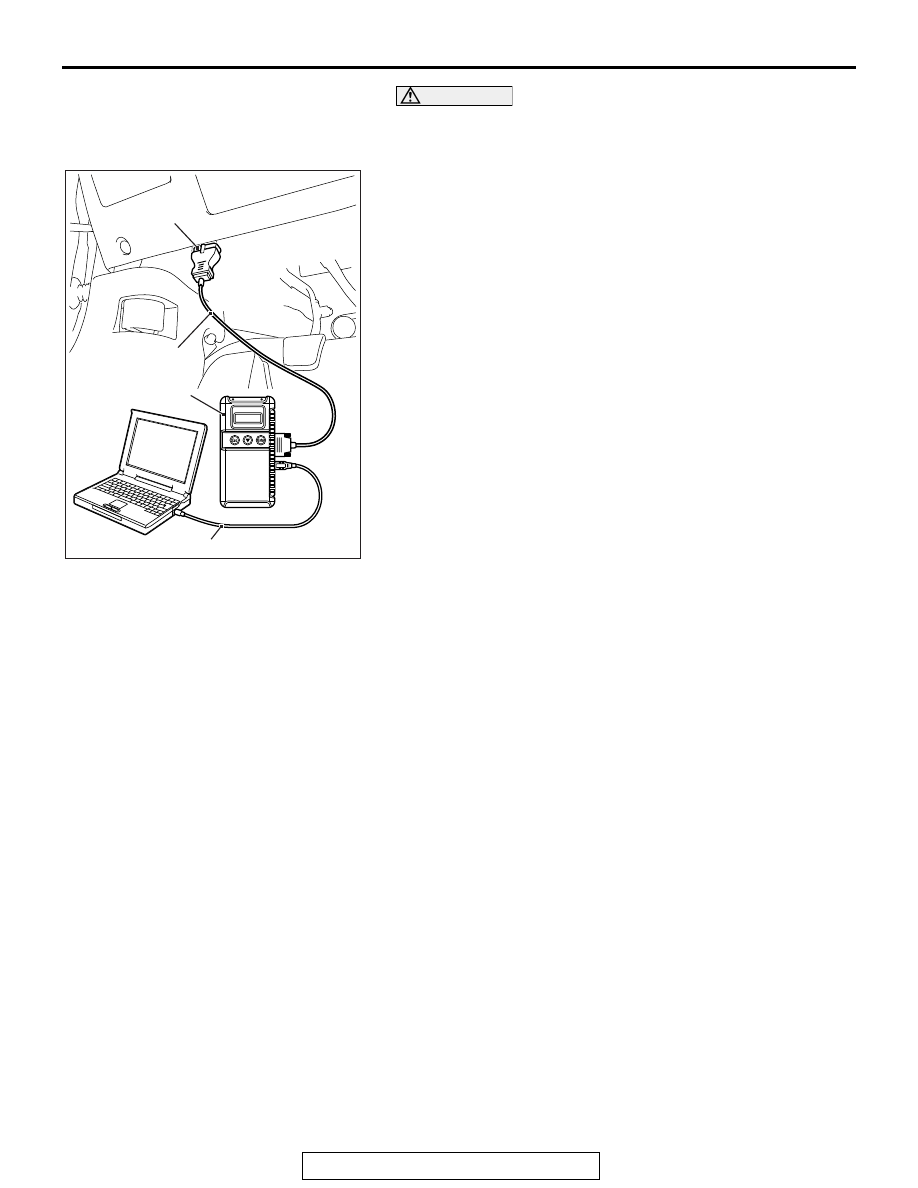

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-15

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select."
4. Choose "from 2006 MY" under "MODEL YEAR".
5. Check that "Vehicle Information" contents are correct.
6. Choose "MFI".
7. Select "Diagnostic Trouble Code"
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-16

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select."
4. Choose "from 2006 MY" under "MODEL YEAR".
5. Check that "Vehicle Information" contents are correct.
6. Choose "MFI".
7. Select "Data List."
8. Choose an appropriate item and select the "OK" button.

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
