ON-VEHICLE SERVICE

TSB Revision

FRONT SUSPENSION

33-9

CAUTION

Do not apply the vehicle weight to the wheel bearing with
the driveshaft nut loosened.
NOTE: Tighten the wheel alignment gauge attachment (special
tool: MB991004) to the specified torque, then perform mea-
surement.

Tightening torque: 144 − 176 N⋅ m (106 − 130 ft-lb)

LOWER ARM BALL JOINT END PLAY CHECK

M1332015000376

1. Raise the vehicle.
2. Remove the stabilizer link from the lower arm (Refer to

P.33-15

).

3. Move the lower arm assembly up and down with your hands

to check for an excessive play in the axial direction of the
ball joint. If there is an excessive play, replace the lower arm
assembly (Refer to

P.33-15

).

BALL JOINT DUST COVER CHECK

M1332008601012

.

LOWER ARM BALL JOINT DUST COVER CHECK

1. Using your fingers, press the dust cover to check for a crack

or damage.

2. If there is a crack or damage on the dust cover, replace the

lower arm assembly. (Refer to

P.33-15

.)

NOTE: The crack or damage on the dust cover may damage
the ball joint.
If the dust cover is damaged during maintenance, replace
the dust cover. (Refer to

P.33-16

.)

.

STABILIZER LINK BALL JOINT DUST COVER
CHECK

1. Using your fingers, press the dust cover to check for a crack

or damage.

2. If there is a crack or damage on the dust cover, replace the

stabilizer link. (Refer to

P.33-17

.)

NOTE: The crack or damage on the dust cover may damage
the ball joint.
If the dust cover is damaged during maintenance, replace
the stabilizer link. (Refer to

P.33-17

.)

AC704983 AB

MB991004

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-10

STRUT ASSEMBLY

REMOVAL AND INSTALLATION

M1332001101287

CAUTION

The part indicated by * is the bolt/nut with friction coefficient stabilizer. During removal, ensure there
is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the spec-
ified torque.

Post-installation Operation
Front Wheel Alignment Check and Adjustment (Refer to

P.33-8

).

AC704992AE

1

23 ± 6 N·m
17

± 4 ft-lb

4

6

45 ± 7 N·m
33 ± 5 ft-lb

110 ± 11 N·m*
81 ± 8 ft-lb*

1

5

3

13 ± 2 N·m
115 ± 17 in-lb

2

Vehicle front side

Removal steps

1.

Harness clip and strut
assembly connection

2.

Brake hose bracket and strut
assembly connection

>>

A

<<

3.

Knuckle and strut connection
nut

4.

Strut mounting nut

5.

Strut tower bar

6.

Strut assembly

Removal steps (Continued)

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-11

INSTALLATION SERVICE POINT

.

>>A<< KNUCKLE AND STRUT CONNECTION NUT
INSTALLATION

Locate the knuckle and strut connection upper bolt’s mark posi-
tion as shown in the figure and tighten it.

INSPECTION

M1332001200430

• Check for oil leaks from the strut assembly.
• Check the strut assembly for damage or deformation.

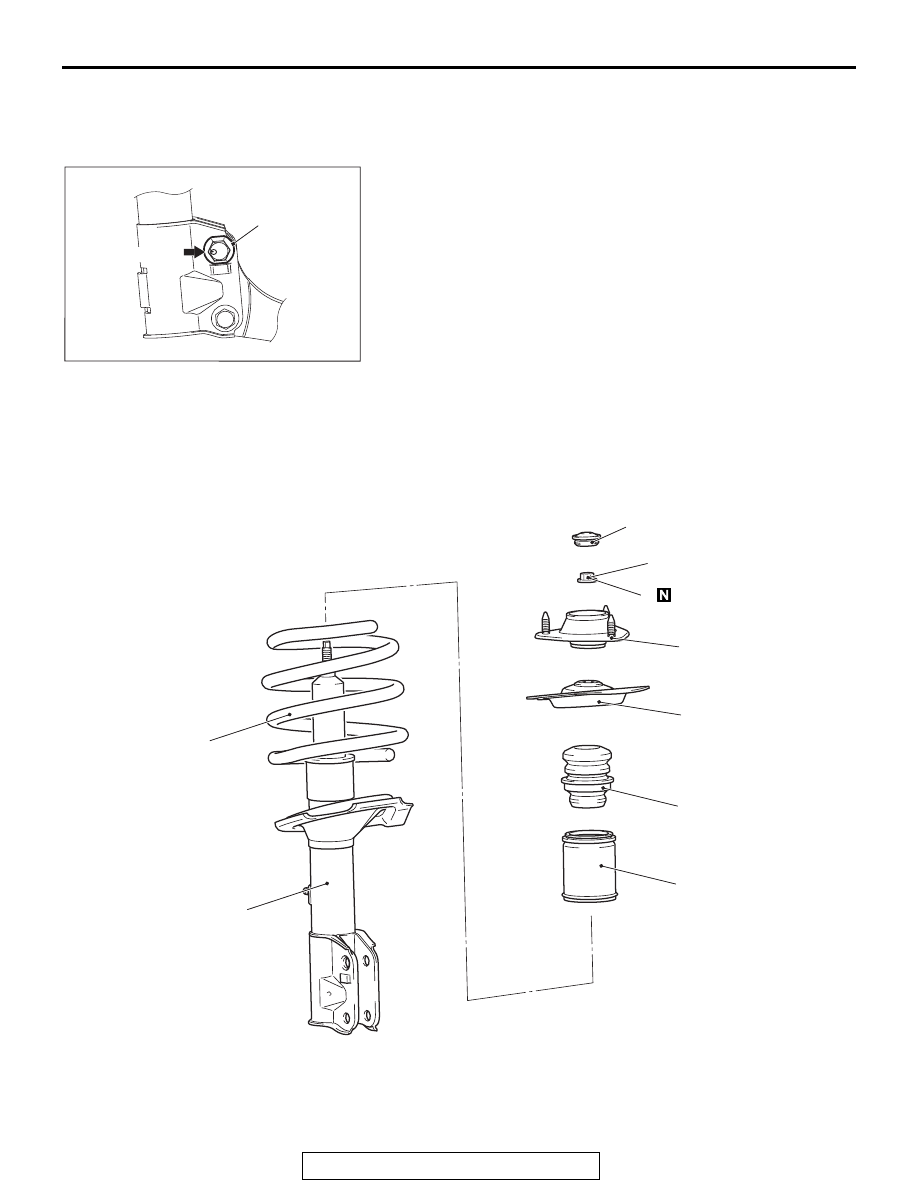

DISASSEMBLY AND ASSEMBLY

M1332001301054

AC711656 AD

Upper bolt

Mark position

AC707644 AC

1

3

4

7

8

6

2

60 ± 9 N·m
44 ± 6 ft-lb

5

Disassembly steps

1. Cap

<<

A

>>

>>

C

<<

2. Strut nut (Jam nut)

3. Strut insulator assembly

>>

B

<<

4. Upper spring seat

Disassembly steps

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-12

Required Special Tools:

• MB991681: Wrench

• MB991682: Socket
• MB991793: Spring compressor
• MB991794: Upper plate
• MB991795: Attachment A
• MB991796: Attachment B
• MB991830: Fixture

DISASSEMBLY SERVICE POINTS

.

<<A>> STRUT NUT (JAM NUT) REMOVAL

1. Install special tool MB991795 to the special tool MB991793

as shown in the figure.

2. Set the strut assembly to special tools: MB991793,

MB991795, MB991794 and MB991830.
NOTE: Use the bolts and nuts removed from the vehicle to
secure the strut assembly and tighten them lightly by hand.

3. After setting the strut assembly, operate the spring

compressor and compress the coil spring by approximately
5 mm (0.20 in).

CAUTION

The lock nut for the piston rod inside the strut may be
loose. Do not use the impact wrench to loosen the strut
nut.
4. Use special tools MB991681, MB991682 to loosen the strut

nut (jam nut):

.

5. Bump rubber
6. Dust cover

>>

A

<<

7. Coil spring

<<

B

>>

8. Strut

Disassembly steps

AC105115 AC

MB991795

MB991793

AC105116

MB991794

AC

MB991830

MB991795

MB991793

AC707645

MB991681

MB991682

AF

Strut nut
(Jam nut)
