ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-17

CAUTION

During the operation, cover the bleeder screw with a cloth
or similar materials to prevent splashing of the brake fluid.
If the brake fluid adheres to the brake caliper assembly,
immediately wipe off the fluid.

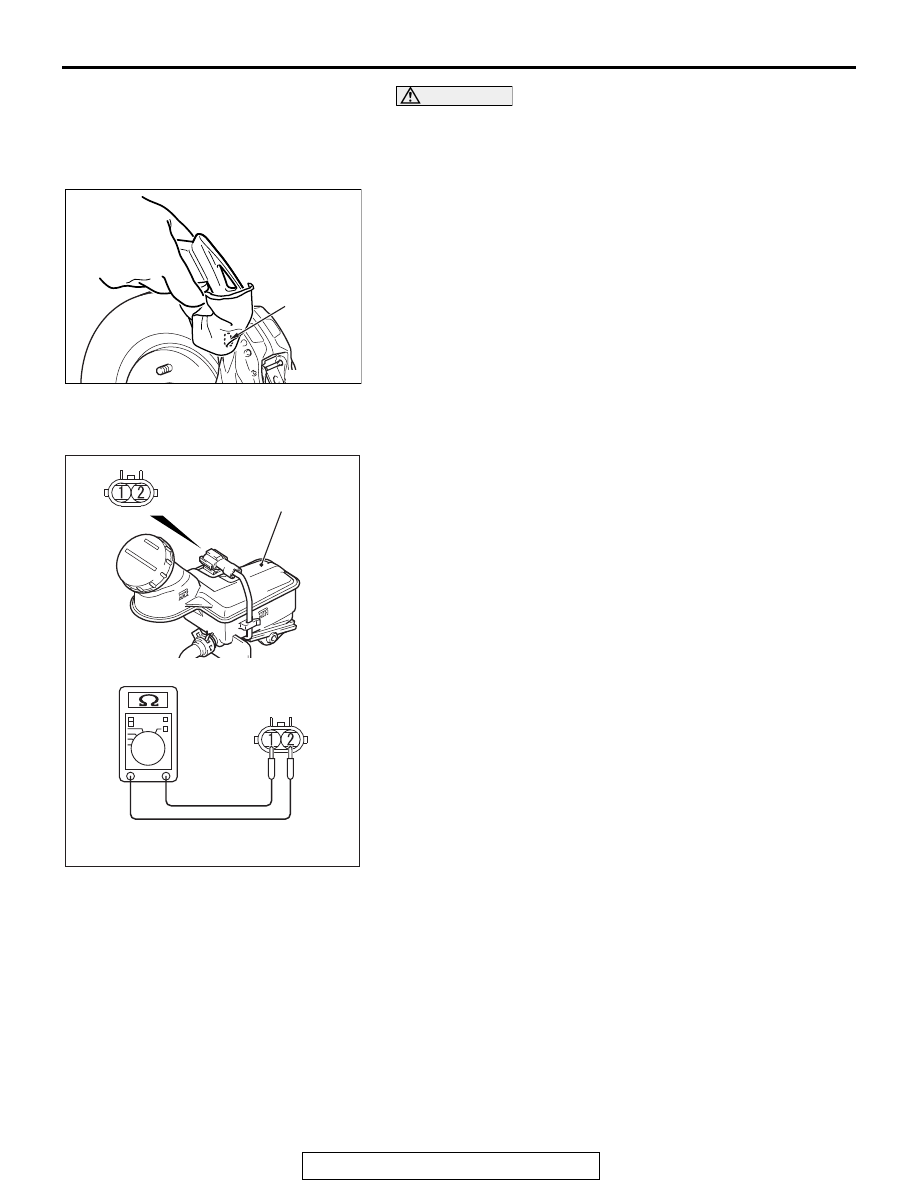

Cover the bleeder screw with a cloth or similar materials. Then,
blow air to completely remove the brake fluid remaining in the
bleeder screw.

BRAKE FLUID LEVEL SWITCH CHECK

M1351009100801

The brake fluid level switch is normal when the following condi-
tions are met: When the brake fluid level is above "MIN," conti-
nuity is detected; and when the level is below "MIN," no
continuity is detected.

AC808389AB

Bleeder
screw

AC805137AB

Reservoir assembly

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-18

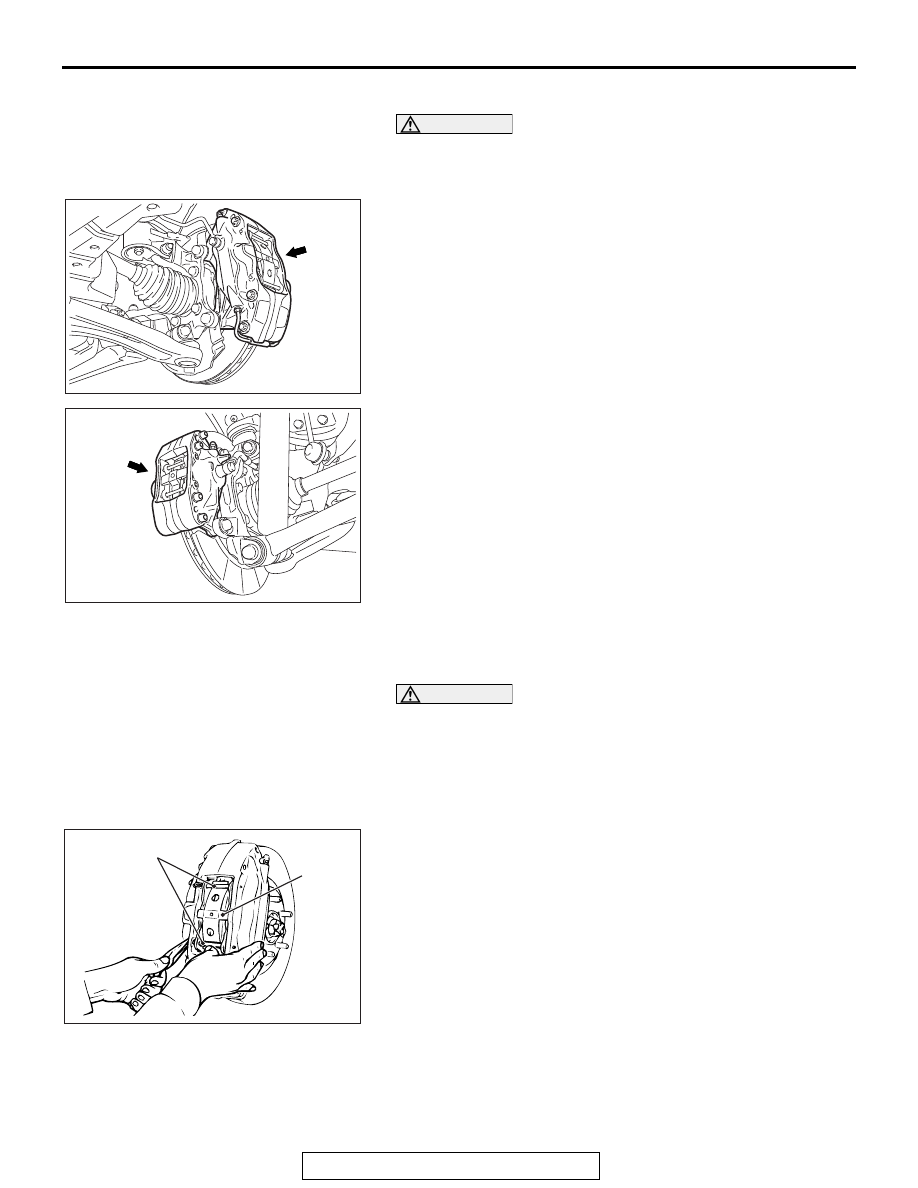

BRAKE PAD CHECK

M1351017300048

CAUTION

If there is a significant difference in the thicknesses of the
pads on the left and right sides, check moving parts (Refer
to

P.35A-21

).

1. Visually check the thickness of brake pad from the

inspection hole of the caliper body.

Standard value:

9.85 mm (0.39 inch) <Front>
9.0 mm (0.35 inch) <Rear>

Limit: 2.0 mm (0.08 inch)

2. When the thickness is lower than the limit value, replace

both brake pads (right and left) as a set (Refer to

P.35A-18

).

BRAKE PAD REPLACEMENT

M1351017400056

.

CAUTION

• Take care not to contact the parts or tools to the caliper

because the paint of caliper will be scratched. And if
there is brake fluid on the caliper, wipe it off quickly.

• Whenever a pad must be replaced, replace both LH and

RH wheel pads as a set to prevent the vehicle from pull-
ing to one side when braking.

1. While pressing the cross spring by hand, remove the pin

from the brake caliper assembly.

2. Remove the cross spring from the brake caliper assembly.

AC706942AB

<Front>

AC706943AB

<Rear>

AC211986AB

Cross
spring

Pin

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-19

3. Remove the following parts from the brake caliper assembly.

(1) Shim
(2) Brake pad assembly

CAUTION

Keep grease or other soiling off the pad and brake disk
friction surfaces.
4. Clean the piston, then press the piston into the cylinder

using the special tool piston expander (MB990520).

AC710737

1

1

1

2

2

1

1

2

1

1

1

2

AB

<Right side>

Vehicle out side

Vehicle out side

<Left side>

<Front disc brake>

Wear indicator

Wear indicator

<Right side>

Vehicle out side

Vehicle out side

<Left side>

<Rear disc brake>

Wear indicator

Wear indicator

AC706163AB

MB990520

Piston

Caliper
body

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-20

5. Apply grease to the pad as shown in the figure.

Grease:

Between pad and shim: Repair kit grease (Color:

Black), Molykote AS880N or equivalent

Shoulder section: Repair kit grease (Color: Copper),

Molykote 7439 or equivalent

6. Install the shim to the brake pad assembly. Then, install the

brake pad assembly to the brake caliper assembly so that
the direction of shim arrow points to the same direction as
the brake disk rotation direction of when the vehicle travels
forward.
NOTE: Install the brake pad assembly (with wear indicator)
to outside the vehicle.

7. Install the cross spring to the brake caliper assembly.

AC707947AC

<Front>

<Rear>

Grease: Repair kit grease (Color: Black),
              Molykote AS880N or equivalent

AC707948AC

<Rear>

Grease: Repair kit grease (Color: Copper),
              Molykote 7439 or equivalent

<Front>
