Mitsubishi Lancer Evolution X. Manual - part 26





DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-129

DIAGNOSTIC ITEM 14: Diagnose the lines between joint connector (CAN3) and joint connector
(CAN4). <TC-SST>

CAUTION

When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted

water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

TRANSAXLE
ASSEMBLY

ENGINE CONTROL MODULE

CAN-C Communication Circuit <TC-SST>

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

JOINT CONNECTOR
(CAN4)

SHIFT LEVER

ASC-ECU

STEERING
WHEEL SENSOR

AWC-ECU

NOTE

: THE TERMINAL NUMBERS DESCRIBED

IN THE CIRCUIT DIAGRAM AGREE WITH
THE NUMBERS MARKED ON THE
TRANSAXLE ASSEMBLY CONNECTOR AND
HARNESS SIDE CONNECTOR.

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-130

.

FUNCTION

If a failure is present in the wiring harness between
the joint connector (CAN3) and the joint connector
(CAN4), this diagnosis result will be set.

.

TROUBLE JUDGMENT CONDITIONS

If a communication flag is not set for some of the
ECUs on the CAN-C line, the ETACS-ECU deter-
mines that there is a failure.

.

TROUBLESHOOTING HINTS

• Malfunction of the connector [joint connector

(CAN3), joint connector (CAN4) or intermediate
connector failed]

• Malfunction of the wiring harness [open circuit

between joint connector (CAN3) and joint con-
nector (CAN4)]

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set
• MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN3) C-127, joint
connector (CAN4) A-14 and intermediate connector A-13
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-7

.

Q: Are joint connector (CAN3) C-127, joint connector

(CAN4) A-14 and intermediate connector A-13 in good
condition?
YES :
Go to Step 2.
NO :  Repair the damaged parts.

AC708949AL

Connectors: A-13, A-14

A-14

A-13

AC708951CC

Connector: C-127

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-131

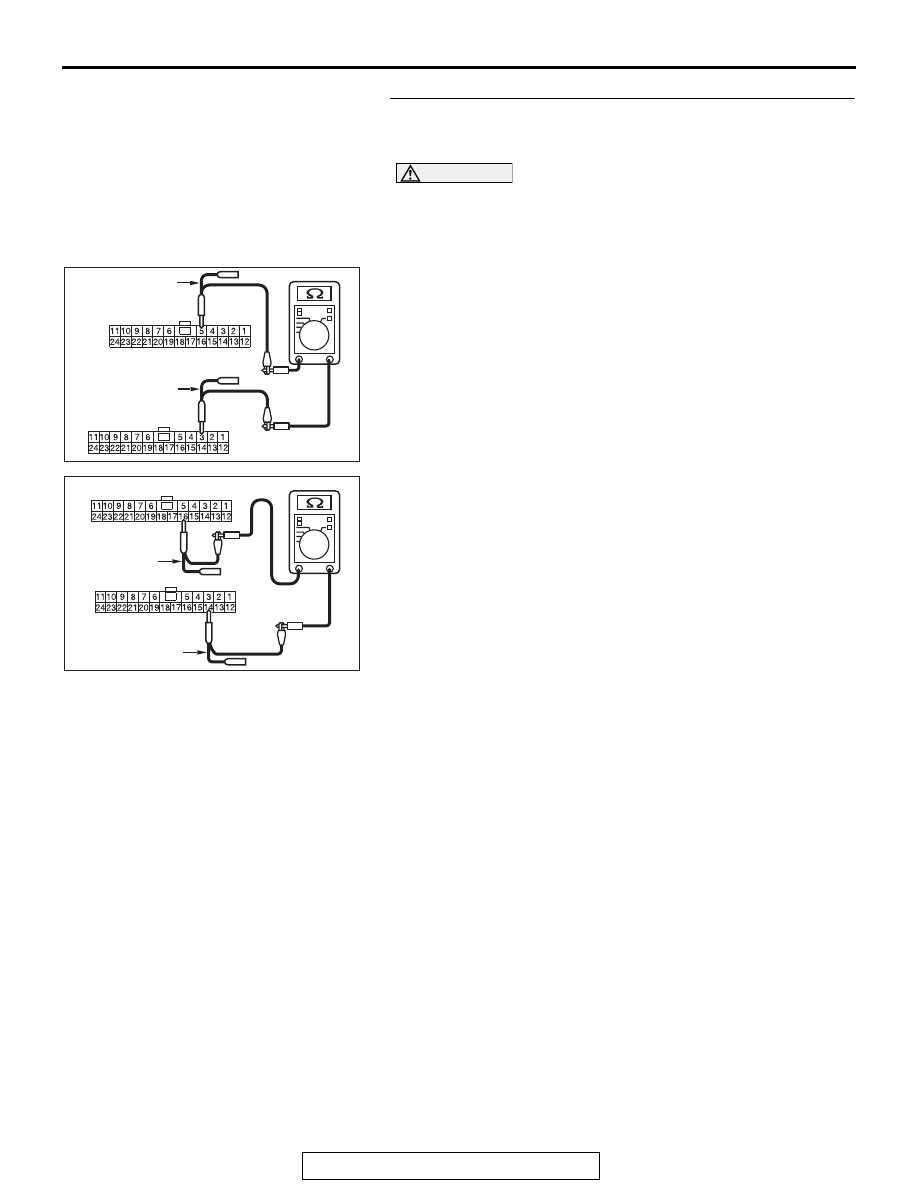

STEP 2. Check the wiring harness between joint connector
(CAN3) C-127 and joint connector (CAN4) A-14 for open
circuit.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN3) C-127 and joint

connector (CAN4) A-14, and check the wiring harness.

(2) Check the wiring harness between joint connector (CAN3)

C-127 (terminal 3) and joint connector (CAN4) A-14
(terminal 5)

OK: Continuity exists (2 Ω or less)

(3) Check the wiring harness between joint connector (CAN3)

C-127 (terminal 14) and joint connector (CAN4) A-14
(terminal 16)

OK: Continuity exists (2 Ω or less)

Q: Is the wiring harness between joint connector (CAN3)

C-127 and joint connector (CAN4) A-14 in good
condition?
YES :
The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points − How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Repair the wiring harness between joint connector

(CAN3) C-127 and joint connector (CAN4) A-14.

AC709707BT

TEST
HARNESS

Harness side: A-14

TEST
HARNESS

Harness side: C-127

AC709707BU

Harness side: A-14

Harness side: C-127

TEST HARNESS

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-132

DIAGNOSTIC ITEM 15: Diagnose when the scan tool cannot receive the data sent by KOS-ECU.

CAUTION

When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

CAN-B Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

A/C-ECU

COMBINATION
METER

SRS-ECU

WIRELESS
CONTROL
MODULE

KOS-ECU

NOTE

VEHICLES WITH WCM
VEHICLES WITH KOS

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)
