TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-89

DIAGNOSIS PROCEDURE

STEP 1. Check the diagnosis code by connecting
a dummy resistor. (M.U.T.-II/III diagnosis code)
(1) Disconnect the negative battery terminal.

(2) Disconnect passenger's (front) seat belt

pre-tensioner connector D-03 <LHD> or D-16
<RHD>. Use a flat-tipped screwdriver to pull out
the locking button at the harness side connector,
and then disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool (MB991884) to the D-03

<LHD> or D-16 <RHD> harness side connector.

(5) Connect the negative battery terminal.
(6) Erase diagnosis code memory, and then check

the diagnosis code.

Q: Is diagnosis code 68 set?

YES :

Go to Step 2.

NO :

Replace the passenger's (front) seat belt
with pre-tensioner (Refer to

P.52B-117

).

AC310465

AO

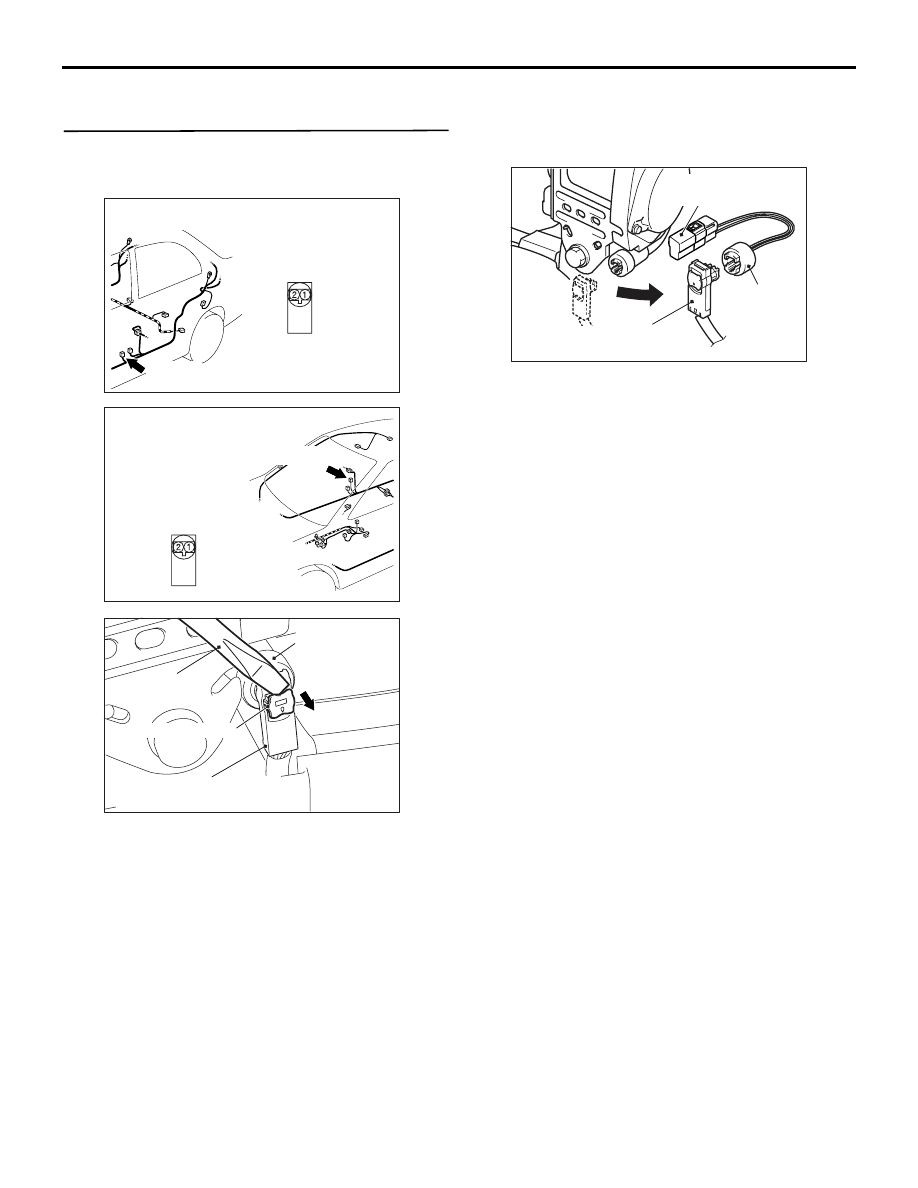

Connector: D-03
<LHD>

Harness side
connector
(front view)

D-03 (B)

AC310471

AJ

Connector: D-16
<RHD>

Harness side
connector
(front view)

D-16 (B)

AC300147AX

Flat-tipped
screwdriver

Locking button

D-03 <LHD>,
D-16 <RHD>
Passenger's (front)
seat belt
pre-tensioner
connector

D-03 <LHD>, D-16 <RHD>
Harness side connector

MB991884
MB991885

AC103283AY

D-03 <LHD>, D-16 <RHD>
Harness side connector

MB991884
(Resistor
Harness)

MB991865
(Dummy Resistor : 3  )

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-90

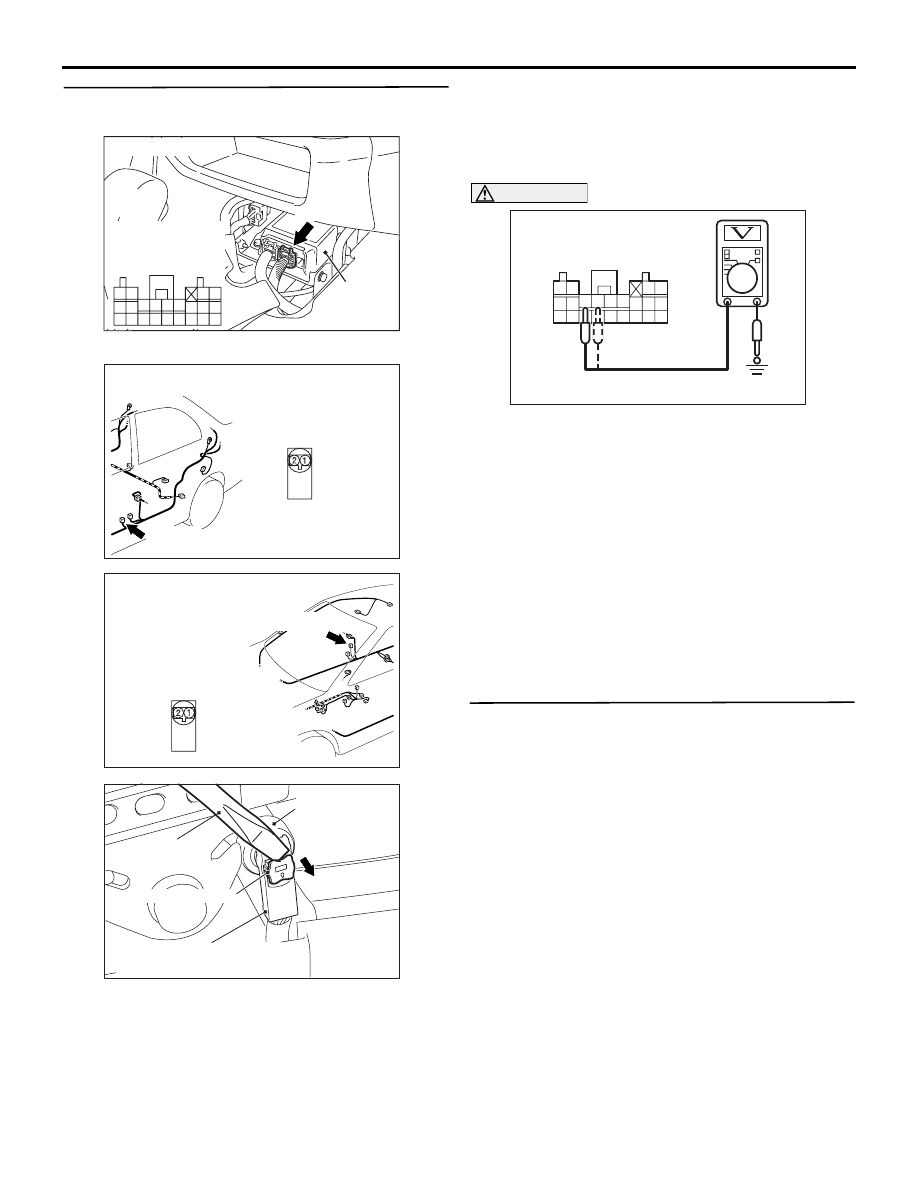

STEP 2. Voltage measurement at the SRS-ECU
connector C-13

(1) Disconnect SRS-ECU connector C-13.

(2) Disconnect passenger's (front) seat belt

pre-tensioner connector D-03 <LHD> or D-16
<RHD>. Use a flat-tipped screwdriver to pull out
the locking button at the harness side connector,
and then disconnect the connector.

(3) Turn the ignition switch to the "ON" position,

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(4) Voltage measurement between C-13 harness

side connector terminals 27, 28 and body earth.

OK: 0 V

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the harness wires between
SRS-ECU connector C-13 (terminal No.27
and 28) and passenger's (front) seat belt
pre-tensioner connector D-03 <LHD> or
D-16 <RHD> (terminal No.1 and 2).

STEP 3. Check whether the diagnosis code is
reset.

Q: Is diagnosis code 68 set?

YES :

Replace the SRS-ECU (Refer to

P.52B-109

).

NO :

An intermittent malfunction is suspected
(Refer to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AC101951

Connector: C-13

SRS-ECU

AL

C-13 (Y)

21

252627 282930 313233
34 35 3637 38394041 42

22

23 24

Harness side
connector
(rear view)


AC310465

AO

Connector: D-03
<LHD>

Harness side
connector
(front view)

D-03 (B)

AC310471

AJ

Connector: D-16
<RHD>

Harness side
connector
(front view)

D-16 (B)

AC300147AX

Flat-tipped
screwdriver

Locking button

D-03 <LHD>,
D-16 <RHD>
Passenger's (front)
seat belt
pre-tensioner
connector

D-03 <LHD>, D-16 <RHD>
Harness side connector

AC100341

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AS

C-13 Harness side
connector (rear view)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-91

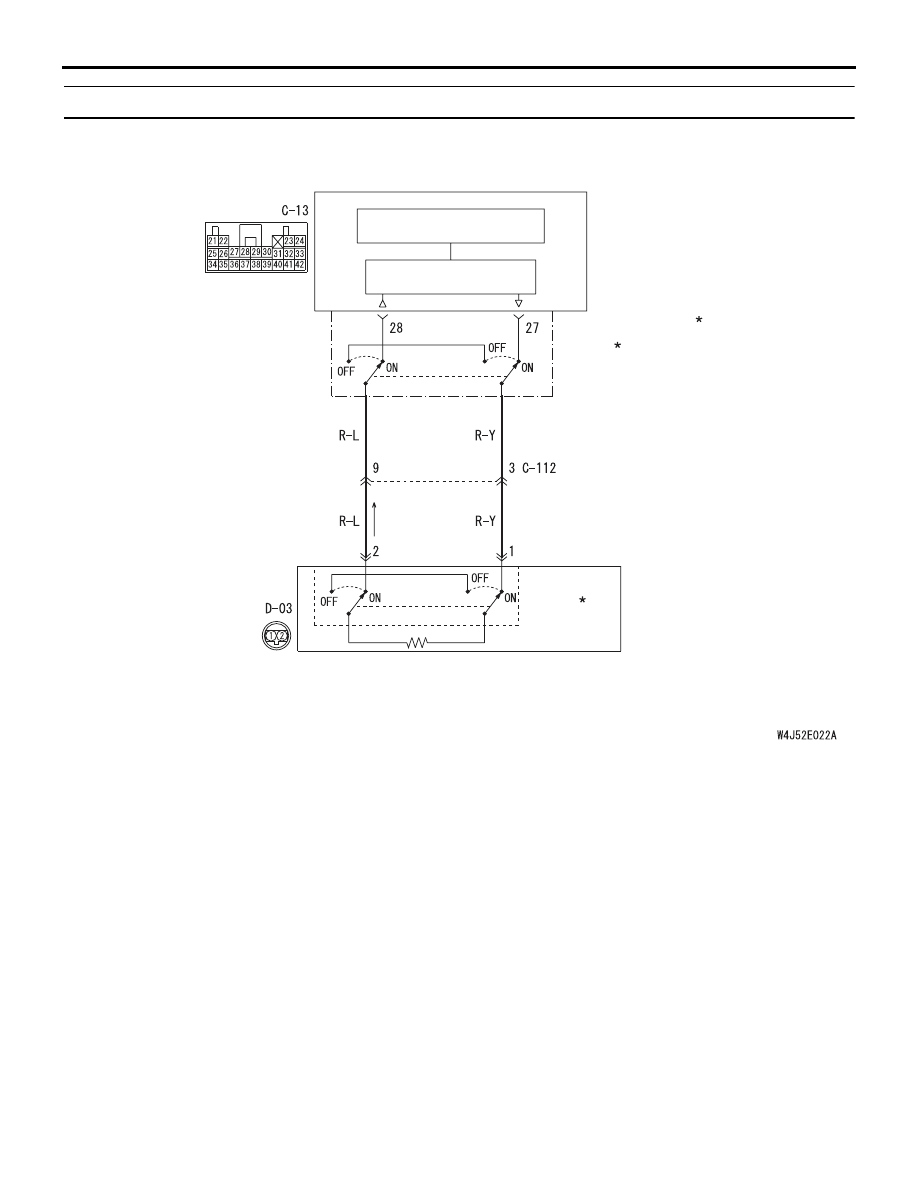

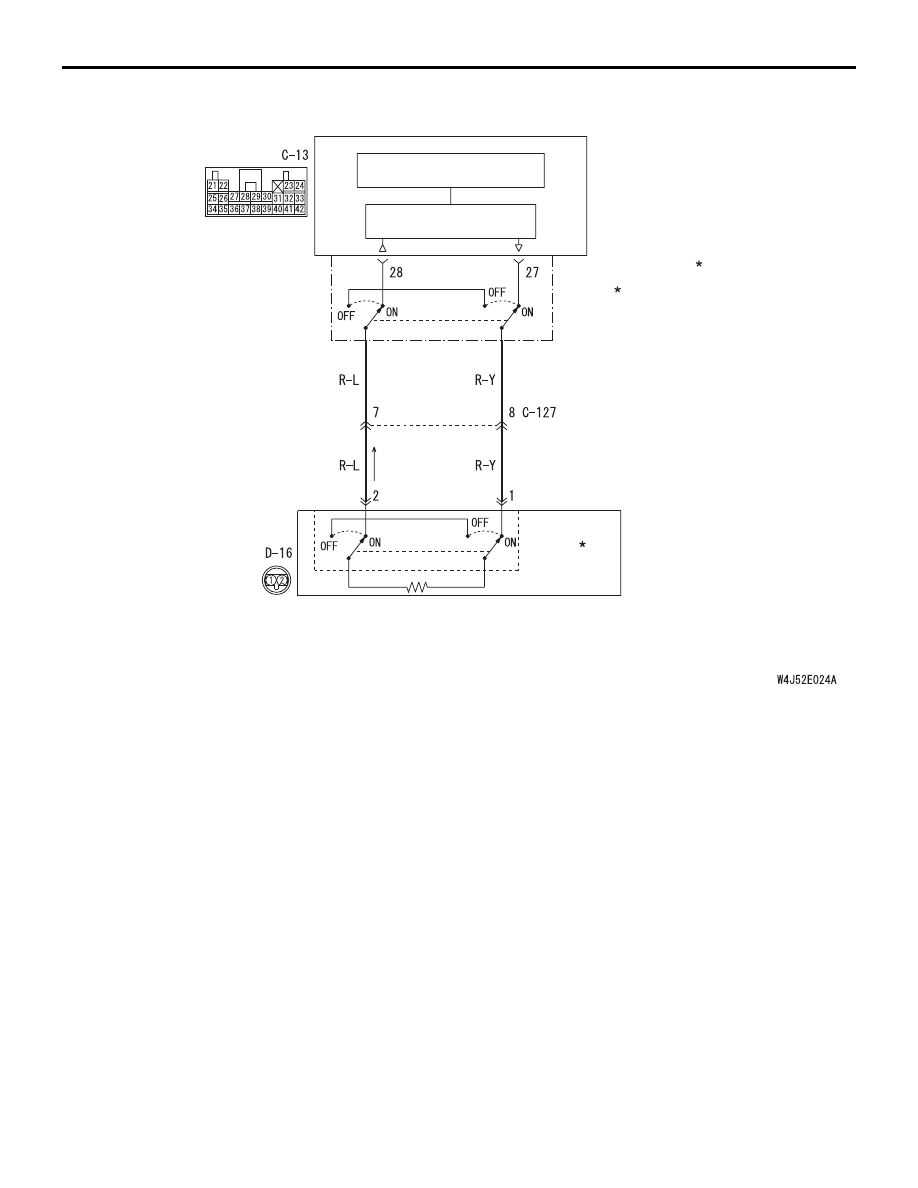

Code No.69: Passenger's (front) seat belt pre-tensioner (squib) system (short-circuited to the earth)

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

AIR BAG DRIVE CIRCUIT

MICROCOMPUTER

SRS-ECU

SEAT BELT
PRE-TENSIONER
(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

Passenger's (Front) Seat Belt Pre-tensioner (Squib) (LHD)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-92

OPERATION

The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analogue G-sensor. If the impact is
over a predetermined level, the SRS-ECU outputs an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the seat belt pre-tensioner will
deploy.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if passenger's (front) seat
belt pre-tensioner wire(s) are short-circuited to the
earth.

PROBABLE CAUSES

• Damaged wiring harnesses or connectors

• Short to the earth in the passenger's (front) seat

belt pre-tensioner (squib) harness

• Malfunction of the SRS-ECU

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

AIR BAG DRIVE CIRCUIT

MICROCOMPUTER

SRS-ECU

SEAT BELT
PRE-TENSIONER
(LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

Passenger's (Front) Seat Belt Pre-tensioner (Squib) (RHD)
