The clutch is a dry single-disc, diaphragm type;
hydraulic pressure is used for the clutch control. The
clutch shares a brake fluid reservoir with the brake
system.

SERVICE SPECIFICATIONS

M1211000300357

Item

Standard value

Clutch pedal height mm

LH drive vehicles

203.8

± 2

Clutch pedal height mm

RH drive vehicles

198.7

± 2

Clutch pedal clevis pin play mm

− 3

Clutch pedal free play mm

− 13

Distance between the clutch pedal and the clutch pedal
stopper when the clutch pedal is released mm

LH drive vehicles

114.3 or more

Distance between the clutch pedal and the dash pad when the
clutch pedal is released mm

RH drive vehicles

95 or more

LUBRICANTS

M1211000400194

Item

Specified lubricant

Quantity

Clutch fluid

Brake Fluid DOT 3 or DOT 4

As required

Pushrod assembly

Rubber grease

As required

Boot

Rubber grease

As required

Release cylinder push rod

MITSUBISHI genuine grease Part
No.0101011

As required

ON-VEHICLE SERVICE

CLUTCH

21A-3

ON-VEHICLE SERVICE

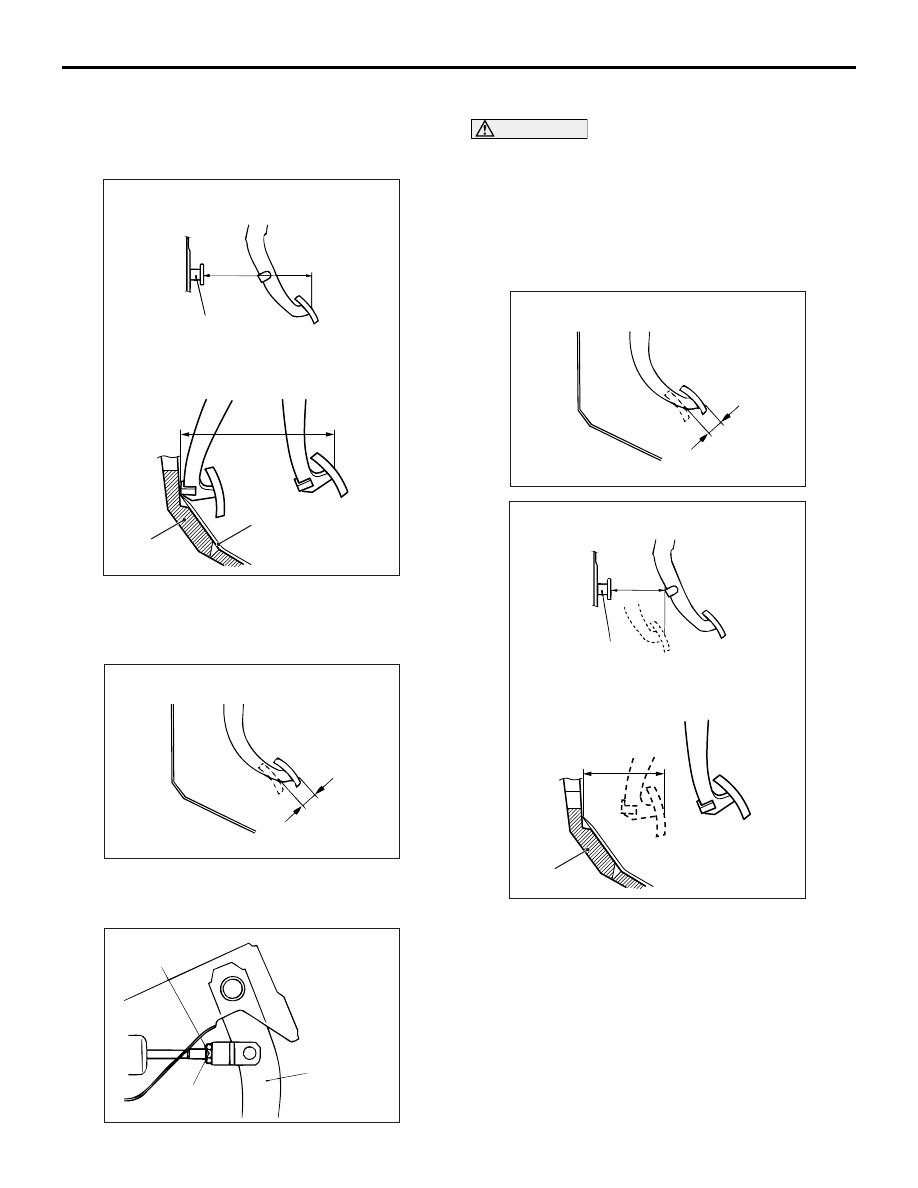

CLUTCH PEDAL CHECK AND
ADJUSTMENT

M1211000900401

AC310574

Clutch pedal height
<LH drive vehicles>

Clutch pedal stopper

<RH drive vehicles>

Dash pad

Carpet

1. Measure the clutch pedal height.

Standard value (A): 203.8

± 2 mm <LH drive

vehicles>, 198.7

± 2 mm <RH drive vehicles>

AC100355 AB

Clutch pedal clevis pin play

2. Measure the clutch pedal clevis pin play.

Standard value (B): 1

− 3 mm

AC100356

Setting nut

Clutch pedal

13 ± 2 N·m

CAUTION

Do not push in the master cylinder pushrod at
this time, otherwise the clutch will not operate
properly.
3. If the clutch pedal height and clutch pedal clevis

pin play are not within the standard value, loosen
the setting nut to adjust the clutch pedal height
and clevis pin play to the standard value.

AC100355 AC

Clutch pedal free play

AC310575

<LH drive vehicles>

Clutch pedal
stopper

<RH drive vehicles>

Dash pad

4. After completing the adjustments, confirm that the

clutch pedal free play (measured at the face of the
pedal pad) and the distance between the clutch
pedal (the face of the pedal pad) and the clutch
pedal stopper or dash pad when the clutch is
disengaged are within the standard value ranges.
Standard value (C): 4

− 13 mm

Standard value (D): 114.3 mm or more <LH

drive vehicles>, 95 mm or more <RH drive
vehicles>

ON-VEHICLE SERVICE

CLUTCH

21A-4

5. If the clutch pedal free play and the distance

between the clutch pedal and the clutch pedal
stopper or dash pad when the clutch is
disengaged do not agree with the standard
values, it is probably the result of either air in the
hydraulic system or a faulty master cylinder,
release cylinder or clutch. Bleed the air, or
disassemble and inspect the master cylinder,
release cylinder or clutch.

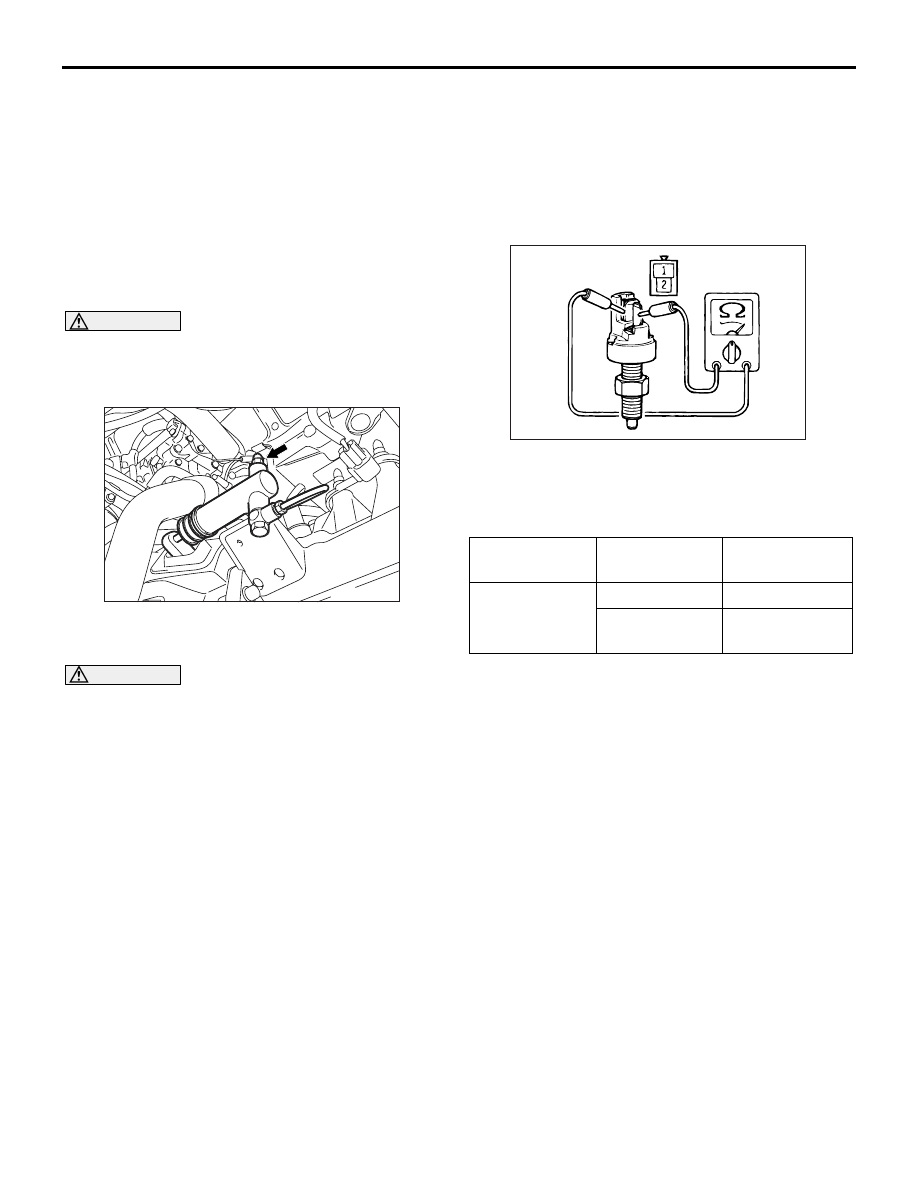

CLUTCH BLEEDING

M1211001400216

CAUTION

Use the specified brake fluid. Do not mix brake
fluids.

Specified fluid: Brake fluid DOT 3 or DOT 4

AC211514 AB

1. Connect a hose with a bottle to the bleeder screw.
2. Open the bleed nipple.

CAUTION

For bleeding, never "pump" the clutch pedal.
This may cause an oil leak at the clutch cylinder.
3. Depress the clutch pedal slowly. Open the bleeder

screw to let air and brake fluid out. Close the
bleeder screw. Release the clutch pedal. Repeat
until only brake fluid and no air comes out.

4. Check that the brake fluid reservoir level stays

between "MAX" and "MIN" marks throughout the
clutch bleeding process.

CLUTCH SWITCH CHECK AND
ADJUSTMENT

M1211001100185

1. Adjust the clutch pedal.

AC310580

2. Connect an ohmmeter to the clutch switch

connector, and then check for continuity when the
clutch pedal is fully depressed and when it is
released outward.

Tester
connection

Pedal position Specified

condition

1-2

Fully depressed Open circuit
Released

Less than 2
ohms

3. If the continuity is incorrect, replace the clutch

switch.
