TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-223

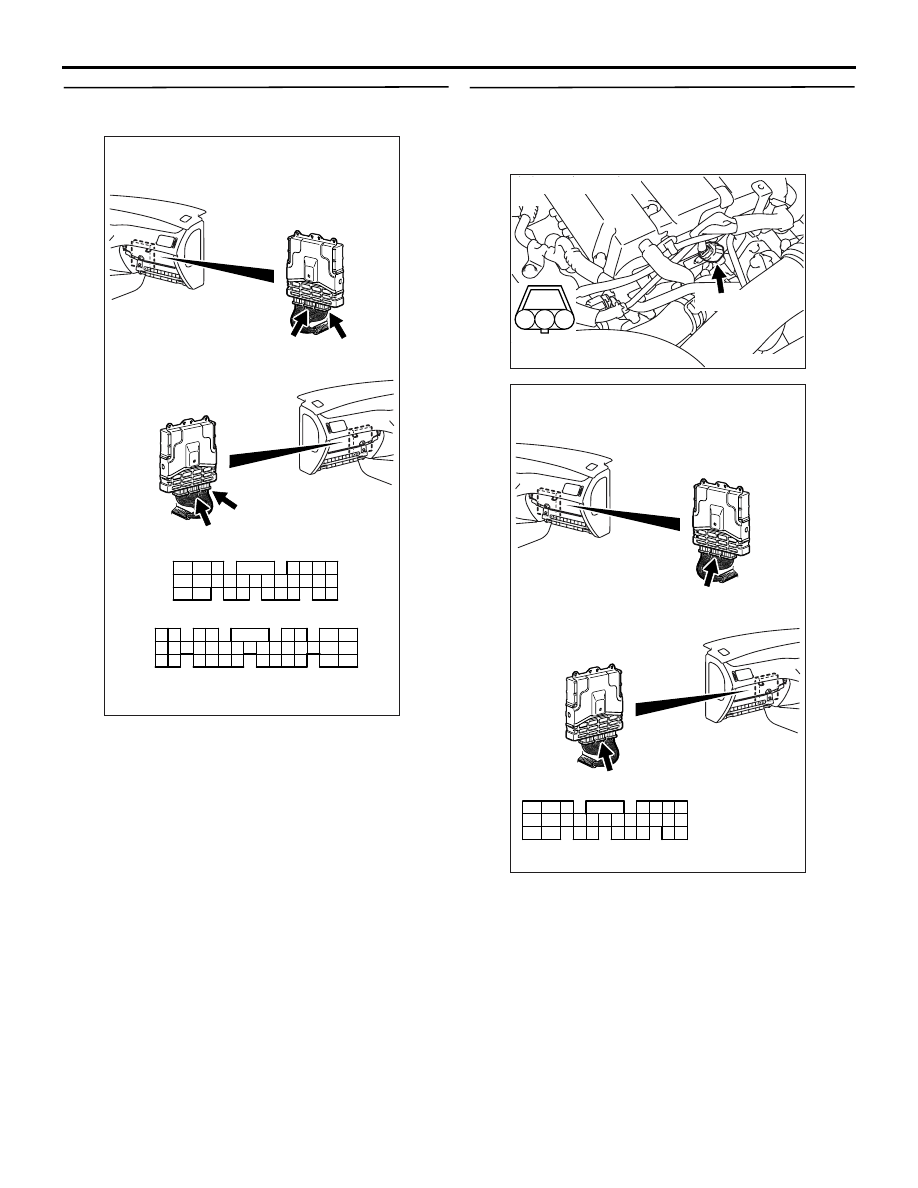

STEP 16. Connector check: C-119 and C-121
engine-ECU connectors

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Repair or replace the connector.

STEP 17. Check harness between B-124 (terminal
No. 2) intake camshaft position sensor connector
and C-119 (terminal No. 53) engine-ECU
connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 18 .

NO :

Repair the damaged harness wire.

AK501998

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-119, C-121

C-119 (GR)

C-121 (GR)

C-119 (GR)

C-121 (GR)

C-121 Harness side connector

C-119 Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK502002

1

2

3

AB

Connector: B-124

B-124 (B)

Harness side
connector

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-224

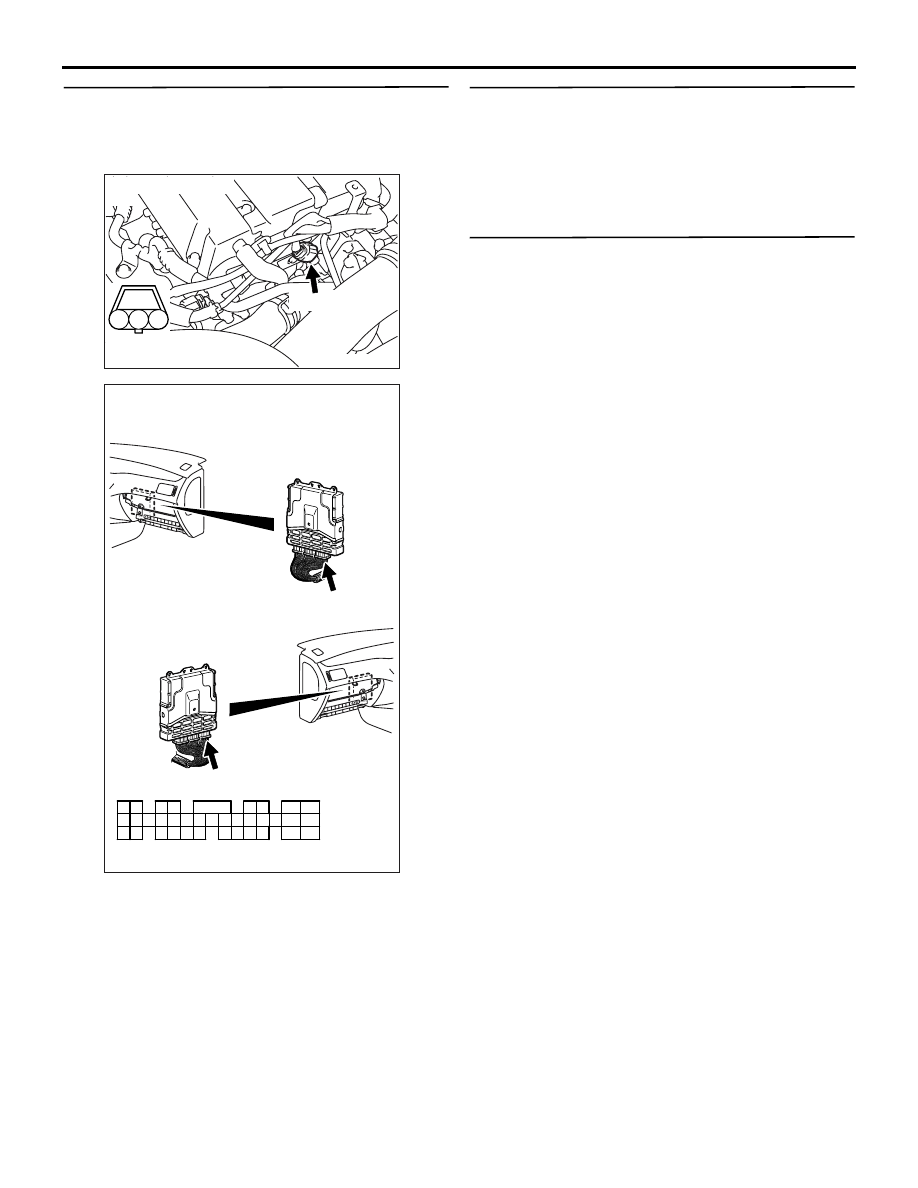

STEP 18. Check harness between B-124 (terminal
No. 1) intake camshaft position sensor connector
and C-121 (terminal No. 34) engine-ECU
connector.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 19 .

NO :

Repair the damaged harness wire.

STEP 19. Check the intake camshaft position
sensing cylinder.

Q: Is the check result normal?

YES :

Go to Step 20 .

NO :

Replace the intake camshaft position
sensing cylinder.

STEP 20. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the intake camshaft position

sensor.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AK502002

1

2

3

AB

Connector: B-124

B-124 (B)

Harness side
connector

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-225

Code No. P1021: Oil Feeder Control Valve System

1

2

3

4

AK501822

1 2

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

33

28

C-105

J/C (6)

AB

Engine
control
relay

R-Y

R-Y

P-B

B-12X

Oil feeder control
valve

1

2

4

1

2

32

3

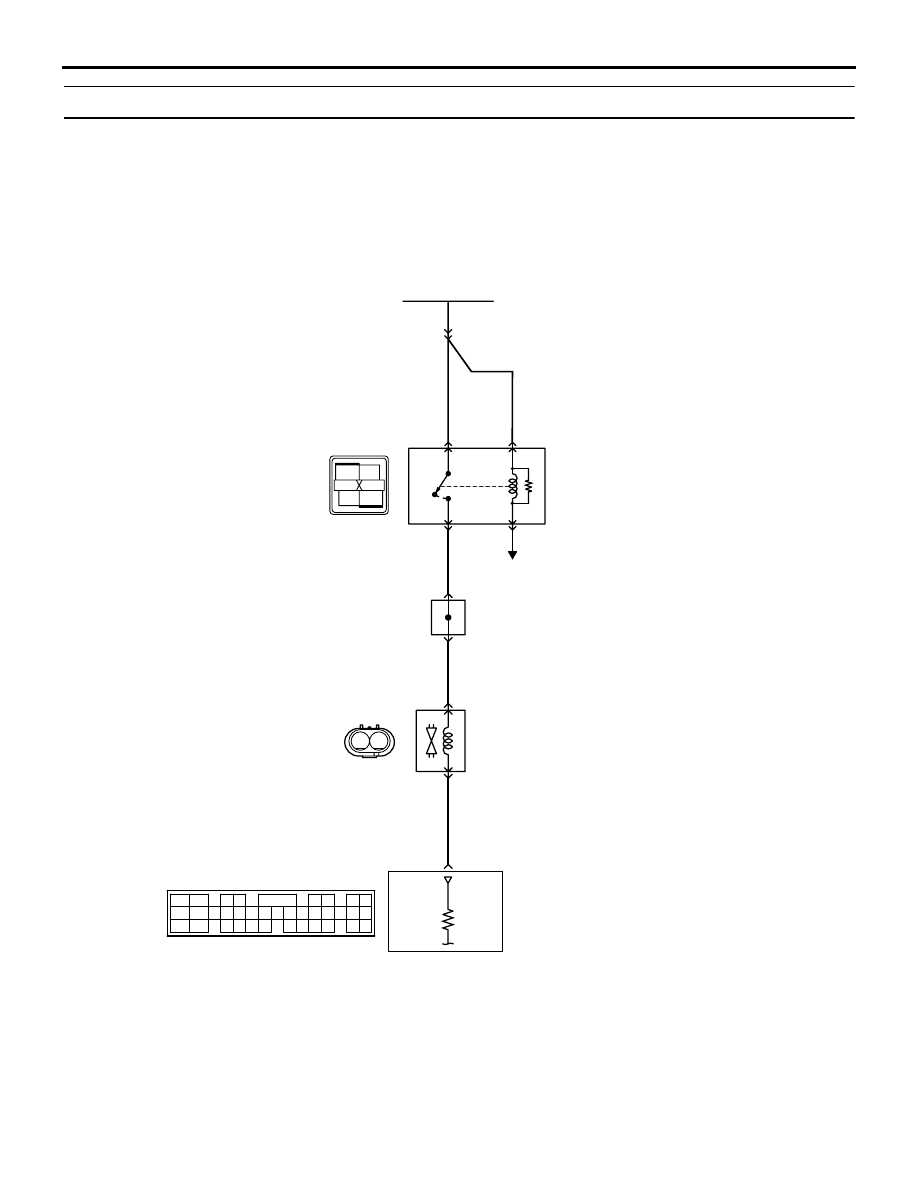

Oil feeder control valve circuit

Battery

B-Y

B-Y

B-Y

C-121

(MU803784)

B-123

MU802779

Engine-ECU

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

To engine-ECU

NOTE

*1: L.H. drive vehicles
*2: R.H. drive vehicles

6 <A-13> (*1) or
13 <C-31> (*2)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-226

OPERATION

• Power is supplied to the oil feeder control valve

(terminal No. 1) from the engine control relay (ter-
minal No. 4).

• The engine-ECU (terminal No. 32) makes the

power transistor in the unit be in ON position, and
that makes currents go on the oil feeder control
valve (terminal No. 2).

FUNCTION

• The oil feeder control valve controls the phase

angle of the intake camshaft by the signal from
the engine-ECU.

TROUBLE JUDGMENT

Check Condition

• The oil feeder control valve does not operate.

Judgment Criterion

• The oil feeder control valve drive terminal voltage

of the engine-ECU is not normal for 4 seconds or
more.

PROBABLE CAUSE

• Failed oil feeder control valve

• Open/short circuit in oil feeder control valve cir-

cuit or loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

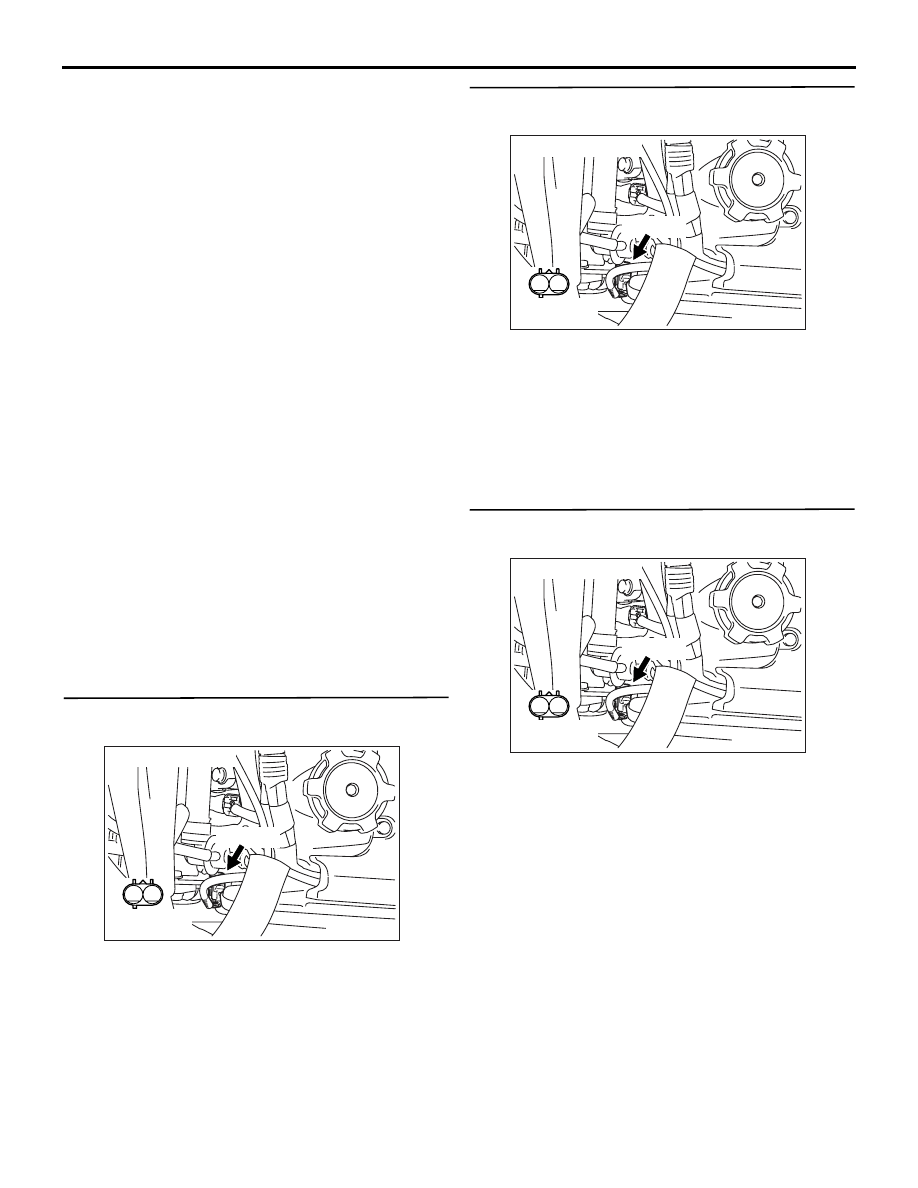

STEP 1. Connector check: B-123 oil feeder
control valve connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Perform resistance measurement at
B-123 oil feeder control valve connector.

• Disconnect connector, and measure at control

valve side.

• Resistance between terminal No. 1 and No. 2.

OK: 6.9

− 7.9 Ω (at 20°C)

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the oil feeder control valve.

STEP 3. Perform voltage measurement at B-123
oil feeder control valve connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 4 .

AK502003

1

2

AB

Connector: B-123

B-123 (B)

Harness side
connector

AK502003

1

2

AB

Connector: B-123

B-123 (B)

Harness side
connector

AK502003

1

2

AB

Connector: B-123

B-123 (B)

Harness side
connector
