TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-203

Code No. P0622: Alternator FR Terminal System

OPERATION

• The energized state of the alternator field coil is

inputted from the alternator (terminal No. 4) to the
engine-ECU (terminal No. 52).

FUNCTION

• A signal of the power supply duty ratio for the

alternator field coil is inputted to the engine-ECU.

• In response to the signal, the engine-ECU

detects the alternator output current and controls
the idling speed according to the output current
(electric load).

TROUBLE JUDGMENT

Check Condition

• Engine speed is 50 r/min. or more.

Judgment Criterion

• Input voltage from alternator FR terminal is the

system voltage or more for 20 seconds.

PROBABLE CAUSES

• Open circuit in alternator FR terminal circuit

• Failed engine-ECU

AK501820

M

1

2

3

4

65

43
50

42
49

41
48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet

Engine-ECU

Alternator

B-25

(MU802066)

52

W

W

B-14
5

4

Alternator FR terminal circuit

IC Voltage
regulator

AB

C-119

(MU803782)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-204

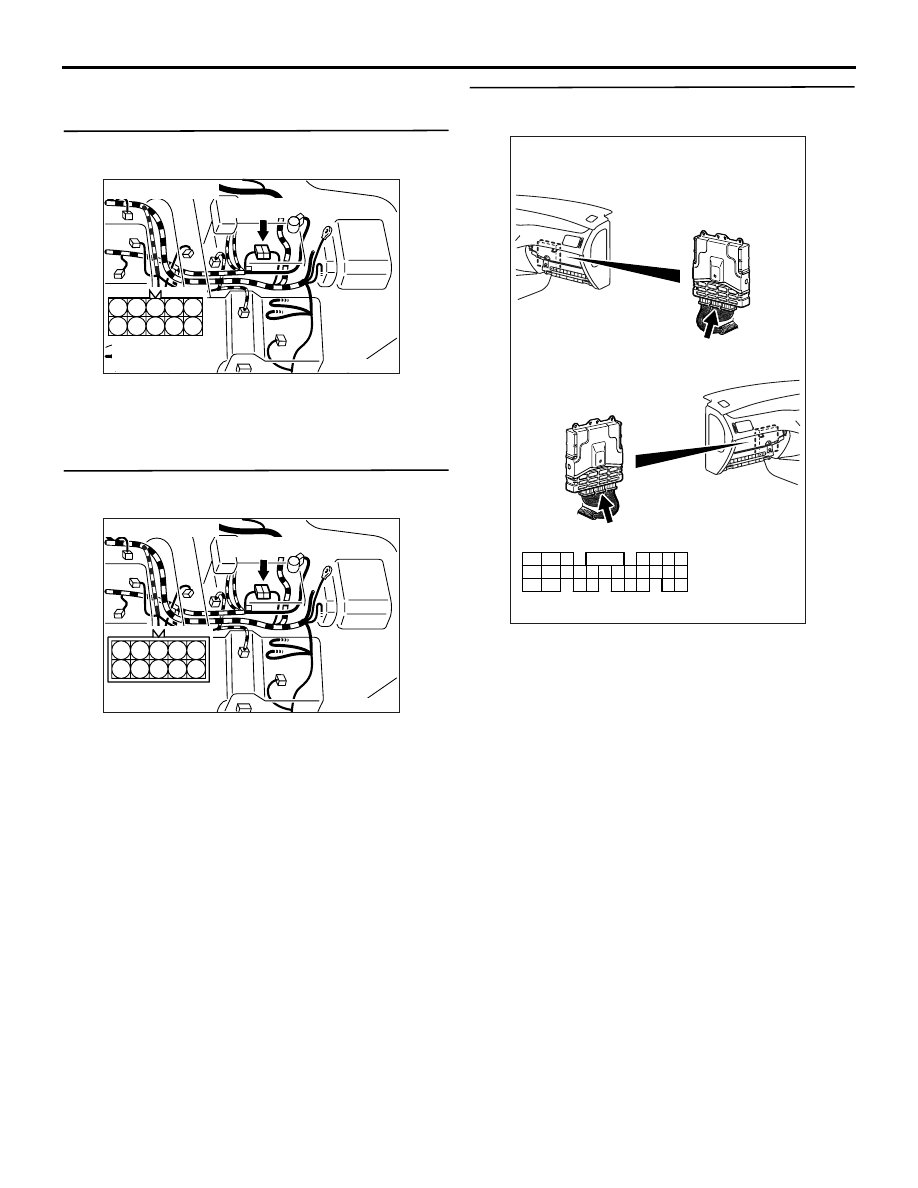

DIAGNOSIS PROCEDURE

STEP 1. Connector check: B-14 intermediate
connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Perform voltage measurement at B-14
intermediate connector.

• Disconnect connector, and measure at male con-

nector side.

• Ignition switch: "ON"

• Voltage between terminal No. 5 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 3 .

STEP 3. Connector check: C-119 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace the connector.

AK305035

3

4

5

8

9

1

2

6

7

10

Connector : B-14

Female side
connector

B-14(B)

AC

AK401753

1

2 3

6

7 8

4 5

9 10

Connector : B-14

Male side
connector

B-14(B)

AB

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-205

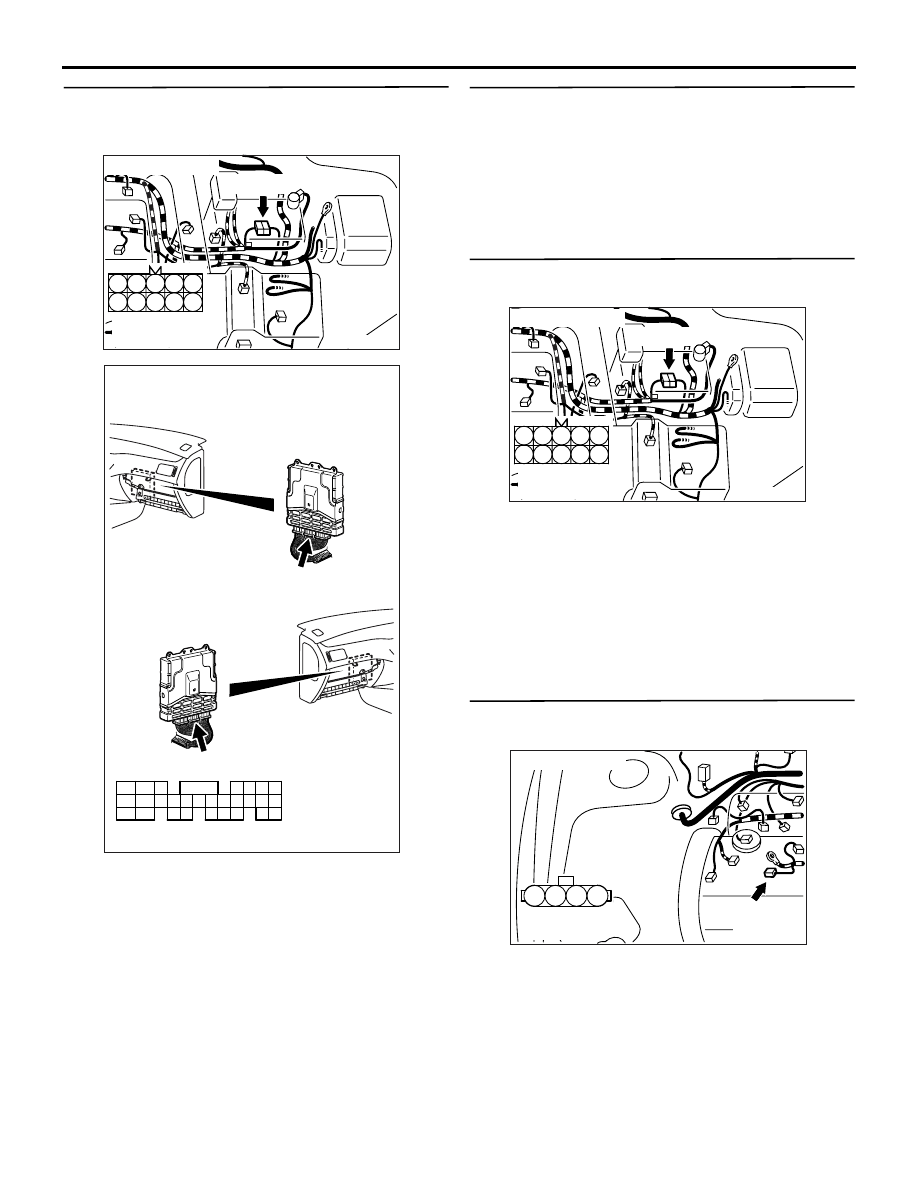

STEP 4. Check harness between B-14 (terminal
No. 5) intermediate connector and C-119
(terminal No. 52) engine-ECU connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

STEP 5. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

STEP 6. Perform voltage measurement at B-14
intermediate connector.

• Use special tool test harness (MB991658) to con-

nect connector, and measure at pick-up harness.

• Ignition switch: "ON"

• Voltage between terminal No. 5 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 7 .

STEP 7. Connector check: B-25 alternator
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair or replace the connector.

AK305035

3

4

5

8

9

1

2

6

7

10

Connector : B-14

Female side
connector

B-14(B)

AC

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305035

3

4

5

8

9

1

2

6

7

10

Connector : B-14

Female side
connector

B-14(B)

AC

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-206

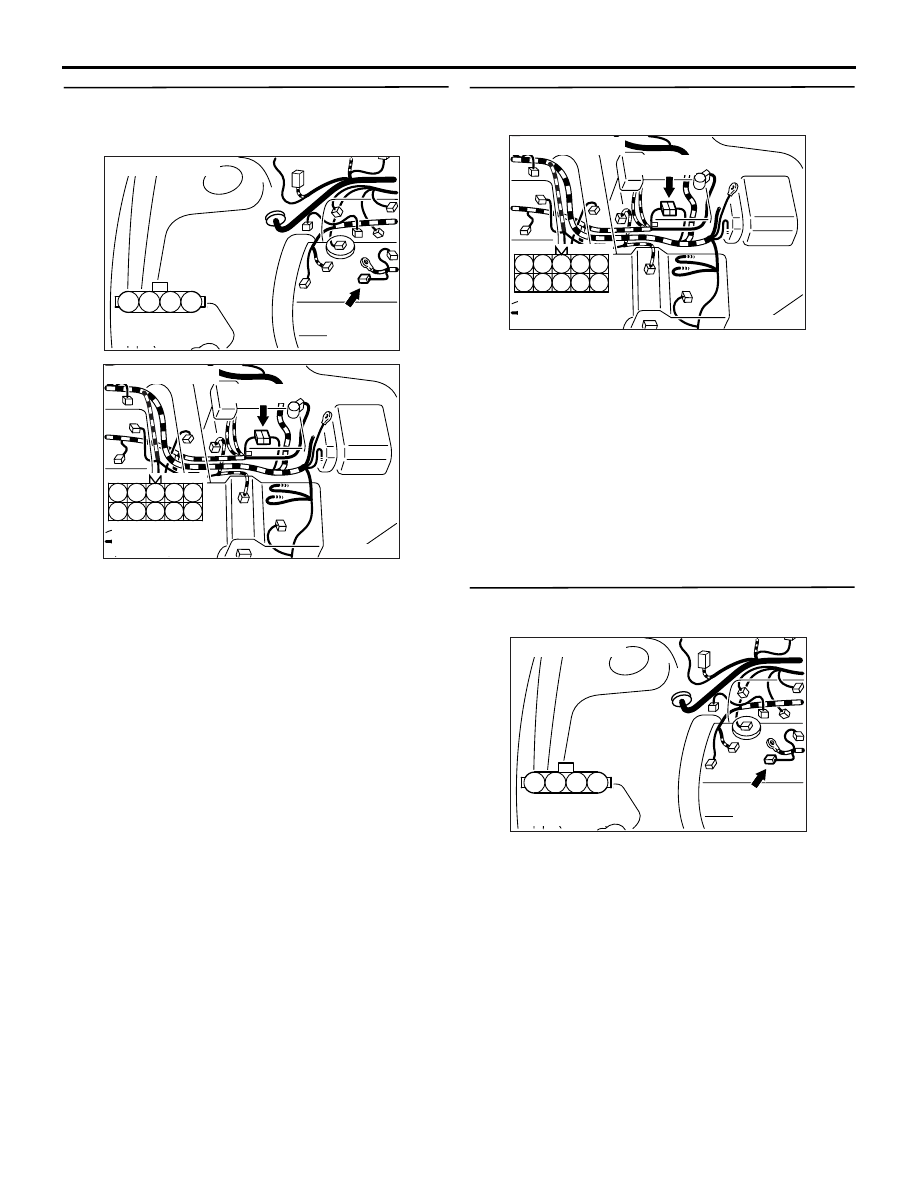

STEP 8. Check harness between B-25 (terminal
No. 4) alternator connector and B-14 (terminal
No. 5) intermediate connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Replace the alternator.

NO :

Repair the damaged harness wire.

STEP 9. Perform voltage measurement at B-14
intermediate connector.

• Use special tool test harness (MB991658) to con-

nect connector, and measure at pick-up harness.

• Engine: Idle after warm-up

• Transmission: Neutral

• Radiator fan: Inactive

• Voltage between terminal No. 5 and earth.

OK: Switching the headlamps to ON from
OFF causes the voltage to fall.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 10 .

STEP 10. Connector check: B-25 alternator
connector

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair or replace the connector.

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)

AK305035

3

4

5

8

9

1

2

6

7

10

Connector : B-14

Female side
connector

B-14(B)

AC

AK305035

3

4

5

8

9

1

2

6

7

10

Connector : B-14

Female side
connector

B-14(B)

AC

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)
