CHARGING SYSTEM

ENGINE ELECTRICAL

16-9

13.If the voltage reading conforms to the value in the

voltage regulation, then the voltage regulator is
operating normally.
If the voltage is not within the standard value,
there is a malfunction of the voltage regulator or of
the alternator.

14.After the test, lower the engine speed to the idle

speed.

15.Turn the ignition switch to the "LOCK" (OFF)

position.

16.Remove the M.U.T.-II/III.
17.Disconnect the negative battery cable.
18.Disconnect the ammeter and voltmeter.
19.Connect the alternator output wire to the

alternator "B" terminal.

20.Remove the special tool, and return the connector

to the original condition.

21.Connect the negative battery cable.

Voltage Regulation Table

Standard value:

Inspection terminal

Voltage regulator ambient
temperature

°C

Voltage V

Terminal "S"

−20

14.2

− 15.4

20

13.9

− 14.9

60

13.4

− 14.6

80

13.1

− 14.5

WAVEFORM CHECK USING AN OSCILLOSCOPE

M1161001200209

MEASUREMENT METHOD

AK100002

Alternator

"B" terminal

CH1

AC

Connect the oscilloscope special patterns pick-up to
the alternator "B" terminal.

CHARGING SYSTEM

ENGINE ELECTRICAL

16-10

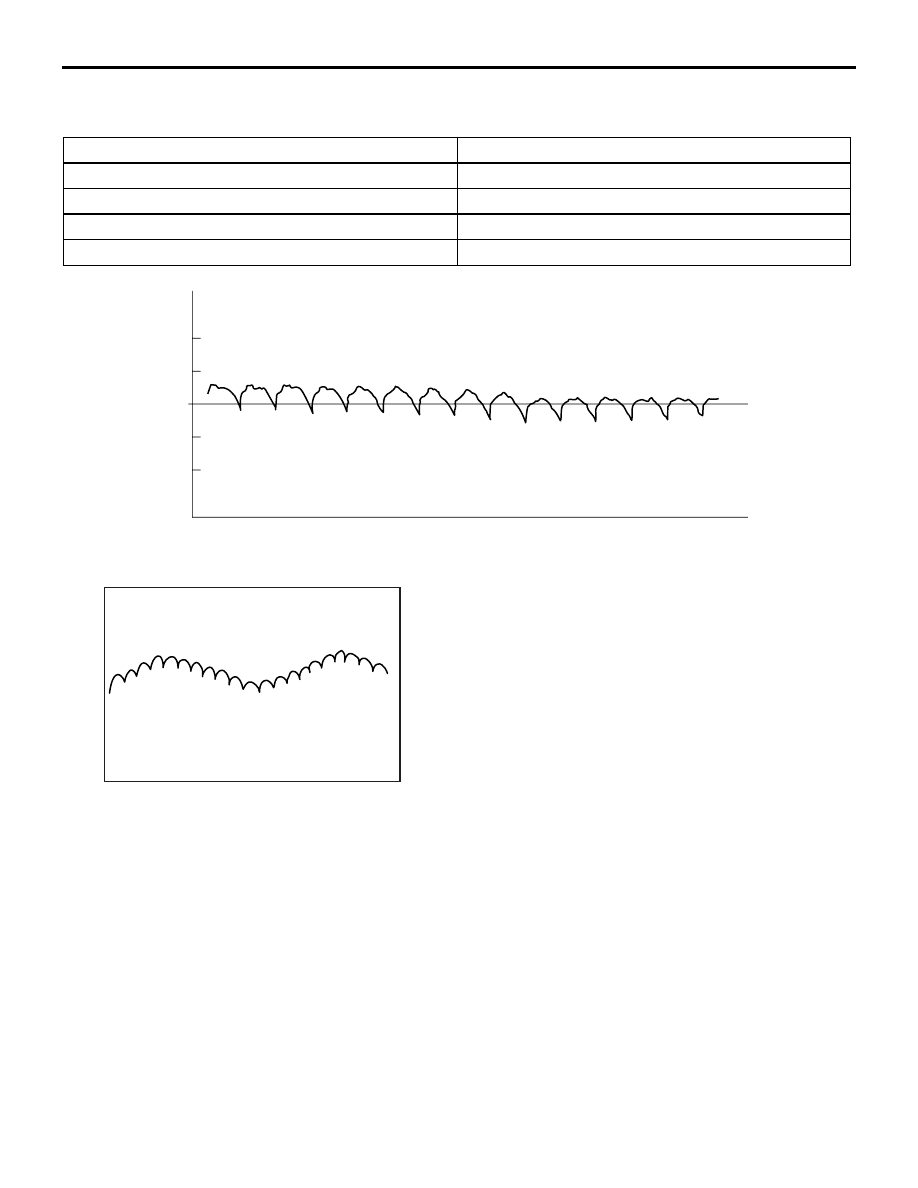

STANDARD WAVEFORM

Observation Conditions

Function

Special pattern

Pattern height

Variable

Variable knob

Adjust while viewing the waveform.

Pattern selector

Raster

Engine speed

Curb idle speed

AKX00189

0.4

(V)

0.2

  0

–0.2

–0.4

Voltage at
alternator
"B" terminal

Time

AG

NOTE:

AKX00190

The voltage waveform of the alternator "B" terminal
can undulate as shown in the illustration. This wave-
form is produced when the regulator operates
according to fluctuations in the alternator load (cur-
rent), and is normal for the alternator. In addition,

when the voltage waveform reaches an excessively
high value (approximately 2 V or higher at idle), it
often indicates an open circuit due to a brown fuse
between alternator "B" terminal and battery, but not a
defective alternator.

CHARGING SYSTEM

ENGINE ELECTRICAL

16-11

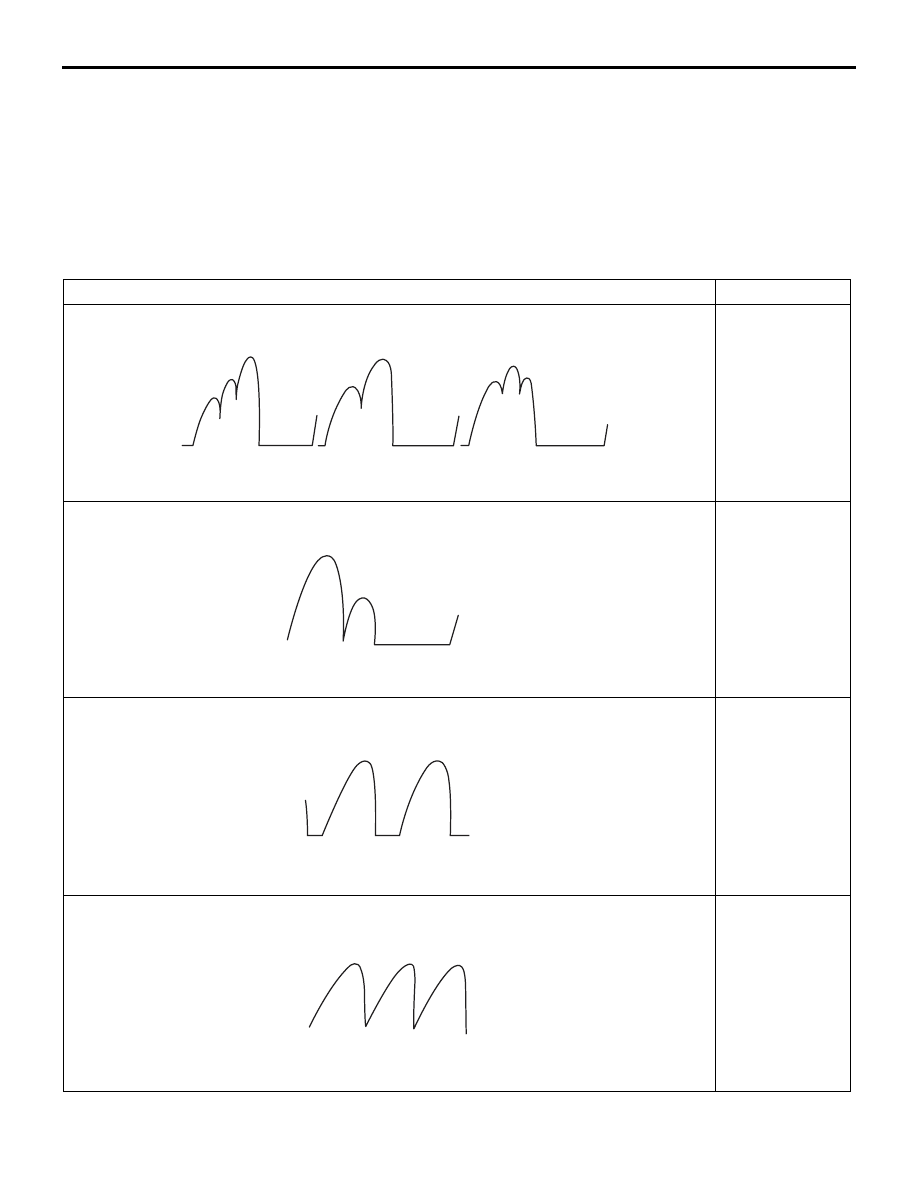

EXAMPLE OF ABNORMAL WAVEFORMS

NOTE:

.

1. The size of the waveform patterns differs largely, depending on the adjustment of the variable knob on the

oscilloscope.

2. Identification of abnormal waveforms is easier when there is a large output current (regulator is not oper-

ating). (Waveforms can be observed when the headlamps are illuminated.)

3. Check the conditions of the charging warning lamp (illuminated/not illuminated). Also, check the charging

system totally.

Abnormal waveform

Problem cause

Example 1

AKX00191

Open diode

Example 2

AKX00192

Short in diode

Example 3

AKX00193

Broken wire in
stator coil

Example 4

AKX00194

Short in stator
coil

CHARGING SYSTEM

ENGINE ELECTRICAL

16-12

ALTERNATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1161001401358

CAUTION

If the vehicle is equipped with the Brembo

™ disc brake, during maintenance, take care not to contact

the caliper with tool or parts, because the caliper paint will be scratched.

Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front

Bumper

P.51-2

).

• Strut Tower Bar Removal (Refer to GROUP 42, Strut

Tower Bar

P.42-9

).

• Crossmember Bar Removal (Refer to GROUP 32, Engine

Roll Stopper and Centremember

P.32-7

).

• Front Exhaust Pipe Assembly Removal (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-13

).

Post-installation Operation
• Front Exhaust Pipe Assembly Installation (Refer to

GROUP 15, Exhaust Pipe and Main Muffler

P.15-13

).

• Crossmember Bar Installation (Refer to GROUP 32,

Engine Roll Stopper and Centremember

P.32-7

).

• Strut Tower Bar Installation (Refer to GROUP 42, Strut

Tower Bar

P.42-9

).

• Drive Belt Tension Check (Refer to GROUP 11A, On-vehi-

cle Service

− Drive Belt Tension Check

P.11A-7

).

• Under Cover Installation (Refer to GROUP 51, Front

Bumper

P.51-2

).
