Mitsubishi Lancer Evolution IX. Manual - part 290

SEALANTS

MANUAL TRANSMISSION OVERHAUL

22B-5

SEALANTS

M1222000500151

Item

Brand

Clutch housing and transaxle case contact surface

MITSUBISHI GENUINE PART
MD997740 or equivalent

Reverse switch
Air breather

3M 8513 or equivalent

Differential drive gear bolt

3M STUD Locking No. 4170 or
equivalent

FORM-IN-PLACE GASKET (FIPG)

This transmission has several areas where the
form-in-place gasket (FIPG) is used for sealing. To
ensure that the FIPG fully serves its purpose, it is
necessary to observe some preCAUTIONs when
applying it. Bead size, continuity and location are of
paramount importance.
Too thin a bead can cause leaks. Too thick a bead,
on the other hand, can be squeezed out of location,
causing blocking or narrowing of fluid passages. To
prevent leaks or blocking of passages, therefore, it is
absolutely necessary to apply the FIPG evenly with-
out a break, while observing the correct bead size.

REMOVAL OF FIPG SEALED PARTS

Parts sealed with an FIPG can be easily removed
without the use of a special method. However, the
FIPG in some joints may have to be broken by tap-
ping parts with a mallet or similar tool.

CLEANING FIPG APPLICATION
SURFACE

Thoroughly remove all substances deposited on the
FIPG application surface, using a gasket scraper.
Make sure that the FIPG application surface is flat
and smooth. Also make sure that the surface is free
of oils, greases, and foreign substances. Do not fail
to remove old FIPG that may remain in the fastener
fitting holes.

APPLICATION OF FIPG

Applied FIPG bead should be of the specified size
and free of any break. FIPG can be wiped away
unless it has completely hardened. Install the mating
parts into position while the FIPG is still wet (in less
than 10 minutes after application). Do not allow FIPG
to spread beyond the sealing areas during installa-
tion. Avoid operating the transmission or letting oils
or water come in contact with the sealed area before
a time sufficient for FIPG to harden (approximately
one hour) has passed.
FIPG application method may vary from location to
location. Follow the instructions for each particular
case described later in this manual.

LUBRICANTS

M1222000400121

Item

Brand

Transfer oil seal lip

Shell Sunlight Grease 2, Retinax A, or equivalent

O-rings

SNAP RING, SPACER AND THRUST PLATE FOR ADJUSTMENT

MANUAL TRANSMISSION OVERHAUL

22B-6

SNAP RING, SPACER AND THRUST PLATE FOR

ADJUSTMENT

M1222012000175

Adjustment shims (for differential side bearing preload adjustment)

Thickness mm

0.48

0.72

0.52

0.76

0.56

0.80

0.60

0.84

0.64

0.88

0.68

0.92

Adjustment shims (for input shaft end play adjustment)

Thickness mm

0.44

1.00

0.48

1.04

0.52

1.08

0.56

1.12

0.60

1.16

0.64

1.20

0.68

1.24

0.72

1.28

0.76

1.32

0.80

1.36

0.84

1.40

0.88

1.44

0.92

1.48

0.96

1.52

Adjustment shims (for main shaft end play adjustment)

Thickness mm

0.44

0.80

0.48

0.84

0.52

0.88

0.56

0.92

0.60

0.96

0.64

1.00

0.68

1.04

0.72

1.08

0.76

SNAP RING, SPACER AND THRUST PLATE FOR ADJUSTMENT

MANUAL TRANSMISSION OVERHAUL

22B-7

Adjustment shims (for reverse idler gear end play adjustment)

Thickness mm

1.76

2.24

1.80

2.28

1.84

2.32

1.88

2.36

1.92

2.40

1.96

2.44

2.00

2.48

2.04

2.52

2.08

2.56

2.12

2.60

2.16

2.64

2.20

Thrust washers (for adjustment of distance between input shaft front bearing and thrust washer)

Thickness mm

3.84

4.02

3.90

4.08

3.96

4.14

Snap rings (for input shaft 6th gear bushinging end play adjustment)

Thickness mm

1.71

2.01

1.76

2.06

1.81

2.11

1.86

2.16

1.91

2.21

1.96

2.26

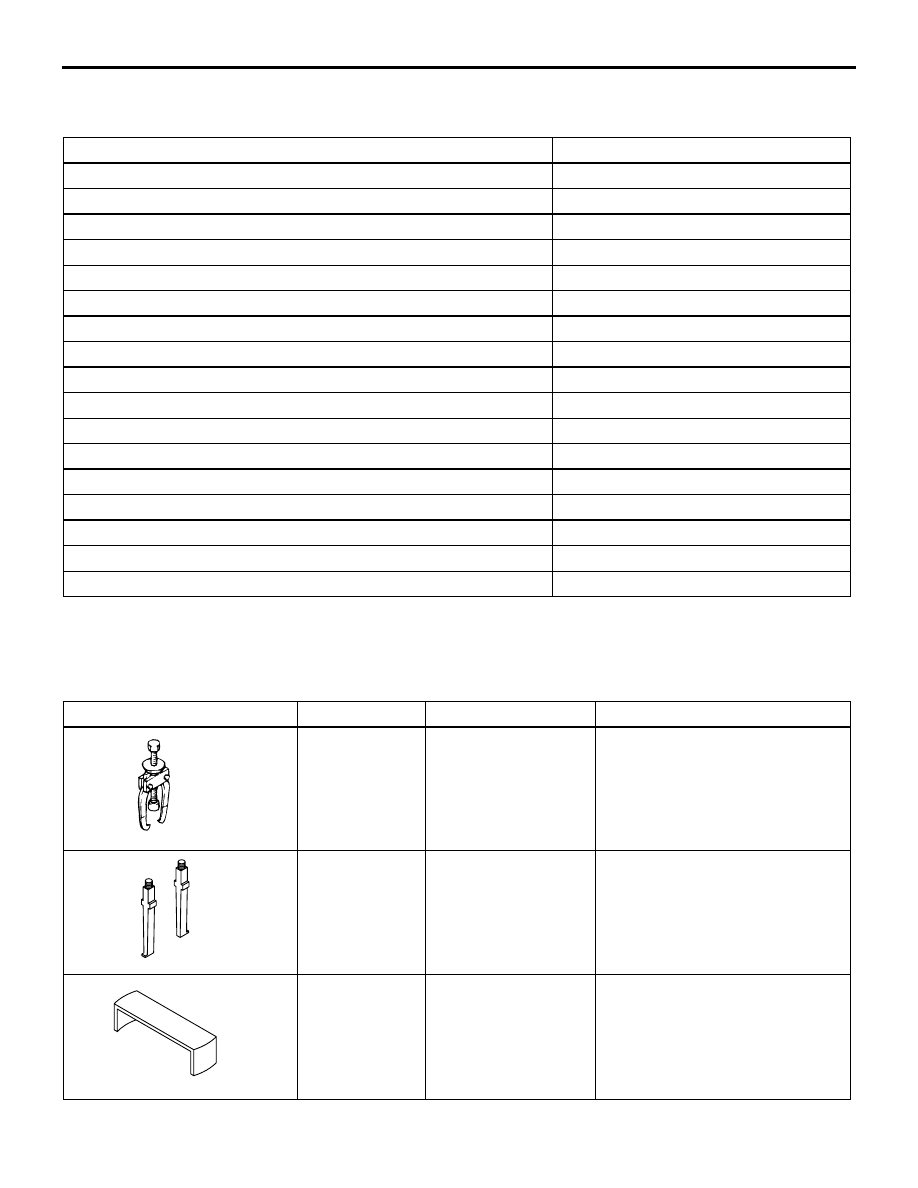

TORQUE SPECIFICATIONS

MANUAL TRANSMISSION OVERHAUL

22B-8

TORQUE SPECIFICATIONS

M1222013900074

Item

Torque N

⋅m

Transfer bolts

± 10

Roll stopper bracket bolts

± 9

Vehicle speed sensor bolts

± 1

Reverse switch

± 5

Stopper bolts

± 1

Shift check plugs

± 2

Transaxle case bolts (with sealant)

± 1

Transaxle case bolts

± 1

Shift check plugs

± 2

Reverse lever assembly

± 1

Main shaft bearing retainer bolts

7.3

± 1.0

Drain plugs

± 4

Filler plugs

± 4

Differential drive gear bolts

158

± 7

Transfer cover case bolts

± 3

Plugs

± 2

Magnet plugs

± 2

SPECIAL TOOLS

M1222000600170

Tool

Number

Name

Use

MB990810

MB990810

Side bearing puller

Use with claws

MB991967

Claws

Removal of differential side
bearing outer race

MB991968

Bridge

Removal of differential side
bearing outer race
