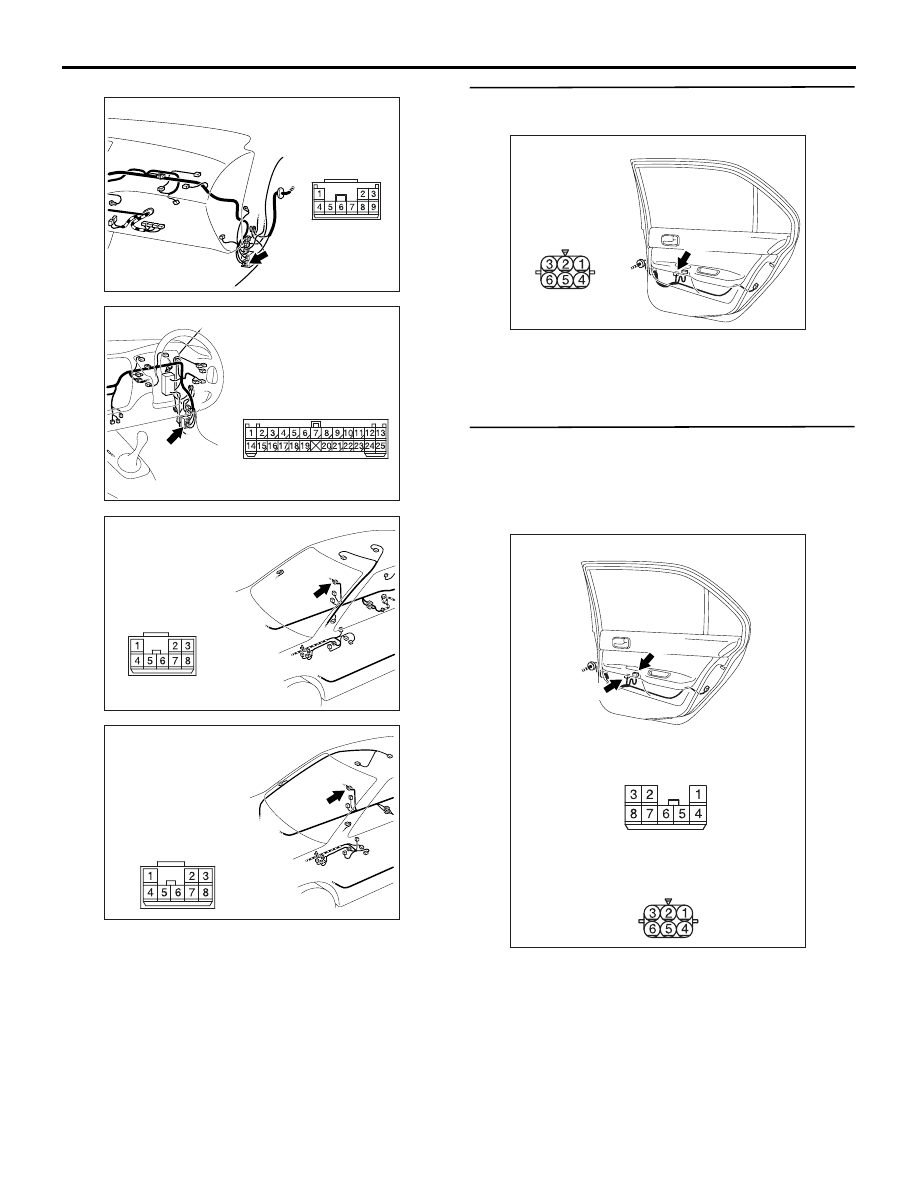

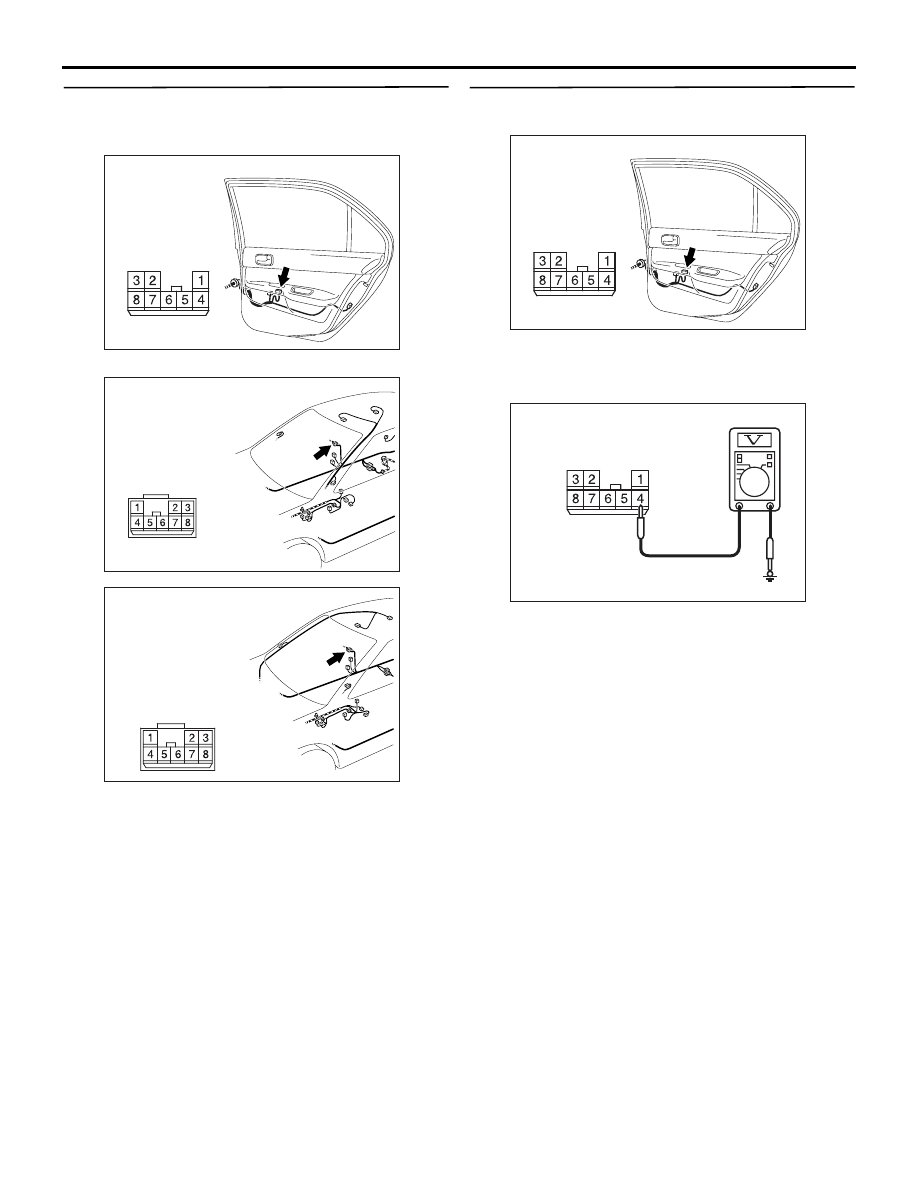

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-103

Step 23. Check the wiring harness from E-17
power window sub switch (rear: RH) connector
terminal No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors D-04, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 24. Voltage measurement at E-17 power
window sub switch (rear: RH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between E-17 power window sub switch

(rear: RH) connector terminal 4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 27.

NO :

Go to Step 25.

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310463

Connector: D-04 <LHD>

AB

AC310471

Connector: D-04 <RHD>

AC

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310507

Connector E-17
(Harness side)

AE

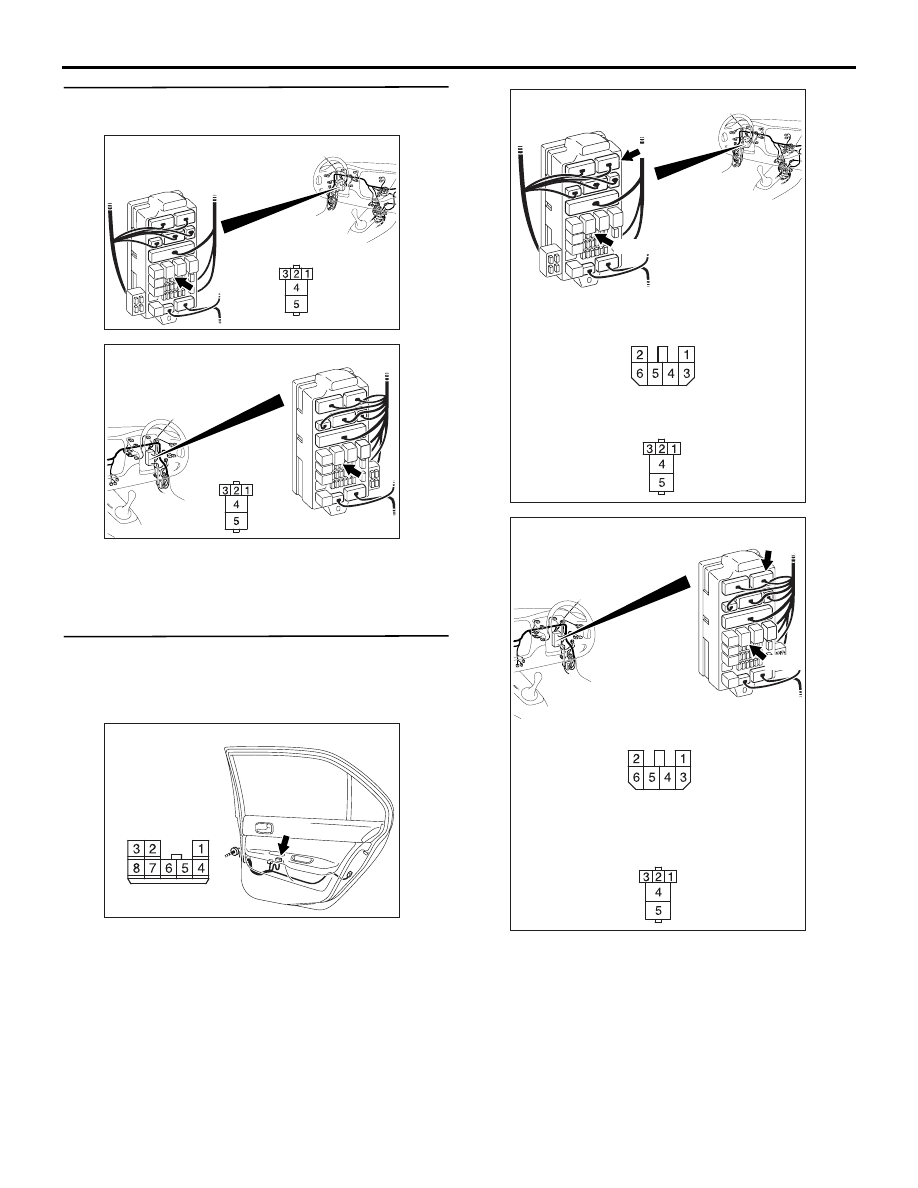

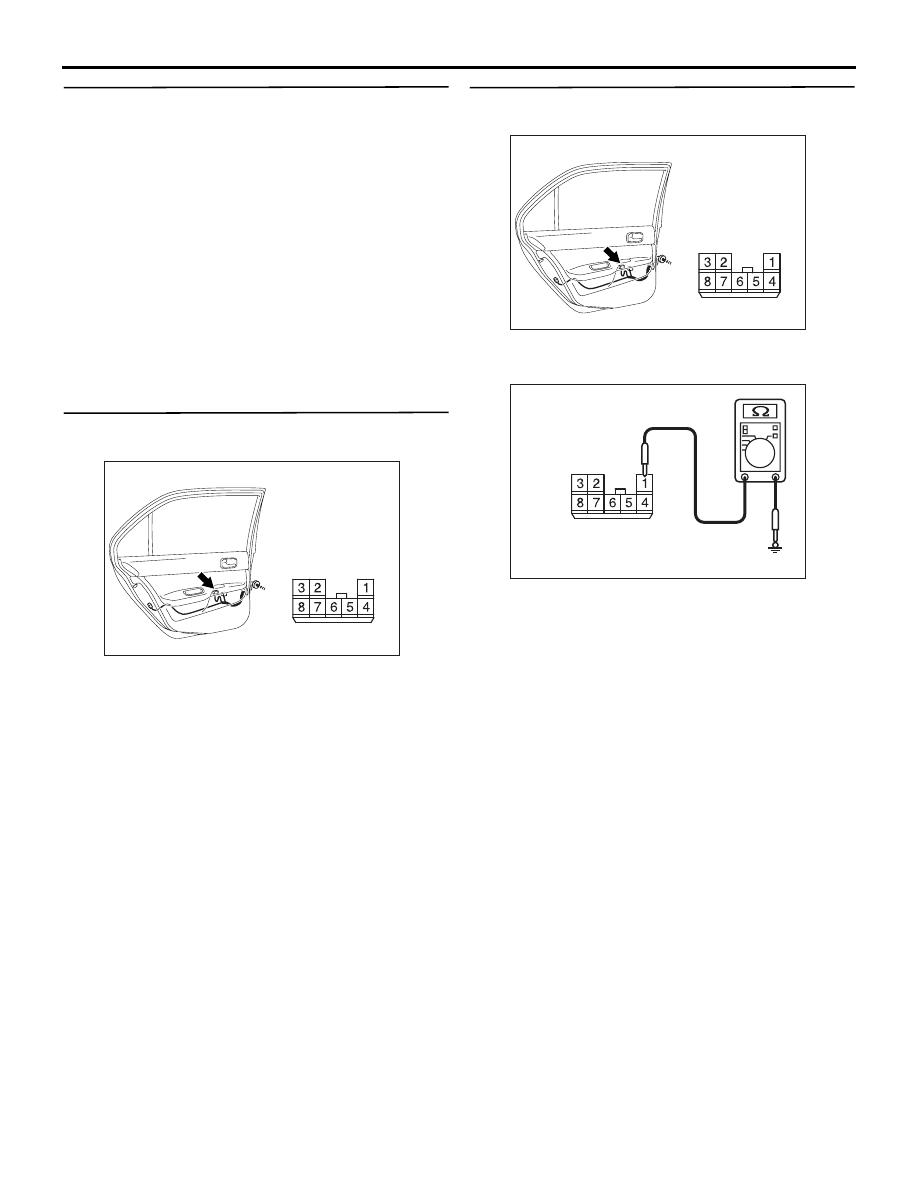

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-104

Step 25. Connector check: C-224 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 26.

NO :

Repair the connector.

Step 26. Check the wiring harness from E-17
power window sub switch (rear: RH) connector
terminal No.4 to C-224 power window connector
terminal No.4.

AC310448

AI

Connector: C-224 <LHD>

Junction block (front view)

Junction block side

AC310458

AG

Connector: C-224 <RHD>

Junction block (front view)

Junction block
side

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310449

AD

Connectors: C-211, C-224 <LHD>

Junction block (front view)

Junction block side

C-211

C-224

C-224

Harness side

C-211

AC310459

AD

Connectors: C-211, C-224 <RHD>

Junction block (front view)

Junction block side

C-211

C-224

C-224

Harness side

C-211

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-105

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-112 <LH drive vehicles>, C-113
<RH drive vehicles>, D-04 and junction block con-
nector C-211, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 27. Connector check: E-16 power window
regulator motor (rear: RH) connector

Q: Is the check result normal?

YES :

Go to Step 28.

NO :

Repair the connector.

Step 28. Check the wiring harness from E-16
power window regulator motor (rear: RH)
connector terminal Nos.1 and 4 to E-17 power
window sub switch (rear: RH) connector terminal
Nos.5 and 7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 29.

NO :

Repair the wiring harness.

AC310452

Connector: C-112 <LHD>

AD

C-112 (GR)

AC310456

Connector: C-113 <RHD>

AN

AC310463

Connector: D-04 <LHD>

AB

AC310471

Connector: D-04 <RHD>

AC

AC310491

Connector: E-16

AD

Harness side

E-16 (GR)

Rear door (RH)

AC310492

Harness side

Connectors: E-16, E-17

E-16

E-17

Harness side

E-17

E-16 (GR)

AB

Rear door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-106

Step 29. Retest the system.
After the power window sub switch (rear: RH) is
replaced, check that the rear right door power win-
dow can be operated by the power window sub
switch (rear: RH).
(1) Replace the power window sub switch (rear: RH).
(2) Check that the rear right door power window can

be operated by the power window sub switch
(rear: RH).

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the rear power window regulator
motor assembly (RH).

Step 30. Connector check: E-08 power window
sub switch (rear LH) connector

Q: Is the check result normal?

YES :

Go to Step 31.

NO :

Repair the connector.

Step 31. Resistance measurement at E-08 power
window sub switch (rear: LH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-08 power window sub

switch (rear: LH) connector terminal 1 and body
earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 33.

NO :

Go to Step 32.

AC310486

Connector: E-08

AD

Harness side

Rear door (LH)

AC310486

Connector: E-08

AD

Harness side

Rear door (LH)

AC303981

Connector E-08
(Harness side)

AB
