SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-63

COMMENT ON TROUBLE SYMPTOM

If the central door locking system does not work at
all, the front door lock actuator (RH) or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the front door lock actuator (RH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. ECU check on the SWS monitor
Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

ECUS TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-36

."

Step 2. Pulse check
Check the input signal from the driver's door lock
actuator switch.

OK: The M.U.T.-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure L-12 "The
driver's door lock actuator signal is not
received <RH drive vehicles>

P.54C-299

 ."

Step 3. Connector check: E-15 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the front door lock actuator (RH)
Check that the front door lock actuator (RH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the front door lock actuator (RH).

Step 5. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

System switch

Check condition

Driver's door lock
actuator switch

When the driver's key cylinder
or inside lock knob is unlocked
or locked

AC310493

Harness side

AF

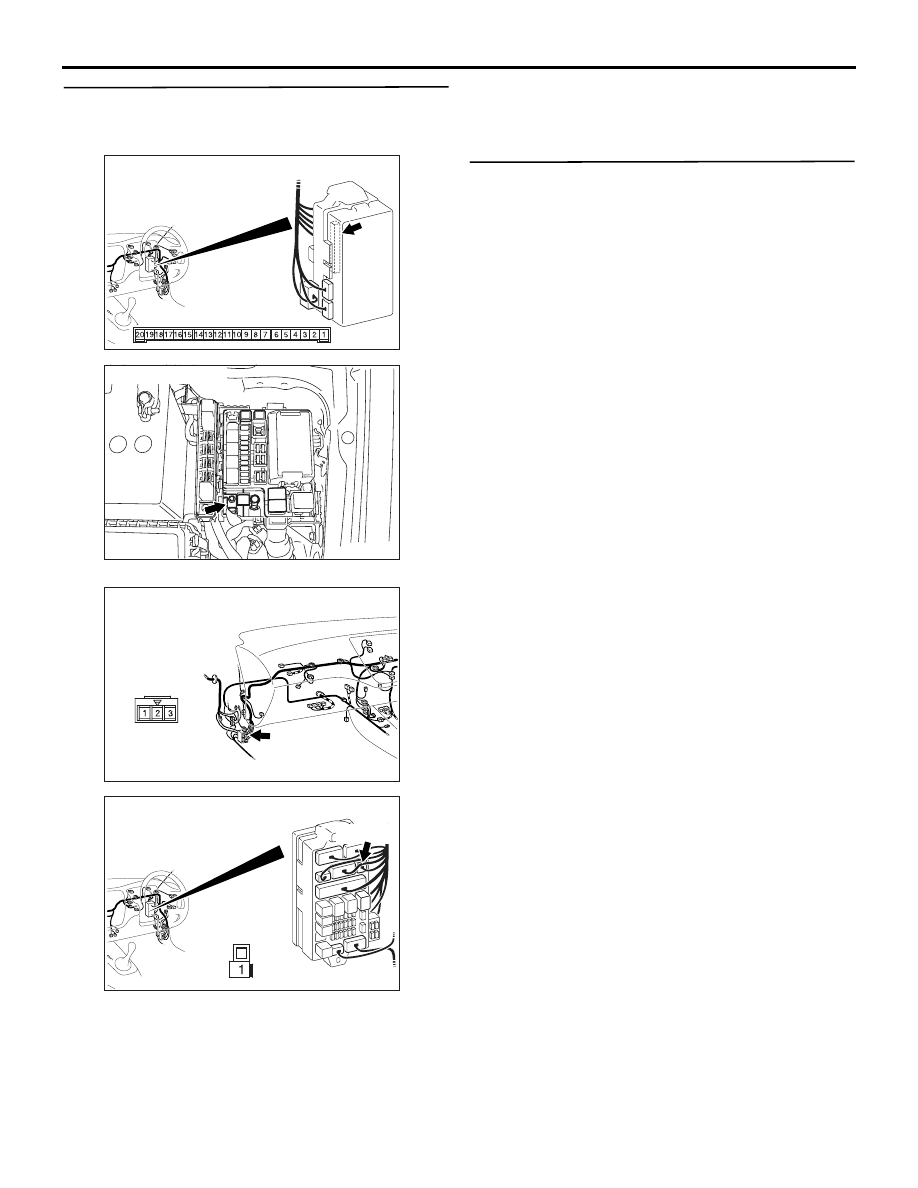

Connector: E-15 <RHD>

E-15 (B)

AC310461

Connector: C-226 <RHD>

AE

Junction block side

Junction block
(rear view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-64

Step 6. Check the wiring harness between C-226
ETACS-ECU connector terminal No.2 and fusible
link (1).

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-126 and junction block connector
C-212, and repair if necessary.

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the central door locking system works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310461

Connector: C-226 <RHD>

AE

Junction block side

Junction block
(rear view)

AC310523AB

Fusible link: No.1

AC310454

Connector: C-126 <RHD>

AF

AC310458

Junction block (front view)

Connector: C-212 <RHD>

AF

Harness side

C-212 (B)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-65

INSPECTION PROCEDURE C-2: A Door or a tailgate cannot be locked or unlocked by the central door
locking system. <LH drive vehicles>

DOOR LOCK
ACTUATOR

(

REAR

: RH)

DOOR LOCK
ACTUATOR

(

REAR

: LH)

ETACS-ECU

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

DOOR LOCK
ACTUATOR

(FRONT: LH)

DOOR LOCK
ACTUATOR

(FRONT:RH)

J/B SIDE

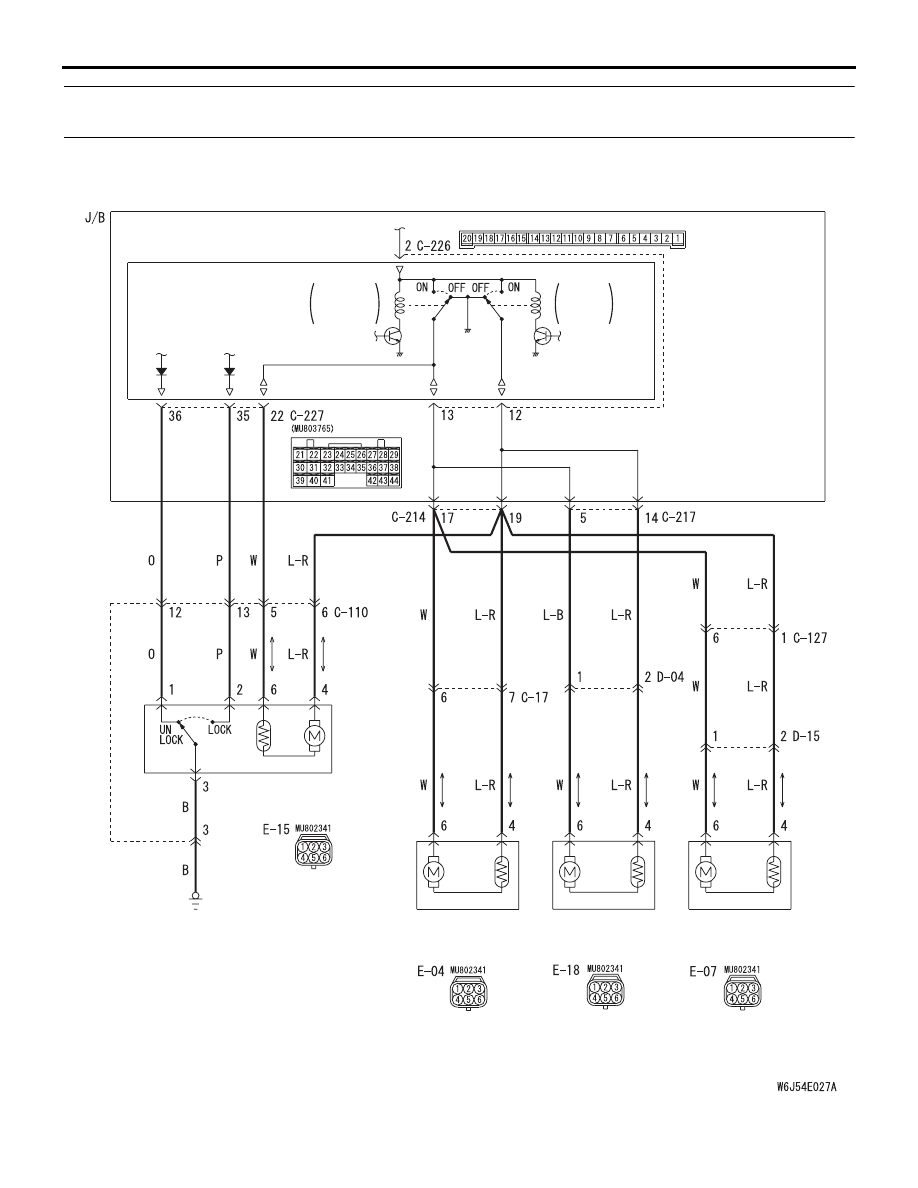

Central Door Lock Circuit <LHD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-66

COMMENT ON TROUBLE SYMPTOM

If a door or the tailgate cannot be locked or unlocked
by the central door locking system, the door lock
actuator or the tailgate lock actuator may be defec-
tive.

POSSIBLE CAUSES

• Malfunction of the door lock actuator

• Malfunction of the tailgate lock actuator

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Confirm which door lock actuator is
defective.

Q: Which door fails to lock correctly?

Driver's door :

Go to Step 2.

Front passenger's door :

Go to Step 6.

Rear right door :

Go to Step 10.

Rear left door :

Go to Step 14.

Step 2. Connector check: E-04 front door lock
actuator (LH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the front door lock actuator (LH)
Check that the front door lock actuator (LH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the front door lock actuator (LH).

Step 4. Connector check: C-226, C-227
ETACS-ECU connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

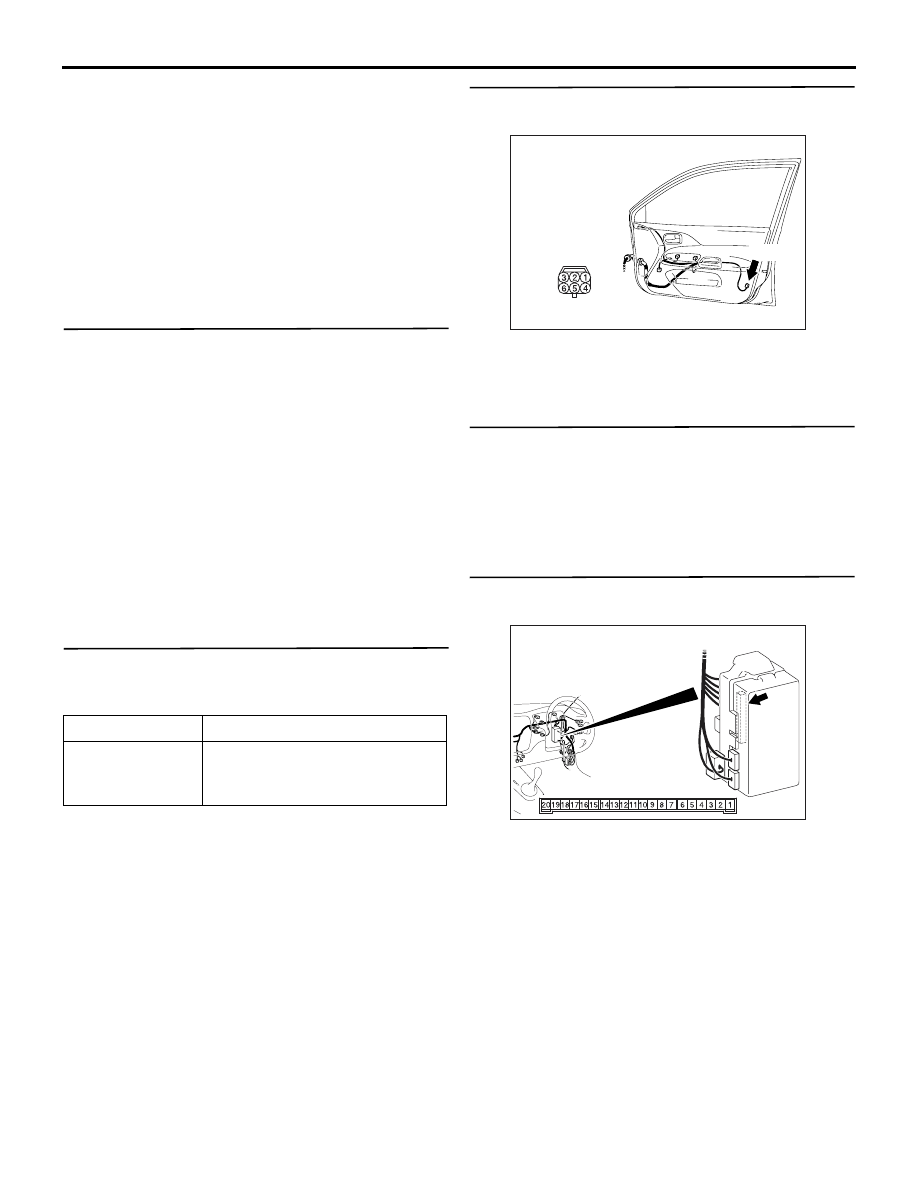

AC310484

Harness side

AB

Connector: E-04 <LHD>

E-04(B)

Front door (LH)

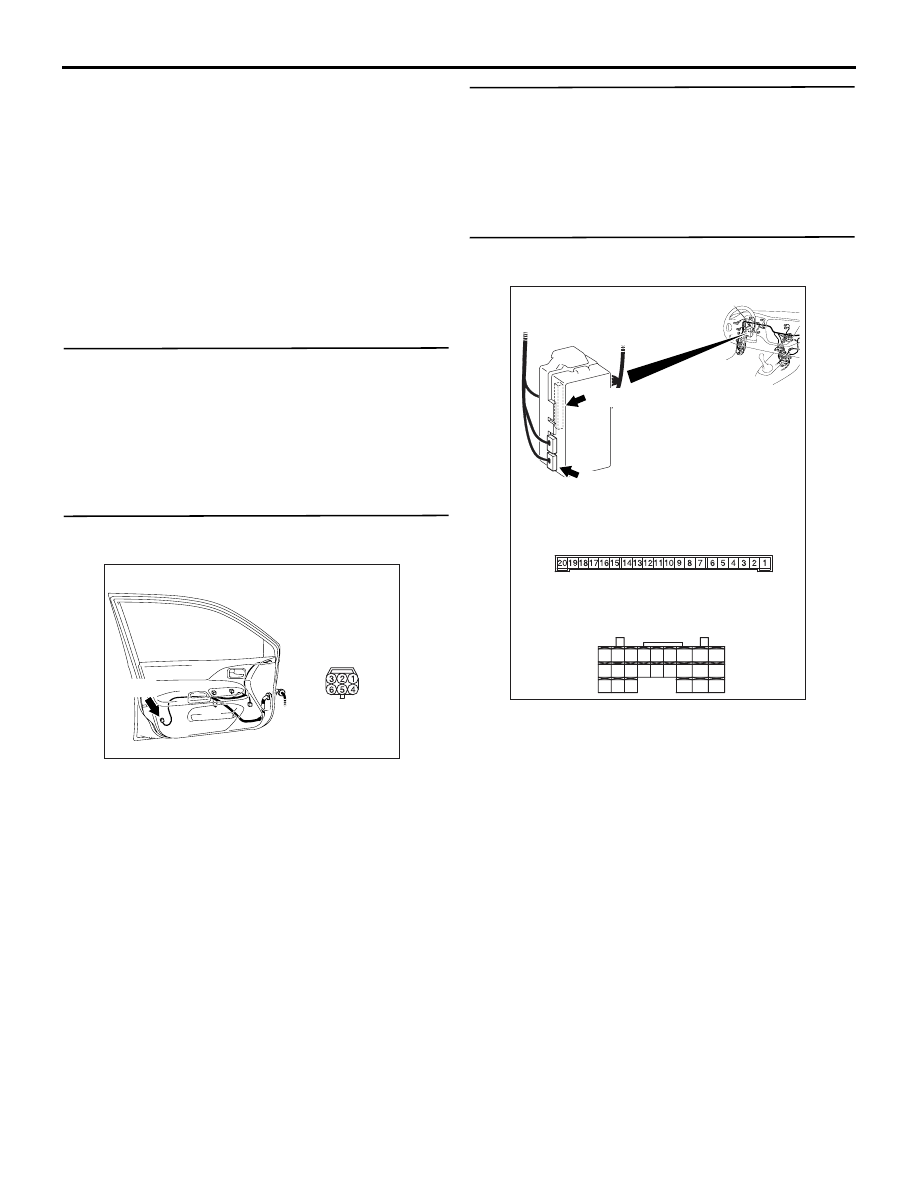

AC310451

Connectors: C-226, C-227 <LHD>

AB

Junction block (rear view)

Junction block side

C-227

C-226

C-227

Harness side

C-226

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

36 35

33

21

22

30

39

40

31
