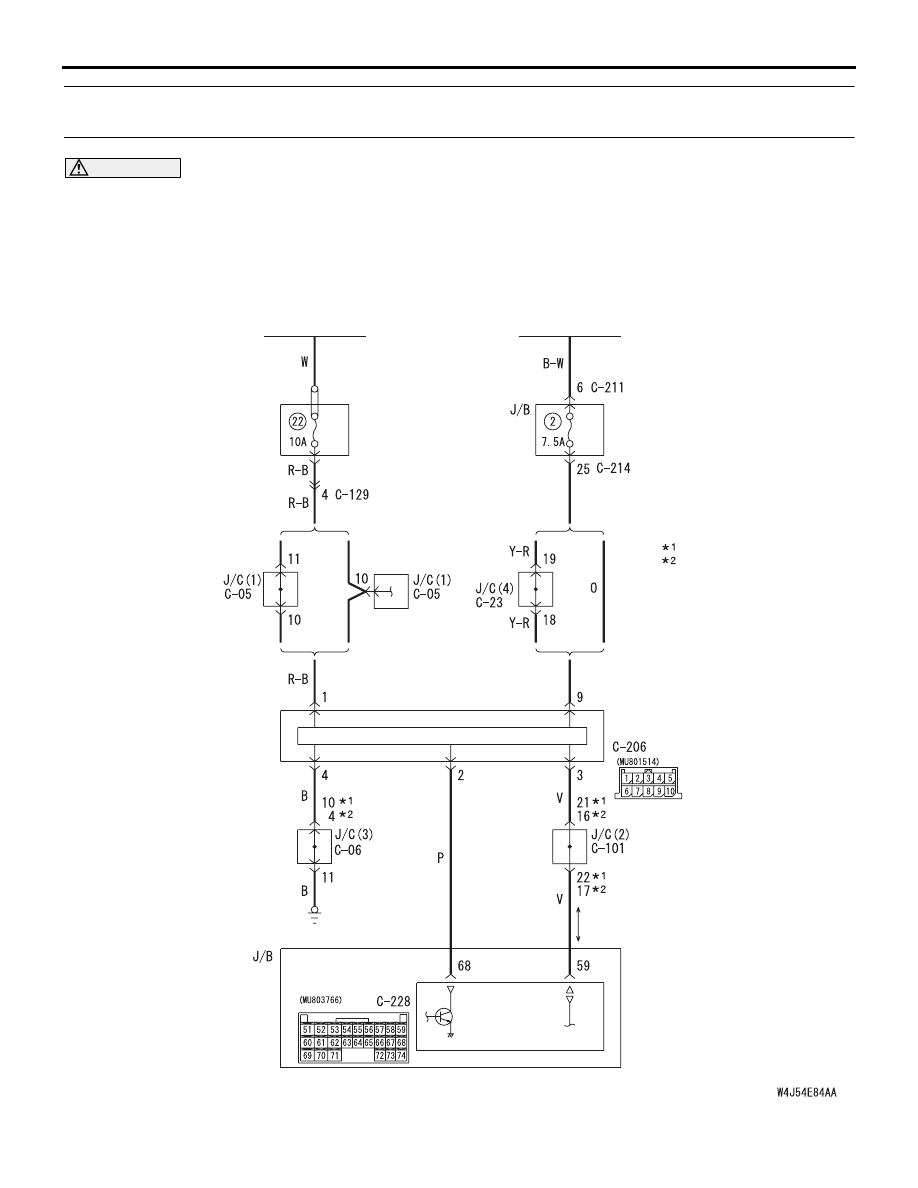

SYMPTOM PROCEDURES
SMART WIRING SYSTEM (SWS) USING SWS MONITOR
54C-27
Step 2. Check that the M.U.T.-II/III can
communicate with the system.
When the ignition switch is turned ON, check if the
M.U.T.-II/III can communicate with the system.
Q: Is the check result normal?
YES :
Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible
NO :
Go to Step 3.

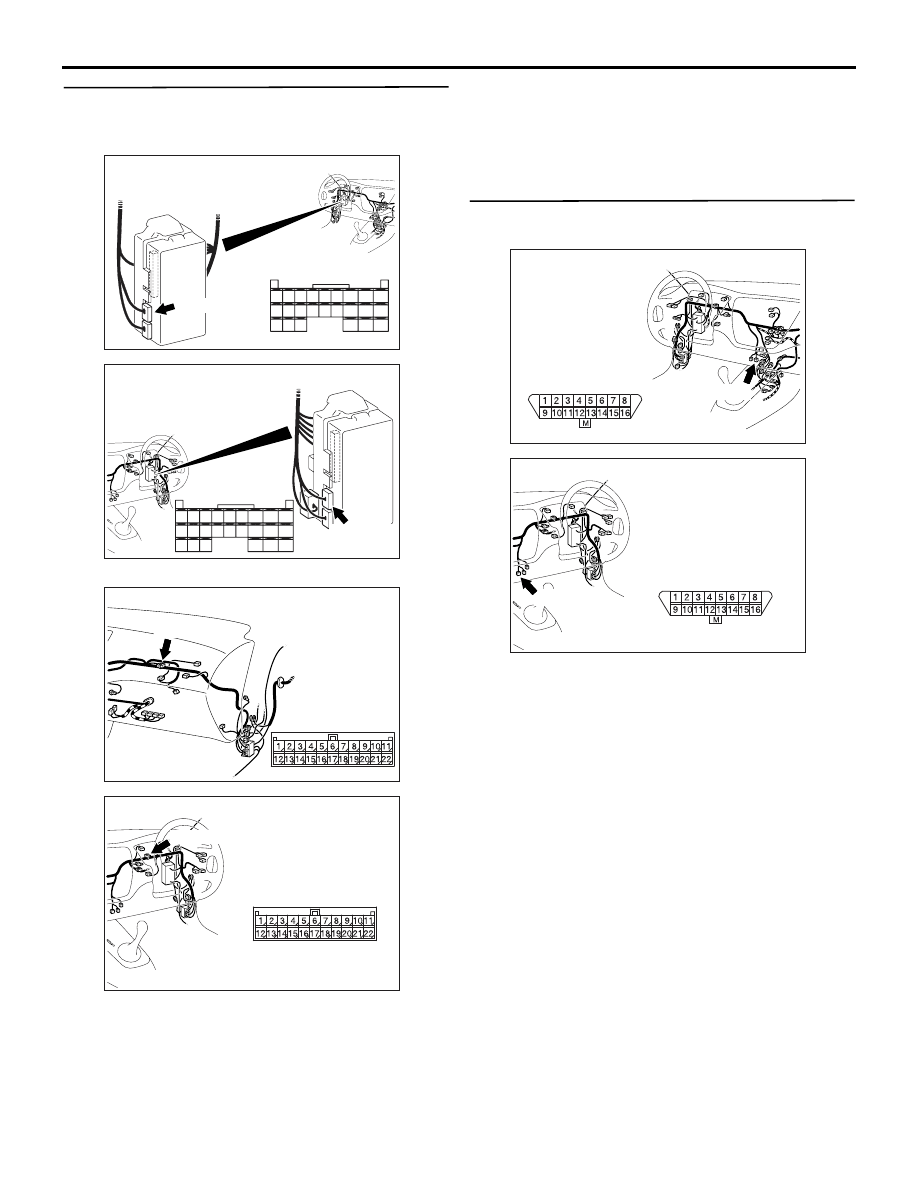

Step 3. Connector check: C-228 ETACS-ECU
connector
Q: Is the check result normal?
YES :
Go to Step 4.
NO :
Repair the defective connector.

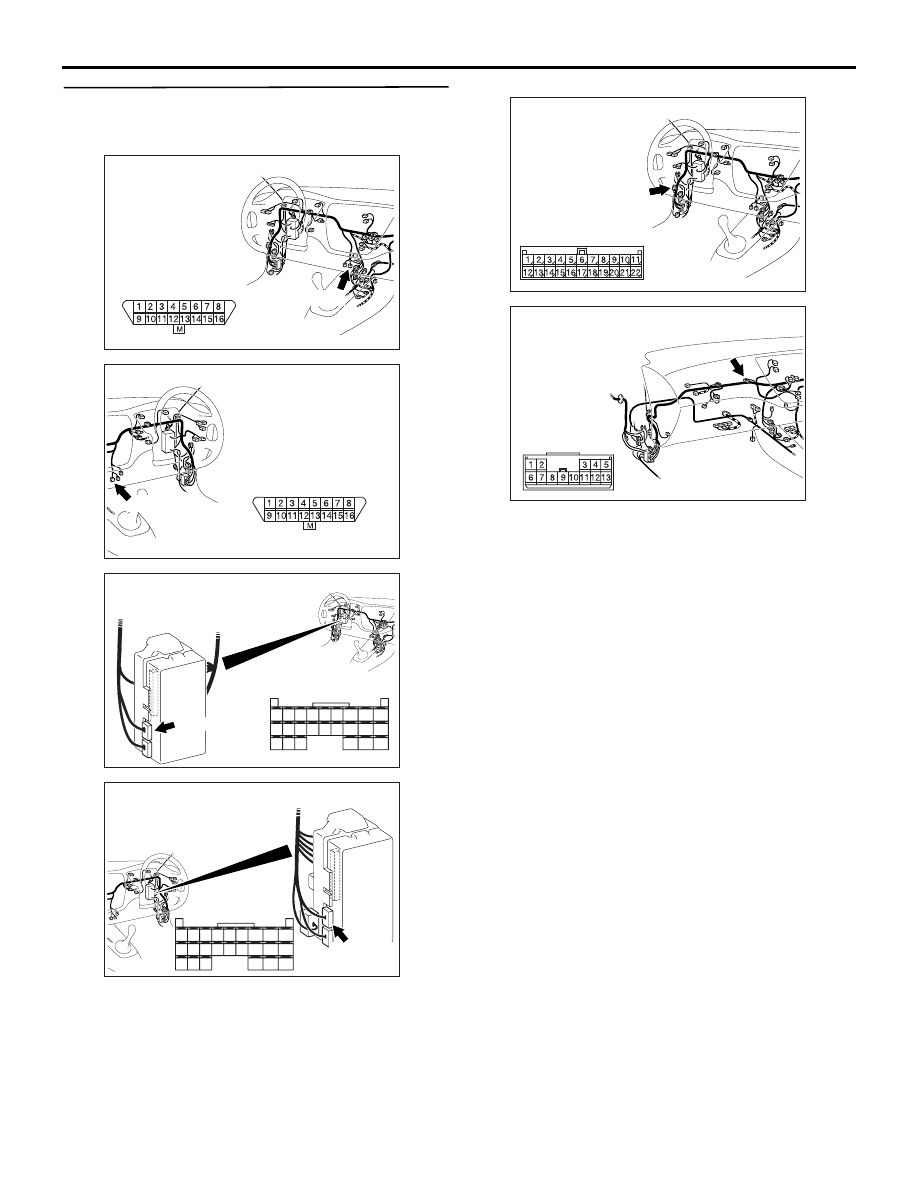

Step 4. Resistance measurement at the C-228
ETACS-ECU connector
(1) Disconnect the connector, and measure at the
wiring harness side.
(2) Resistance between C-228 ETACS-ECU
connector terminal No.56 and body earth
OK: 2
Ω or less
Q: Is the check result normal?
YES :
Go to Step 6.
NO :
Go to Step 5.

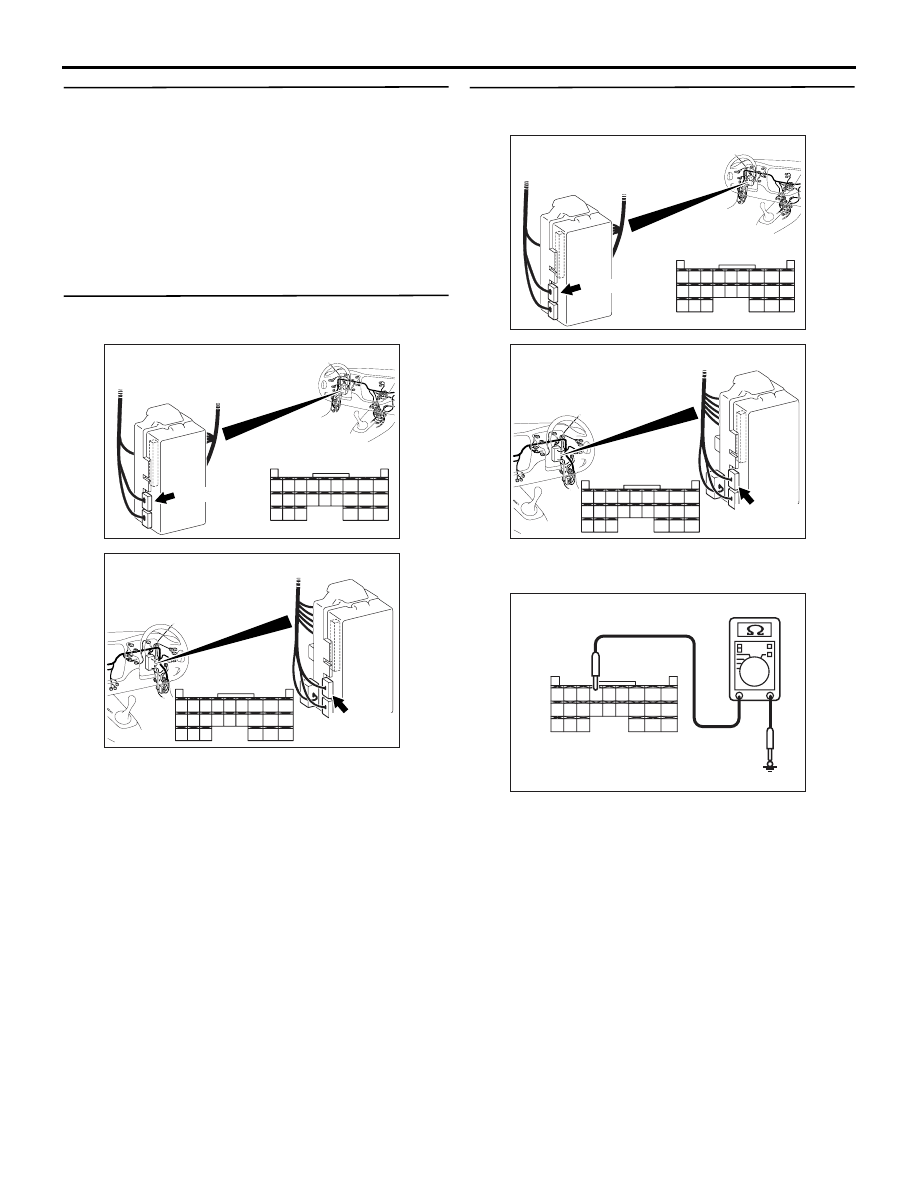

AC310450
