Mitsubishi Lancer Evolution IX. Manual - part 173

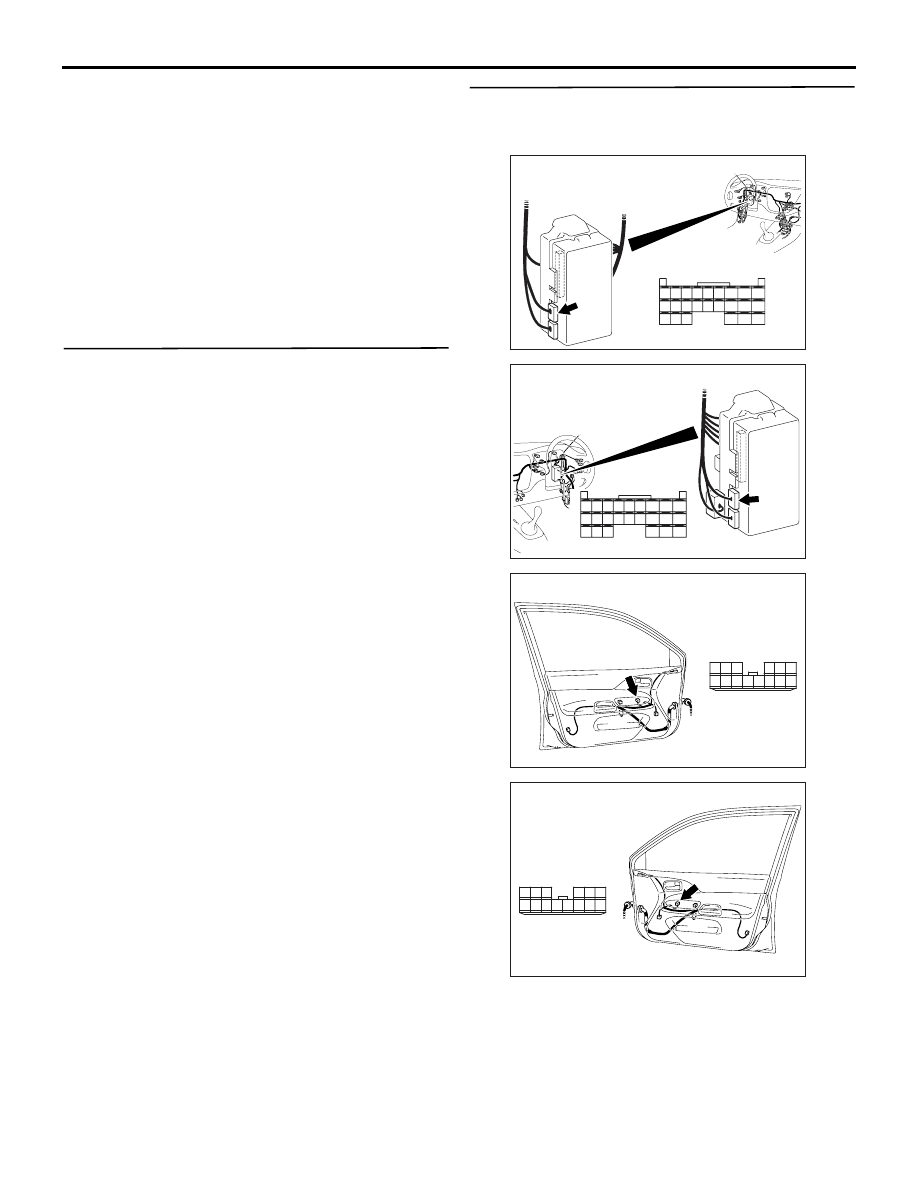

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-255

COMMENTS ON TROUBLE SYMPTOM

Input signal from the power window main switch is
used in order to check the power window main
switch and confirm how the system is communicating
with the ETACS-ECU. If the communication line is
defective, the power windows will not work normally.

POSSIBLE CAUSES

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the operation by using the power
window main switch.
Check if each window can be operated by means of
the power window main switch.

Q: Can each power window be operated by means of

the power window main switch?
YES :

Go to Step 2.

NO :

Refer to Inspection Procedure D-1 "Power
windows do not work at all

P.54B-72

."

Step 2. Connector check: C-228 ETACS-ECU
connector and E-05 power window main switch
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

AC310450

Connector: C-228

AH

Junction block
(rear view)

Harness side

<LHD>

51

52

53

54

55

56

57

58

59

58 5756 55 54 53 52 51 60

74 7372

71 70 69

AC310461

Harness side

Junction block (rear view)

Connector: C-228

AG

<RHD>

51

52

53

54

55

56

57

58

59

58 5756 55 54 53 52 51 60

74 7372

71 70 69

AC310484

Harness side

AC

Connector: E-05 <LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

AC

Connector: E-05
<RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-256

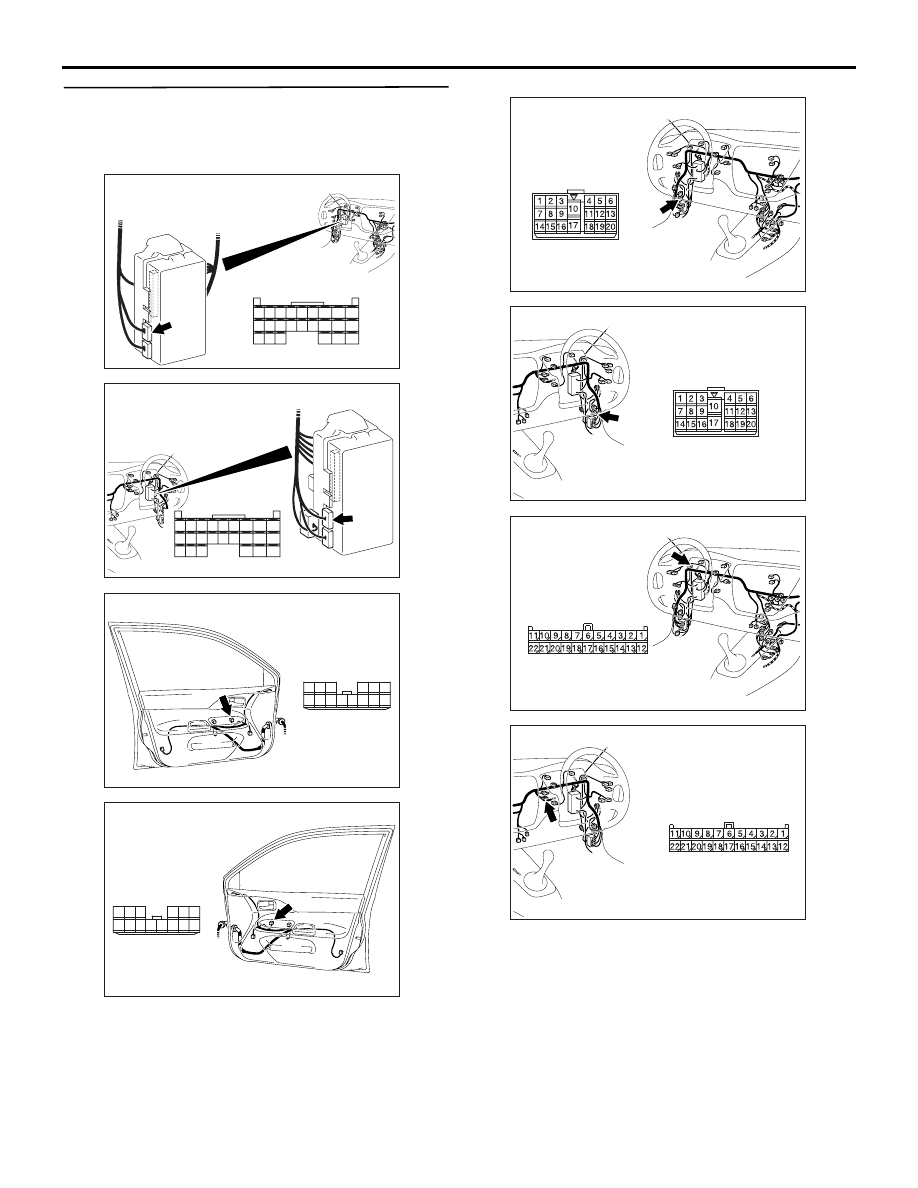

Step 3. Check the wiring harness between C-228
ETACS-ECU connector terminal No.59 and E-05
power window main switch connector terminal
No.4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-17 <LH drive vehicles> or C-110
<RH drive vehicles> and joint connector C-101, and
repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the wiring harness.

AC310450

Connector: C-228

AH

Junction block
(rear view)

Harness side

<LHD>

51

52

53

54

55

56

57

58

59

58 5756 55 54 53 52 51 60

74 7372

71 70 69

AC310461

Harness side

Junction block (rear view)

Connector: C-228

AG

<RHD>

51

52

53

54

55

56

57

58

59

58 5756 55 54 53 52 51 60

74 7372

71 70 69

AC310484

Harness side

AC

Connector: E-05 <LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

AC

Connector: E-05
<RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

AC310446

Connector: C-17

AC

<LHD>

AC310456

Connector: C-110

AE

<RHD>

AC310446

Connector: C-101
<LHD>

AF

Harness side

AC310456

Connector: C-101
<RHD>

AF

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-257

Step 4. Replace the power window main switch,
and then retest the system.
Replace the power window main switch, and check
that the power window main switch signal is
received.
(1) Replace the power window main switch.

(2) Check that the power window main switch signal

is received.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the ETACS-ECU.

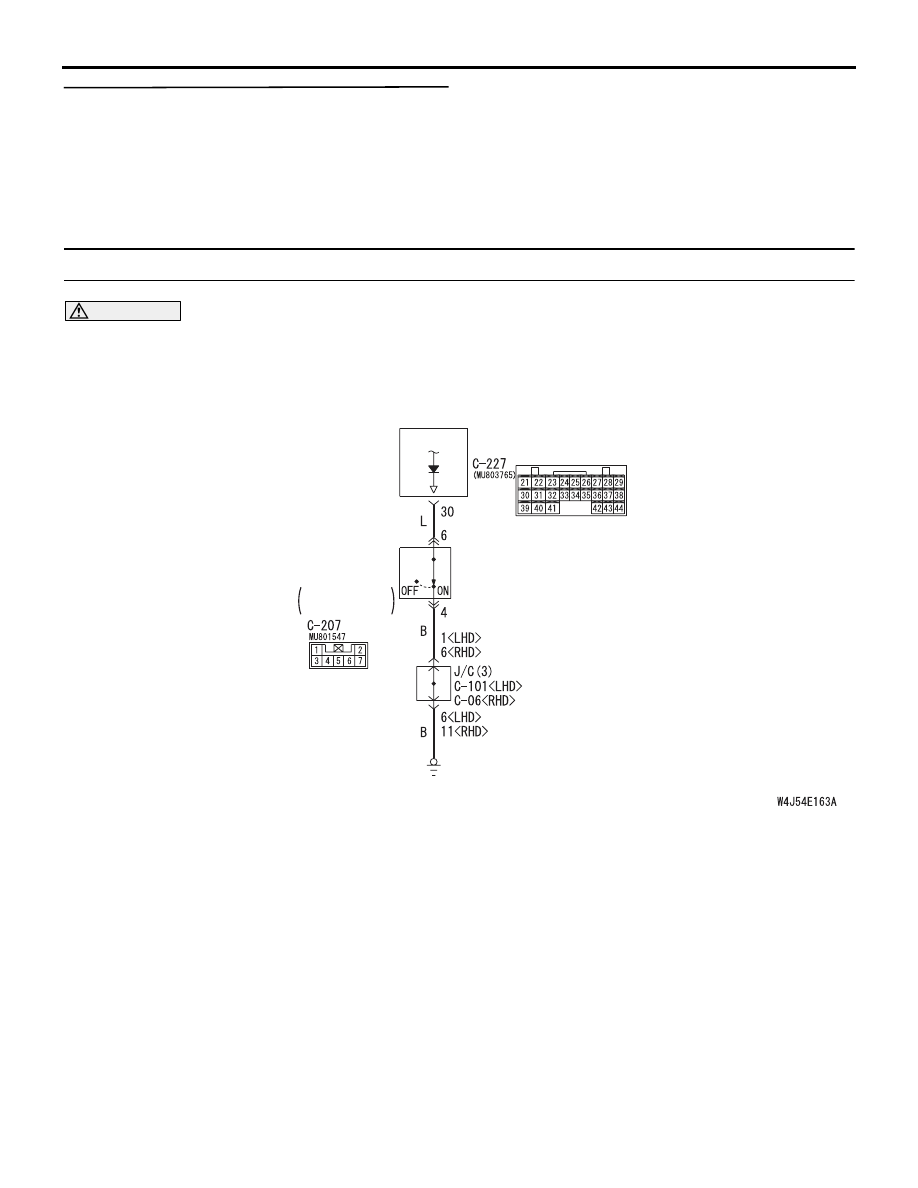

INSPECTION PROCEDURE L-8: The key reminder switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the key reminder switch is used to
operate the functions below. If the signal is abnormal,
these functions will not work normally.

• Keyless entry system

• Room lamps

POSSIBLE CAUSES

• Malfunction of the key reminder switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

ETACS-
ECU

KEY
REMINDER
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

WHEN KEY
IS REMOVED

Key Reminder Switch Input Circuit

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-258

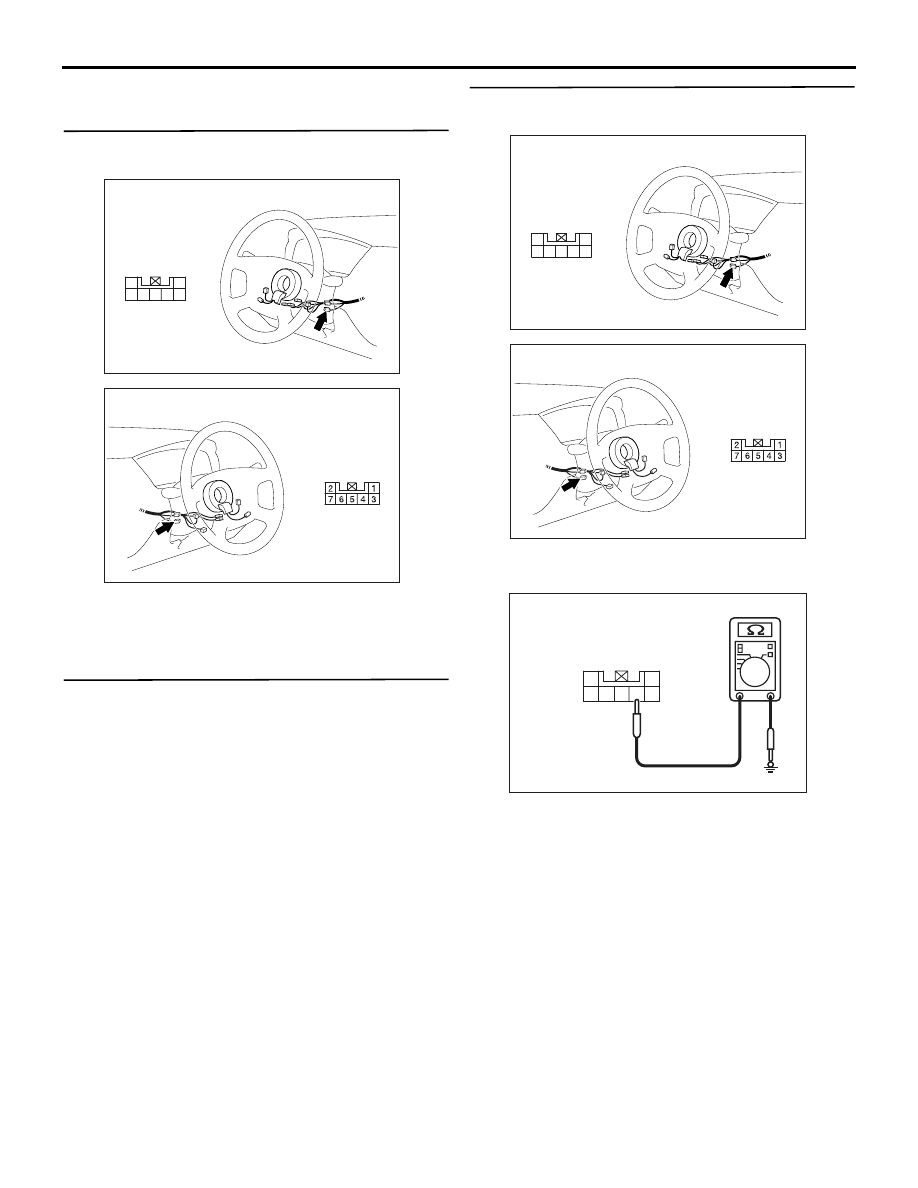

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-207 key reminder
switch connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the key reminder switch.
Refer to GROUP 54A

− Ignition switch

P.54A-30

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the key reminder switch.

Step 3. Resistance measurement at the C-207 key
reminder switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between C-207 key reminder switch

connector terminal No.4 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC310479

AC

Connector: C-207
<LHD>

Harness side

2
7 6

1
3

5 4

AC310481AC

Harness side

Connector: C-207
<RHD>

AC310479

AC

Connector: C-207
<LHD>

Harness side

2
7 6

1
3

5 4

AC310481AC

Harness side

Connector: C-207
<RHD>

AC301541

2
7 6

1
3

5 4

GY

Connector C-207
(Harness side)
