INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-243

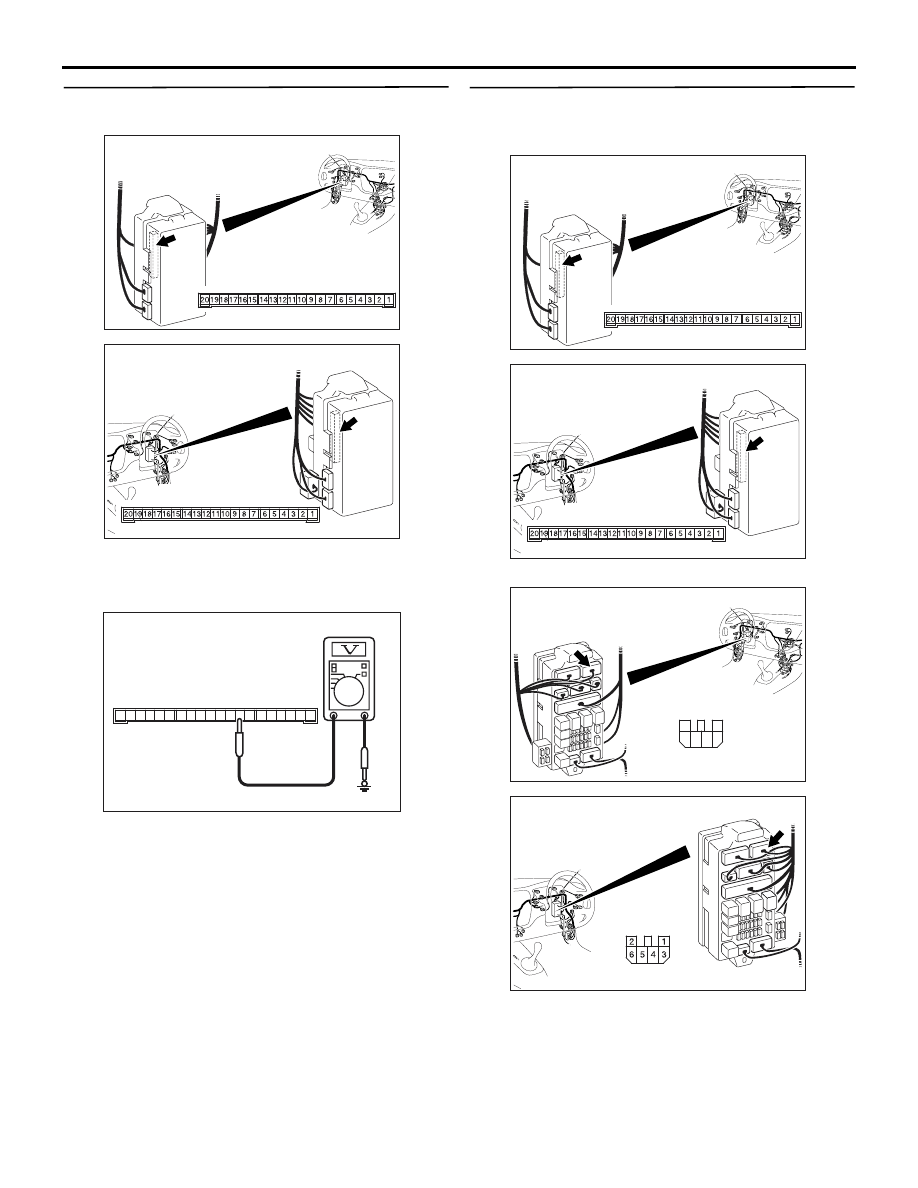

Step 2. Voltage measurement at the C-226
ETACS-ECU connector

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Ignition switch: ON position

(3) Voltage between C-226 ETACS-ECU connector

terminal No.8 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

Step 3. Check the wiring harness between C-226
ETACS-ECU connector terminal No.8 and the
ignition switch (IG1).

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-211, and repair if necessary.

• Check the power supply line for open circuit.

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

AC301541GU

Connector C-226
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

AC310448

Harness side

Junction block (front view)

Connector: C-211

AB

<LHD>

4

6 5

3

2

1

AC310458

Harness side

Junction block (front view)

Connector: C-211

AB

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-244

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 4. Retest the system.
Check that the ignition switch (IG1) signal is received
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

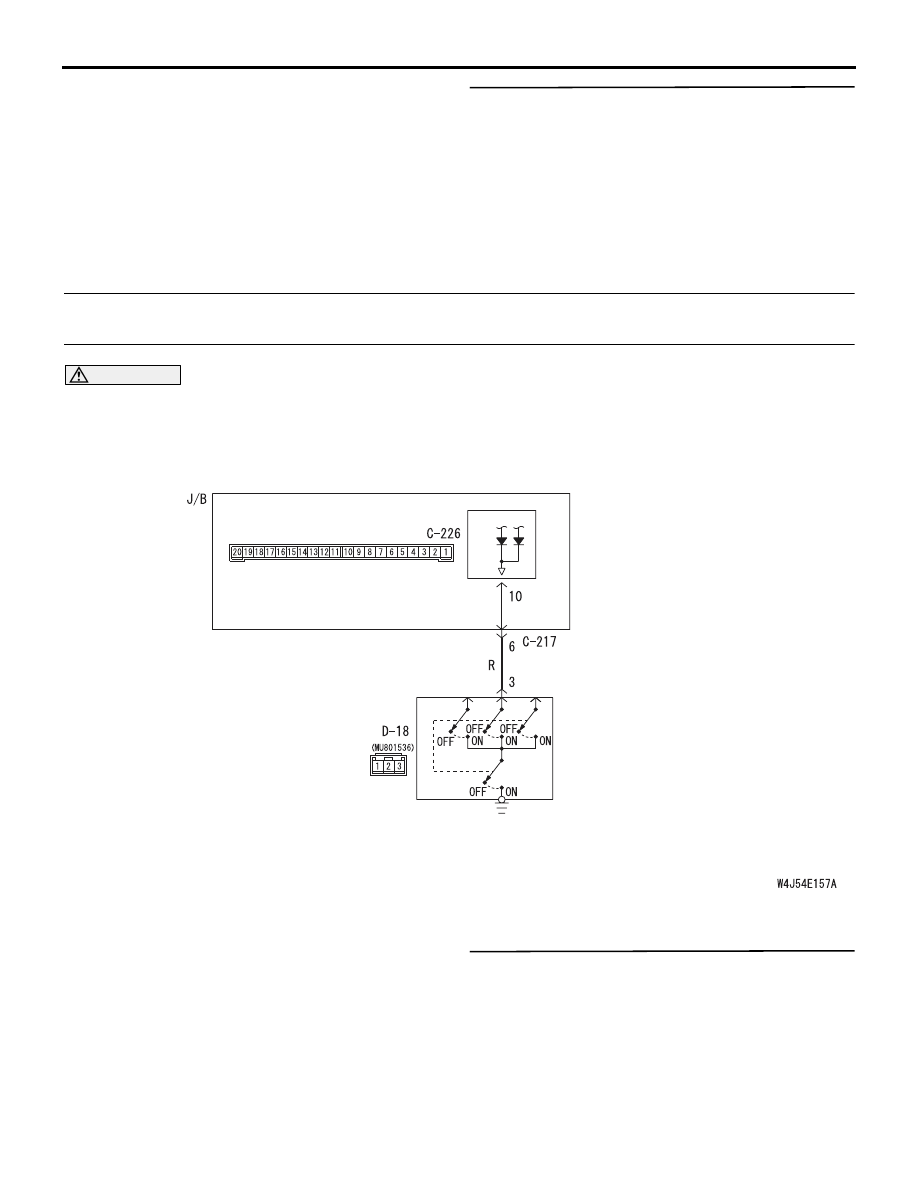

INSPECTION PROCEDURE L-3: The door switch (front: LH) signal is not received. <LH drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the door switch (front: LH) is used
to operate the functions below. If the signal is abnor-
mal, these functions will not work normally.

• Lamp reminder function

• Headlamp automatic shutdown function

• Room lamps

POSSIBLE CAUSES

• Malfunction of the door switch (front: LH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the installation condition.
Check that the door switch (front: LH) is installed on
the body correctly.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Correct the installation condition.

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

FRONT DOOR
SWITCH (LH)

Door Switch Input Circuit <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-245

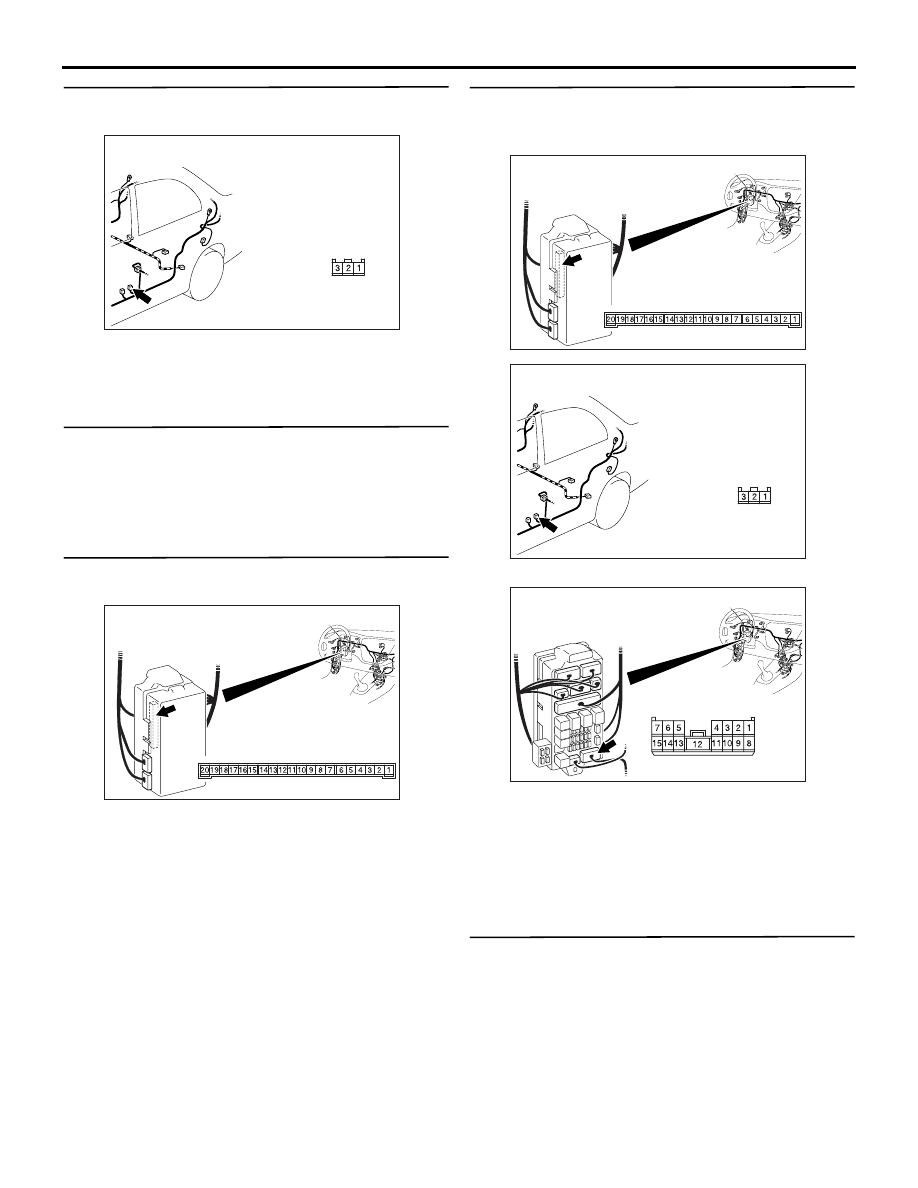

Step 2. Connector check: D-18 door switch (front:
LH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the door switch (front: LH).
Refer to GROUP 42

− Door

P.42-27

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the door switch (front: LH).

Step 4. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the wiring harness between D-18
door switch (front: LH) connector terminal No.3
and C-226 ETACS-ECU connector terminal No.10.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-217, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.
Check that the door switch (front: LH) signal is
received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310465

Harness side

AB

Connector: D-18
<LHD>

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310465

Harness side

AB

Connector: D-18
<LHD>

AC310448

Harness side

Junction block (front view)

Connector: C-217

AC

<LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-246

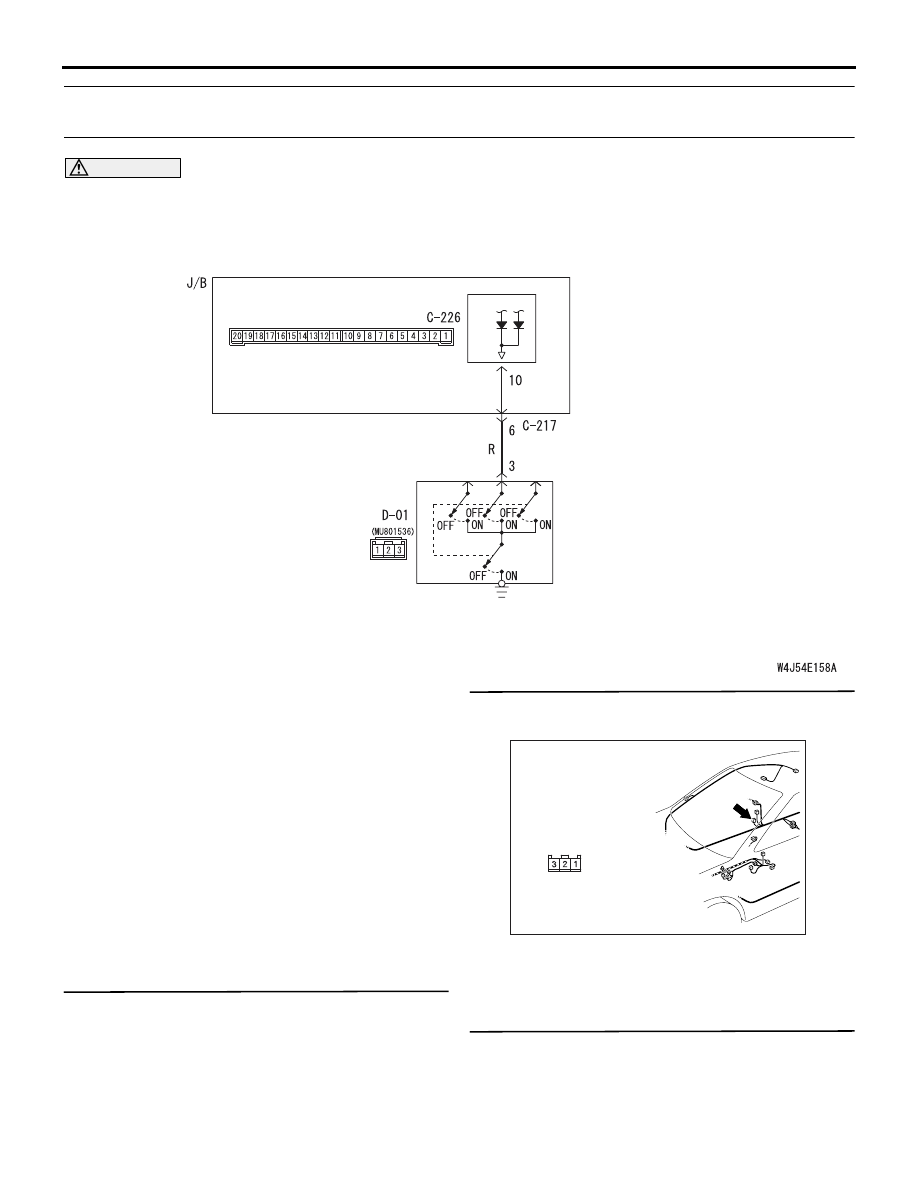

INSPECTION PROCEDURE L-3: The door switch (front: RH) signal is not received. <RH drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the door switch (front: RH) is used
to operate the functions below. If the signal is abnor-
mal, these functions will not work normally.

• Lamp reminder function

• Headlamp automatic shutdown function

• Room lamps

POSSIBLE CAUSES

• Malfunction of the door switch (front: RH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the installation condition.
Check that the door switch (front: RH) is installed on
the body correctly.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Correct the installation condition.

Step 2. Connector check: D-01 door switch (front:
RH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the door switch (front: RH).
Refer to GROUP 42

− Door

P.42-27

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the door switch (front: RH).

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

DOOR SWITCH
(RH)

Door Switch Input Circuit <RHD>

AC310471

Harness side

AB

Connector: D-01
<RHD>
