Mitsubishi Lancer Evolution IX. Manual - part 164

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-219

COMMENTS ON TROUBLE SYMPTOM

If any of the rear fog lamps do not illuminate, the wir-
ing harness connector(s), the bulb or the fuse may
be defective or burned out.

POSSIBLE CAUSES

• Burned-out rear fog lamp bulb

• Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

COMBINATION
METER

REAR
COMBINATION
LAMP
(REAR FOG)

REAR FOG
LAMP RELAY

ETACS-
ECU

FUSIBLE
LINK

1

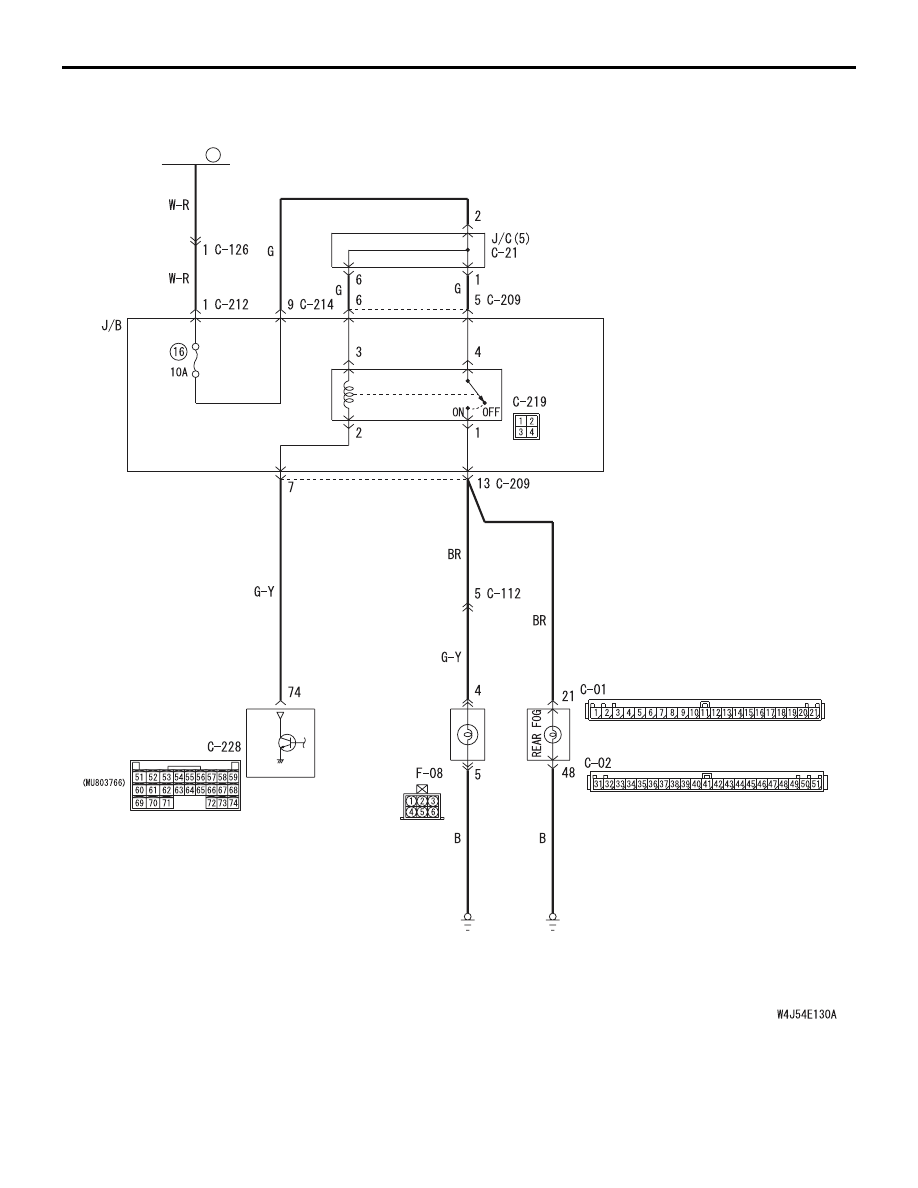

Rear Fog Lamp Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-220

DIAGNOSTIC PROCEDURE

Step 1. Connector check: F-14 <LH drive
vehicles>, F-08 <RH drive vehicles> rear fog lamp
connector or C-02 <rear fog lamp indicator lamp>
combination meter connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

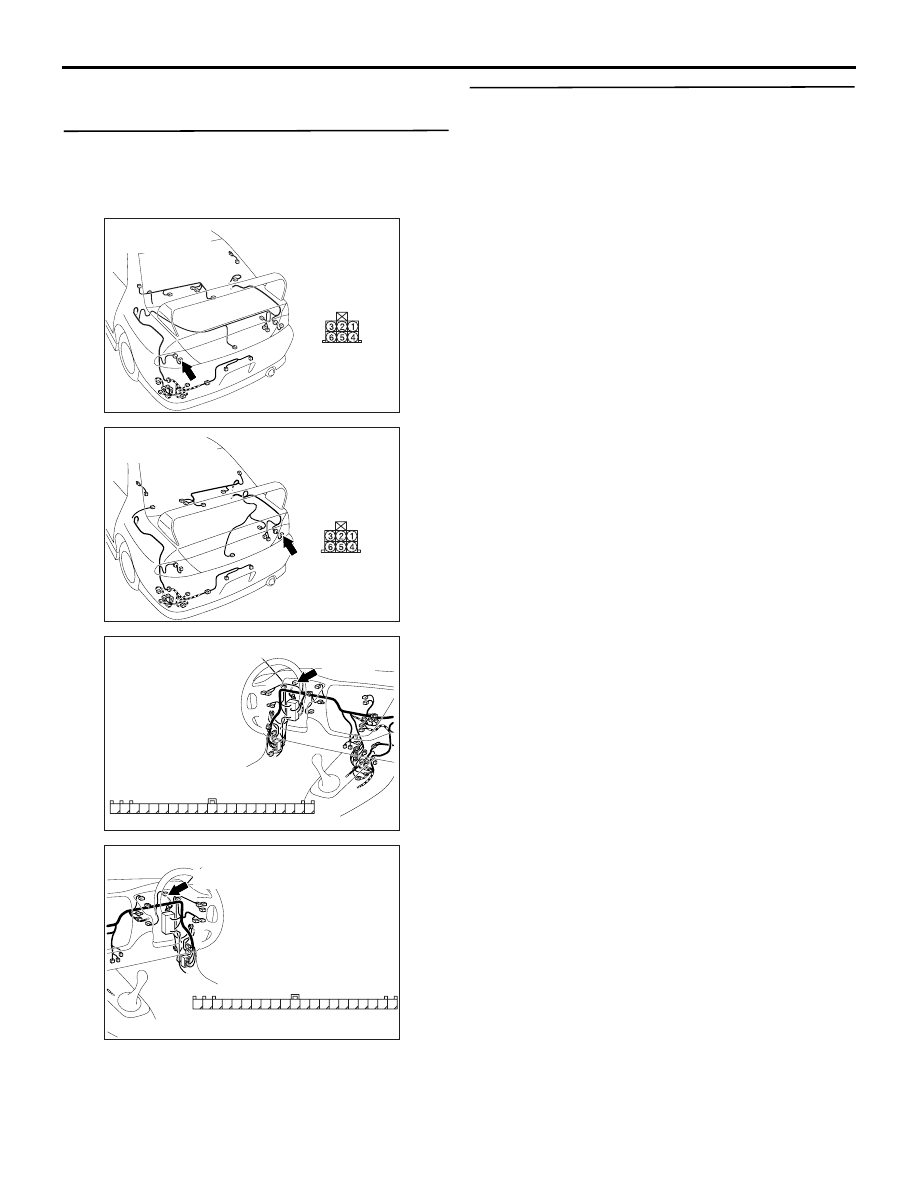

Step 2. Check the bulbs of the rear fog lamps or
the rear fog lamp indicator lamp.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

AC310467

Harness side

AC

<LHD>

Connector: F-14

AC310469

Connector: F-08

Harness side

AC

<RHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-221

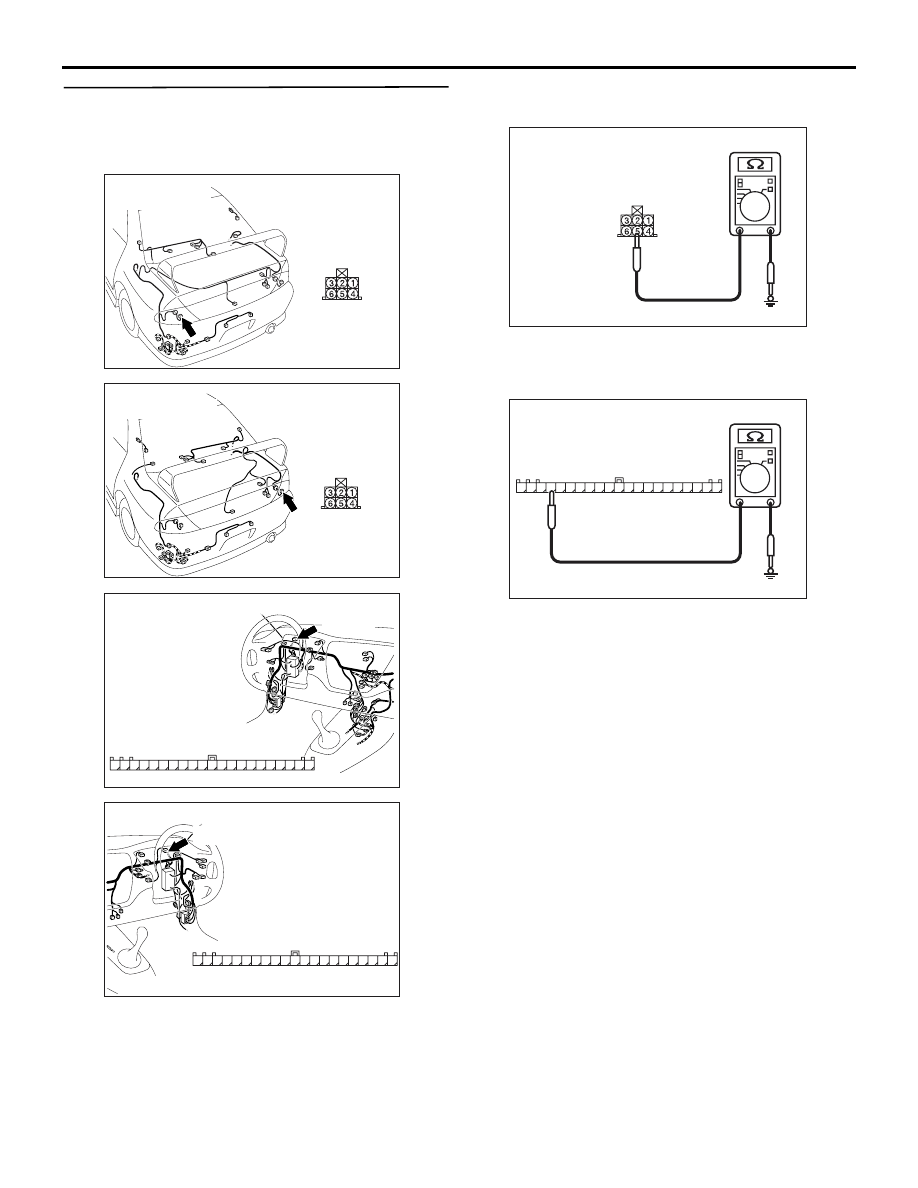

Step 3. Resistance measurement at the F-14 <LH
drive vehicles>, F-08 <RH drive vehicles> rear
fog lamp connector or C-02 <fog lamp indicator
lamp> combination meter connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between F-14 <LH drive vehicles>,

F-08 <RH drive vehicles> rear fog lamp relay
connector terminal No.5 and body earth

•

Resistance between C-02 <rear fog lamp indica-

tor lamp> combination meter connector termi-
nal No.48 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC310467

Harness side

AC

<LHD>

Connector: F-14

AC310469

Connector: F-08

Harness side

AC

<RHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC301541HD

Connector F-08, F-14
(Harness side)

AC301541HE

Connector C-02
(Harness side)

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-222

Step 4. Check the wiring harness from F-14 <LH
drive vehicles>, F-08 <RH drive vehicles> rear
fog lamp connector terminal No.5, C-02 <rear fog
lamp indicator lamp> combination meter
connector terminal No.48 to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

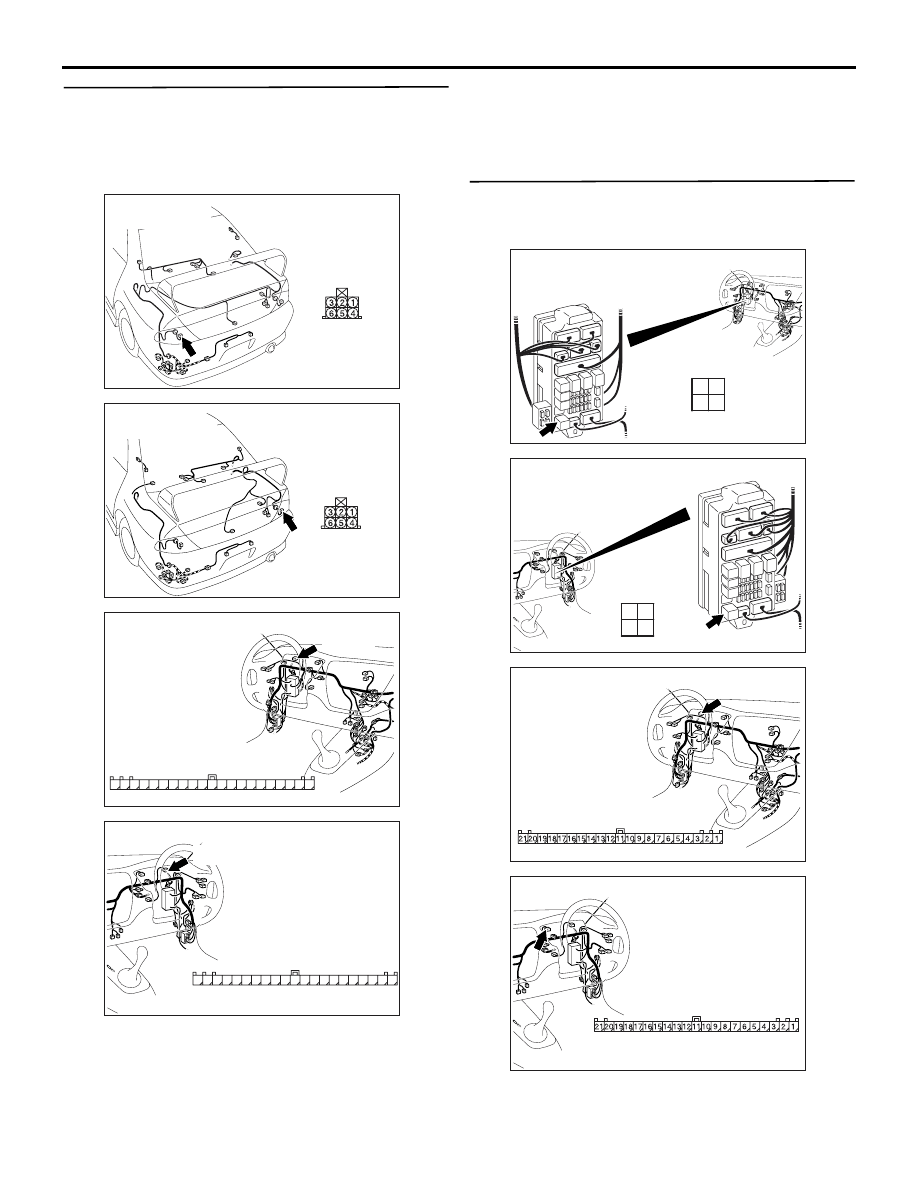

Step 5. Connector check: C-219 rear fog lamp
relay connector, C-01 <rear fog lamp indicator
lamp> combination meter connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC310467

Harness side

AC

<LHD>

Connector: F-14

AC310469

Connector: F-08

Harness side

AC

<RHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310448

Junction block (front view)

Connector: C-219

AN

<LHD>

Junction block side

3

1

2
4

AC310458

Junction block (front view)

Connector: C-219

AK

<RHD>

Junction block side

3

1

2
4

AC310446

Connector: C-01
<LHD>

AM

Harness side

AC310456

Connector: C-01
<RHD>

AL

Harness side
