HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-13

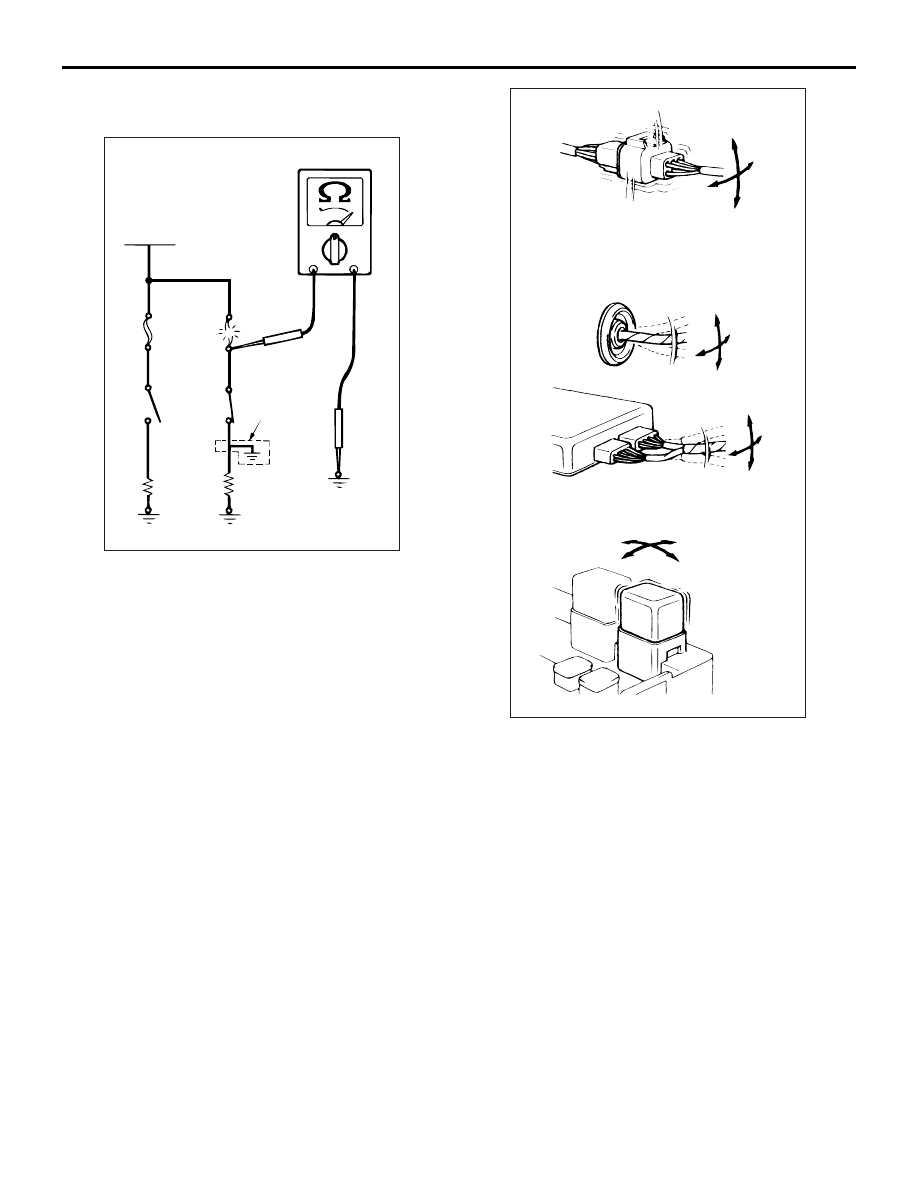

INSPECTION SERVICE POINTS FOR A
BLOWN FUSE

AC300900AB

Battery

Fuse

Load
switch

Load

Short-circuit
occurrence
section

Remove the blown fuse and measure the resistance
between the load side of the blown fuse and the
earth. Close the switches of all circuits which are
connected to this fuse. If the resistance is almost 0
ohm at this time, there is a short somewhere
between these switches and the load. If the resist-
ance is not 0 ohm, there is no short at the present
time, but a momentary short has probably caused
the fuse to blow.
The main causes of a short circuit are the following.

• Harness being clamped by the vehicle body

• Damage to the outer casing of the harness due to

wear or heat

• Water getting into the connector or circuitry

• Human error (mistakenly shorting a circuit, etc).

HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS

NOTE: If determining the cause is difficult, the flight
recorder function of the M.U.T.-II/III can also be
used.

AC300901

Intermittent malfunctions often occur under certain
conditions, and if these conditions can be ascer-
tained, determining the cause becomes simple. In
order to ascertain the conditions under which an
intermittent malfunction occurs, first ask the cus-
tomer for details about the driving conditions,
weather conditions, frequency of occurrence and
trouble symptoms, and then try to recreate the trou-
ble symptoms. Next, ascertain whether the reason
why the trouble symptom occurred under these con-
ditions is due to vibration, temperature or some other
factor. If vibration is thought to be the cause, carry
out the following checks with the connectors and
components to confirm whether the trouble symptom
occurs. The objects to be checked are connectors
and components which are indicated by inspection
procedures or given as probable causes (which gen-
erates diagnosis codes or trouble symptoms).

VEHICLE IDENTIFICATION

GENERAL

00-14

• Gently shake the connector up, down and to the

left and right.

• Gently shake the wiring harness up, down and to

the left and right.

• Gently rock each sensor and relay, etc. by hand.

• Gently shake the wiring harness at suspensions

and other moving parts.

VEHICLE IDENTIFICATION

M1001000401329

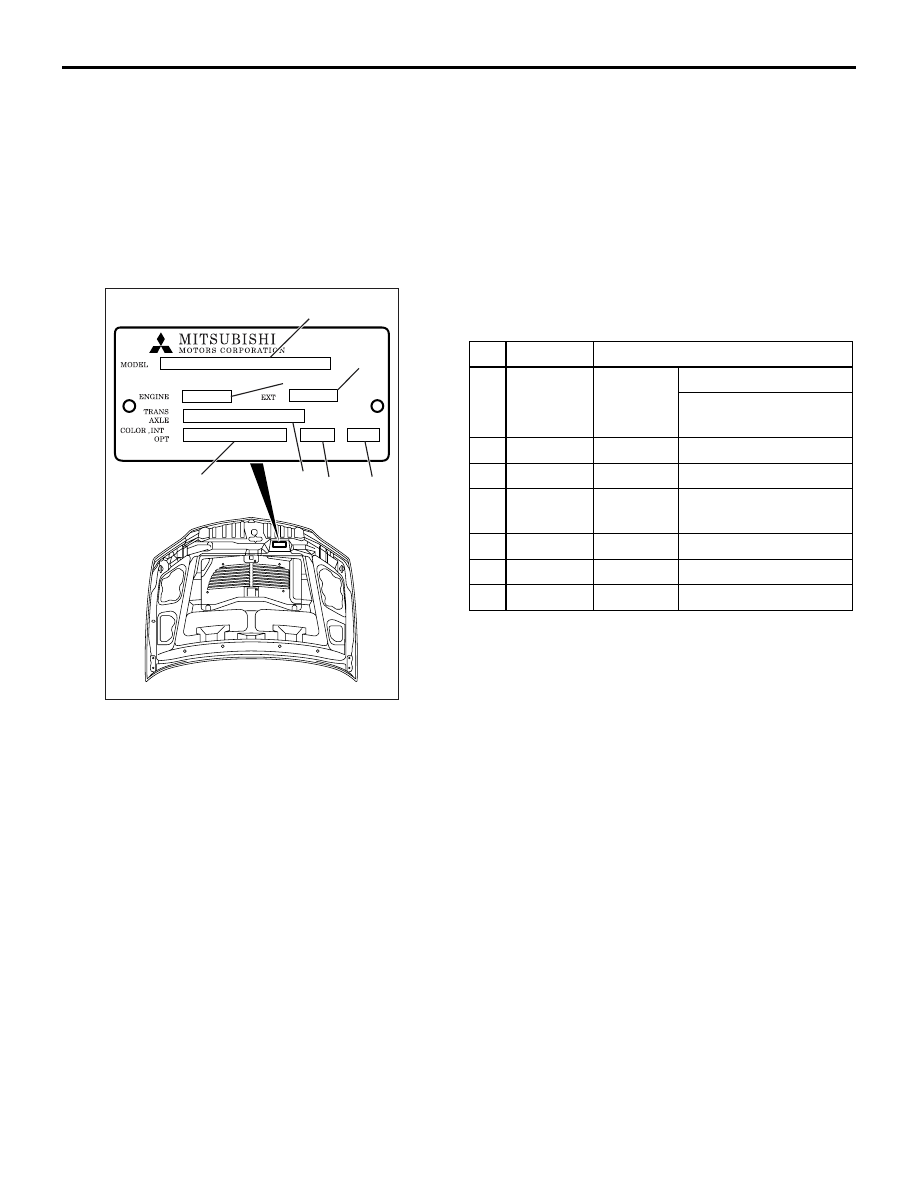

VEHICLE IDENTIFICATION CODE PLATE

AC504461

AD

1

2

3

4

5

6

7

Code plate

Engine hood

The vehicle information code plate is riveted to the
back of the engine hood.
The plate shows model code, engine model, trans-
mission model and body colour code.

No. Item

Content

1

MODEL

CT9ASJG
FZL6

CT9A: Vehicle model
SJGFZL6: Model
series

2

ENGINE

4G63

Engine model

3

EXT

A02A

Exterior code

4

TRANS
AXLE

W6MAA

Transmission model

5

COLOUR A02

Body colour code

6

INT

90J

Interior code

7

OPT

ZP3

Equipment code

For monotone colour vehicles, the body colour code
shall be indicated.

VEHICLE IDENTIFICATION

GENERAL

00-15

MODELS

Model code

Engine model

Price class

Transmission
model

Fuel supply
system

CT9A

SJGFZL6

4G63-DOHC-intercoo
ler turbocharger
(1,997 mL)

GSR

W6MAA
<4WD, 6M/T>

MPI

SJGFZR6

MODEL CODE

L

Z

CT 9 A S J G F

6

AC504314

1

2 3 4 5 6 7 8 9 10

No. Item

Content

1

Development

CT: MITSUBISHI

LANCER EVOLUTION

2

Engine type

9: 1,997mL

3

Sort

A: Passenger car

4

Body style

S: 4-door sedan

5

Transmission
type

J: 6-speed manual

transmission

6

Trim level

G: GSR

7

Specification
engine feature

F: MPI-DOHC-MIVEC,

intercooler turbocharger

8

Special feature

Z: 4WD

9

Steering wheel
location

L: Left hand
R: Right hand

10

Destination

6: For Europe

No. Item

Content

VEHICLE IDENTIFICATION

GENERAL

00-16

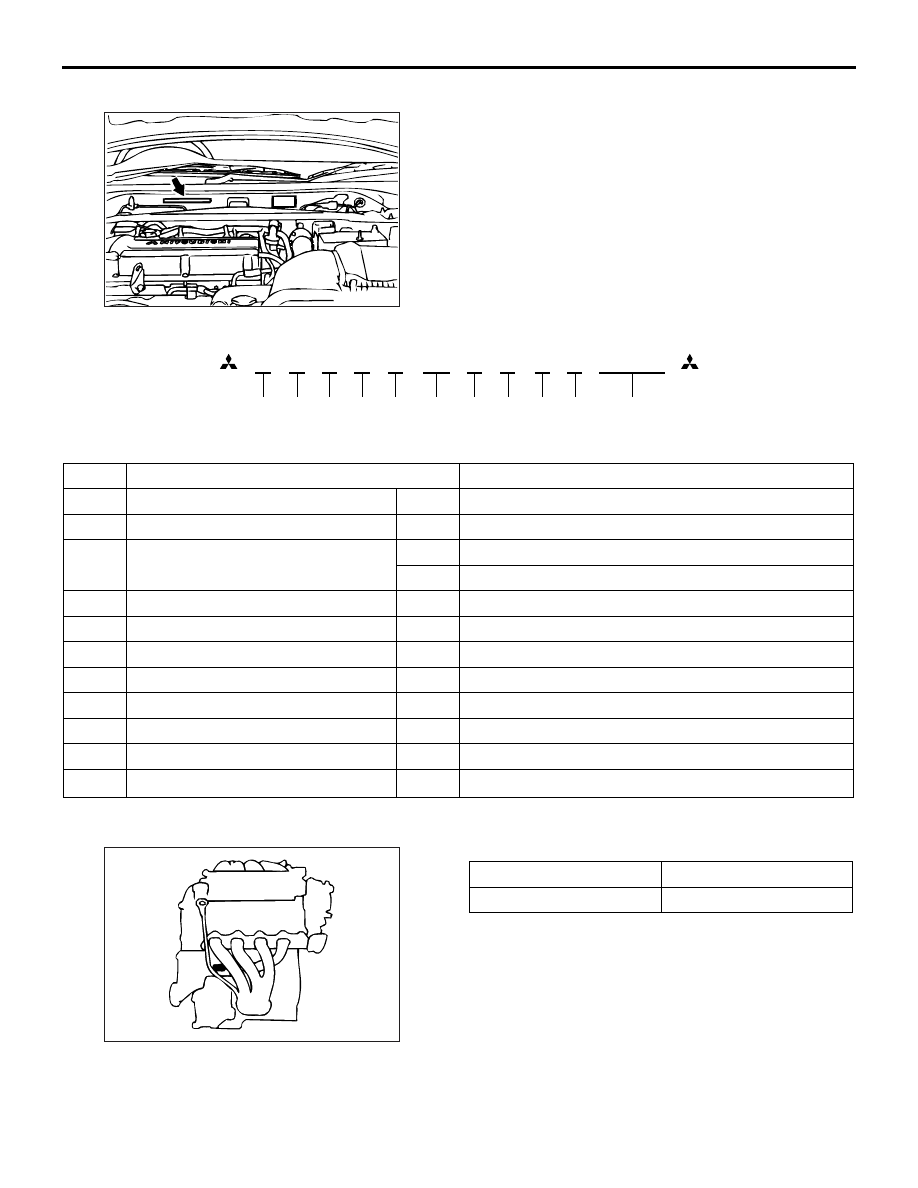

CHASSIS NUMBER

AC310384

The chassis number is stamped on the toeboard
inside the engine compartment.

AC504317

J

M

B

S

CT

9

A

6

U

000001

J

1

2

3

4

5

6

7

8

9

10

11

No.

Item

Content

1

Fixed figure

J

Asia

2

Distribution channel

M

Japan channel

3

Destination

A

For Europe, right hand drive

B

For Europe, left hand drive

4

Body style

S

4-door sedan

5

Transmission type

J

6-speed manual transmission

6

Development order

CT

LANCER EVOLUTION

7

Engine

9

1,997 mL petrol engine

8

Soft

A

Passenger car

9

Model year

6

2006

10

Plant

U

Mizushima

11

Serial number

−

−

ENGINE MODEL STAMPING

AC310394

The engine model is stamped on the cylinder block.
This engine model numbers is as shown as follow.

Engine model

Engine displacement

4G63

1,997 mL

The engine serial number is stamped near the
engine model number.
