Mitsubishi Lancer Evolution IX. Manual - part 73

AC208224AC

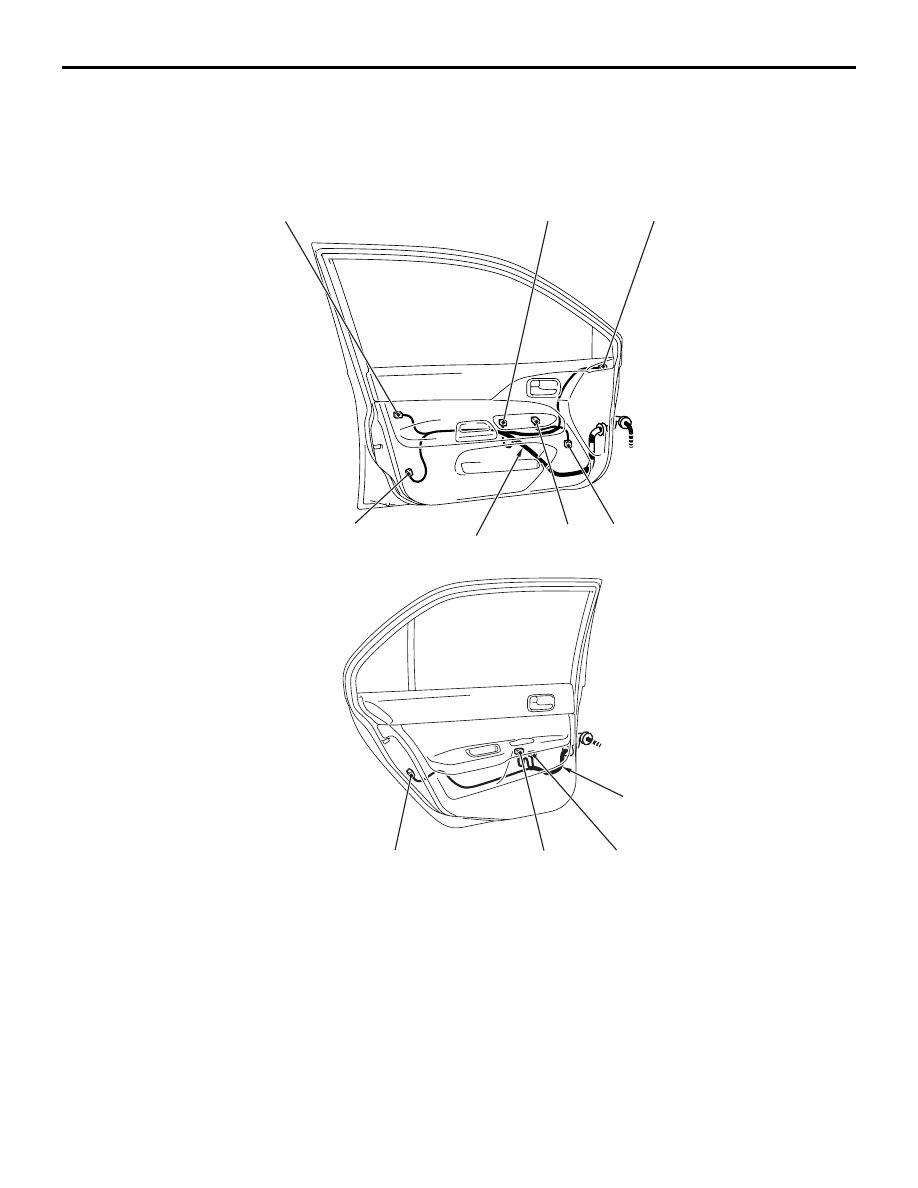

Passenger's side

E-10

E-11

E-12

E-13

E-14

E-15

E-16

E-17

E-18

Front

Rear

Front door
wiring harness (RH)

Rear door
wiring harness (RH)

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-11

(6-GR)

Power window motor (Front: RH)

E-12

(3-B)

Door lock key cylinder switch

E-13

(2)

Door speaker (RH)

E-14

(8)

Power window sub switch (Front)

E-15

(6-B)

Door lock actuator (Front: RH)

E-16

(6-GR)

Power window motor (Rear: RH)

E-17

(8)

Power window sub switch (Rear: RH)

E-18

(6-B)

Door lock actuator (Rear: RH)

DOOR

CONFIGURATION DIAGRAMS

80-33

DOOR

CONFIGURATION DIAGRAMS

80-34

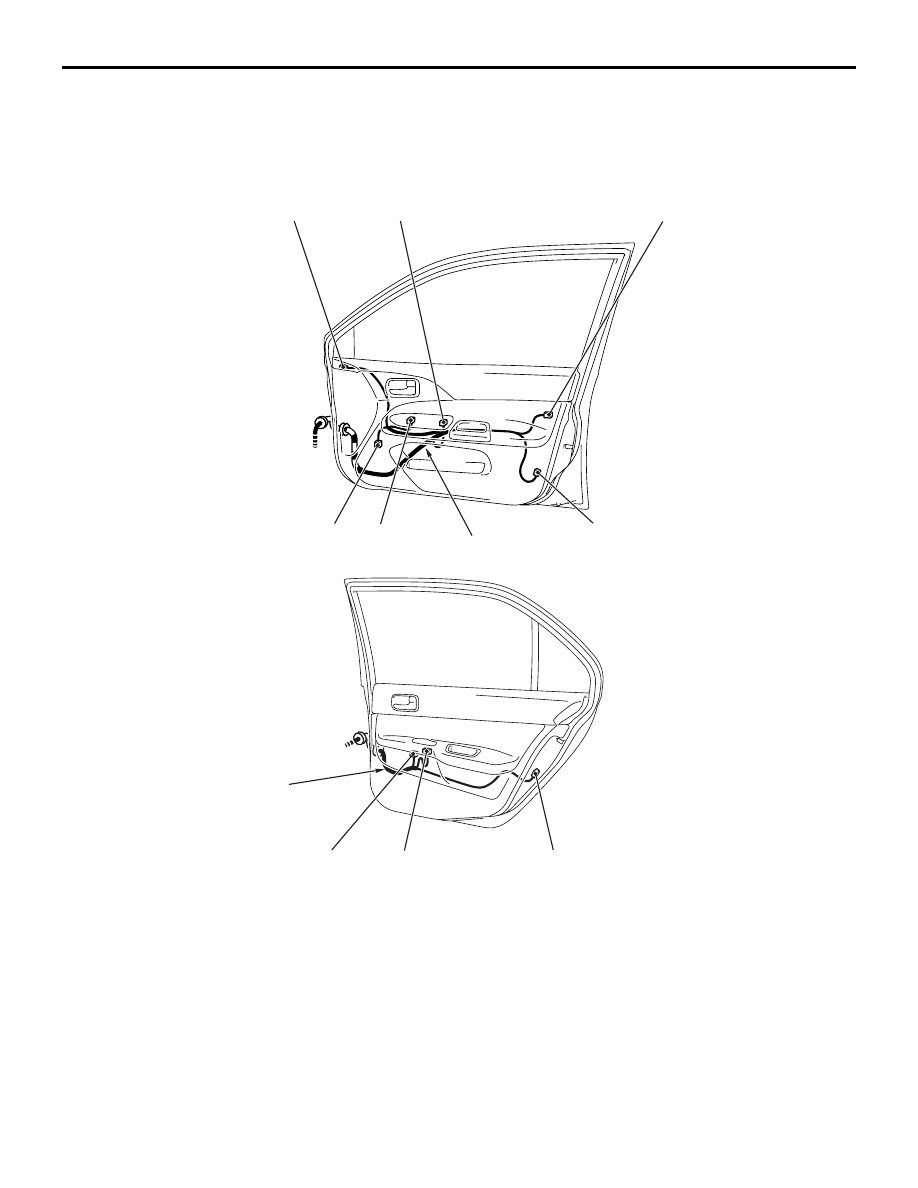

DOOR <RH drive vehicles>

M1801001401287

AC310172AB

Connector
symbol

E

Driver's side

E-15

E-05

E-13

E-11

E-10

E-18

E-17

E-16

Front

Rear

Front door
wiring harness (RH)

Rear door
wiring harness (RH)

E-02

(6-GR)

Power window motor (Front: LH)

E-03

(7)

Remote controlled mirror (LH)

E-04

(6-B)

Door lock actuator (Front: LH)

E-05

(14)

Power window main switch

E-06

(2)

Door speaker (LH)

E-07

(6-B)

Door lock actuator (Rear: LH)

E-08

(8)

Power window sub switch (Rear: LH)

E-09

(6-GR)

Power window motor (Rear: LH)

E-10

(7)

Remote controlled mirror (RH)

AC310173 AD

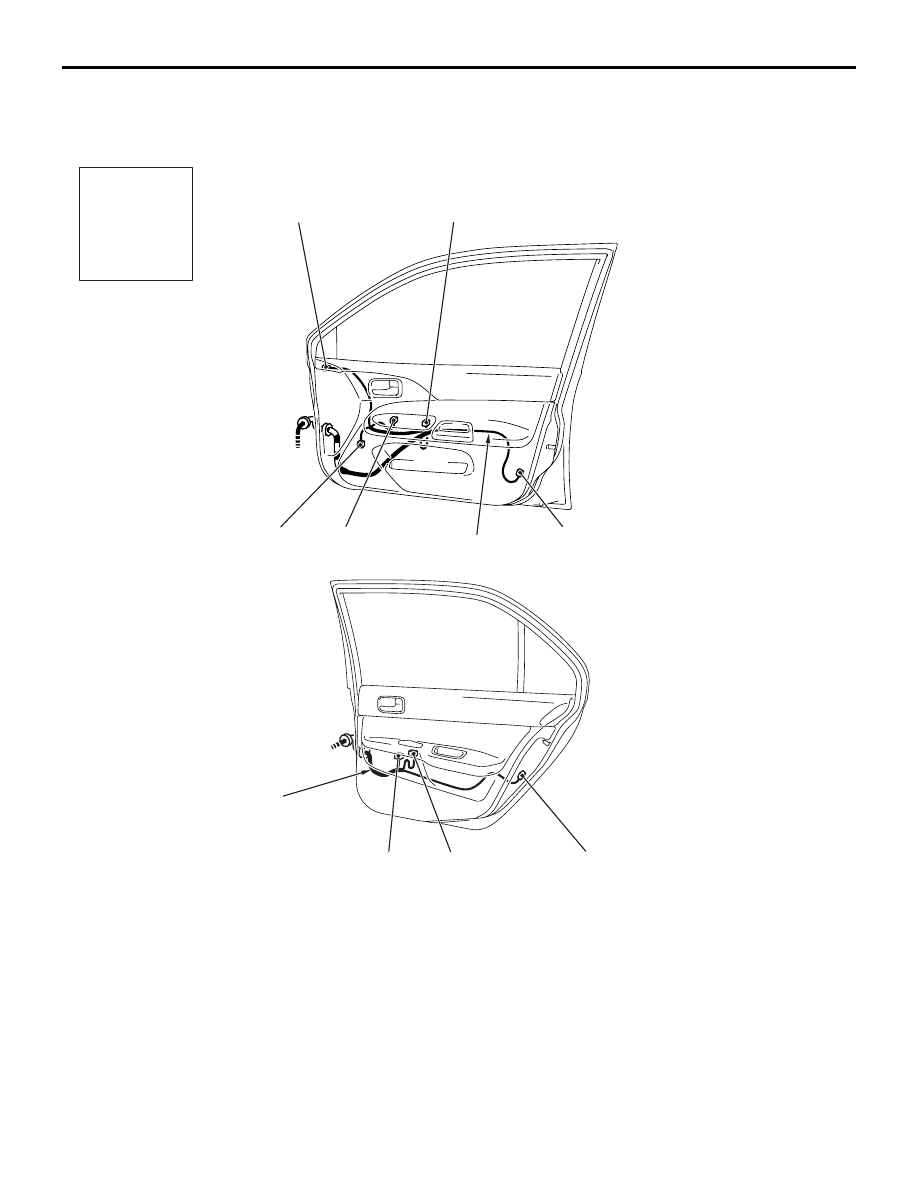

Passenger's side

E-03

E-02

E-12

E-06

E-14

E-04

E-09

E-08

E-07

Front

Rear

Front door
wiring harness (LH)

Rear door
wiring harness (LH)

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-11

(6-GR)

Power window motor (Front: RH)

E-12

(3-B)

Door lock key cylinder switch

E-13

(2)

Door speaker (RH)

E-14

(8)

Power window sub switch (Front)

E-15

(6-B)

Door lock actuator (Front: RH)

E-16

(6-GR)

Power window motor (Rear: RH)

E-17

(8)

Power window sub switch (Rear: RH)

E-18

(6-B)

Door lock actuator (Rear: RH)

DOOR

CONFIGURATION DIAGRAMS

80-35

TRUNK (LUGGAGE COMPARTMENT)

CONFIGURATION DIAGRAMS

80-36

TRUNK (LUGGAGE COMPARTMENT)

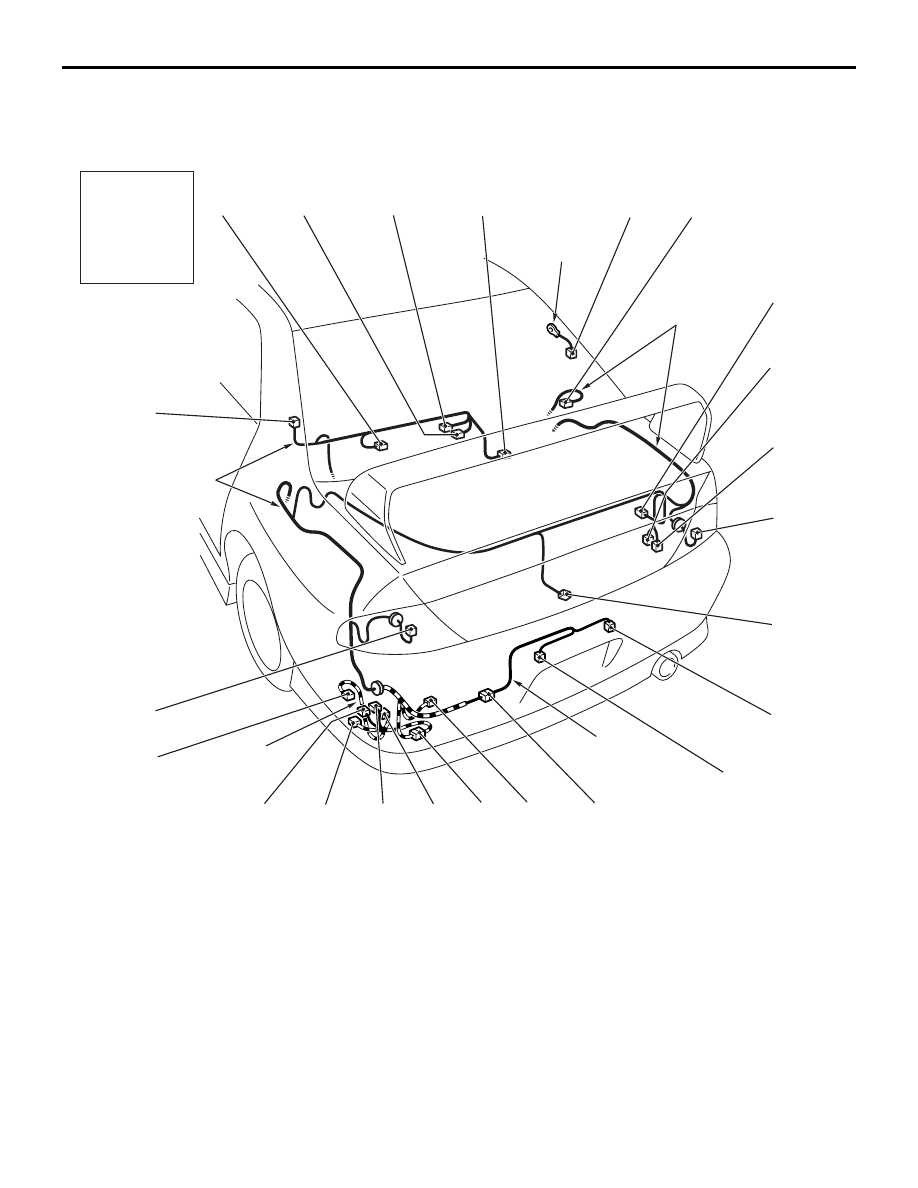

TRUNK <LH drive vehicles>

M1801001500560

AC208225

AC310174

F-02

F-01

F-17

F-15

F-08

F-09

F-10

F-11

F-12

F-20

F-26

F-16

Floor wiring
harness (LH)

AB

F-04

F-05

F-07

F-06

F-21

F-22

F-23

F-24

F-25

F-14

Bumper
wiring
harness

F-18

Floor wiring
harness (RH)

4WD wiring
harness

Connector
symbol

F

Defogger
earth

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

F-01

(2)

Rear speaker (LH)

F-02

(2)

Luggage compartment lamp

F-04

(2-B)

High mounted stop lamp <rear shelf>

F-05

(4)

No connection

F-06

(1-B)

Defogger (

−)

F-07

(2)

Rear speaker (RH)

F-08

(6-B)

Rear combination lamp (RH)

F-09

(1-B)

Luggage compartment lamp switch

F-10

(2-GR)

Licence plate lamp (RH)

F-11

(2-GR)

Licence plate lamp (LH)

F-12

(2-GR)

Floor wiring harness (LH) and bumper
wiring harness combination

F-14

(6-B)

Rear combination lamp (LH)

F-15

(2)

High mounted stop lamp <rear
spoiler>

F-16

(1)

Defogger (+)

F-17

(2-G)

No connection

F-18

(2)

Windshield washer motor

F-20

(2-B)

Electric pump

F-21

(8-B)

Floor wiring harness (LH) and 4WD
wiring harness combination

F-22

(2-B)

Direction valve (LH)

F-23

(2-B)

Direction valve (RH)

F-24

(3-B)

Proportioning valve (for ACD control)

F-25

(3-B)

Proportioning valve (for AYC control)

F-26

(3-B)

Pressure sensor
