Mitsubishi Lancer Evolution IX. Manual - part 70

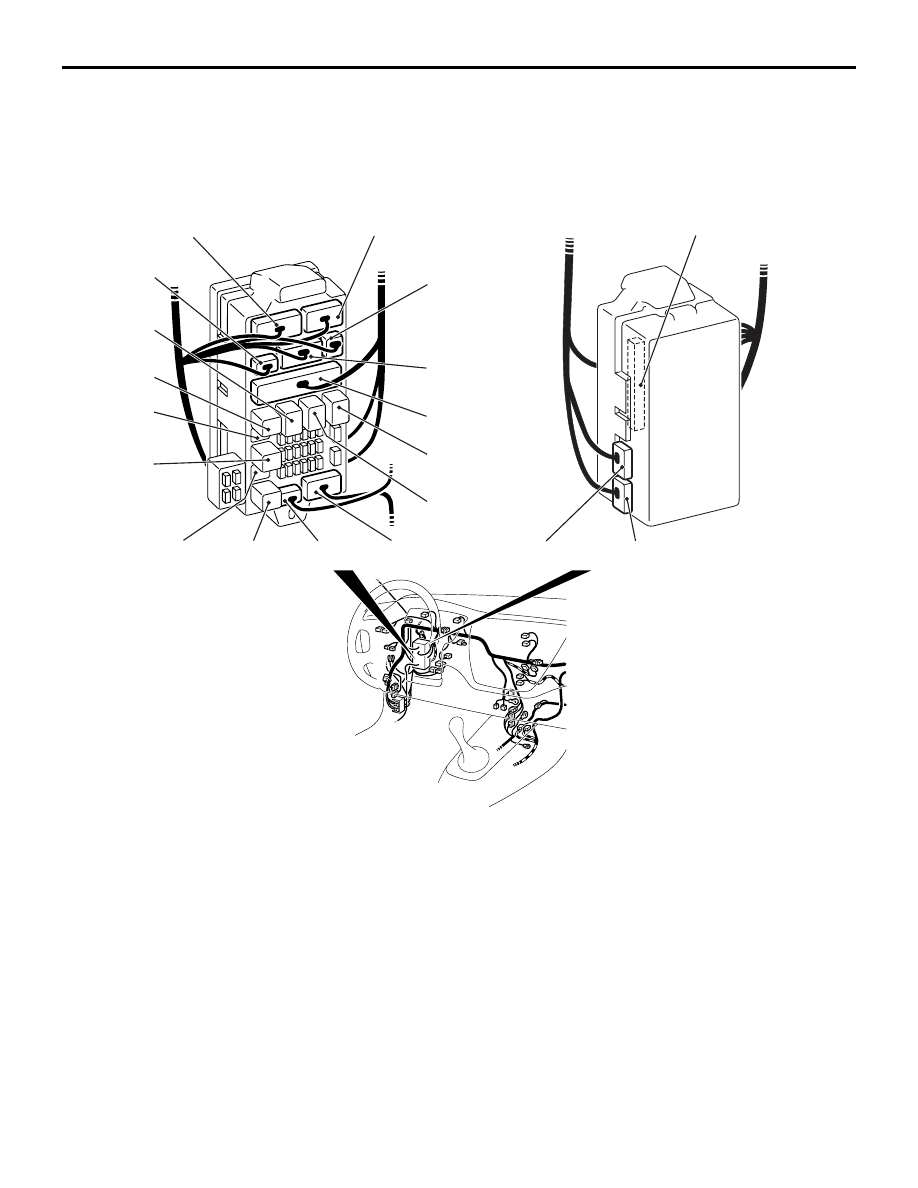

AC500713AB

J/B

(Front view)

(Rear view)

C-211

C-226

C-212

C-214

C-215

C-216

C-210

C-209

C-225

C-224

C-223

C-222

C-221

C-220

C-219

C-218

C-217

C-228

C-227

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-215 (5)

Defogger relay

C-216 (5)

Blower relay

C-217 (15)

Floor wiring harness (LH) and J/B
combination

C-218 (3)

Roof wiring harness and J/B
combination

C-219 (4)

Rear fog lamp relay

C-220 (4)

No connection

C-221 (4)

Fuel pump relay (2)

C-222 (4)

No connection

C-223 (4)

Fuel pump relay (1)

C-224 (5)

Power window relay

C-225 (2)

Instrument panel wiring harness and
J/B combination

C-226 (20)

ETACS-ECU

C-227 (24)

ETACS-ECU

C-228 (24-GR) ETACS-ECU
C-230 (5)

Steering wheel sensor

DASH PANEL

CONFIGURATION DIAGRAMS

80-21

DASH PANEL

CONFIGURATION DIAGRAMS

80-22

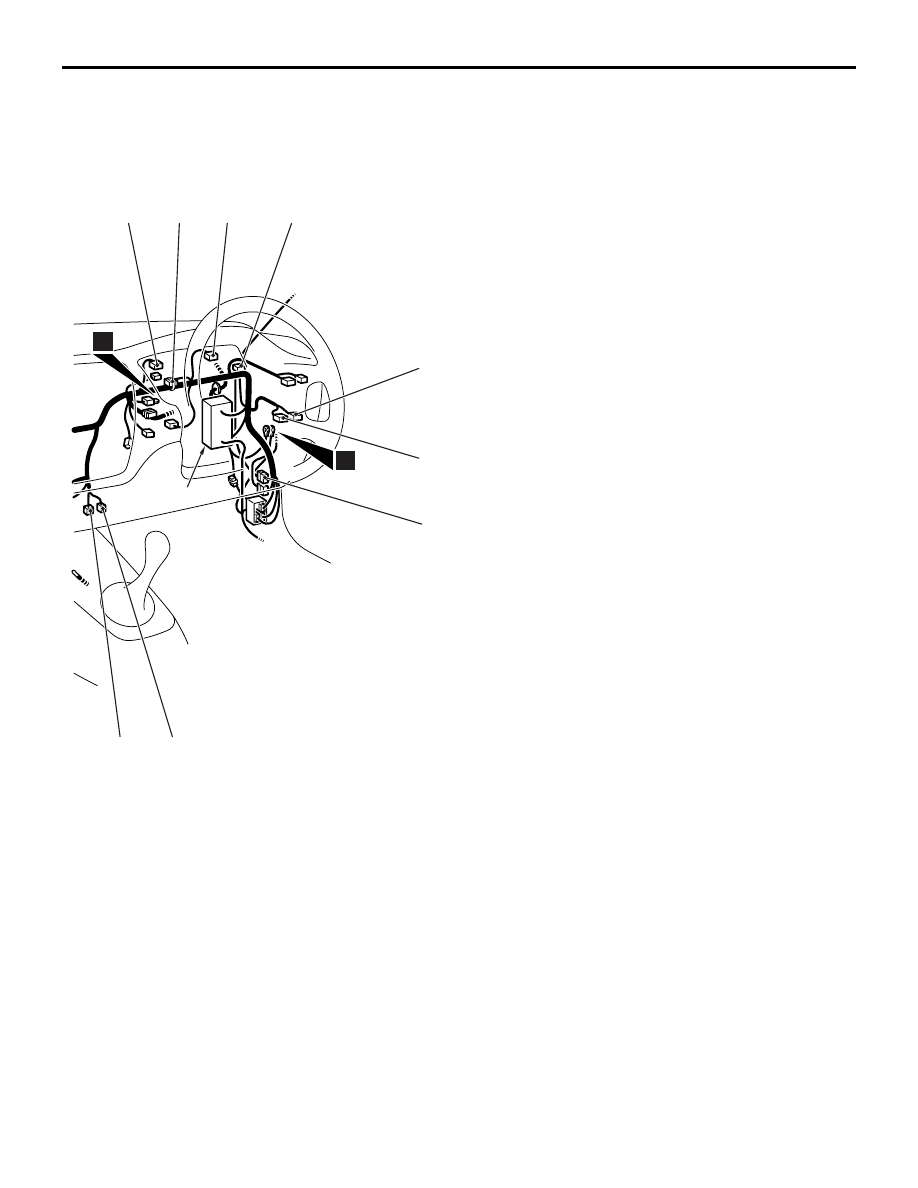

DASH PANEL <RH drive vehicles>

M1801000601556

AC500103

AB

Connector
symbol

-01
thru
-37

C

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-25

C-34

C-26

C-12

C-13

C-17

C-30

C-31

C-03

C-04

C-29

C-05

C-27

C-21

C-07

C-10

6

15

3

5

14

Control
wiring
harness

Instrument panel
wiring harness

Y

Y

13

C-36

C-37

C-32

C-35

C-33

C-01

(21)

Combination meter

C-02

(21-L)

Combination meter

C-03

(4)

Hazard warning switch

C-04

(4)

Clock

C-05

(22-GR) J/C (1)

C-06

(22-GR) J/C (3)

C-07

(7)

Outside/inside air selection damper
control motor

C-10

(13)

Instrument panel wiring harness and
A/C wiring harness combination

C-12

(20-Y)

SRS-ECU

C-13

(22-Y)

SRS-ECU

AC500104

AB

C-14

C-15

C-01

C-06

C-02

C-23

C-20

C-24

C-18

2

7

J/B

C-14

(16-B)

Diagnosis connector

C-15

(12)

Diagnosis connector

C-17

(16)

Instrument panel wiring harness and
front door wiring harness (LH)
combination

C-18

(6)

Instrument panel wiring harness and
roof wiring harness combination

C-20

(6)

Fog lamp switch

C-21

(13)

J/C (5)

C-23

(22-B)

J/C (4)

C-24

(6-GR)

Headlamp levelling switch

C-25

(26-Y)

4WD-ECU

C-26

(22-Y)

4WD-ECU

C-27

(6)

Engine oil level relay

C-29

(1-B)

Spare connector (for audio)

C-30

(1-GR)

Control wiring harness and floor wiring
harness (LH) combination

C-31

(16)

Control wiring harness and front wiring
harness (LH) combination

C-32

(2)

Heater water temperature sensor

C-33

(2)

No connection

C-34

(6)

Blower linear controller

C-35

(2)

Air thermo sensor

C-36

(20-B)

A/C-ECU

C-37

(16-B)

A/C-ECU

DASH PANEL

CONFIGURATION DIAGRAMS

80-23

DASH PANEL

CONFIGURATION DIAGRAMS

80-24

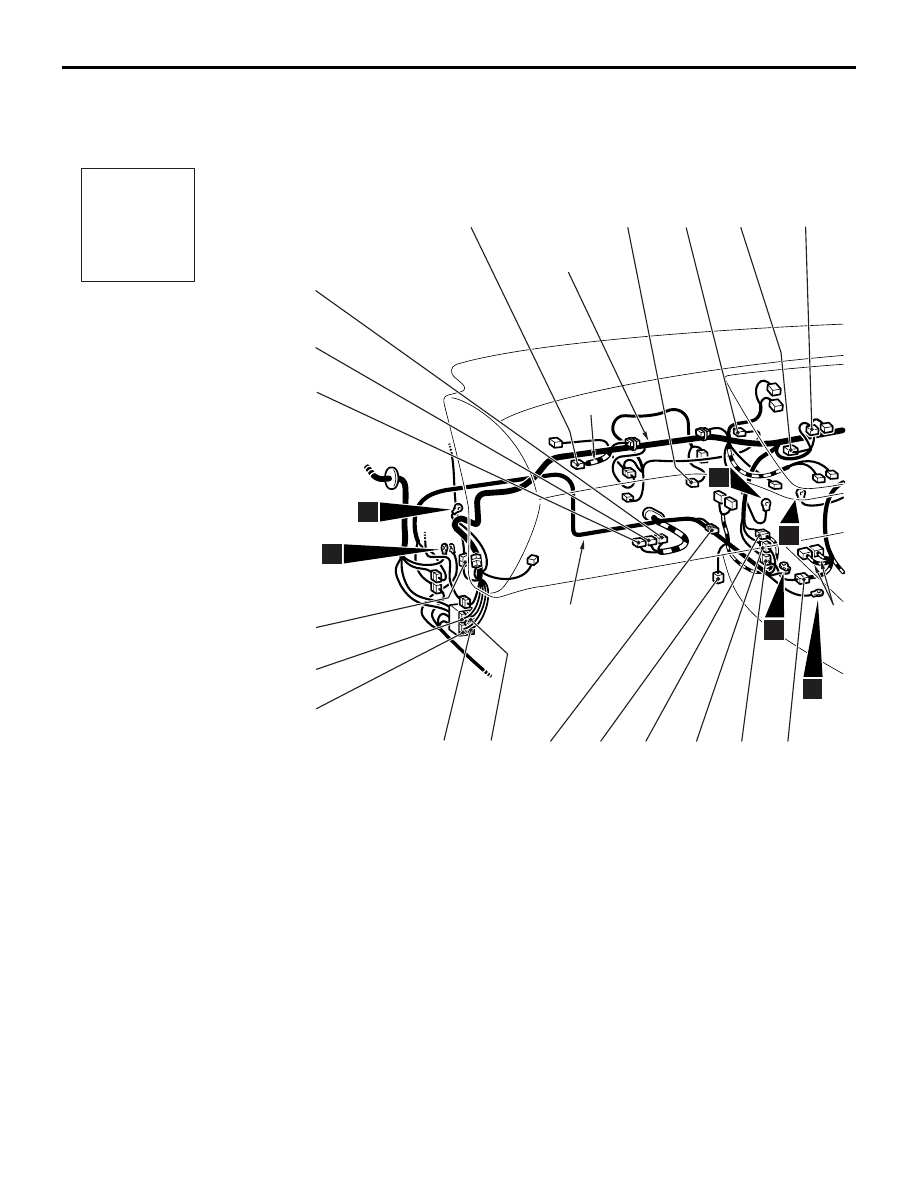

DASH PANEL <RH drive vehicles> (CONTINUED)

AC500103

AC

Connector
symbol

-101
thru
-144

C

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-127 C-126

C-138

C-122

C-123

C-124

C-137

C-105

C-134

C-129

C-109

C-117

C-119

C-121

C-104

C-103

C-106

15

3

5

14

Control
wiring
harness

Y

Y

Instrument panel
wiring harness

C-144

C-143

6

13

C-101 (22-L)

J/C (2)

C-102 (4)

Stop lamp switch

C-103 (14)

Spare connector (for audio)

C-104 (1)

Roof antenna

C-105 (33)

J/C (6)

C-106 (2-R)

Air bag module (squib) <Passenger’s
side>

C-109 (2)

Instrument panel wiring harness and
tweeter wiring harness combination

C-110 (20)

Instrument panel wiring harness and
front door wiring harness (RH)
combination

C-111 (25)

Front wiring harness (RH) and
instrument panel wiring harness
combination

C-112 (9-GR)

Instrument panel wiring harness and
floor wiring harness (RH) combination

C-113 (13)

Instrument panel wiring harness and
floor wiring harness (RH) combination

C-117 (30-GR) Engine-ECU
C-119 (28-GR) Engine-ECU
C-121 (35-GR) Engine-ECU
C-122 (22-L)

Instrument panel wiring harness and
control wiring harness combination
