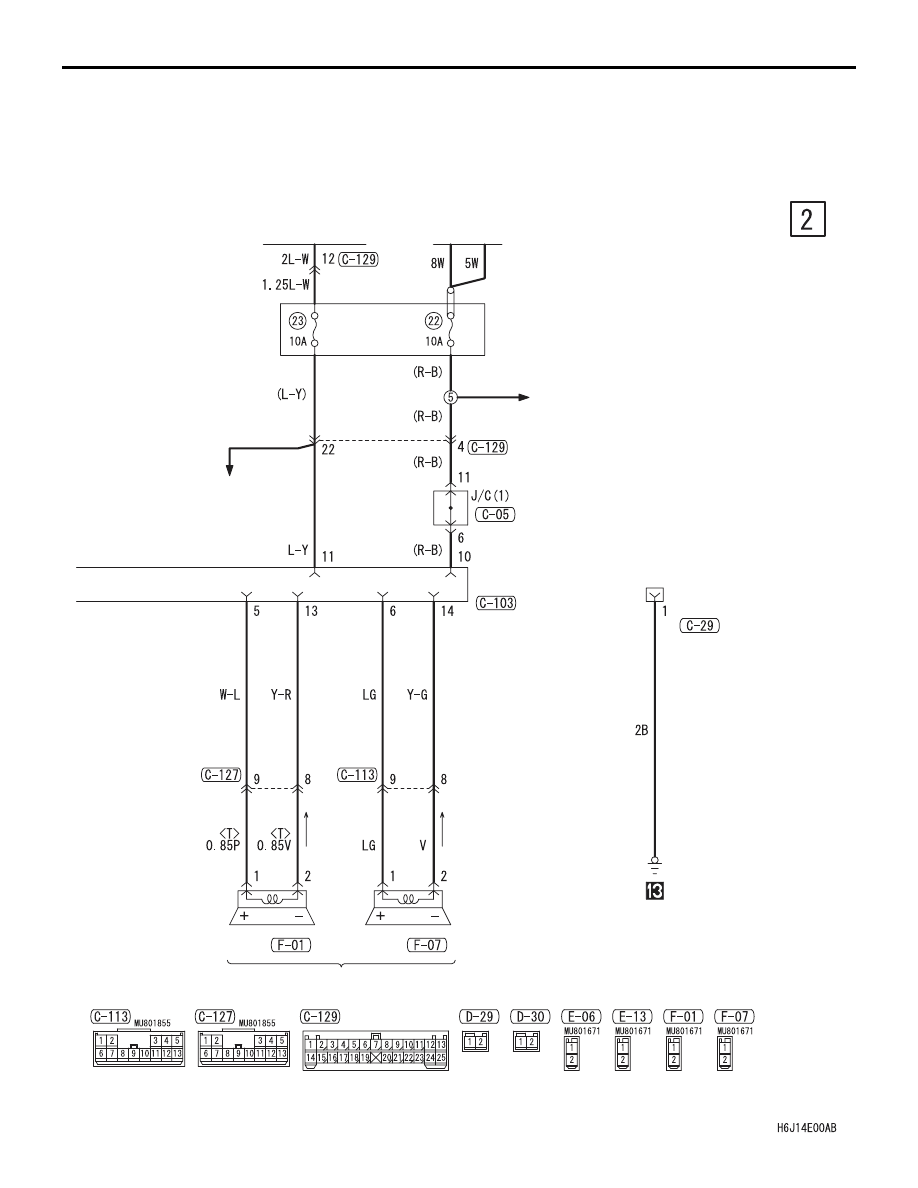

AUDIO SYSTEM SPARE CONNECTOR

CIRCUIT DIAGRAMS

90-183

BATTERY

SPARE CONNECTOR
(FOR AUDIO)

SPARE CONNECTOR
(FOR AUDIO)

REAR DOOR SPEAKER

IGNITION
SWITCH (ACC)

RELAY
BOX

·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

·CLOCK
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP,
 IGNITION KEY CYLINDER
 ILLUMINATION LAMP AND
 DOOR AJAR WARNING LAMP

(LH)

(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AUDIO SYSTEM SPARE CONNECTOR

CIRCUIT DIAGRAMS

90-184

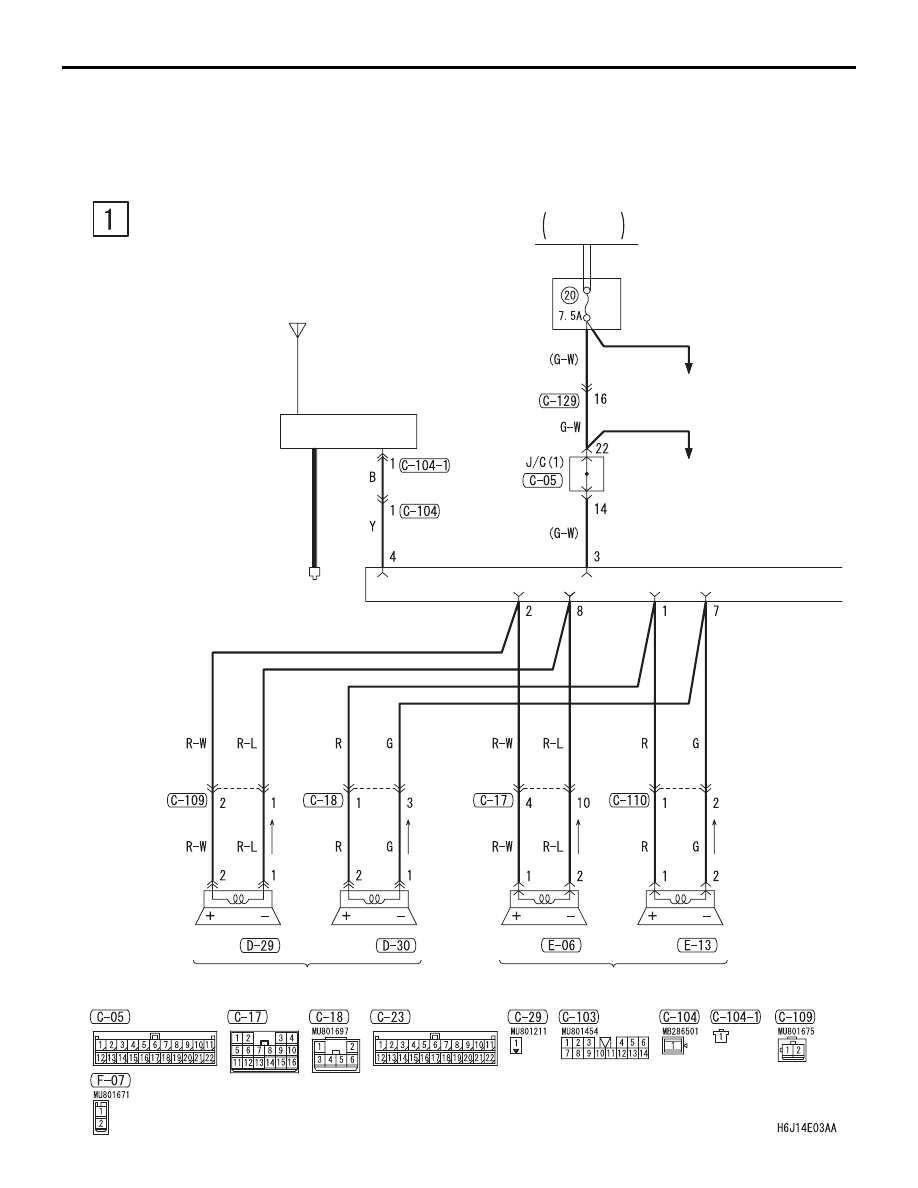

AUDIO SYSTEM SPARE CONNECTOR
<RH drive vehicles>

M1901007600108

RELAY
BOX

ROOF ANTENNA

ANTENNA
AMPLIFIRE

ANTENNA
FEEDER
CABLE

FRONT-ECU

TAIL LAMP
RELAY

TWEETER

(LH)

(RH)

(LH)

(RH)

FRONT DOOR SPEAKER

TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP AND
LIGHTING MONITOR BUZZER

·METER AND GAUGE
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER

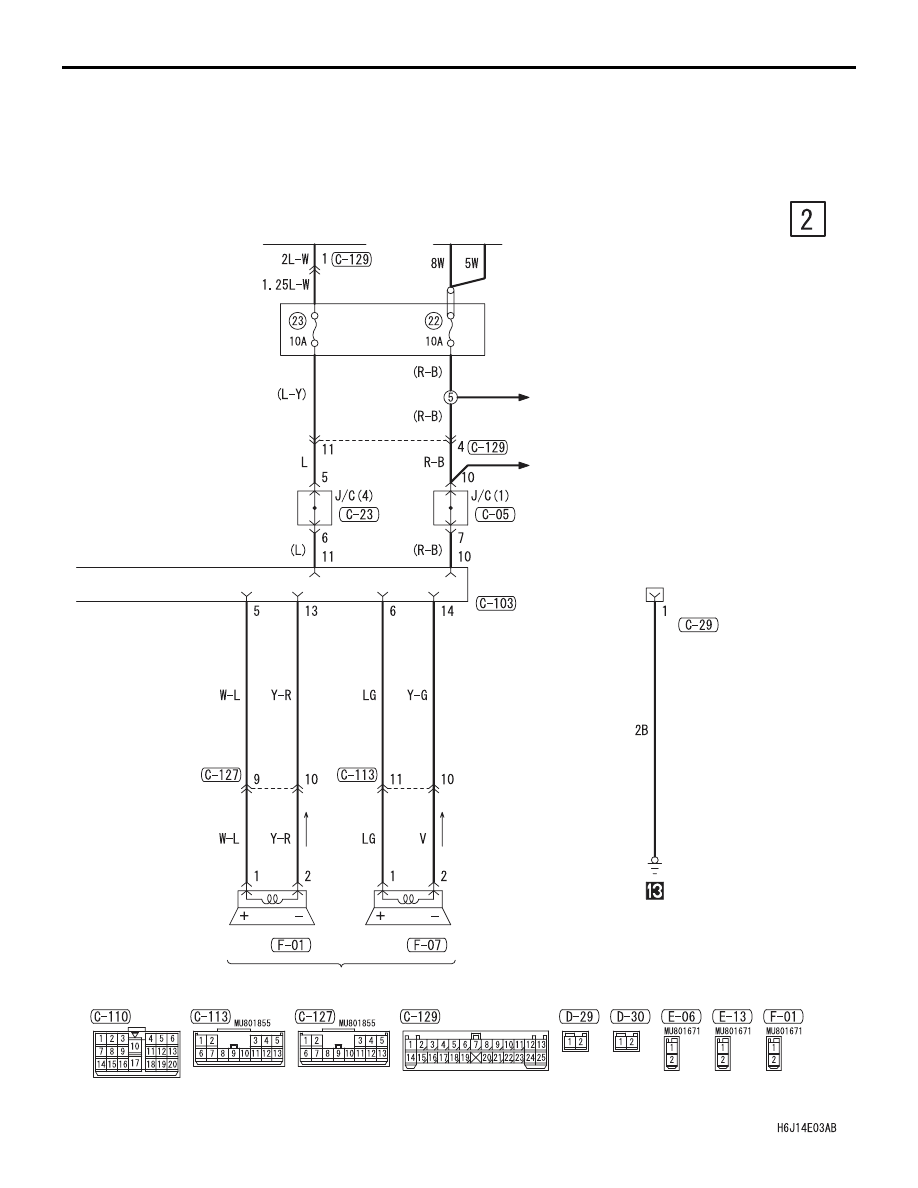

AUDIO SYSTEM SPARE CONNECTOR

CIRCUIT DIAGRAMS

90-185

BATTERY

SPARE CONNECTOR
(FOR AUDIO)

SPARE CONNECTOR
(FOR AUDIO)

REAR DOOR SPEAKER

(LH)

(RH)

IGNITION
SWITCH (ACC)

RELAY
BOX

·HEADLAMP
·HEADLAMP LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP  AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

·HEADLAMP
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

(LH)

(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

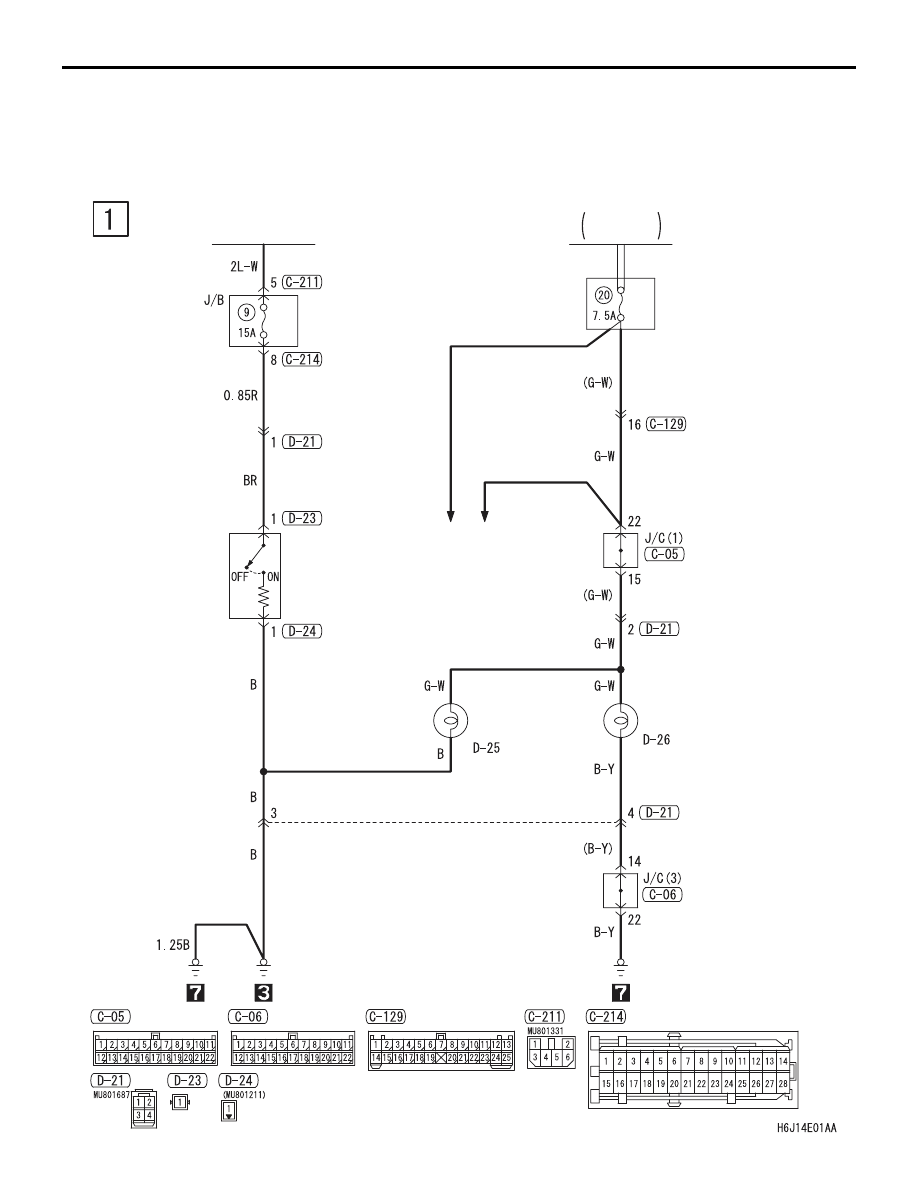

CIGARETTE LIGHTER

CIRCUIT DIAGRAMS

90-186

CIGARETTE LIGHTER

CIGARETTE LIGHTER



<LH drive vehicles>

M1901007801075

IGNITION
SWITCH (ACC)

CIGARETTE
LIGHTER

ASHTRAY
ILLUMINATION
LAMP

CIGARETTE LIGHTER
ILLUMINATION LAMP

FRONT-ECU

RELAY
BOX

TAIL LAMP
RELAY

TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING MONITOR
BUZZER
