POWER WINDOWS

CIRCUIT DIAGRAMS

90-131

POWER WINDOWS

CIRCUIT DIAGRAMS

90-132

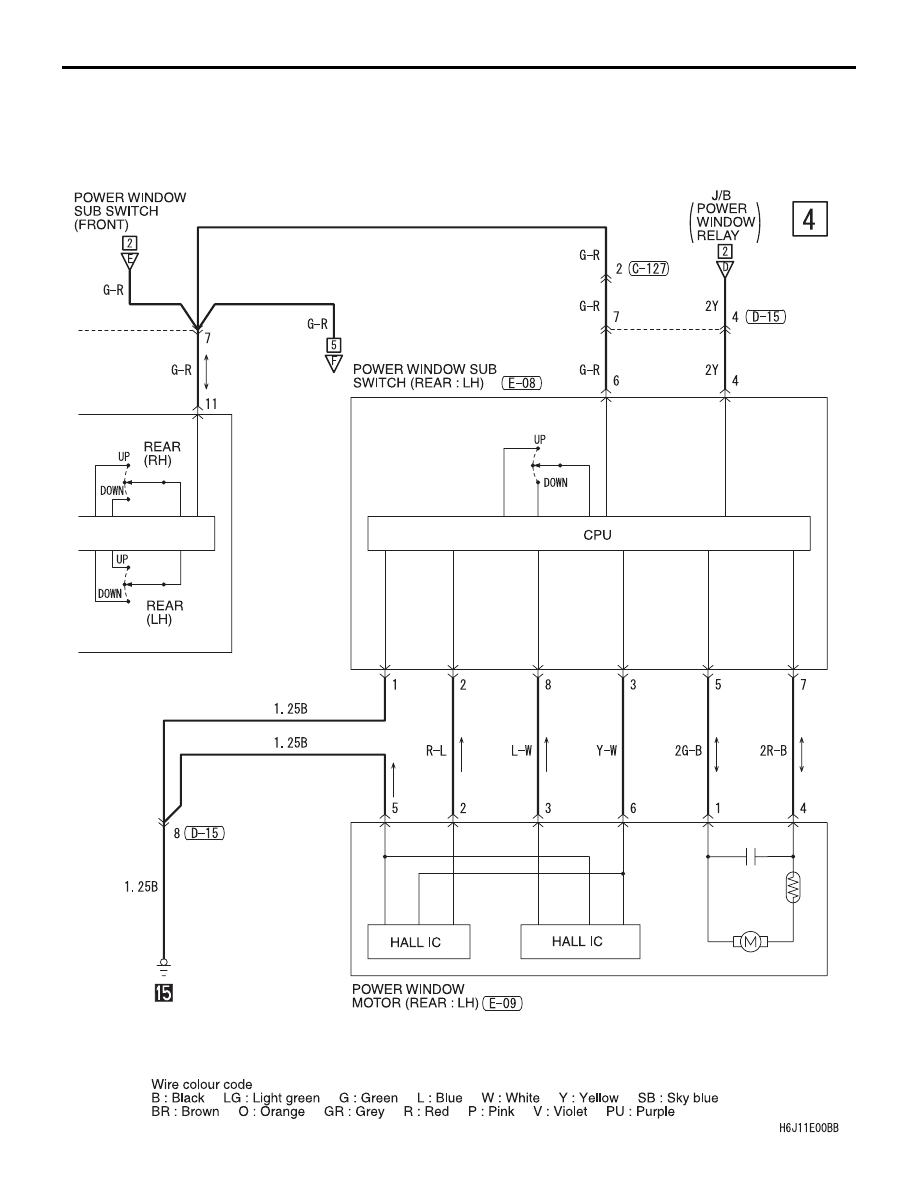

POWER WINDOWS <LH drive vehicles> (CONTINUED)

POWER
WINDOW
RELAY

J/B

POWER
WINDOW
MAIN SWITCH

POWER
WINDOW
MOTOR
(REAR : RH)

POWER
WINDOW
SUB
SWITCH
(REAR : RH)

HALL IC

CPU

HALL IC

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER WINDOWS

CIRCUIT DIAGRAMS

90-133

NOTES

POWER WINDOWS

CIRCUIT DIAGRAMS

90-134

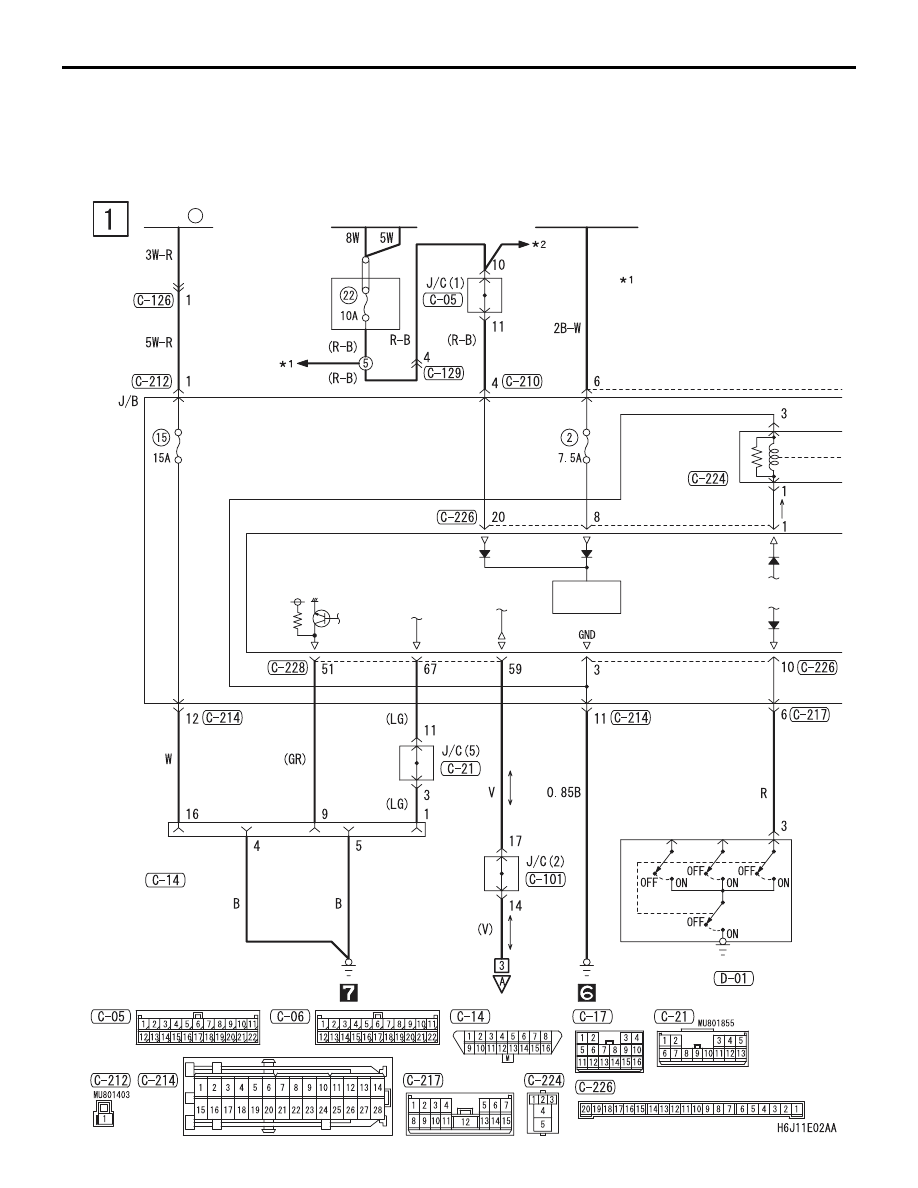

POWER WINDOWS <RH drive vehicles>

M1901004601867

FUSIBLE
LINK

1

BATTERY

IGNITION
SWITCH (IG1)

RELAY
BOX

ETACS-ECU

POWER
WINDOW
RELAY

POWER

SOURCE

DIAGNOSIS
CONNECTOR

FRONT
DOOR
SWITCH (RH)

FRONT SIDE

J/B SIDE

·HEADLAMP
·HEADLAMP LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

NOTE

:
