Mitsubishi Lancer Evolution IX. Manual - part 22

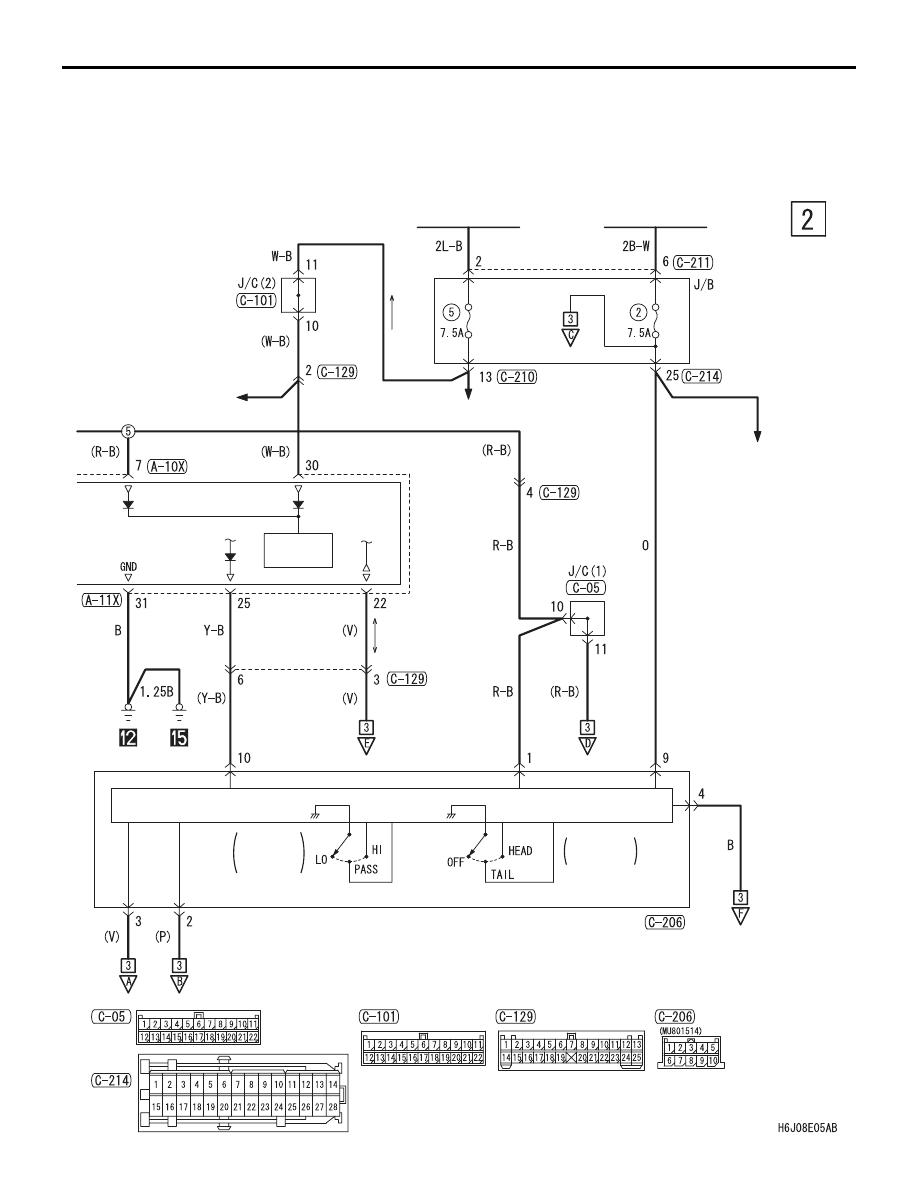

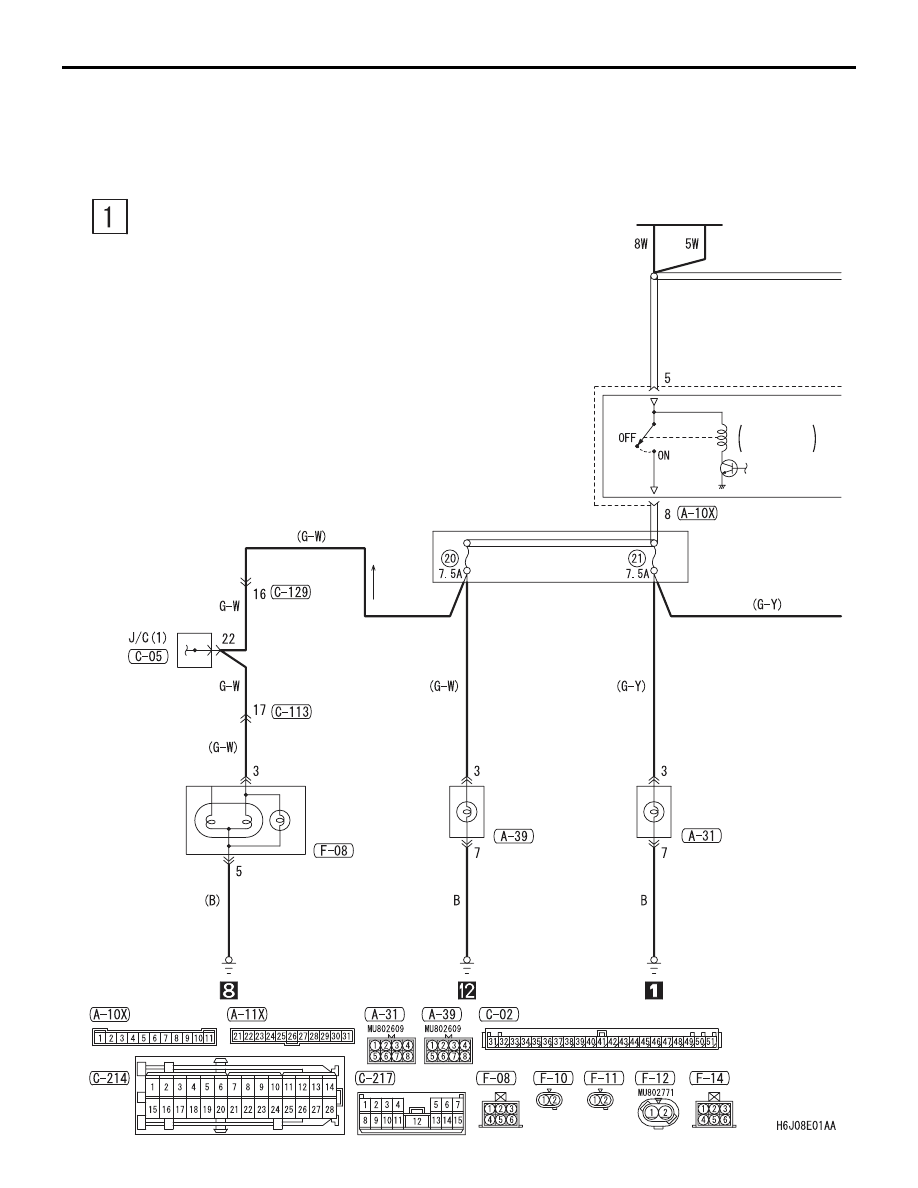

HEADLAMP

CIRCUIT DIAGRAMS

90-67

POWER

SOURCE

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (IG1)

COLUMN-ECU

LIGHTING
SWITCH

COLUMN SWITCH

DIMMER
PASSING
SWITCH

·

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM

·ACD AND AYC
·ANTI-SKID
 BRAKING SYSTEM (ABS)
·BRAKE WARNING LAMP,
 OIL PRESSURE
 WARNING LAMP
 AND FUEL WARNING LAMP
·CHARGING SYSTEM
·ENGINE CONTROL SYSTEM
·ENGINE OIL LEVEL
 WARNING LAMP
·METER AND GAUGE
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·WINDSHIELD WIPER
 AND WASHER

AUTOMATIC AIR
CONDITIONER

HEADLAMP

CIRCUIT DIAGRAMS

90-68

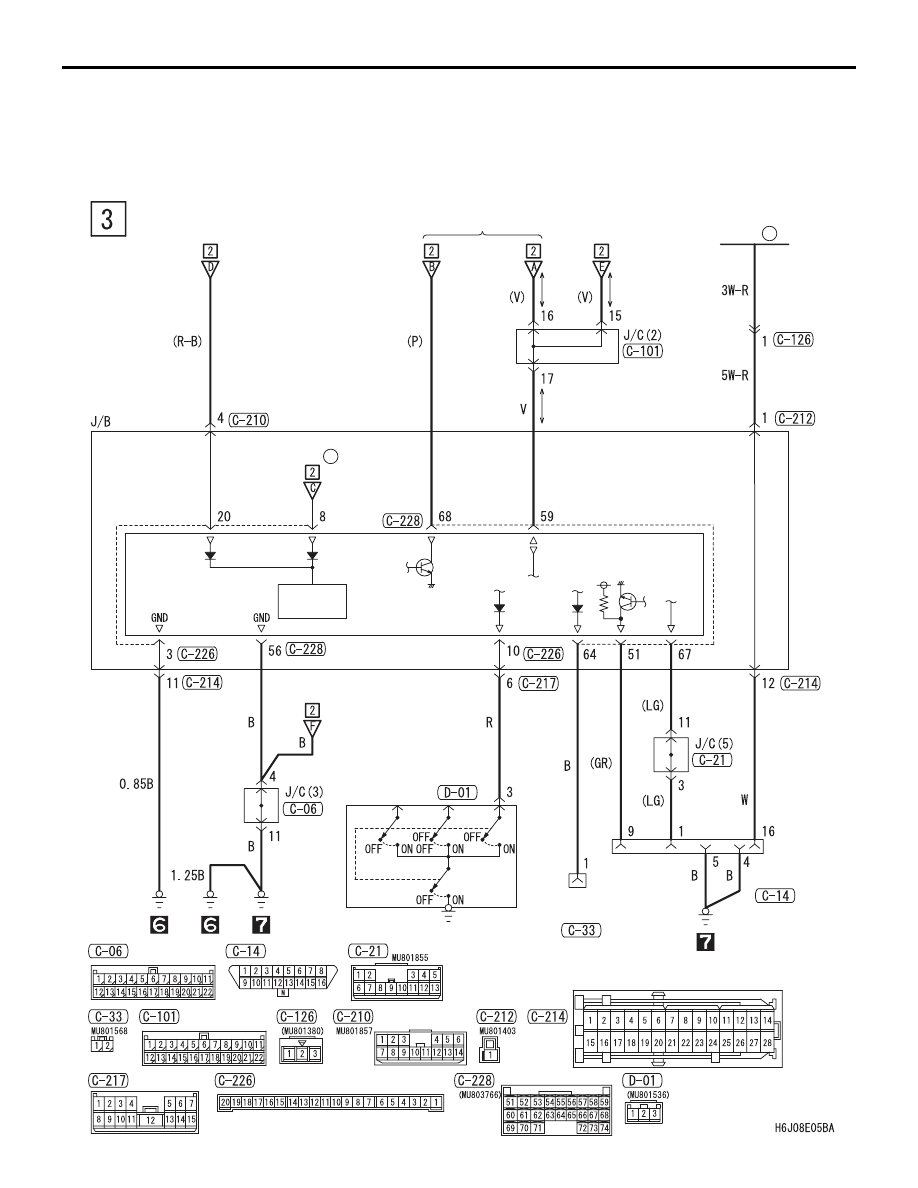

HEADLAMP <RH drive vehicles> (CONTINUED)

COLUMN
SWITCH

COLUMN
SWITCH

J/C (1)

FRONT-ECU

FUSIBLE
LINK

1

J/B

POWER

SOURCE

ETACS-ECU

DIAGNOSIS
CONNECTOR

FRONT
DOOR
SWITCH (RH)

FRONT
SIDE

J/B SIDE

(FUSE     )

2

NO
CONNECTION

HEADLAMP

CIRCUIT DIAGRAMS

90-69

NOTES

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-70

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND

LIGHTING MONITOR BUZZER

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR

BUZZER <LH drive vehicles>

M1901001700798

BATTERY

RELAY
BOX

TAIL LAMP
RELAY

REAR
COMBINATION
LAMP
(TAIL : RH)

HEADLAMP
ASSEMBLY
(POSITION : RH)

HEADLAMP
ASSEMBLY
(POSITION : LH)

FRONT-ECU
