J/B

CIRCUIT DIAGRAMS

90-4

J/B

M1901000201447

NOTE:
CONNECTOR NUMBERS ARE KEYED TO THE CONFIGURATION
DIAGRAM (DASH PANEL) AND EACH CIRCUIT DIAGRAM.

POWER
WINDOW
RELAY

FUEL
PUMP
RELAY (2)

FUEL
PUMP
RELAY (1)

DEFOG-
GER
RELAY

BLOW-
ER
RELAY

FUSE

REAR
FOG
LAMP
RELAY

NO
CONNECTION

J/B SIDE

NO
CONNECTION

J/B

CIRCUIT DIAGRAMS

90-5

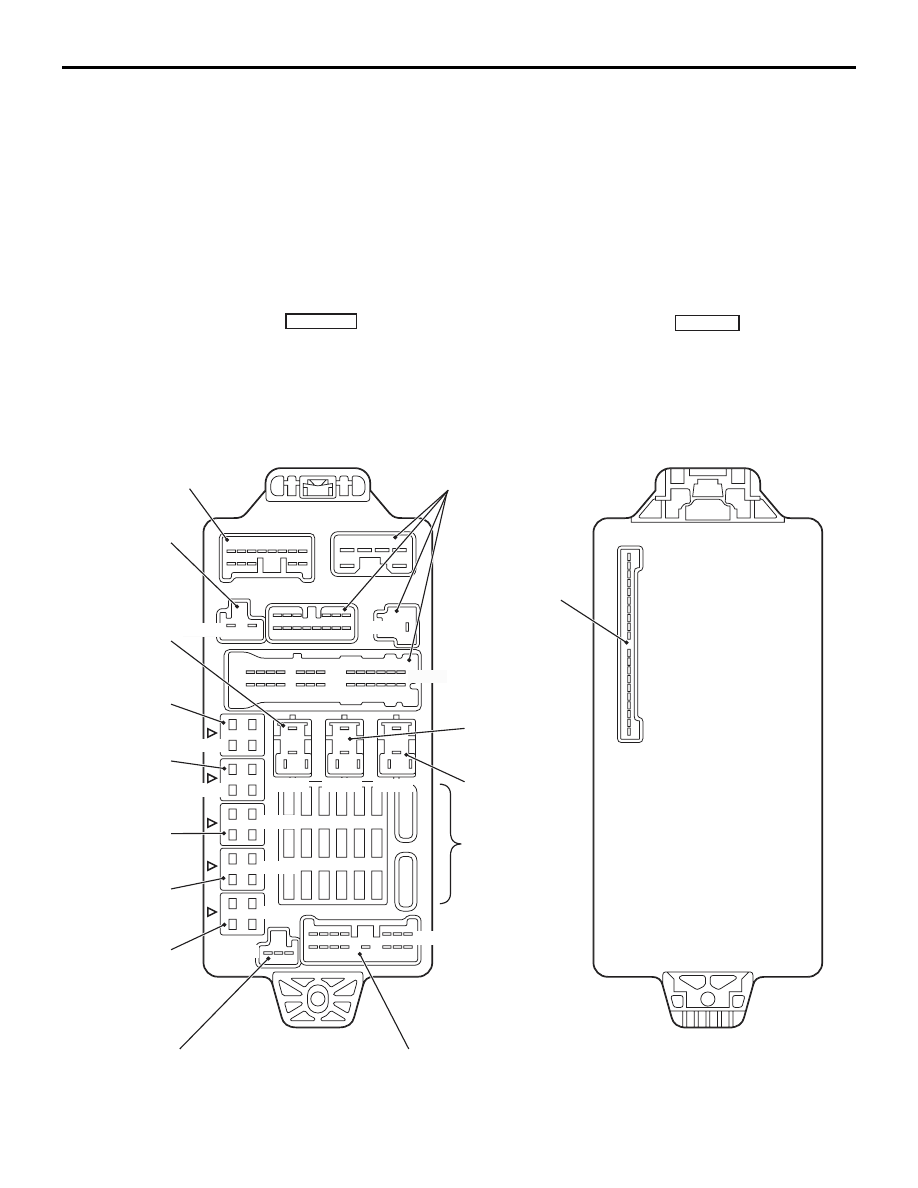

AC208362

Front side

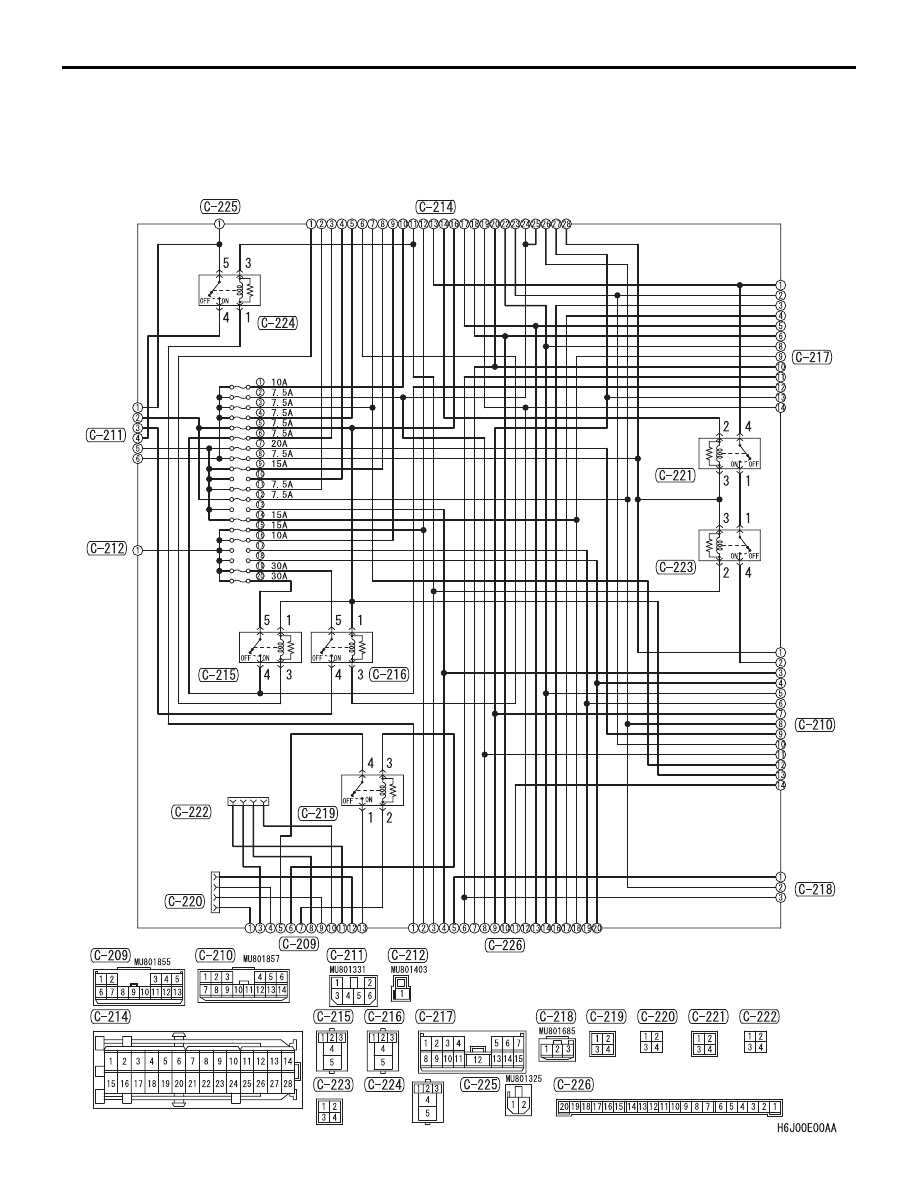

C-209

C-223

C-225

C-221

C-222

C-220

C-218

C-219

C-217

C-214

C-212

C-211

C-210

Fuel pump
relay (1)

Fuel pump
relay (2)

Rear fog
lamp relay

No connection

To roof wiring
harness

To floor wiring
harness (LH)

Defogger
relay

Blower
relay

To instrument
panel wiring
harness

To instrument panel
wiring harness

To instrument panel
wiring harness

Power
window
relay

ETACS-ECU

C-226

AL

Rear side

1

1

1

2

2

2

3

3

3

4

4

4

C-224

C-216

C-215

1

2

3

4

Fuses
(No.1 to 20)

No connection

J/C

CIRCUIT DIAGRAMS

90-6

J/C

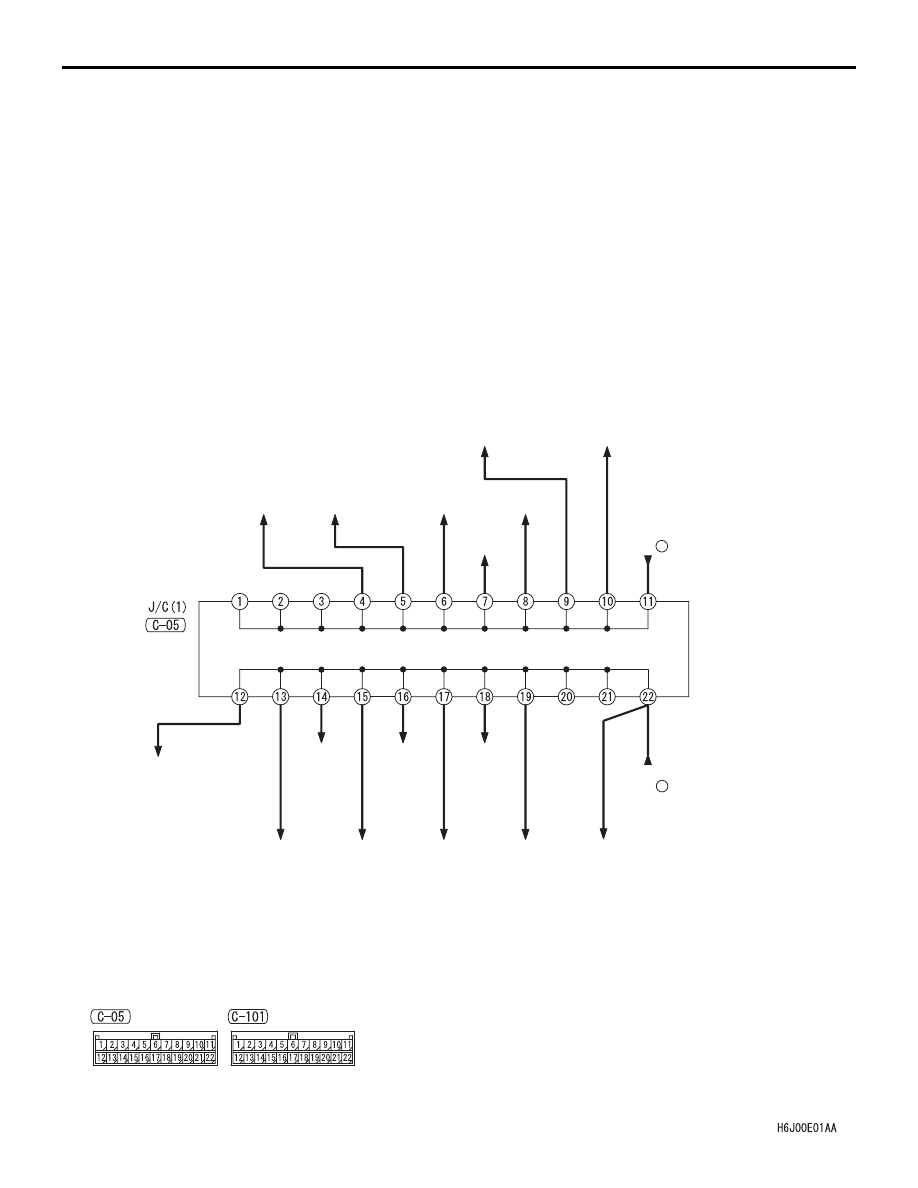

J/C <LH drive vehicles>

M1901014201718

ACD AND
AYC

AUDIO SYSTEM
SPARE
CONNECTOR

CLOCK

RELAY BOX

(FUSE     )

ETACS-
ECU

·BRAKE WARNING
 LAMP,  OIL PRESSURE
 WARNING LAMP
 AND FUEL
 WARNING LAMP
·METER AND GAUGE

·HEADLAMP
·REAR FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP

HEADLAMP
LEVELLING
SYSTEM

AUDIO
SYSTEM
SPARE
CONNECTOR

CIGARETTE
LIGHTER

ACD
AND
AYC

CLOCK

22

REAR
FOG LAMP

·AUTOMATIC
 AIR
 CONDITIONER
·REARWINDOW
 DEFOGGER
 AND  DOOR
 MIRROR HEATER

RELAY BOX

(FUSE     )

20

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER

NOTE: IN ACTUAL VEHICLES,  ANY OF THE TERMINALS CONNECTED IN J/C
ARE USED. THE TERMINAL ARRANGEMENT DESCRIBED IN THE CIRCUIT
DIAGRAM MAY NOT BE IDENTICAL TO THOSE OF THE VEHICLES.

AOTOMATIC
AIR
CONDITIONER
