Mitsubishi Lancer Evolution 8. Manual - part 77

CIRCUIT DIAGRAMS - EQUIPMENT

3-141

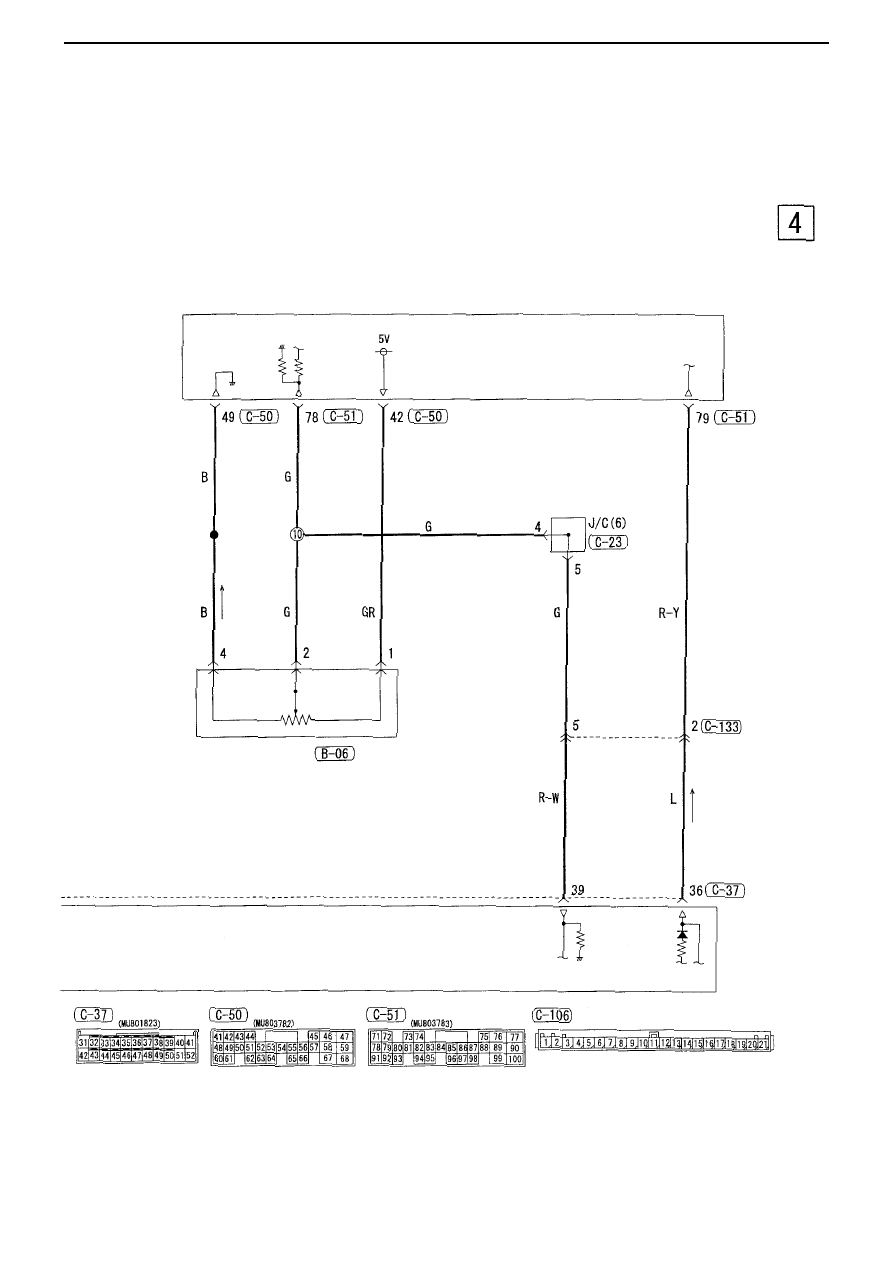

Engine ECU

Throttle position sensor

H3J15J08BB

CIRCUIT DIAGRAMS - EQUIPMENT

3-142

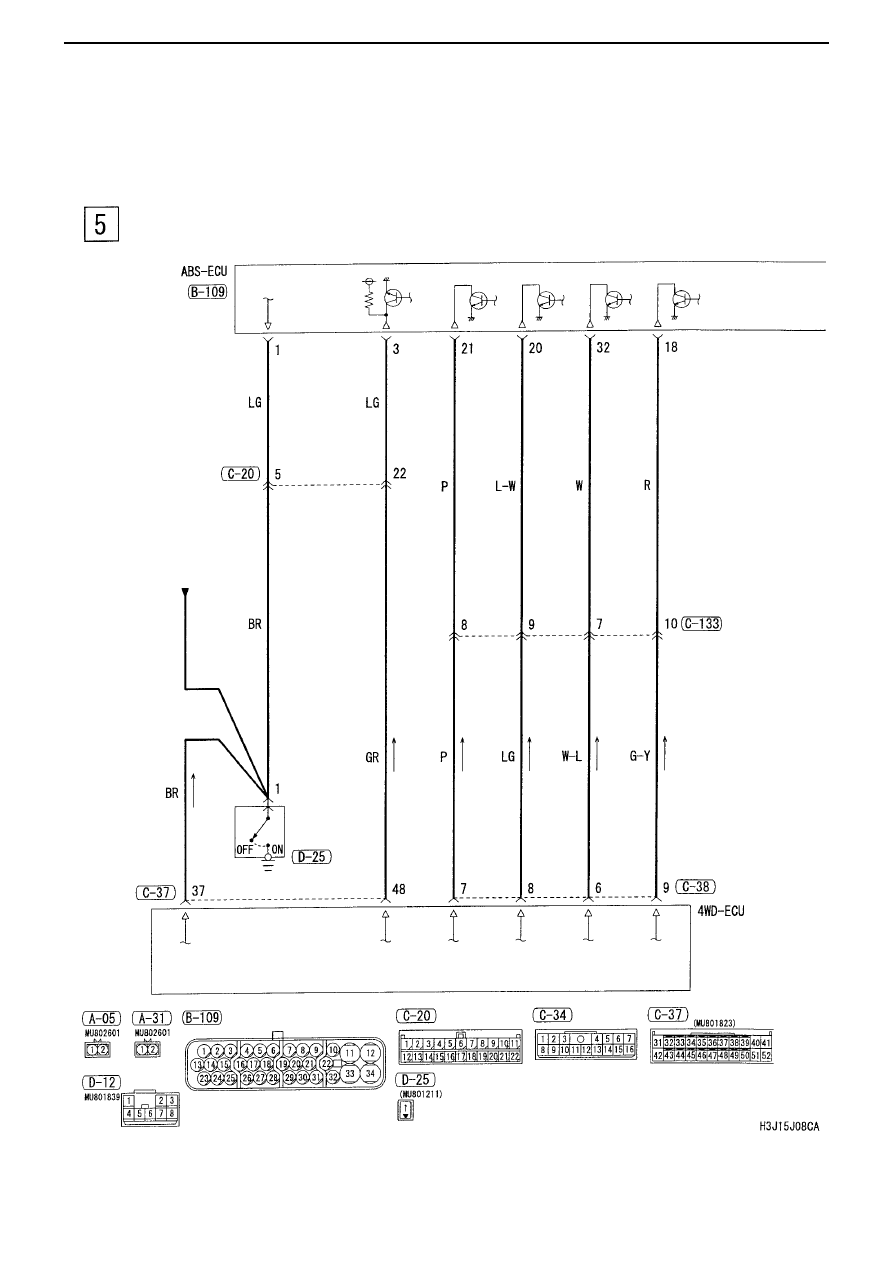

ACD, AYC (continued)

ABS
Brake
warning light

Parking
brake
switch

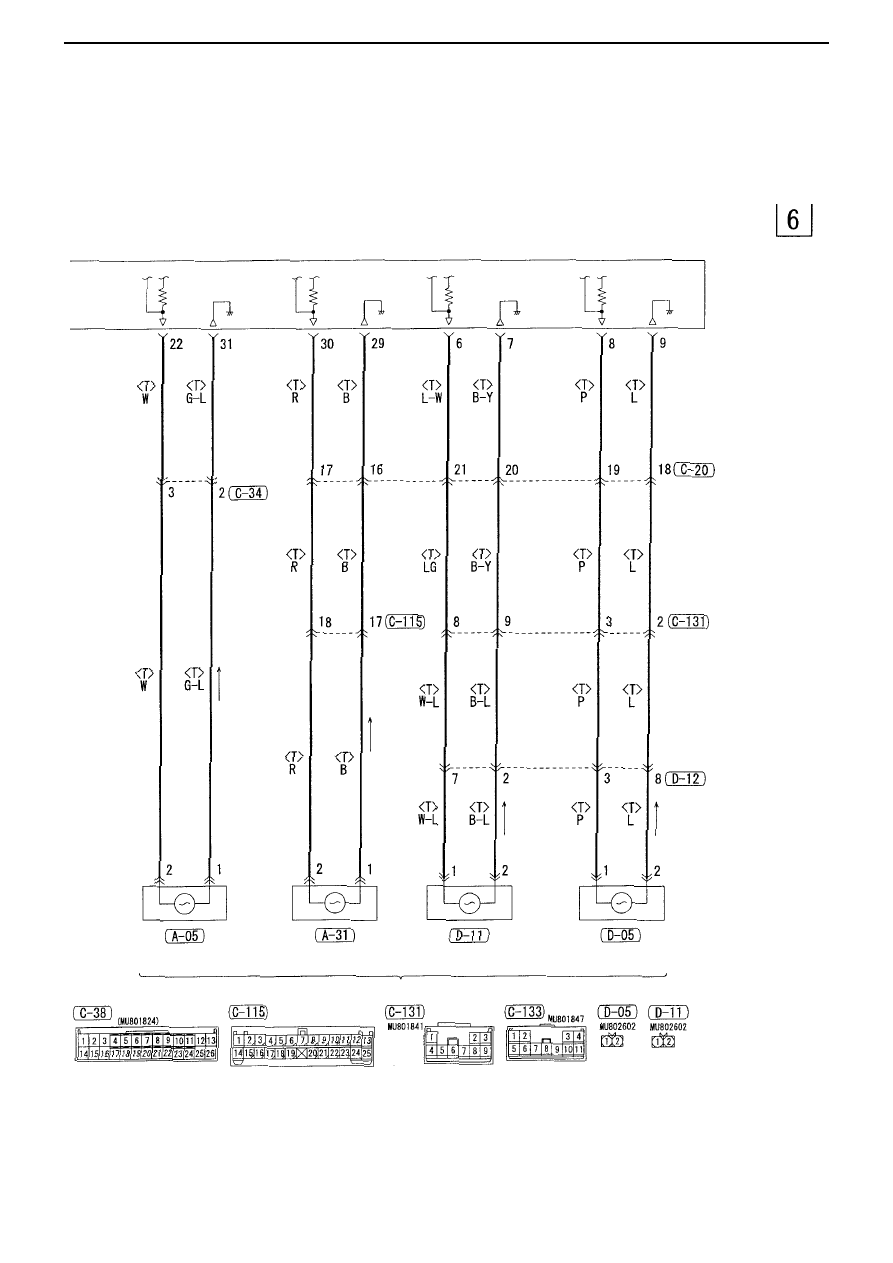

CIRCUIT DIAGRAMS - EQUIPMENT

3-143

(Front: LH)

(Front: RH)

(Rear: LH)

(Rear: RH)

ABS sensor

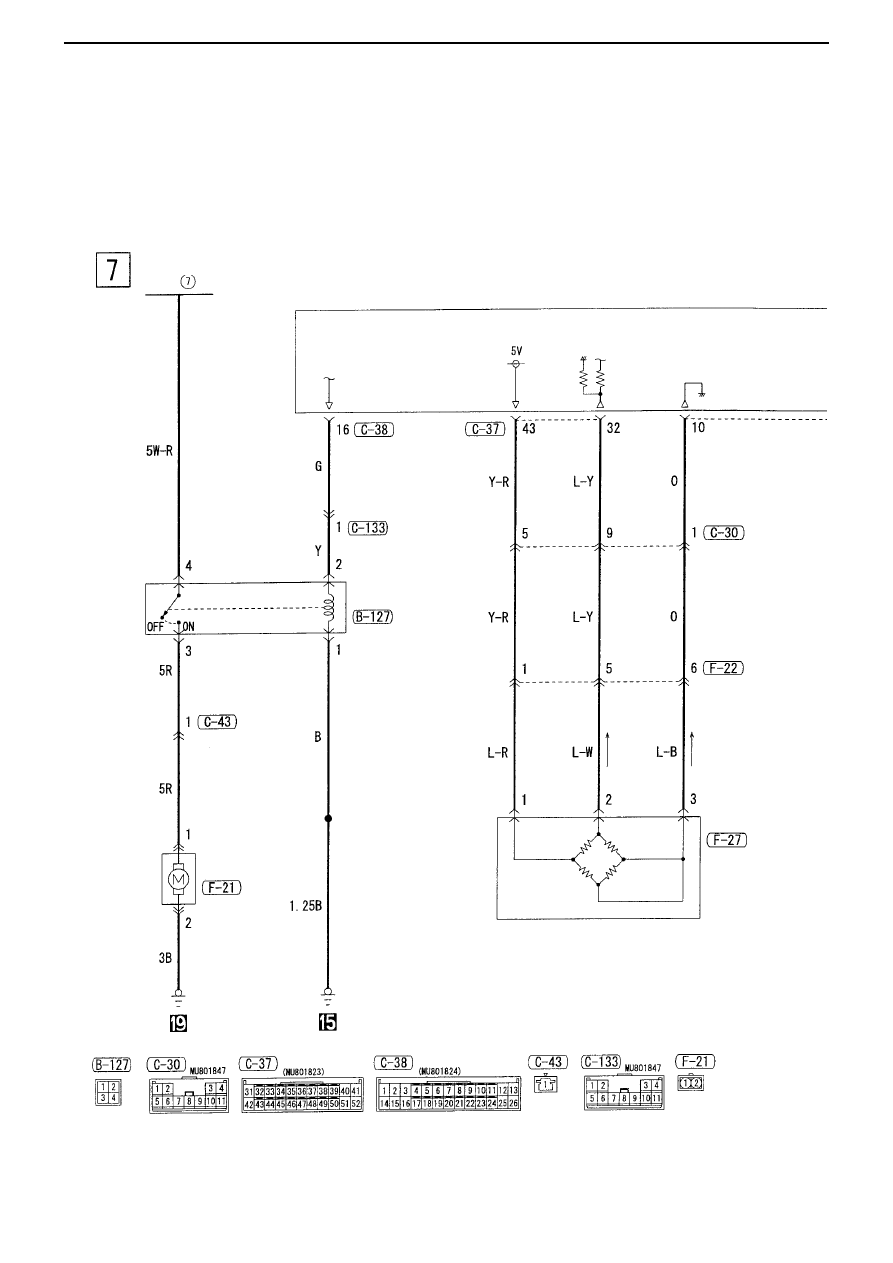

CIRCUIT DIAGRAMS - EQUIPMENT

3-144

ACD, AYC (continued)

Fusible
link

Electrically
operated
pump relay

Pressure
sensor

Electrically
operated
pump
