Mitsubishi Lancer Evolution 8. Manual - part 16

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-14

Ignition switch

Key removed

Whichever

opened

All closed

Door switch

Driver’s door
lock
actuator switch
(lock switch)

Lock and unlock
signal by keyless
entry

15 seconds

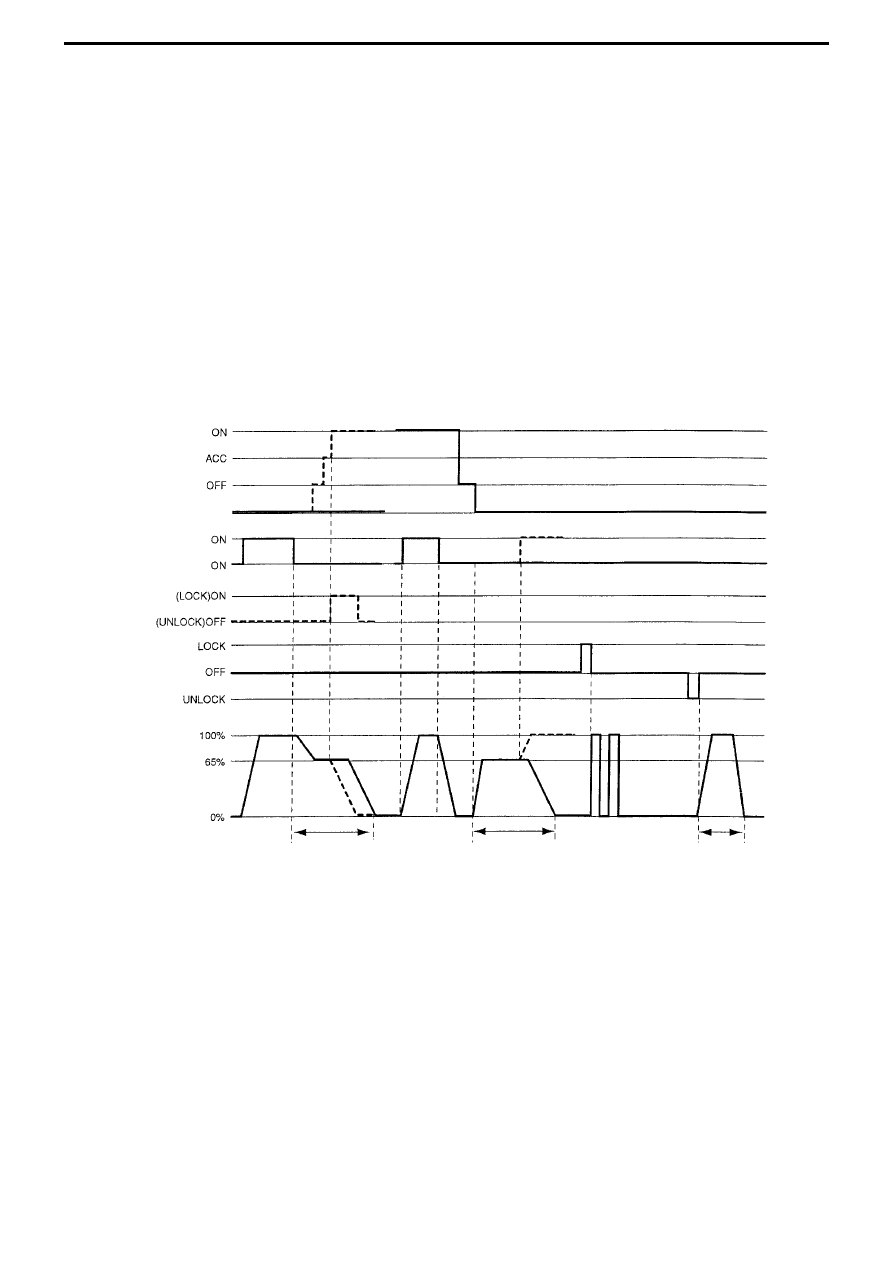

Dimmer type interior light function (Initial Setting: 15 seconds)
When the interior light switch is in the door position, the ETACS-ECU controls the turning on of the interior light as follows:
1. When a door is opened to get in or out of the vehicle (when the ignition switch is OFF), the light respectively goes on when

opened (100%), dims when closed (75%) and goes off after 15 seconds.
However, if the ignition switch is turned on or if the door is locked while the timer is illuminated, the light will go off at that
point.

2. When the ignition switch is ON,

the light respectively goes on when opened (100%), and off when closed.

3. When the ignition key is removed with all doors closed

When the ignition key is removed with all doors closed, the light goes on (65%) and off after 15 seconds.
The light goes off when the door is locked or when the ignition key is inserted again while the light is on.

4. Keyless entry interior light feedback

For easy confirmation of the keyless entry operation, the interior light flashes twice when the door is locked. It also goes off
after being on for 15 seconds (100%) when the door is unlocked.

Note
The delay time until the interior light goes on can be adjusted by the adjustment function. (Refer to Page 7-17)

Interior light brightness

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-15

Ignition switch

Whichever open

All closed

Door switch

Interior light

OFF

30 seconds

within 30
seconds

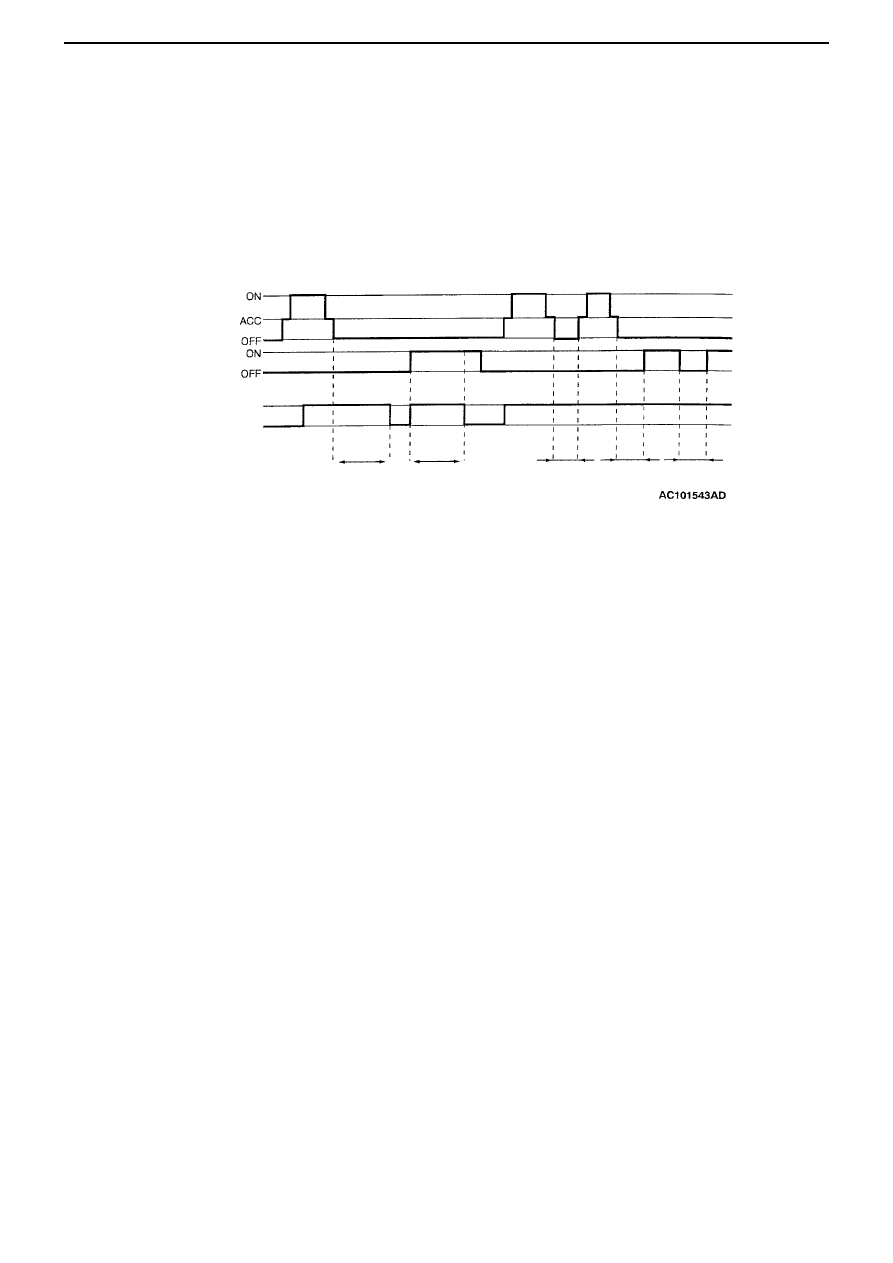

Interior light auto-cut function (Initial Setting: Automatic switch off - 15 seconds)
If they have been left on, interior lights (interior light, map light, luggage interior light and ignition key cylinder illumination light)
that have interior light fuses, will turn off automatically in the following conditions, and battery leakage will be avoided.
• The interior light will go off automatically if it remains on 30 minutes after the ignition switch is turned off.
• The interior light will go off automatically if any door switch remains open continuously for 30 minutes.
• The interior light will revert to being switched on if, after being switched off automatically, the door is opened or closed, the

key entry transmitter switch is used or if the ignition switch is put in the ACC position.

Note
1. The time up to when the interior light is turned on can be adjusted by the adjustment function. (Refer to Page 7-17)
2. Even after reverting, it will go off automatically 30 minutes after the interior light auto-cut conditions are fulfilled.

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-16

Security alarm function (Initial Setting: Function OFF)

When locking the door with the transmitter (but not when locking by key), a “beep, beep” sound is emitted as an initial warning.
It changes to warning status after 20 seconds, and an interior warning signal is given by a “beep, beep, beep” sound if there is
a warning status caused by a door being improperly open (or a door being unlocked by the transmitter or the tailgate or bonnet
is open). After 10 seconds, the hazard lights flash and the horn sounds intermittently in addition to the “beep, beep, beep”
sound.

Note
It is possible to adjust whether or not there is a security alarm function and warning output by the adjustment function.
(Refer to Page 7-18)

SYSTEM CANCELLATION

WARNING PREPARATION
(System preparation status)
“beep, beep” sound

WARNING STATUS (System
preparation status)

IN-ROOM WARNING SIGNAL
(In-room warning signal)
“beep, beep, beep” sound

IN-CAR WARNING SIGNAL
(In-room warning signal)
• “beep, beep, beep” sound
• Hazard light flashing
• Horn sound signal

WARNING HELD

• Door open
• Key inserted
• If any unlocking operation is carried

out by transmitter

• Key inserted and ignition switch

(ACC)

• If any unlocking operation is carried

out by transmitter

• Key inserted and ignition switch

(ACC)

• If any unlocking operation is

carried out by transmitter

• Key inserted and ignition switch

(ACC)

• If any unlocking operation is

carried out by transmitter

Locking by transmitter
(including timer locking after unlocking)

30 seconds

Door improperly open
(Door open where unlock is not
carried out by transmitter

After 10 seconds

Locking by transmitter

After 30
seconds

Door improperly
open

• Key inserted and ignition

switch (ACC)

• If any unlocking operation is

carried out by transmitter

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-17

Adjustment Functions (User Mode)

Security alarm function ON / OFF and warning signal output can be adjusted by the adjustment mode entry conditions
according to each switch operation.

Information that is being adjusted will be remembered even if the battery is disconnected.

Adjustment mode entry conditions
1. Each switch sets the following conditions.
•

Driver’s door switch: ON (Driver’s door open)

•

Key reminder switch: ON (Ignition key removed)

•

Lighting switch: OFF

2. When the windscreen washer switch is turned ON continuously for 10 seconds or more (by pulling the wiper lever forward),

the ETACS-ECU internal buzzer will sound once and the adjustment mode will be entered. While in this condition (wiper
lever pulled forward), the settings can be changed when the transmitter unlock switch is pressed.

Security alarm function adjustment
1. The security alarm ON / OFF and the alarm time change in the following sequence. (after (c), return to (a) and repeat the

sequence from (a))

•

Security alarm function OFF (initial condition): Buzzer sounds once

•

Security alarm function ON (warning signal: hazard and horn): Buzzer sounds 3 times

•

Security alarm function ON (warning signal: hazard only): Buzzer sounds 5 times

Adjustment mode entry cancellation conditions
1. The adjustment mode is cancelled when each of the following conditions has been met.
•

Driver’s door switch: OFF (DriverÅfs door open)

•

Key reminder switch: OFF (Ignition key removed)

•

Lighting switch: OFF

•

Windscreen washer switch: OFF

•

The keyless entry transmitter unlock switch is not pressed for 30 seconds

Note
1. Although wiper / washer switch and transmitter operations are carried out in adjustment mode entry conditions, the wiper /

washer and keyless entry do not function.

2. These adjustment functions are also contained in the Instruction Manual so that users can carry out adjustment

themselves.

3. Please set these functions by properly confirming the users’ own requirements. As far as possible, please let the users set

them themselves so that they understand the functions.

Security Alarm Sticker
1. A security alarm sticker is enclosed with the Instruction Manual.
2. Please explain to customers that they can personally attach the security alarm sticker to the rear quarter glass from outside

the vehicle.
Please tell them not to attach it to places such as the windscreen and front door window where it will obstruct visibility.

Note
There is a danger of it becoming detached if it is attached to opening window.

Adjustment Functions (Supplier Mode)

The following functions can be adjusted by MUT-II / III. Information that is being adjusted will be remembered even if the
battery is disconnected.

•

Door not properly closed reminder function
When driving with a door still open, this function will give a warning signal that a door is not properly closed by sounding a
buzzer and making the “door not properly closed reminder” light inside the combination meter flash.
