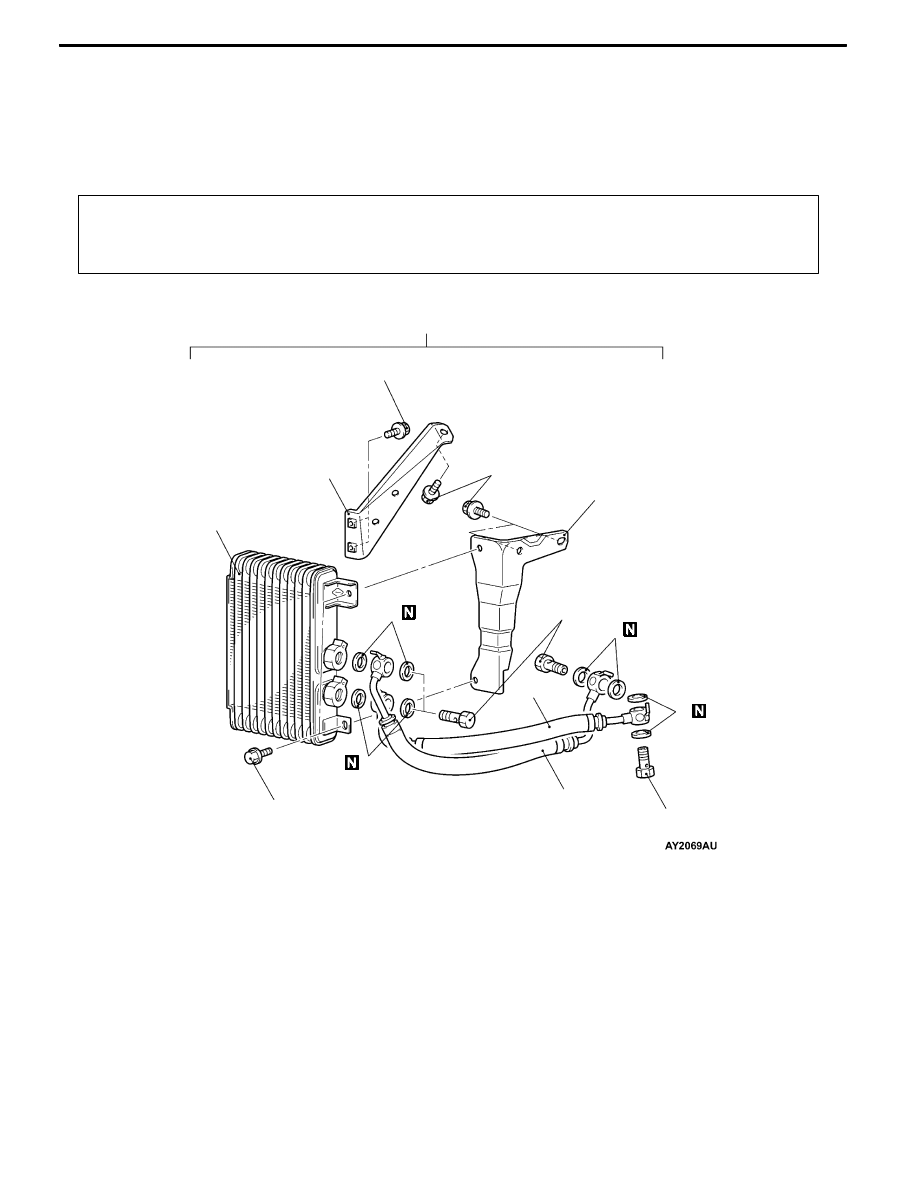

ENGINE LUBLICATION - Engine Oli Cooler 12-7 ENGINE OIL COOLER REMOVAL AND INSTALLATION Caution Pre-removal and Post-installation Operation Engine Oil Draining and Supplying (Refer to P.12-4.) D Under Cover Removal and Installation (Refer to GROUP 51 - Front Bumper.) D Side Cover Removal and Installation 3 4 5 6 7 12 ± 2 N·m 42 ± 2 N·m 1 2 1 3 42 ± 2 N·m 12 ± 2 N·m 12 ± 2 N·m 8 Removal steps 1. Engine oil cooler tube gasket 2. Engine oil cooler, braket and hose assembly 3. Engine oil cooler braket 4. Engine oil cooler tube gasket 5. Engine oil cooler feed hose 6. Engine oil cooler tube gasket 7. Engine oil cooler return hose 8. Engine oil cooler |
