Mitsubishi Lancer Evolution VI. Manual - part 77

BASIC BRAKE SYSTEM –

Disc Brake

35A-10

Rear Brake

Seal & boot kit

Shim  set

Clip set

Pad set

Brake caliper kit

1

2

3

4

5

6

7

8

9

10

2

6

1

6

7

8

9

10

2

1

7

9

7

9

3

4

3

4

2

1

6

5

5

5

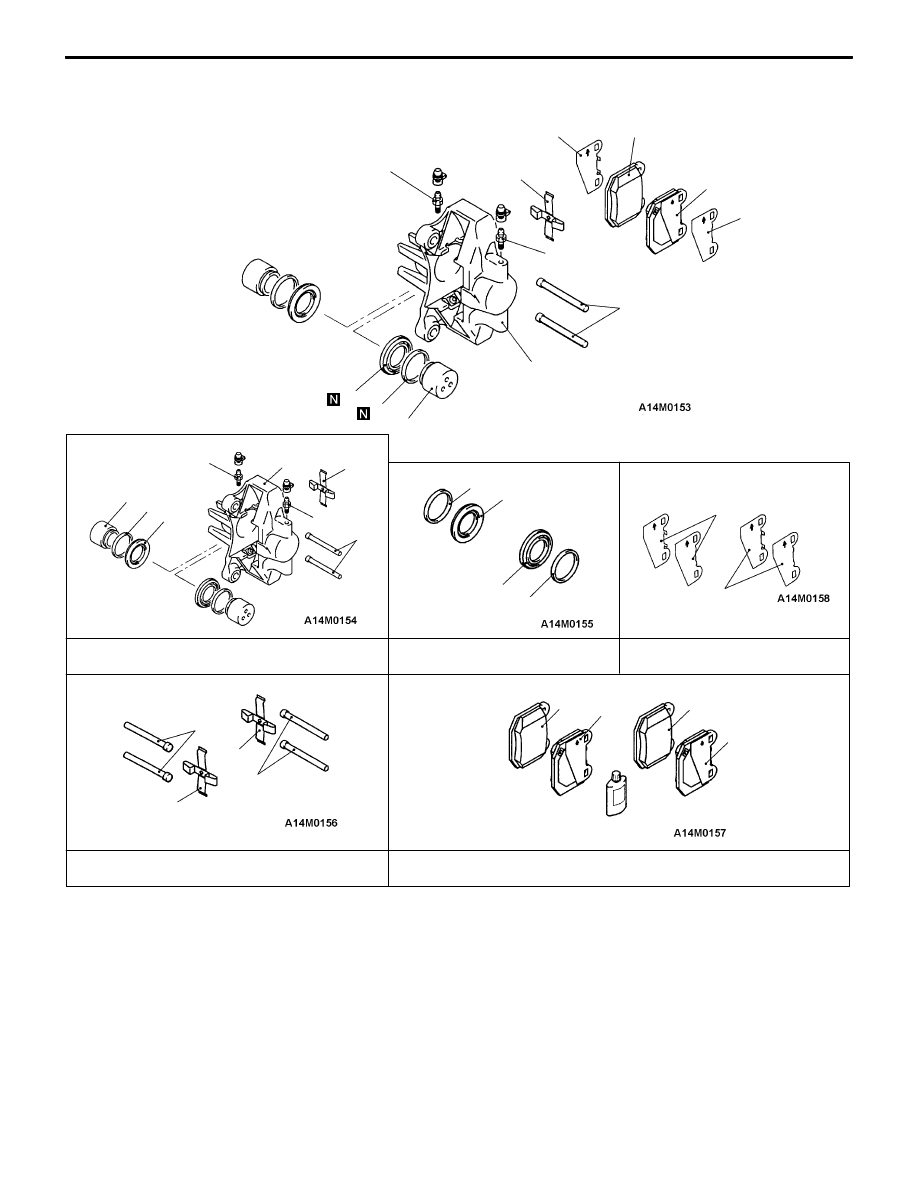

Disassembly steps

1. Pin
2. Cross spring
3. Pad & wear indicator assembly
4. Pad assembly
5. Shim

6. Air bleeder screw
7. Piston boot
8. Piston
9. Piston seal

10. Caliper body

37A-1

STEERING

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outline of Change

2

. . . . . . . . . . . . . . . . . . . . . . . . .

STEERING WHEEL AND SHAFT*

2

. . . . . . . .

POWER STEERING GEAR BOX*

5

. . . . . . . . .

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal

injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from rendering
the SRS inoperative).

(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized

MITSUBISHI dealer.

(3) MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B – Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.

NOTE
The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring and interconnecting
wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance) are
indicated in the table of contents by an asterisk (*).

STEERING  –

General / Steering Wheel and Shaft

37A-2

GENERAL

OUTLINE OF CHANGE

D

The service procedures for left-hand drive vehicles have been established as described below. The
service procedures for components not mentioned below are the same as for the preceding models.

STEERING WHEEL AND SHAFT <L.H. DRIVE VEHICLES>

REMOVAL AND INSTALLATION

CAUTION: SRS
For vehicles with SRS, before removal of air bag module, refer to GROUP 52B – Service Precautions and
Air Bag Module and Clock Spring.

Pre-removal Operation
Instrument Under Cover Removal

Post-installation Operation

D

Instrument Under Cover Installation

D

Checking Steering Wheel Position with Wheels
Straight Ahead

<Vehicles without SRS>

5 Nm

17 Nm

11 Nm

<Vehicles with SRS>

10

9

8

4

3

1

5

3

2

41 Nm

25 Nm

6

25 Nm

41 Nm

7

9 Nm

Section A – A

Section B –  B

Claw

: Claw position

A

B

4

5

A

B

11 Nm

21 Nm

Standard bolt

Earth  bolt

NOTE

4

5

Claw

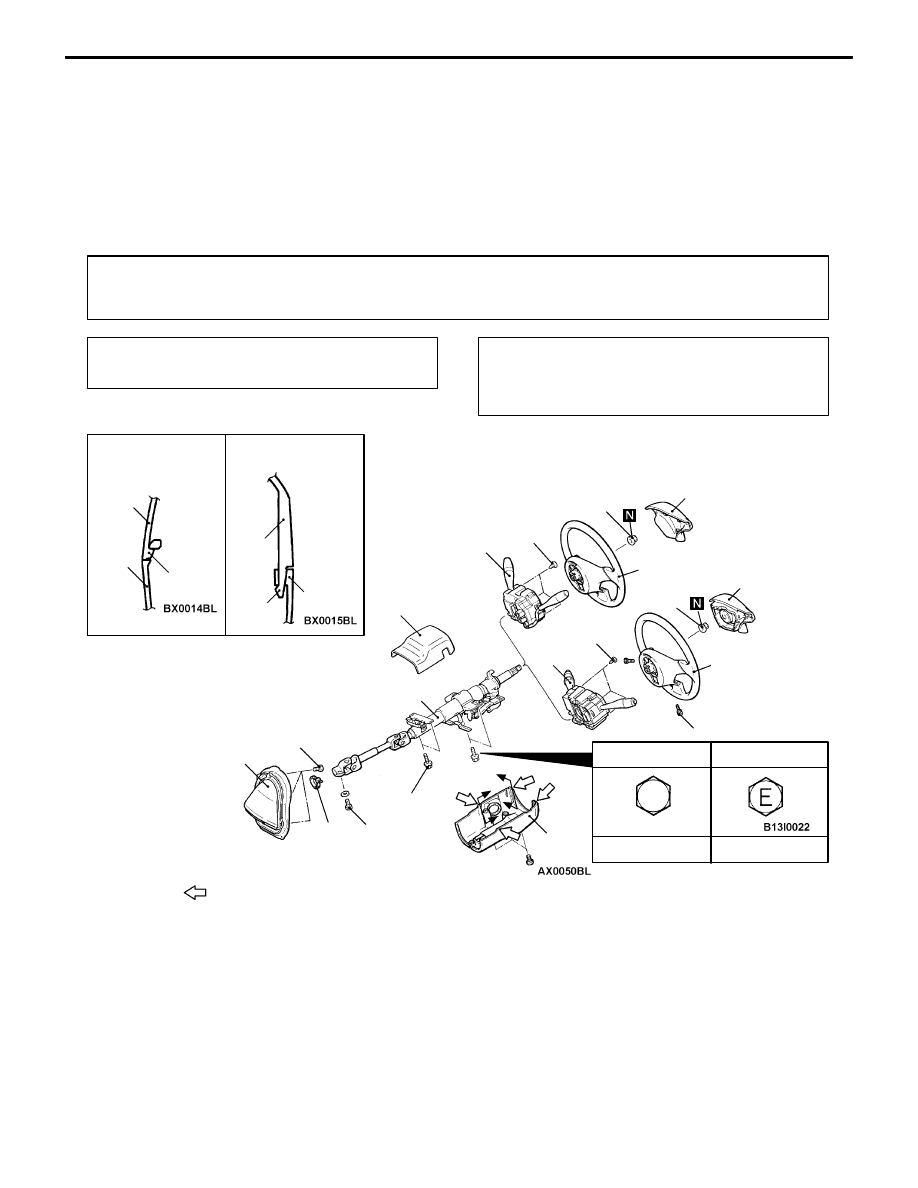

Removal steps

1. Horn pad <Vehicles without SRS>
2. Air bag module

(Refer to GROUP 52B – Air Bag
Module and Clock Spring.)

A

A

"

3. Steering wheel
4. Upper column cover
5. Lower column cover

"

A

A

6. Column switch

<Vehicles without SRS>

"

A

A

7. Clock spring and column switch

(Refer to GROUP 52B – Air Bag
Module and Clock Spring.)

8. Steering shaft assembly
9. Band

10. Steering cover assembly

STEERING  –

Steering Wheel and Shaft

37A-3

REMOVAL SERVICE POINT

A

A

"

STEERING WHEEL REMOVAL

INSTALLATION SERVICE POINT

"

A

A

CLOCK SPRING AND COLUMN SWITCH / COLUMN
SWITCH INSTALLATION

Tighten the screws in an alphabetical order.

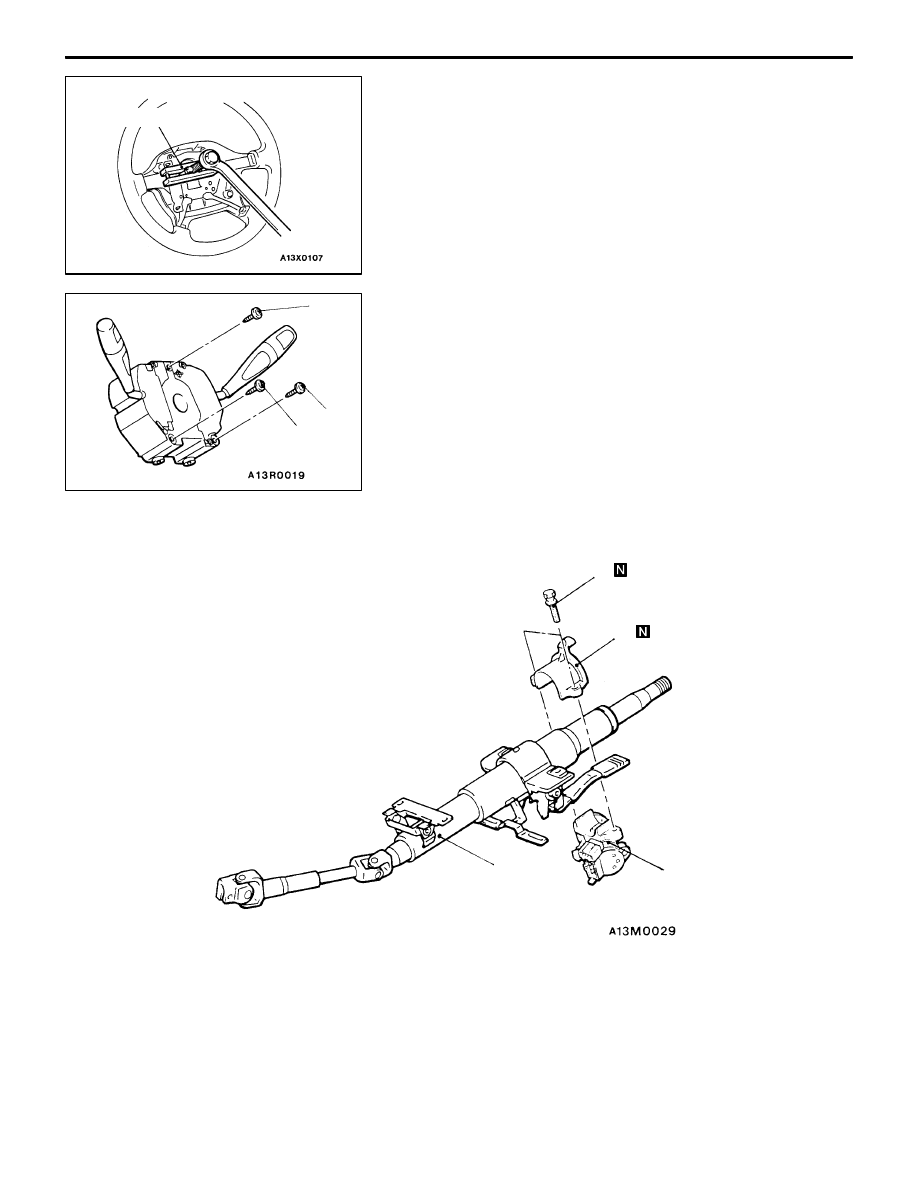

DISASSEMBLY AND REASSEMBLY

1

2

3

4

Disassembly steps

A

A

" "

A

A

1. Special bolt

"

A

A

2. Steering lock bracket

"

A

A

3. Steering lock cylinder
4. Steering shaft

MB990803

A

B

C
