ABS –
Acceleration Sensor
35B-46

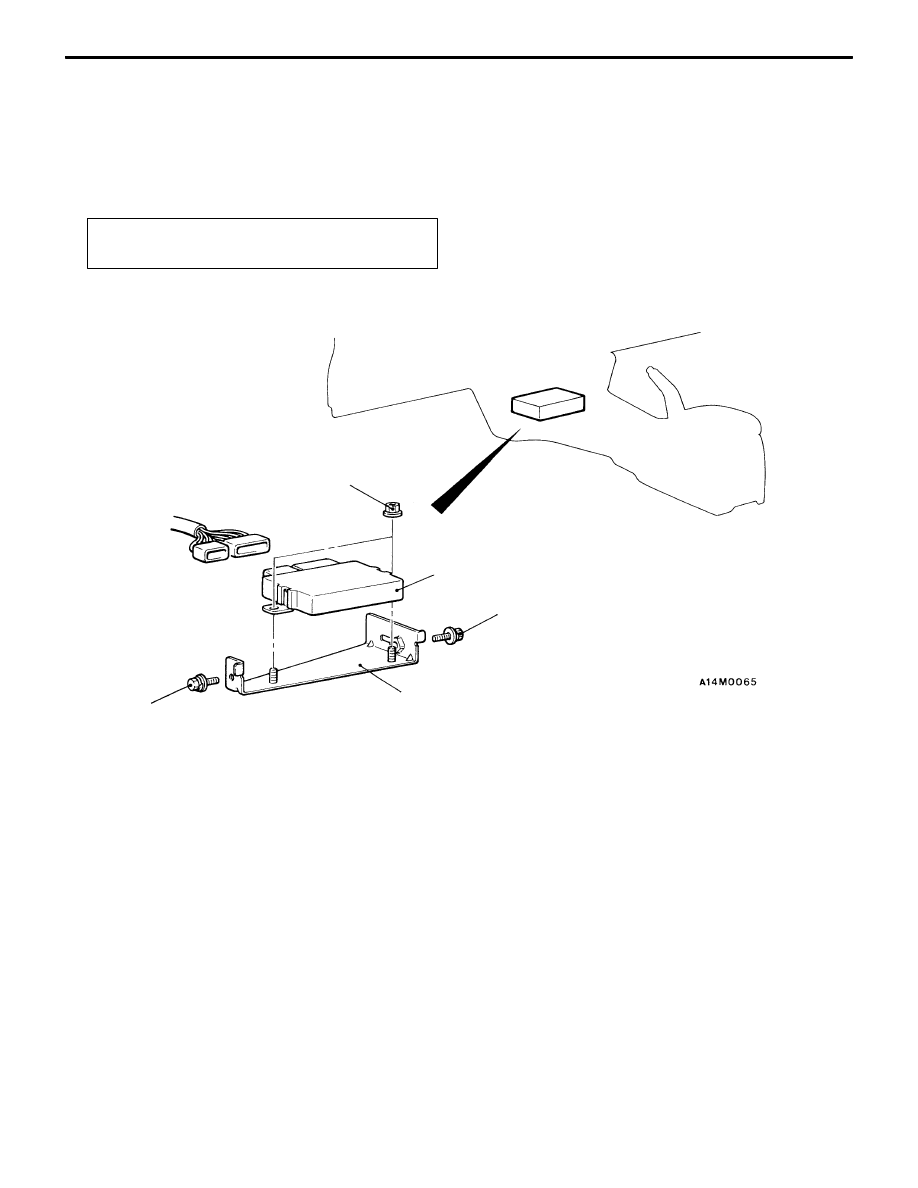

ACCELERATION SENSOR
REMOVAL AND INSTALLATION
CAUTION: SRS
When removing and installing the ABS-ECU from vehicles equipped with SRS, do not let it bump
against the SRS-ECU or other components.
Caution
Use utmost care not to drop the sensors nor expose them to any other type of shock.
Pre-removal and Post-installation Operation
D
Floor Console Removal and Installation
Acceleration sensor
Acceleration sensor
(longitudinal)
Acceleration sensor
(lateral)
<EVOLUTION-V, VI>
<EVOLUTION-IV>

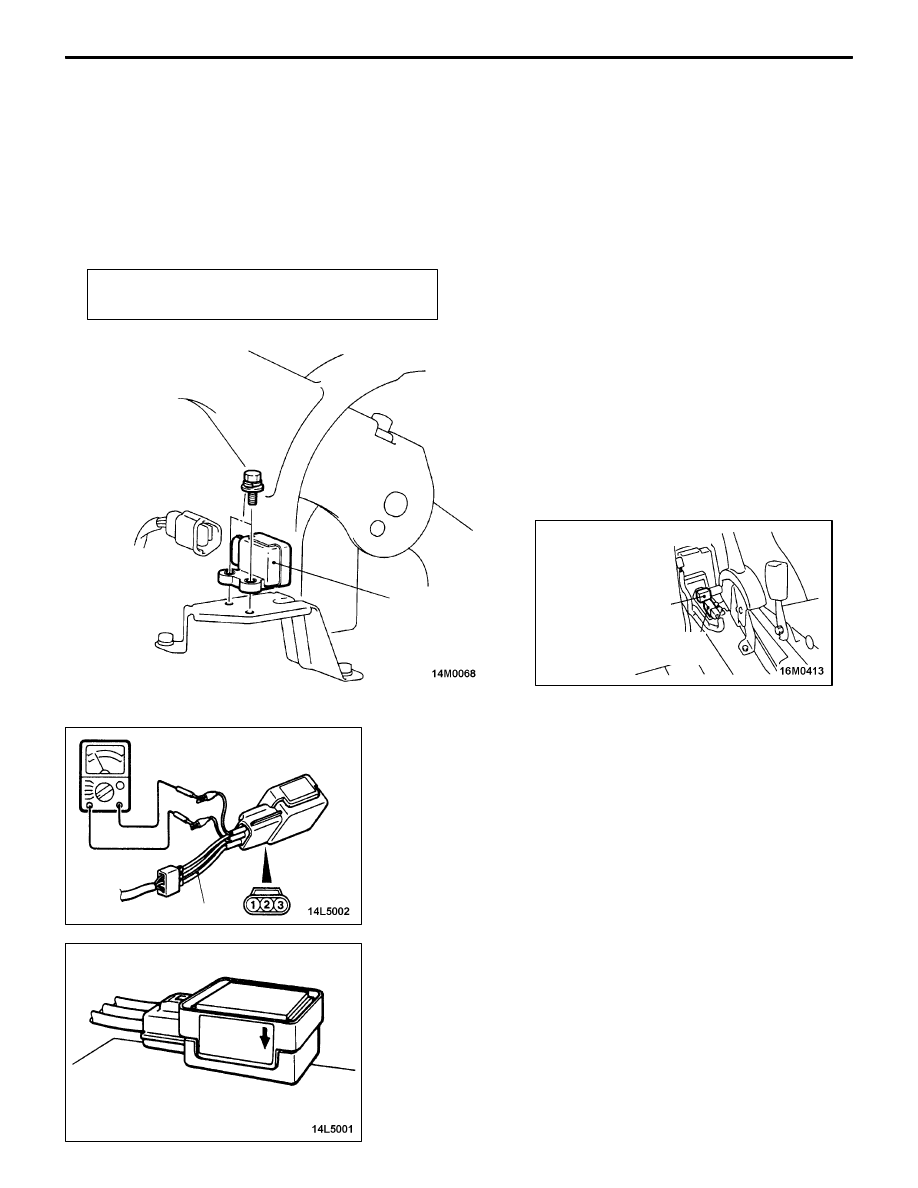

INSPECTION
1.
Disconnect the acceleration sensor connector and
connect the special tool to the terminals of the
disconnected connector.
2.
Turn on the ignition switch. Measure the output voltage
across the terminals No. 2 and No. 3.
Standard value: 2.4 – 2.6 V
3.
With the special tool connected, hold the sensor in such
a way that the front mark on the mounting surface is
directed downward. Then, read the output voltage
between the terminals No. 2 and No. 3.
Standard value: 3.4 – 3.6 V
4.
If the reading does not conform to the standard value,
check the power supply and grounding lines for
abnormality. If they are in order, replace the acceleration
sensor.
MB991348
