Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 730

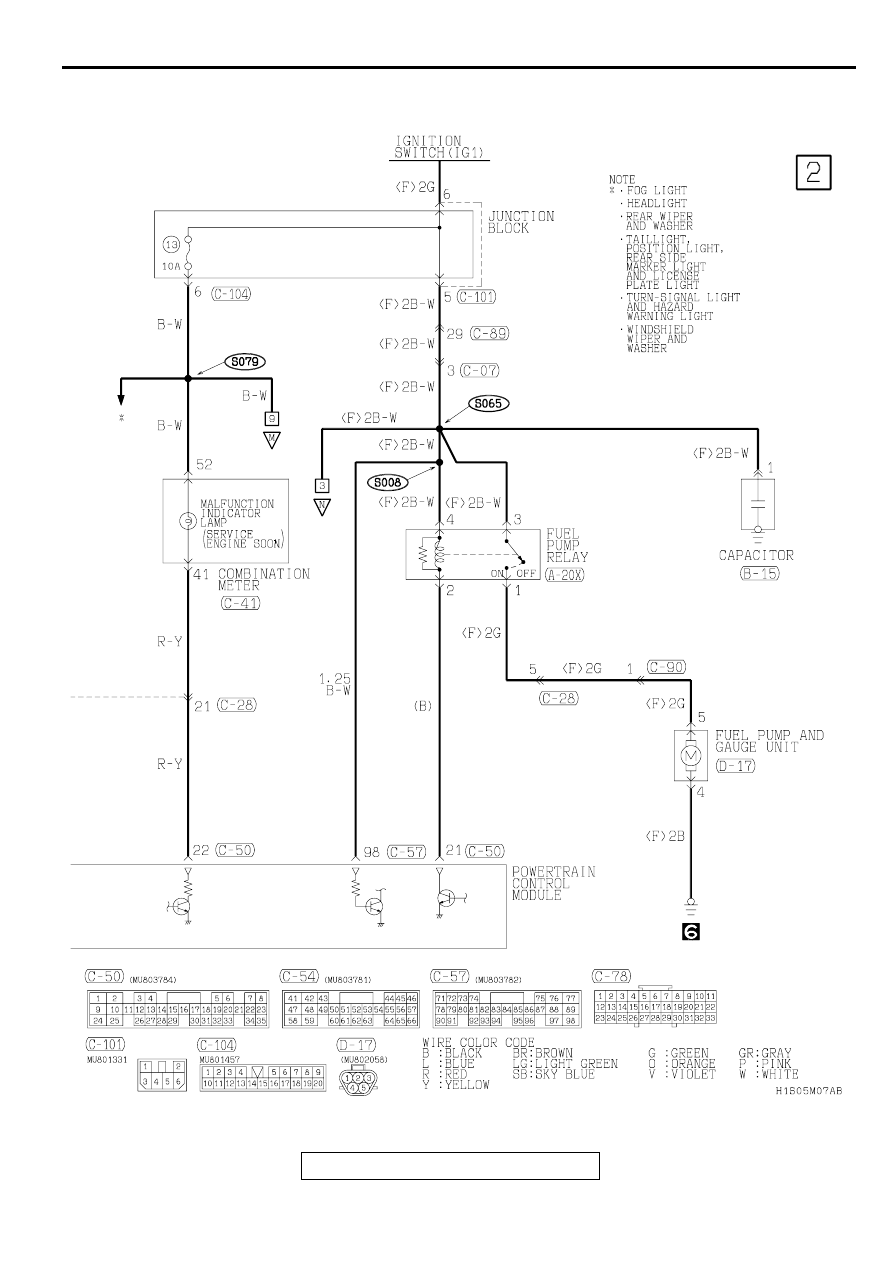

MFI SYSTEM <2.4L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-47

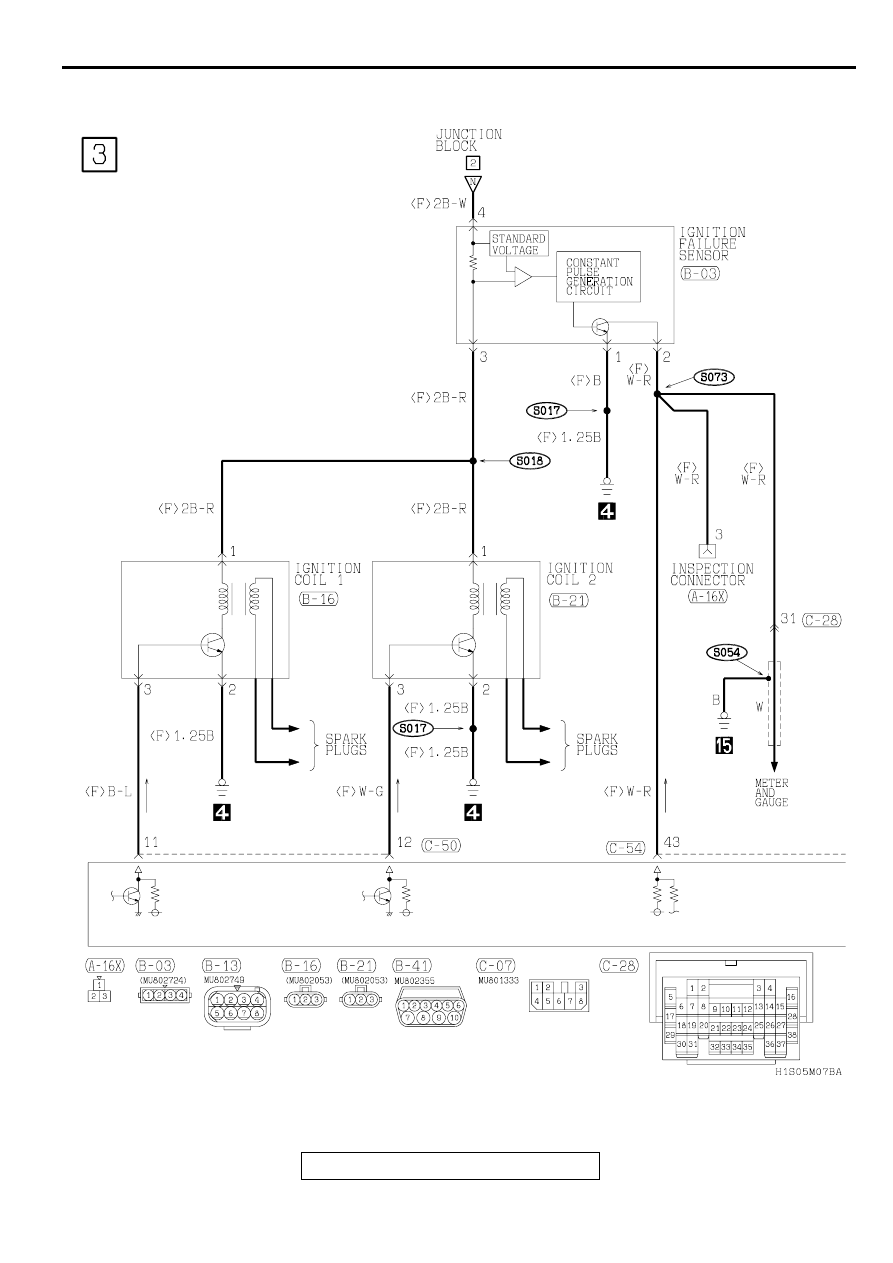

MFI SYSTEM <2.4L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-48

MFI SYSTEM <2.4L ENGINE-A/T> (CONTINUED)

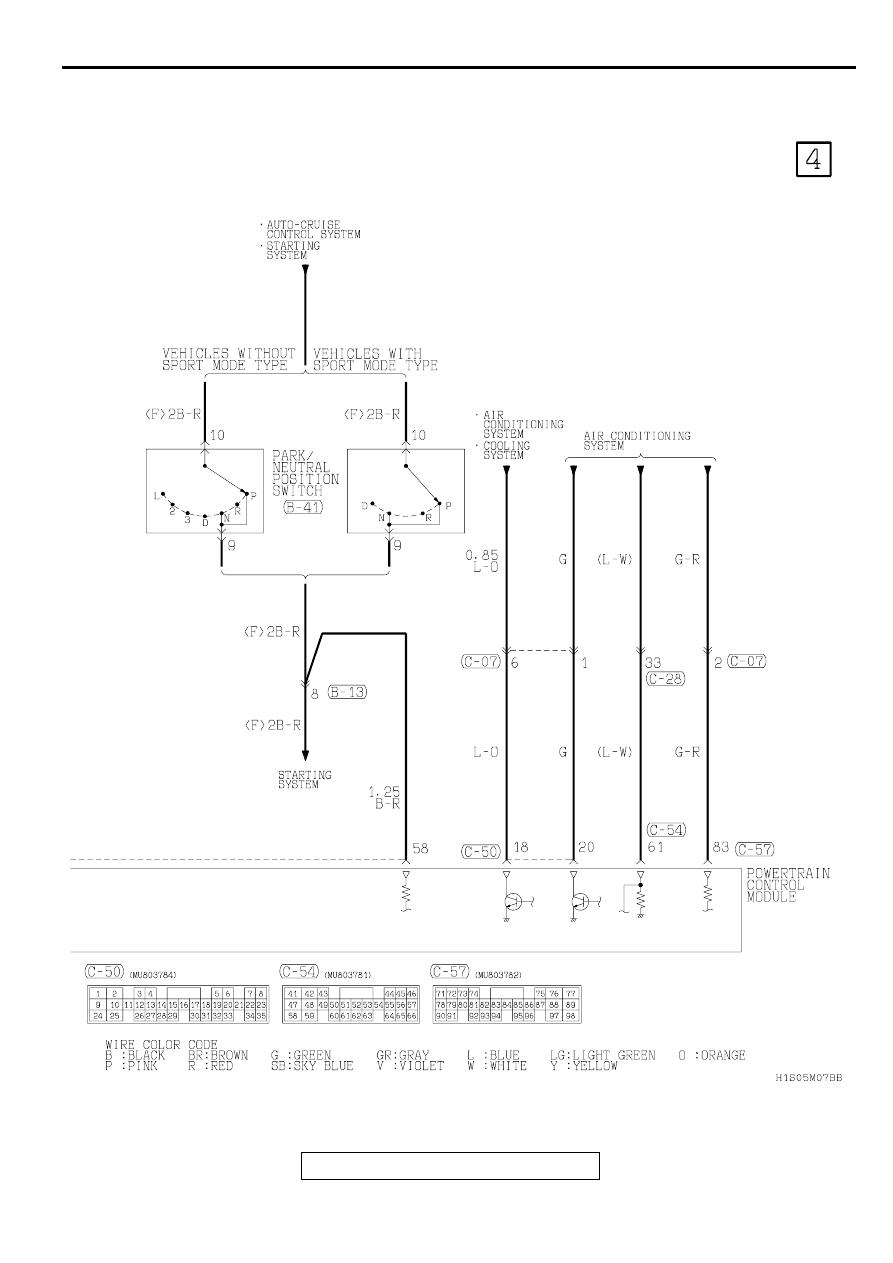

MFI SYSTEM <2.4L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-49

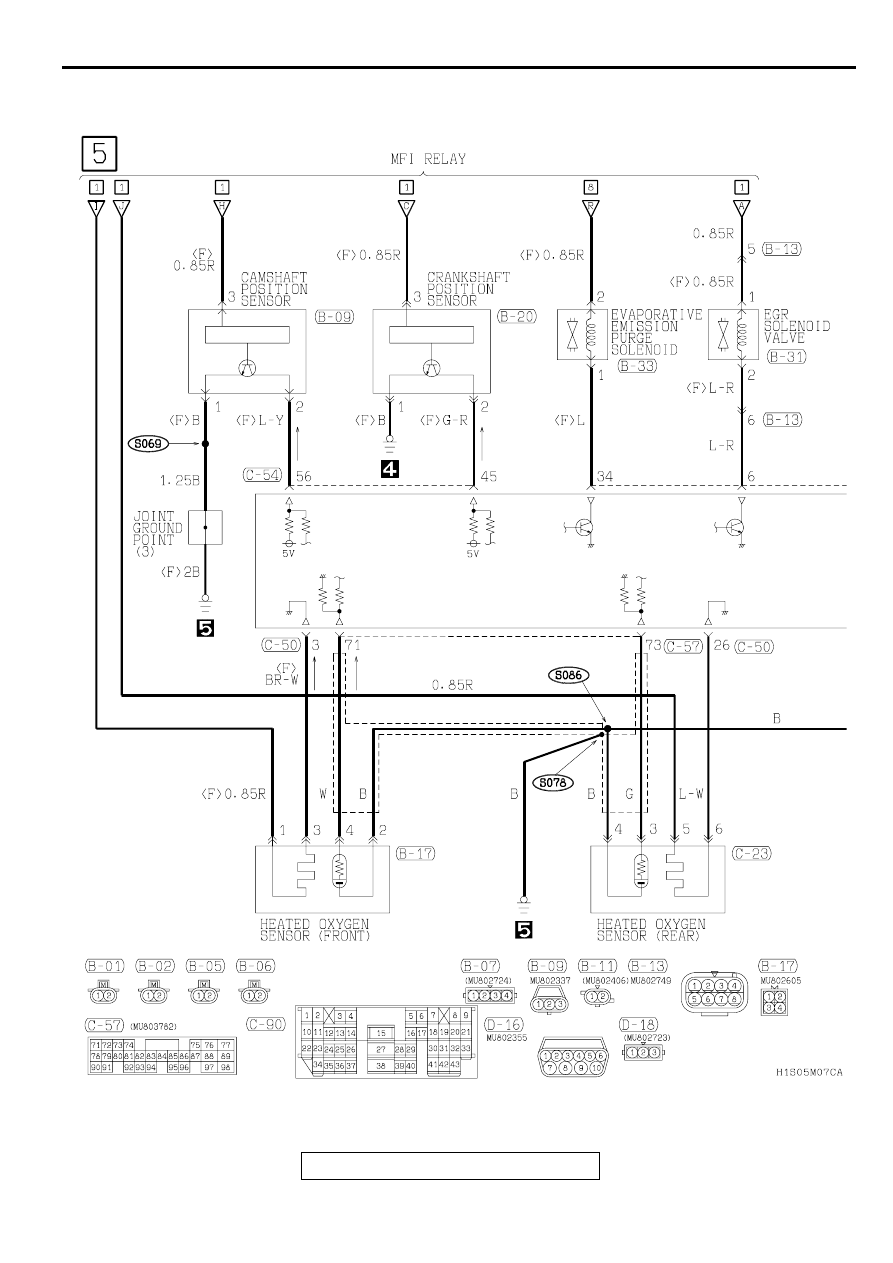

MFI SYSTEM <2.4L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-50

MFI SYSTEM <2.4L ENGINE-A/T> (CONTINUED)
