ENGINE AND TRANSAXLE <3.0L ENGINE>

TSB Revision

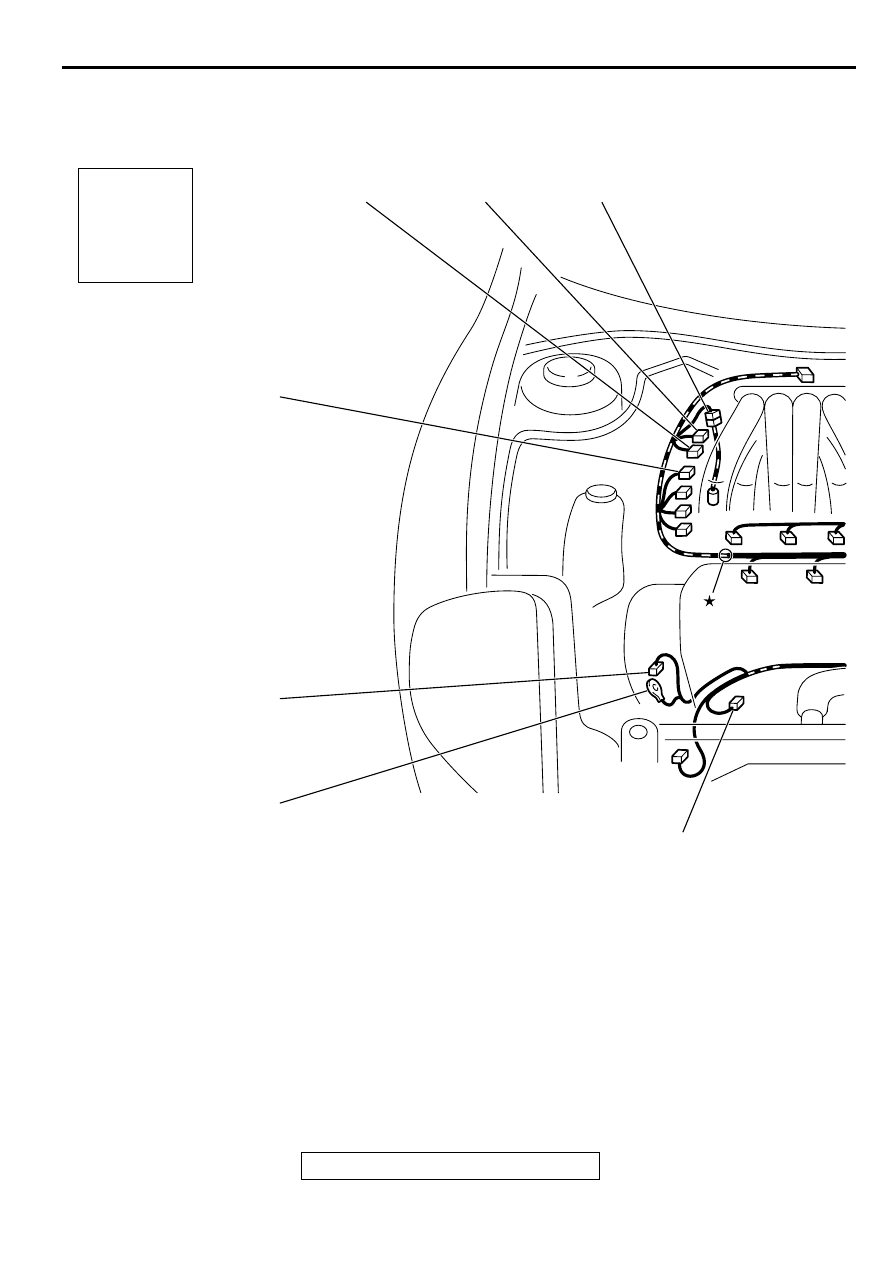

CONFIGURATION DIAGRAMS

80A-13

AC003009AB

B-07

B-22

B-10

B-12

B-13

B-14

B-08

B-11

B-23

B-24

B-25

B-14

(7-B)

VOLUME AIR FLOW SENSOR

B-18

(4-B)

A/C COMPRESSOR ASSEMBLY

B-19

(1)

POWER STEERING PRESSURE
SWITCH

B-20

(3-B)

CRANKSHAFT POSITION SENSOR

B-22

(7-B)

DISTRIBUTOR ASSEMBLY

B-23

(4-GR)

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

B-24

(4-B)

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

B-25

(2-GR)

INJECTOR 6

B-26

(2-GR)

INJECTOR 5

B-27

(4-B)

RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)

B-28

(4-GR)

RIGHT BANK HEATED OXYGEN
SENSOR (REAR)

ENGINE AND TRANSAXLE <3.0L ENGINE>

TSB Revision

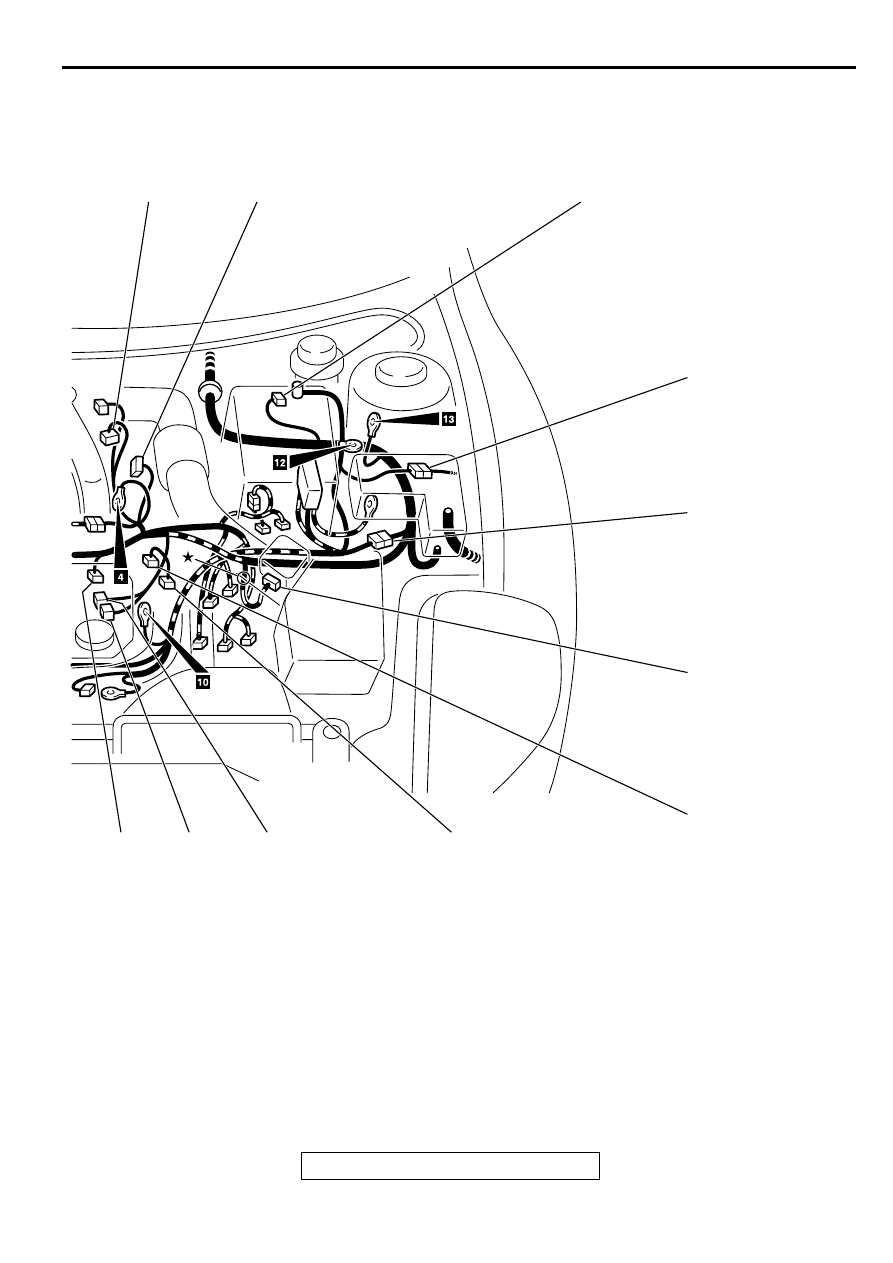

CONFIGURATION DIAGRAMS

80A-14

AC003008

Connector
symbol

-31
thru
-48

B

AC

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

B-47

B-31

B-33

B-35

B-45

B-46

B-32

B-31

(2-BR)

EGR SOLENOID VALVE

B-32

(1-B)

OIL PRESSURE SWITCH

B-33

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID VALVE

B-34

(6-B)

IDLE AIR CONTROL MOTOR

B-35

(2-GR)

KNOCK SENSOR

B-36

(3-B)

CONTROL WIRING HARNESS AND
VEHICLE SPEED SENSOR WIRING
HARNESS COMBINATION <M/T>

B-37

(2-B)

BACKUP LIGHT SWITCH <M/T>

B-38

(3-GR)

OUTPUT SHAFT SPEED SENSOR
<A/T>

B-39

(3-B)

VEHICLE SPEED SENSOR

B-40

(10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-41

(10-B)

PARK/NEUTRAL POSITION SWITCH
<A/T>

ENGINE AND TRANSAXLE <3.0L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-15

AC003009AC

B-34

B-48

B-36

B-37

B-39 <M/T>

B-38

B-39 <A/T>

B-40

B-41

B-42

B-43

B-44

B-42

(3-B)

INPUT SHAFT SPEED SENSOR
<A/T>

B-43

(1)

STARTER

B-44

(1-B)

STARTER

B-45

(4-GR)

GENERATOR

B-46

(1)

GENERATOR

B-47

(1-B)

CONTROL WIRING HARNESS AND
POWER STEERING WIRING
HARNESS COMBINATION

B-48

(4-B)

CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION

DASH PANEL

TSB Revision

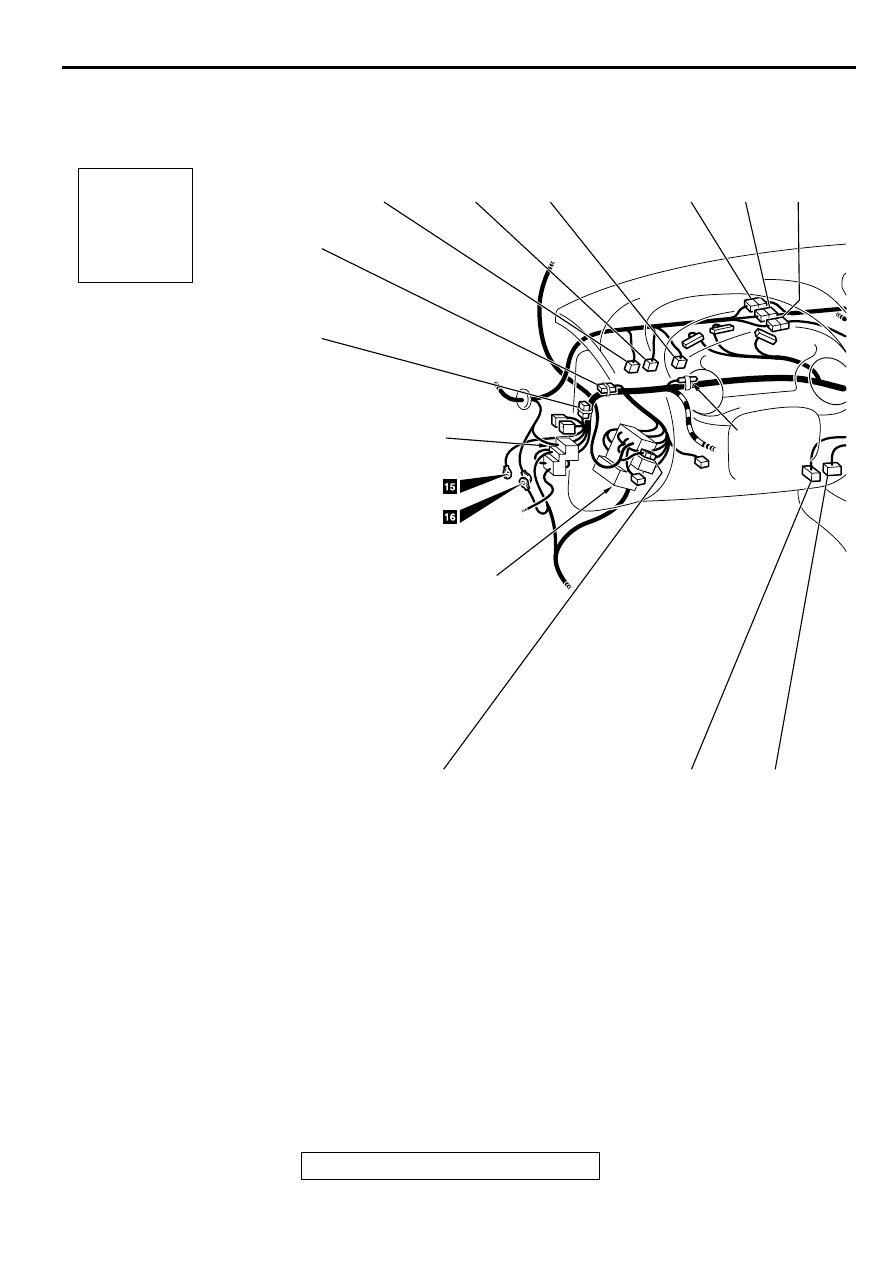

CONFIGURATION DIAGRAMS

80A-16

DA SH PA N EL

M1801000600081

AC003010

Connector
symbol

-01
thru
-38

C

AB

C-07

C-06

C-05

C-03

C-02

C-01

C-33

C-32

C-31

C-30

C-29

JOINT
TAILLIGHT
POINT (1)

CONNECTOR
BLOCK (LH)

JUNCTION
BLOCK

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

C-01

(4)

CLUTCH PEDAL POSITION SWITCH
<AUTO-CRUISE CONTROL SYSTEM
(M/T) >

C-02

(2)

INTERLOCK SWITCH <M/T>

C-03

(4)

STOPLIGHT SWITCH

C-05

(2-B)

FRONT WIRING HARNESS (LH)
AND FRONT WIRING HARNESS
(RH) COMBINATION <ABS>

C-06

(18)

FRONT WIRING HARNESS (LH)
AND FRONT WIRING HARNESS
(RH) COMBINATION

C-07

(8)

FRONT WIRING HARNESS (LH)
AND CONTROL WIRING HARNESS
COMBINATION

C-08

(2)

CENTER SPEAKER

C-09

(20-B)

MULTI CENTER DISPLAY UNIT

C-10

(4)

HAZARD WARNING SWITCH

C-11

(2-R)

AIR BAG MODULE (SQUIB)
(PASSENGER'S SIDE)

C-12

(20-B)

AUTOMATIC COMPRESSOR
CONTROLLER <A/C>

C-13

(8-B)

AUTOMATIC COMPRESSOR
CONTROLLER <A/C (3.0L ENGINE)>

C-14

(7)

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

C-16

(4)

BLOWER RESISTOR

C-17

(2)

BLOWER MOTOR

C-20

(16-B)

AUTO-CRUISE CONTROL-ECU

C-21

(8)

RADIO, TAPE PLAYER, CD PLAYER
AND CD AUTO CHANGER

C-22

(14)

RADIO, TAPE PLAYER, CD PLAYER
AND CD AUTO CHANGER
