WINDOW GLASS

TSB Revision

BODY

42-19

>>D<< ROOF DRIP MOLDING INSTALLATION
Install the clip to the roof drip molding before installing the
molding to the vehicle body.

QUARTER WINDOW GLASS

REMOVAL AND INSTALLATION

M1422002500065

Pre-removal and Post-installation Operation

•

Quarter Trim Upper Removal and Installation (Refer to
GROUP 52A

P.52A-10

.)

AC000458

1

2

A

A

B

B

C

C

SECTION A – A

mm (in)

20 (0.8)

15

(0.6)

35 (1.4)

PRIMER

SECTION C – C

SECTION B – B

15 (0.6)

15 (0.6)

PRIMER

15 (0.6)

15 (0.6)

PRIMER

ADHESIVE: 3M™ AAD  PART NO.8609 SUPER FAST URETHANE AND 3M™ AAD PART NO.8608 SUPER FAST
URETHANE PRIMER OR EQUIVALENT

AB

3

WINDOW GLASS

TSB Revision

BODY

42-20

REMOVAL SERVICE POINT

<<A>> QUARTER WINDOW GLASS REMOVAL

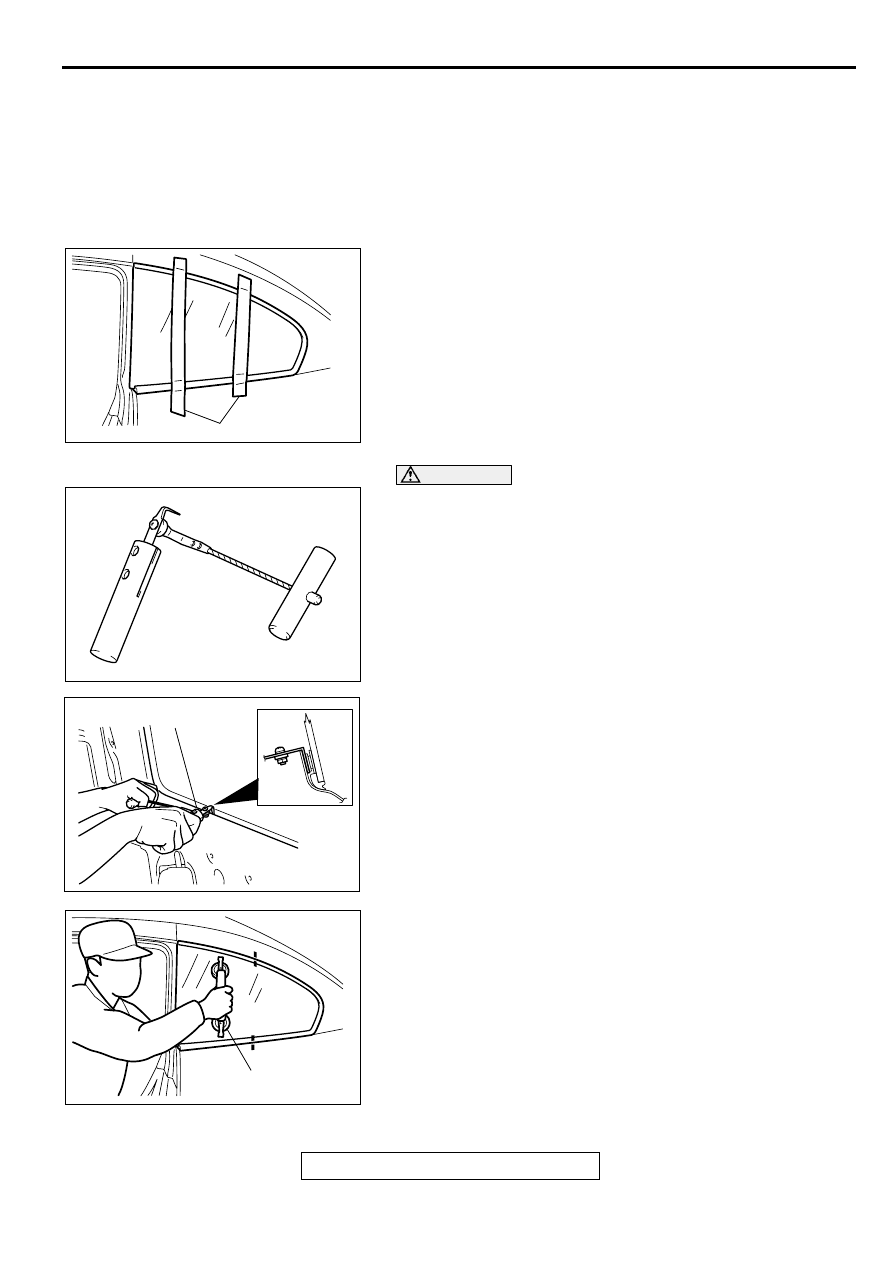

1. Apply cloth tape to protect quarter window glass.

CAUTION

Putting glass adhesive knife too deeply into windshield
adhesive may damage quarter window glass.
2. Use glass adhesive knife to cut away adhesive.

Keep glass adhesive knife at right angles with body flange
(from inside the vehicle), and put the blade at body flange.
Then cut away adhesive along the body flange.

NOTE: If glass adhesive knife does not reach the body
flange, refer to WINDSHIELD

P.42-13

.

3. Make mating marks on the quarter window glass and body.

4. Use special tool MB990480 to remove the quarter window

glass.

REMOVAL STEPS

<<A>> >>A<<

1. QUARTER WINDOW GLASS AS-

SEMBLY

2. PACKING
3 . CLIP

REMOVAL STEPS (Continued)

AC002057AB

CLOTH TAPE

AC002060

AC002061

GLASS ADHESIVE

KNIFE

AB

AC002058

MB990480

AB

WINDOW GLASS

TSB Revision

BODY

42-21

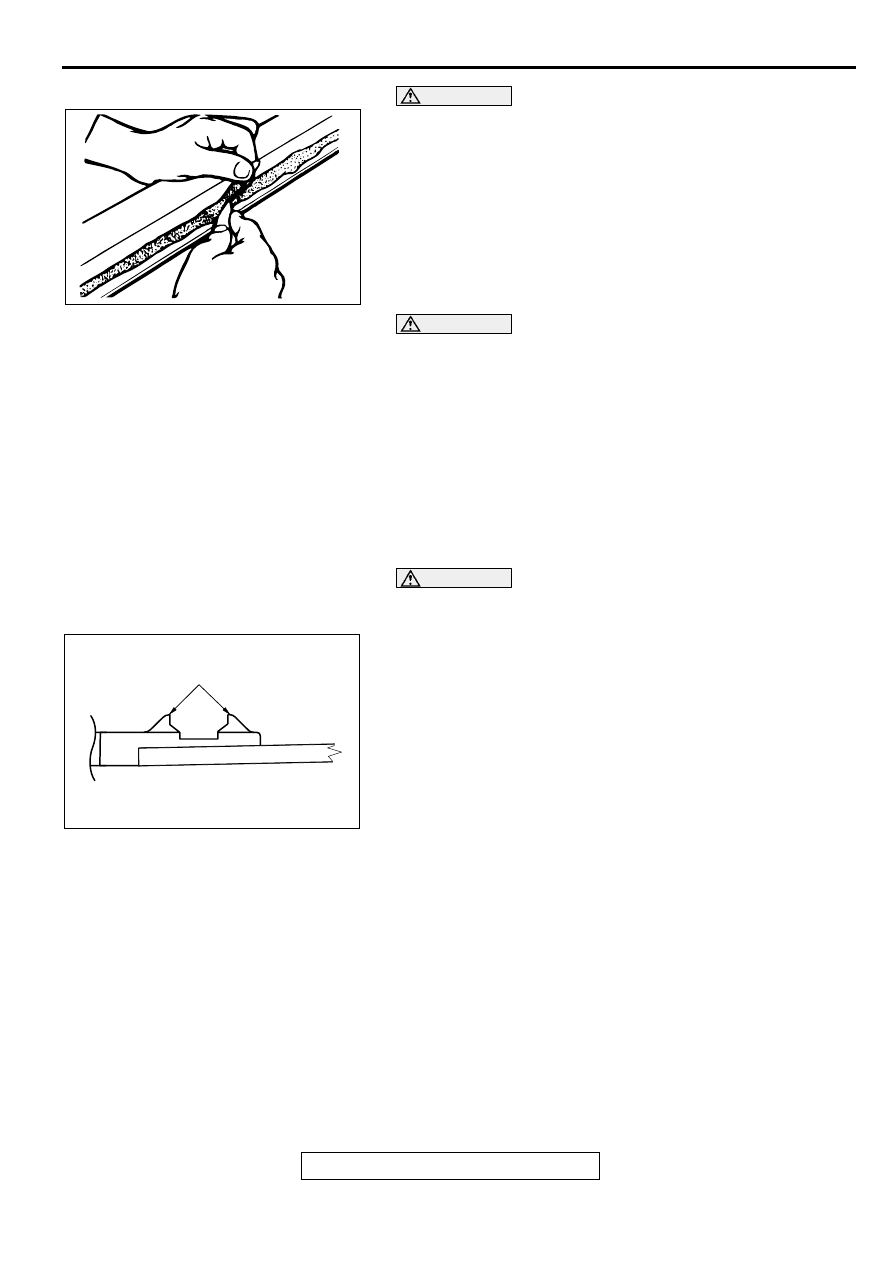

CAUTION

•

Be careful not to remove more adhesive than is
necessary.

•

Be careful also not to damage the paintwork on the
body surface with the knife. If the paintwork is
damaged, repair the damaged area with repair paint or
anti-rust agent.

5. Use a knife to cut away the remaining adhesive so that the

thickness is within 2 mm (0.08 inch) around the entire
circumference of the body flange.

6. Finish the flange surfaces so that they are smooth.

CAUTION

Allow the cleaned area to dry for at least three minutes. Do
not touch any surface that has been cleaned.
7. When reusing the quarter window glass, remove the

adhesive still adhering to the quarter window glass, and
clean with 3M



 AAD Part number 8906 or equivalent.

8. Clean the body side in the same way.

INSTALLATION SERVICE POINT

>>A<< QUARTER WINDOW GLASS INSTALLATION
1. Carry out the following procedure to re-install quarter

window glass.

CAUTION

Do not forget packing.

(1) Fit clips into body.
(2) Cut away clip fitting convex on quarter window glass.

NOTE: Convex gets broken when quarter window glass
is removed.

2. Remove the quarter window glass using the same

procedure as for the windshield remove. (Refer to

P.42-13

.)

ACX00476 AB

AC002172AB

CUT OFF THESE PARTS

WINDOW GLASS

TSB Revision

BODY

42-22

LIFT GATE WINDOW GLASS

REMOVAL AND INSTALLATION

M1422003700040

Pre-removal and Post-installation Operation

•

Liftgate Trim Removal and Installation (Refer to

P.42-91

.)

•

Rear Wiper Arm, Wiper Motor and Washer Nozzle
Removal and Installation (Refer to GROUP 51

P.51-20

.)

AC000459AB

A

A

B

B

6

9

SECTION A – A

6

9

6

SECTION

B – B

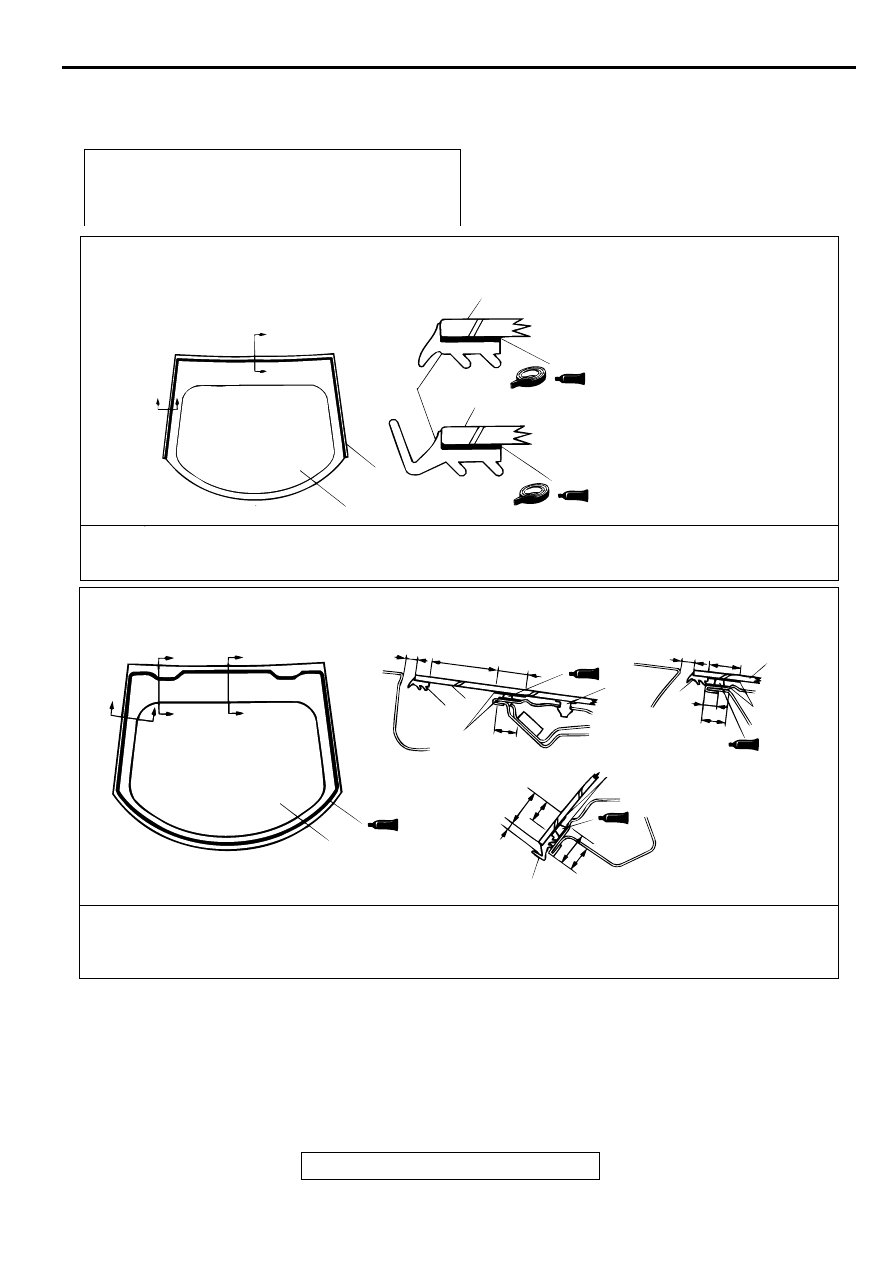

ADHESIVE TAPE: DOUBLE-SIDED TAPE [6 mm (0.2 in) WIDE AND 0.125 mm (0.0049) THICK] AND 3M™ AAD
PART NO.8608 SUPER FAST URETHANE PRIMER OR EQUIVALENT

C

C

D

D

E

E

6

SECTION C – C

SECTION D – D

SECTION E – E

9

6

7

9

6

9

8 ± 1 (0.3 ± 0.04)

43 (1.7) 20 (0.8)

15 (0.6)

PRIMER

mm (in)

8 ± 0.5

(0.3 ± 0.02)

20 (0.8)

8 (0.3)

15 (0.6)

PRIMER

25 (1.0)

4.5 ± 1.5

(0.2 ± 0.1)

15

(0.6)

21

(0.8)

15.5

(0.6)

PRIMER

ADHESIVE: 3M™ AAD PART NO. 8609 SUPER FAST URETHANE AND 3M™ AAD PART NO.8608 SUPER FAST
URETHANE PRIMER OR EQUIVALENT
