Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 601





ON-VEHICLE SERVICE

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-39

O N -VEH IC LE SERVIC E

BLEEDING

M1354003600034

CAUTION

Use the specified brake fluid. Don't use a mixture of the
specified brake fluid and another non-specified fluid.

Specified brake fluid: Conforming to DOT 3 or DOT 4

MASTER CYLINDER BLEEDING

Refer to GROUP 35A, On-vehicle Service

 Bleeding

P.35A-

22

.

BRAKE LINE BLEEDING

CAUTION

Be sure to filter/strain the brake fluid being added to the
master cylinder reservoir tank. Debris may damage the
hydraulic unit.
Refer to GROUP 35A, On-vehicle Service

 Bleeding

P.35A-

22

.

WHEEL SPEED SENSOR OUTPUT VOLTAGE
MEASUREMENT

M1354003700031

Refer to GROUP 35B, On-vehicle Service

 Wheel Speed

Sensor Output Voltage Measurement

P.35B-45

.

HYDRAULIC UNIT CHECK

M1354003400041

Required Special Tool:

MB991502: Scan Tool (MUT-II)

CAUTION

The roller of the braking force tester and the tire should
be dry during testing.

When testing the front brakes, apply the parking brake.
When testing the rear brakes, stop the front wheels
with chocks.

1. Jack up the vehicle. Then support the vehicle with rigid

racks at the specified jack-up points or place the front or rear
wheels on the rollers of the braking force tester.

2. Release the parking brake, and feel the drag force (drag

torque) on each road wheel.
When using the braking force tester, take a reading of the
brake drag force.
To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.

ON-VEHICLE SERVICE

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-40

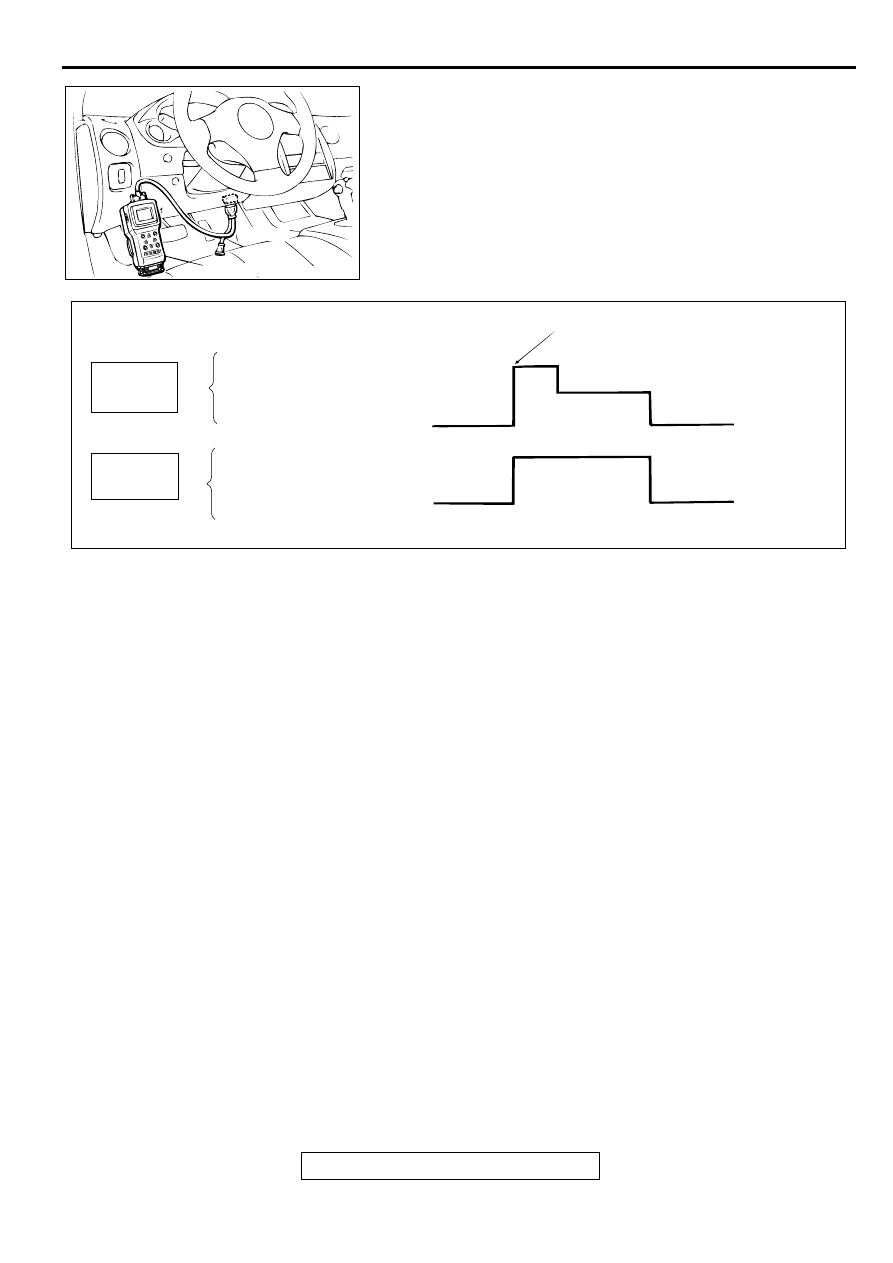

3. Turn the ignition switch to the "LOCK" (OFF) position and

set scan tool MB991502 as shown in the illustration.

4. After checking that the selector lever <A/T> or the shift lever

<M/T> is in neutral, start the engine.

5. Use scan tool MB991502 to force-drive the actuator.

NOTE: The TCL system will switch to the scan tool mode
and the ABS warning light will illuminate.

NOTE: When the TCL has been interrupted by the fail-safe
function, scan tool MB991502 actuator testing cannot be
used.

6. Turn the wheel by hand and check the change in braking

force. Use a braking force tester. The braking force reading
value should change when the actuator test is carried out.
The result should be as shown in the diagram above.

7. If the result of inspection is abnormal, replace the hydraulic

unit (Refer to GROUP 35B, Hydraulic Unit

P.35B-51

.).

AC001252AF

16 PIN

MB991502

AC000972

SCAN TOOL ACTUATOR TEST
(ITEM NO.06, 07) START

AB

 PRESSURE INCREASES

 PRESSURE HOLD

PRESSURE DECREASES

BRAKE FORCE

DRAG FORCE

SOLENOID
VALVE
POSITION

CHECKING
THE BRAKE
FORCE

1 s

2 s

3 s

37A-1

GROUP 37A

POWER STEERING

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

37A-2

POWER STEERING DIAGNOSIS . . .

37A-2

INTRODUCTION TO POWER STEERING
DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

37A-2

POWER STEERING DIAGNOSIS
TROUBLESHOOTING STRATEGY . . . . . .

37A-3

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

37A-3

SYMPTOM PROCEDURES . . . . . . . . . . . .

37A-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

37A-11

ON-VEHICLE SERVICE. . . . . . . . . . .

37A-13

STEERING WHEEL FREE PLAY CHECK .

37A-13

STEERING ANGLE CHECK . . . . . . . . . . . .

37A-14

TIE ROD END BALL JOINT BREAKAWAY
TORQUE CHECK . . . . . . . . . . . . . . . . . . . .

37A-14

STATIONARY STEERING EFFORT
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37A-15

STEERING WHEEL RETURN TO CENTER
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37A-16

DRIVE BELT TENSION CHECK. . . . . . . . .

37A-16

FLUID LEVEL CHECK  . . . . . . . . . . . . . . . .

37A-16

FLUID REPLACEMENT . . . . . . . . . . . . . . .

37A-16

POWER STEERING SYSTEM BLEEDING

37A-17

OIL PUMP PRESSURE TEST  . . . . . . . . . .

37A-18

POWER STEERING PRESSURE SWITCH
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37A-19

BALL JOINT DUST COVER CHECK . . . . .

37A-19

STEERING WHEEL AND SHAFT
ASSEMBLY. . . . . . . . . . . . . . . . . . . . .

37A-20

REMOVAL AND INSTALLATION  . . . . . . . .

37A-20

DISASSEMBLY AND ASSEMBLY  . . . . . . .

37A-21

POWER STEERING GEAR BOX
ASSEMBLY. . . . . . . . . . . . . . . . . . . . .

37A-23

REMOVAL AND INSTALLATION  . . . . . . . .

37A-23

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

37A-25

DISASSEMBLY AND ASSEMBLY  . . . . . . .

37A-26

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

37A-36

TIE ROD END BALL JOINT DUST COVER
REPLACEMENT . . . . . . . . . . . . . . . . . . . . .

37A-36

POWER STEERING OIL PUMP
ASSEMBLY. . . . . . . . . . . . . . . . . . . . .

37A-37

REMOVAL AND INSTALLATION  . . . . . . . .

37A-37

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

37A-37

DISASSEMBLY AND ASSEMBLY  . . . . . . .

37A-38

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

37A-39

POWER STEERING HOSES  . . . . . . .

37A-40

REMOVAL AND INSTALLATION  . . . . . . . .

37A-40

SPECIFICATIONS  . . . . . . . . . . . . . . .

37A-45

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

37A-45

GENERAL SPECIFICATIONS  . . . . . . . . . .

37A-46

SERVICE SPECIFICATIONS  . . . . . . . . . . .

37A-46

LUBRICANTS  . . . . . . . . . . . . . . . . . . . . . . .

37A-47

SEALANTS  . . . . . . . . . . . . . . . . . . . . . . . . .

37A-47

GENERAL DESCRIPTION

TSB Revision

POWER STEERING

37A-2

.

G EN ER A L DESC RIPTIO N

M1372000100070

The vehicle uses engine speed-responsive hydraulic
power steering.
The steering wheel has three spokes. In addition, all
vehicles are equipped with SRS (Supplemental
Restraint System).

The steering column in all vehicles has a shock
absorber mechanism and a tilt steering mechanism.
A vane-type oil pump with a fluid flow control system
has been included. The steering gear and linkage is
rack and pinion type.

PO W ER  STEERIN G  DIAG NO SIS

INTRODUCTION TO POWER STEERING DIAGNOSIS

M1372008500061

Hydraulic power steering is used for all vehicles.
Faults in the power steering can include excessive
play of the steering wheel, difficult steering wheel
operation, noise, vibration, and oil leaks, etc.
Possible causes of these faults can include defects
in the gear box, oil pump or steering linkage.

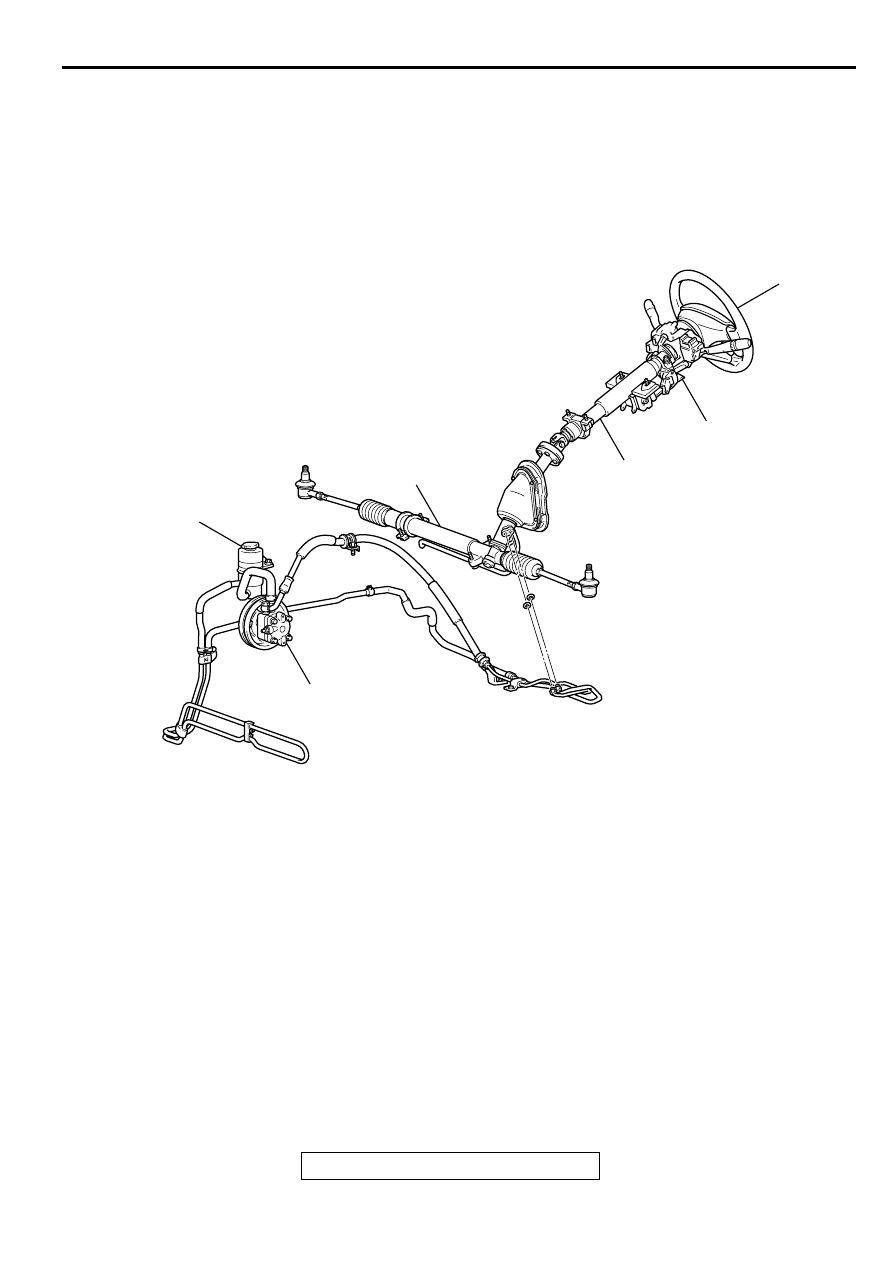

AC003276

OIL PUMP

OIL RESERVOIR

STEERING GEAR
AND LINKAGE

STEERING COLUMN
ASSEMBLY

TILT LEVER

STEERING
WHEEL

AB
