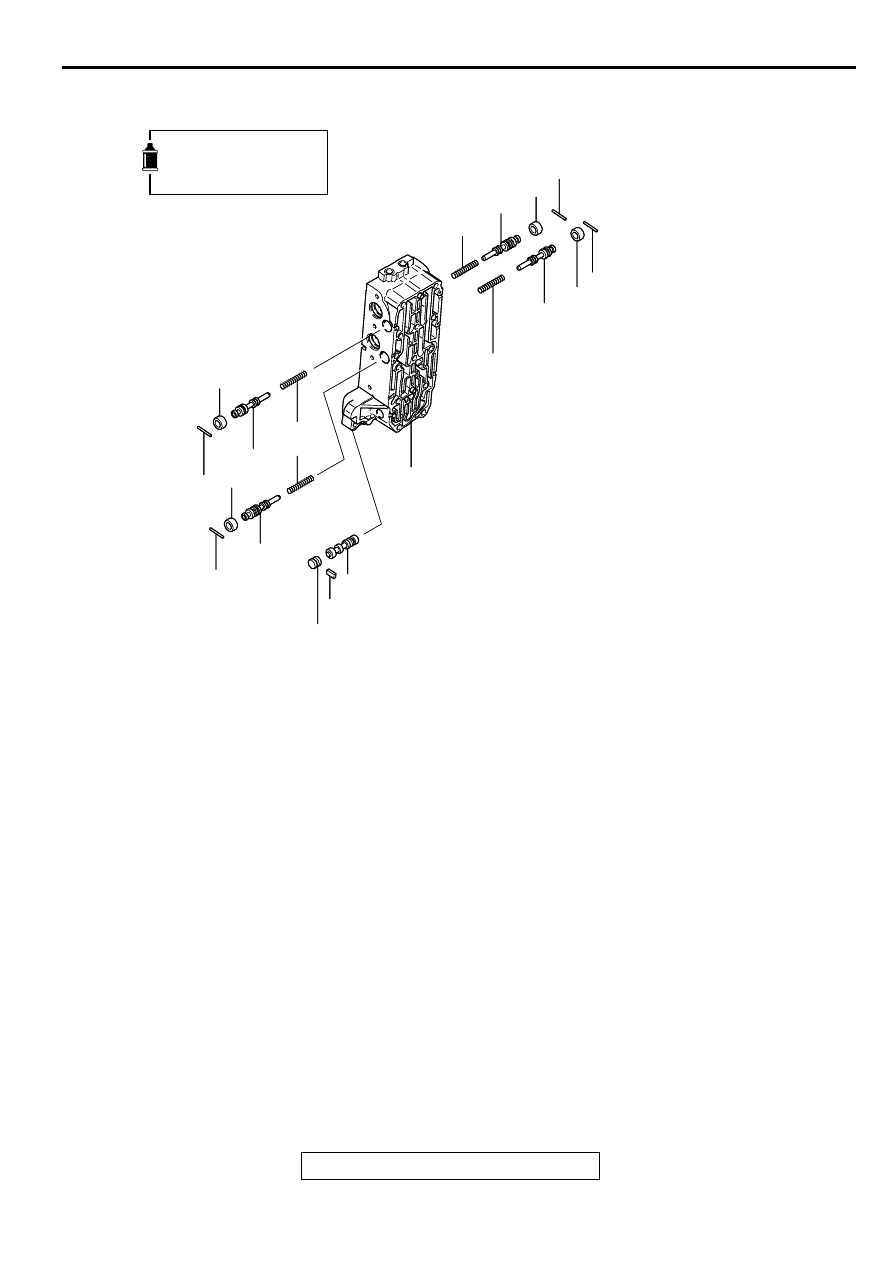

VALVE BODY

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-71

AKX01092

AKX01092

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

43

42 47

44

45
49

46

48

52

50

51

61

60

59

58

57

53

54

55

56

AB

42. ROLLER
43. OVERDRIVE PRESSURE

CONTROL VALVE SLEEVE

44. OVERDRIVE PRESSURE

CONTROL VALVE

45. OVERDRIVE PRESSURE

CONTROL VALVE SPRING

46. ROLLER
47. LOW-REVERSE PRESSURE

CONTROL VALVE SLEEVE

48. LOW-REVERSE PRESSURE

CONTROL VALVE

49. LOW-REVERSE PRESSURE

CONTROL VALVE SPRING

50. PLATE
51. PLUG

52. SWITCHING VALVE
53. ROLLER
54. UNDERDRIVE PRESSURE

CONTROL VALVE SLEEVE

55. UNDERDRIVE PRESSURE

CONTROL VALVE

56. UNDERDRIVE PRESSURE

CONTROL VALVE SPRING

57. ROLLER
58. SECOND PRESSURE CONTROL

VALVE SLEEVE

59. SECOND PRESSURE CONTROL

VALVE

60. SECOND PRESSURE CONTROL

VALVE SPRING

61. OUTSIDE VALVE BODY

VALVE BODY

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-72

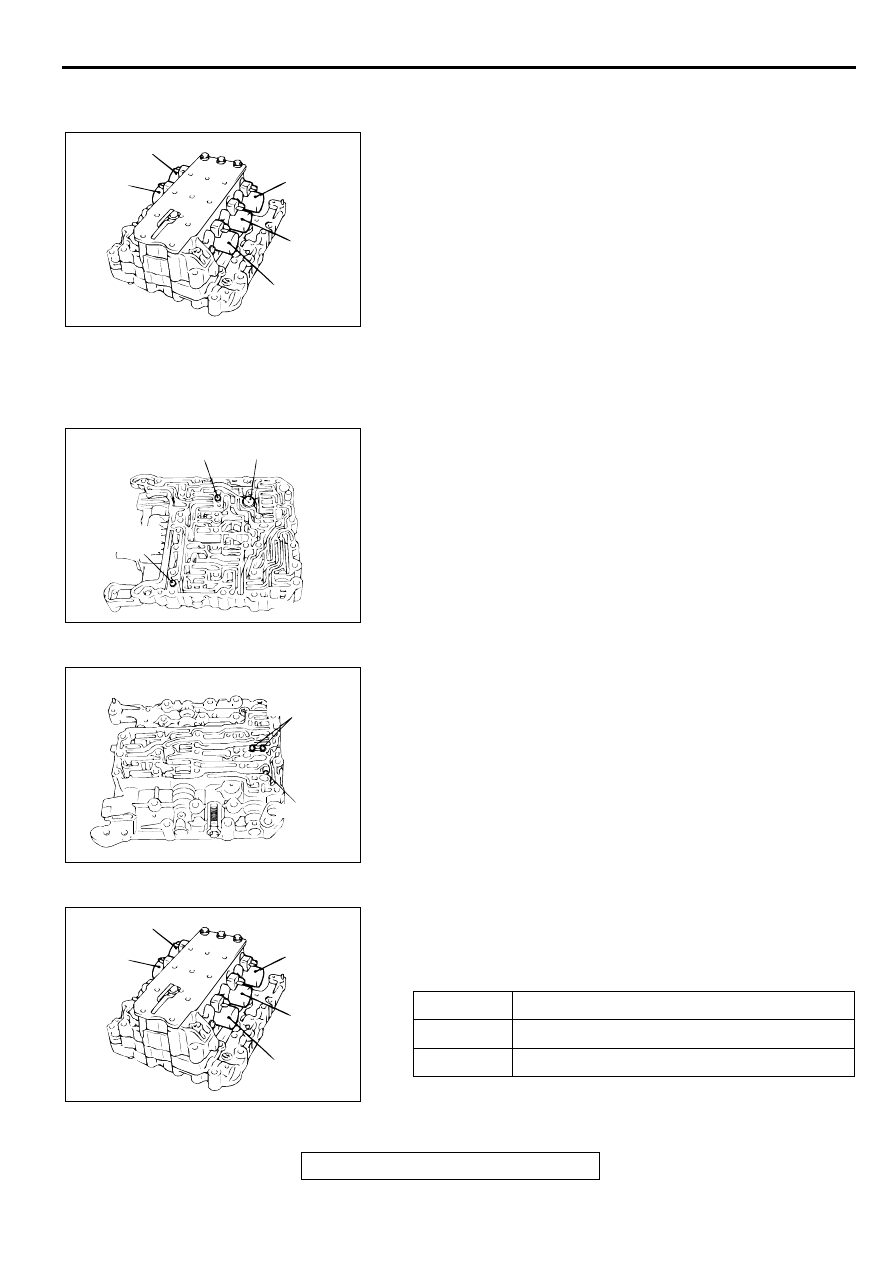

DISASSEMBLY SERVICE POINT

<<A>> SOLENOID VALVES REMOVAL
Mark the solenoid valves with white paint to make assembly
easier.

ASSEMBLY SERVICE POINTS

>>A<< SPRING, STEEL BALL, DAMPING VALVE AND
DAMPING VALVE SPRING INSTALLATION
1. Install the two steel balls and two springs to the inside valve

body as shown.

2. Install the damping valve and spring to the inside valve body

as shown.

>>B<< SPRING AND STEEL BALL INSTALLATION
Install the three steel balls and two springs to the inside valve
body as shown.

>>C<< SOLENOID VALVES INSTALLATION
1. Apply ATF or petroleum jelly (Vaseline) to the O-ring and

install carefully.

2. Install the solenoid valves by referring to the marks applied

during disassembly.

AKX01058

5

4

1

2

3

AB

AKX01056

STEEL BALL
AND SPRING

DAMPING VALVE
AND SPRING

AB

STEEL BALL
AND SPRING

AKX01057AB

STEEL BALL

STEEL BALL
AND SPRING

NO.

NAME

1

Underdrive solenoid valve

2

Second solenoid valve

AKX01058

5

4

1

2

3

AB

SPEEDOMETER GEAR

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-73

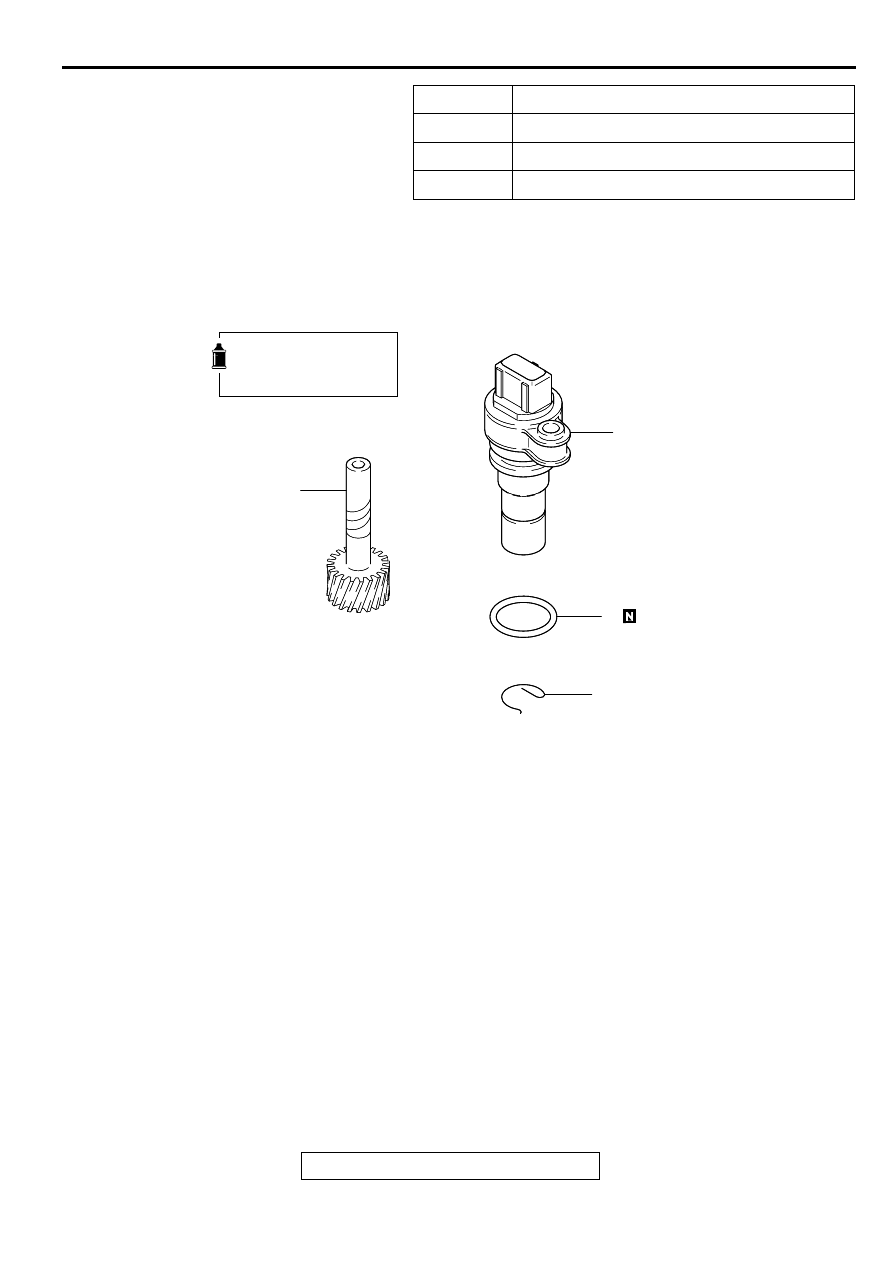

SPEEDO M ETER  G EA R

DISASSEMBLY AND ASSEMBLY

M1233004000022

3

Torque converter clutch control solenoid valve

4

Overdrive solenoid valve

5

Low-reverse solenoid valve

NO.

NAME

AKX00965

AKX00965

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

2

4

3

1

AB

DISASSEMBLY STEPS
1.

E-CLIP

2.

SPEEDOMETER DRIVEN GEAR

3.

O-RING

4.

SLEEVE

DISASSEMBLY STEPS (Continued)

DRIVE SHAFT OIL SEAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-74

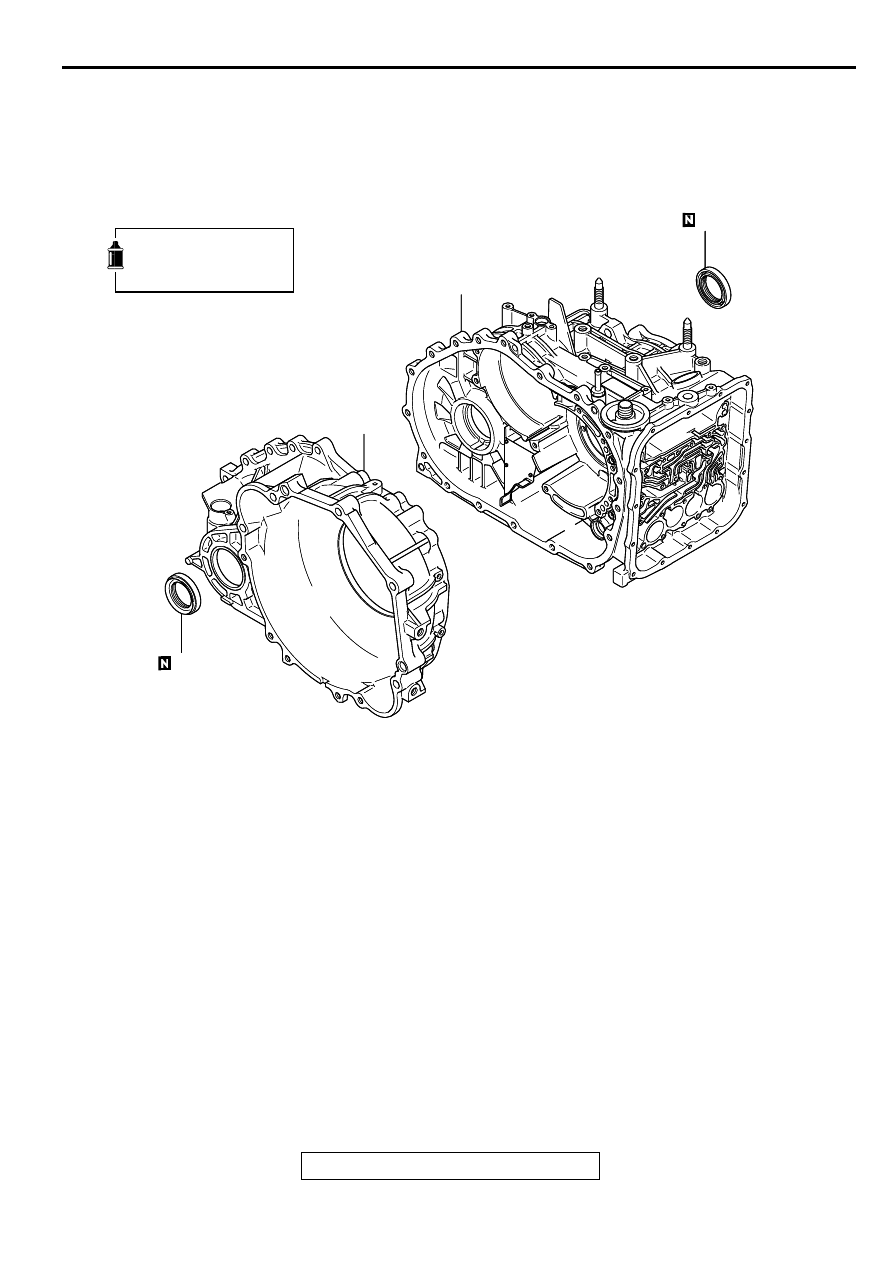

D R IVE SH A FT O IL SEA L

DISASSEMBLY AND ASSEMBLY

M1233004300023

Required Special Tool:
MD998800: Oil Seal Installer

AKX01002

AKX01002

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

1

2

4

3

AB

DISASSEMBLY STEPS

>>A<<

1.

OIL SEAL

2.

TORQUE CONVERTER
HOUSING

>>B<<

3.

OIL SEAL

4.

TRANSAXLE CASE

DISASSEMBLY STEPS (Continued)
