AIR CLEANER

TSB Revision

INTAKE AND EXHAUST

15-5

A IR  C LE A N ER

REMOVAL AND INSTALLATION

M1151002100099

Pre-removal and Post-installation Operation
Battery Removal and Installation (Refer to GROUP 54A,
Battery

P.54A-8

.)

AC001421

<2.4L ENGINE>

<3.0L ENGINE>

5

4

3.9 ± 1.0 N·m
38 ± 8 in-lb

3.9 ± 1.0 N·m
38 ± 8 in-lb

1

2

8.8 ± 1.0 N·m
78 ± 9 in-lb

8.8 ± 1.0 N·m
78 ± 9 in-lb

6

8

7

3

9

4

1

3.9 ± 1.0 N·m
38 ± 8 in-lb

3.9 ± 1.0 N·m
38 ± 8 in-lb

8.8 ± 1.0 N·m
78 ± 9 in-lb

8.8 ± 1.0 N·m
78 ± 9 in-lb

2

3

10

7

8

5

6

AB

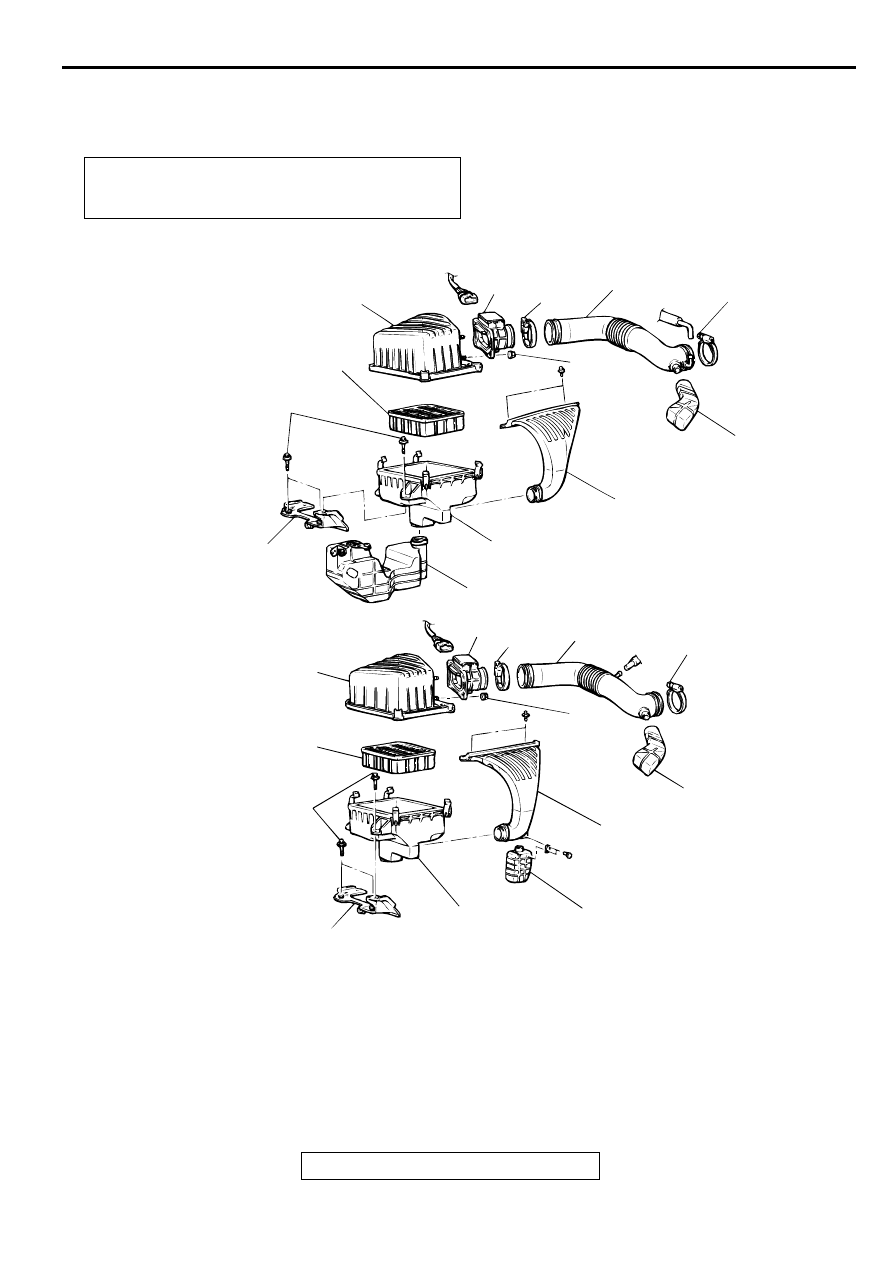

REMOVAL STEPS

1.

AIR INTAKE HOSE

2.

RESONATOR A

3.

AIR DUCT

4.

AIR FLOW SENSOR ASSEMBLY

5.

AIR CLEANER COVER

6.

AIR CLEANER ELEMENT

7.

AIR CLEANER BODY

8.

AIR CLEANER BRACKET

9.

RESONATOR B <2.4L ENGINE>

10. RESONATOR C <3.0L ENGINE>

REMOVAL STEPS (Continued)

INTAKE MANIFOLD PLENUM

TSB Revision

INTAKE AND EXHAUST

15-6

IN TA K E M A N IFO LD  PLEN U M

REMOVAL AND INSTALLATION

M1151002700068

Pre-removal Operation

•

Fuel Discharge Prevention [Refer to GROUP 13B, On-
vehicle Service

P.13B-556

.]

•

Engine Coolant Draining [Refer to GROUP 00,
Maintenance Service

−

 Engine Coolant (Change)

P.00-

52

.]

•

Air Cleaner Removal (Refer to

P.15-5

.)

•

Throttle Body Removal (Refer to GROUP 13B, Throttle
Body

P.13B-563

.)

•

Strut Tower Bar Removal (Refer to GROUP 42, Strut
Tower Bar

P.42-11

.)

Post-installation Operation

•

Throttle Body Installation (Refer to GROUP 13B, Throttle
Body

P.13B-563

.)

•

Air Cleaner Installation (Refer to

P.15-5

.)

•

Engine Coolant Supplying [Refer to GROUP 00,
Maintenance Service

−

 Engine Coolant (Change)

P.00-

52

.]

•

Strut Tower Bar Installation (Refer to GROUP 42, Strut
Tower Bar

P.42-11

.)

AC001422

11 ± 1 N·m
98 ± 8 in-lb

11 ± 1 N·m
98 ± 8 in-lb

14

11

11

10

13

9

12

13

3

2

8.8 ± 1.0 N·m
78 ± 9 in-lb

8.8 ± 1.0 N·m
78 ± 9 in-lb

4

5

7

6

11 ± 1 N·m
98 ± 8 in-lb

1

8

4.9 ± 1.0 N·m
44 ± 8 in-lb

AB

4.9 ± 1.0 N·m
44 ± 8 in-lb

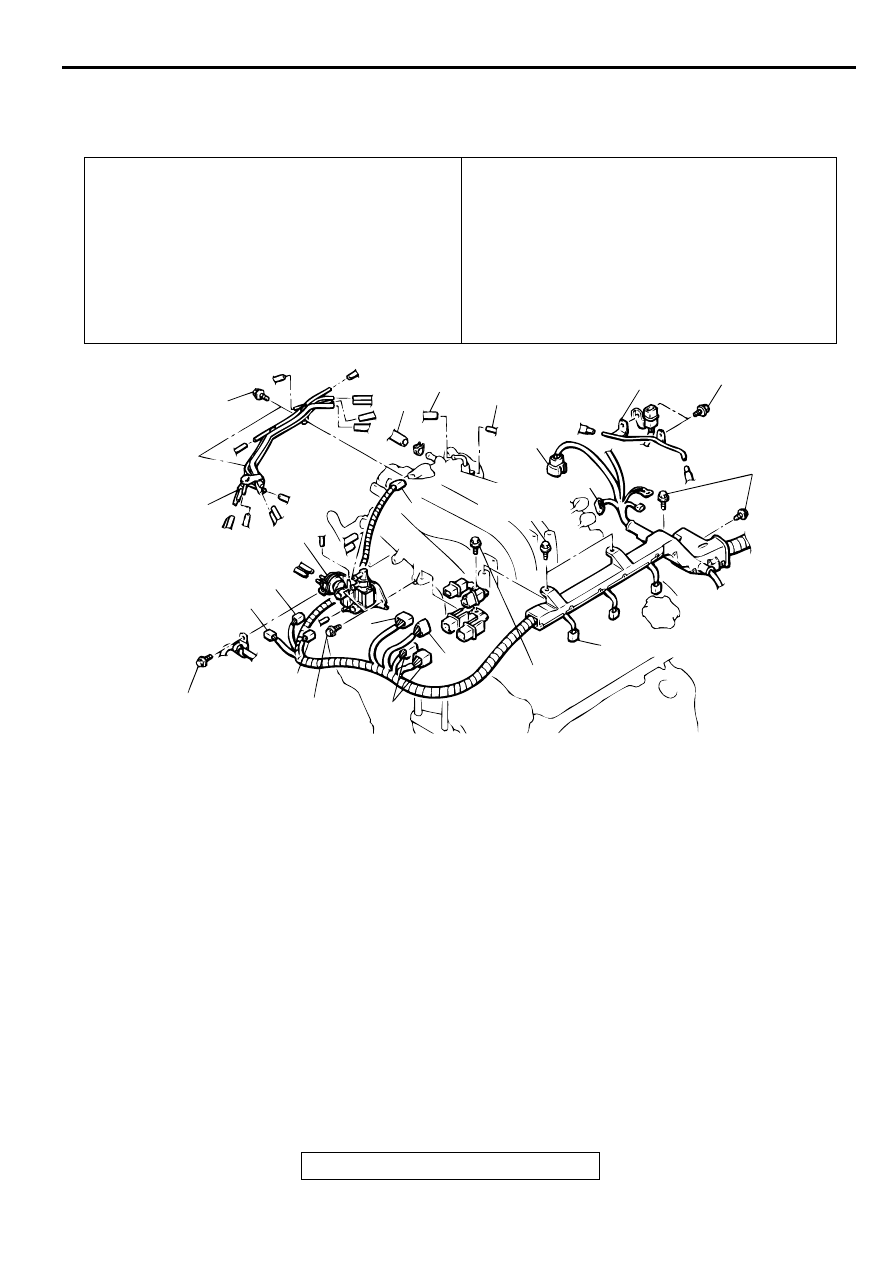

REMOVAL STEPS

1. MANIFOLD DIFFERENTIAL

PRESSURE SENSOR CONNECTOR

2. CONTROL WIRING HARNESS AND

POWER STEERING WIRING
HARNESS COMBINATION
CONNECTOR

3. EGR SOLENOID VALVE

CONNECTOR

4. EVAPORATIVE EMISSION PURGE

SOLENOID VALVE CONNECTOR

5. KNOCK SENSOR CONNECTOR
6. CRANKSHAFT POSITION SENSOR

CONNECTOR

7. RIGHT BANK HEATED OXYGEN

SENSOR CONNECTOR

8. INJECTOR CONNECTOR
9. DISTRIBUTOR CONNECTOR
10. CONTROL WIRING HARNESS AND

INJECTOR WIRING HARNESS
COMBINATION CONNECTOR

11. VACUUM HOSE CONNECTION
12. VACUUM PIPE
13. EGR SOLENOID VALVE,

EVAPORATIVE EMISSION PURGE
SOLENOID VALVE AND VACUUM
CONTROL VALVE

14. BRAKE BOOSTER VACUUM HOSE

CONNECTION

REMOVAL STEPS (Continued)

INTAKE MANIFOLD PLENUM

TSB Revision

INTAKE AND EXHAUST

15-7

AC001423

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

35 ± 6 N·m
26 ± 4 ft-lb

35 ± 6 N·m
26 ± 4 ft-lb

N

15

21 ± 4 N·m
16 ± 3 ft-lb

18

44 ± 10 N·m
33 ± 7 ft-lb

20

42 ± 7 N·m
31 ± 5 ft-lb

19

17

23 ± 4 N·m
17 ± 3 ft-lb

34 ± 5 N·m
26 ± 3 ft-lb

16

N

21

22

N

23

N

24

4.9 ± 1.0 N·m
44 ± 8 in-lb

AB

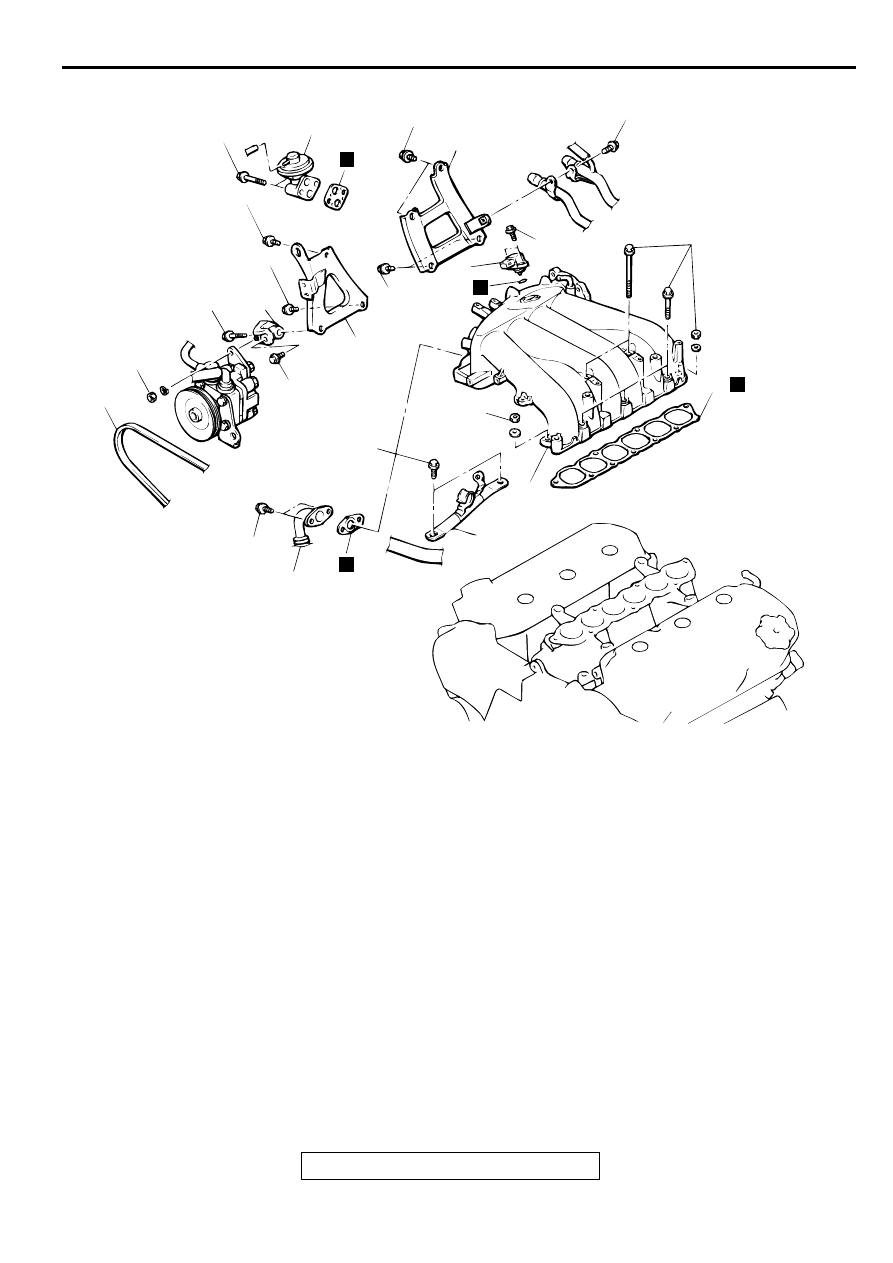

REMOVAL STEPS

15. EGR VALVE
16. EGR PIPE CONNECTION
17. DRIVE BELT <POWER STEERING

OIL PUMP>

18. POWER STEERING OIL PUMP

BRACKET STAY

19. INTAKE MANIFOLD PLENUM STAY,

FRONT

20. INTAKE MANIFOLD PLENUM STAY,

REAR

21. ENGINE MOUNT STAY
22. INTAKE MANIFOLD PLENUM

>>A<<

23. INTAKE MANIFOLD PLENUM

GASKET

24. MANIFOLD DIFFERENTIAL

PRESSURE SENSOR

REMOVAL STEPS (Continued)

INTAKE MANIFOLD <2.4L>

TSB Revision

INTAKE AND EXHAUST

15-8

INSTALLATION SERVICE POINT

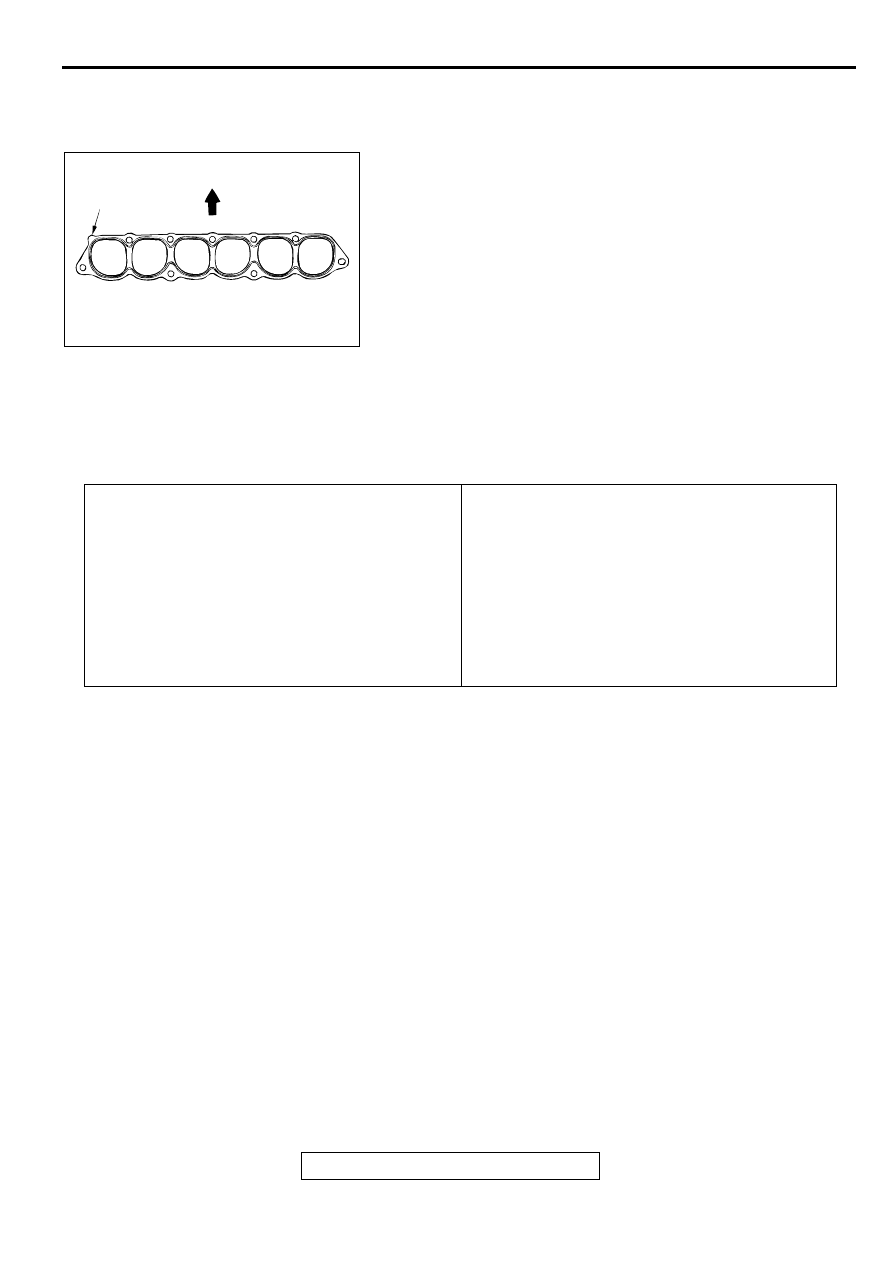

>>A<< INTAKE MANIFOLD PLENUM GASKET
INSTALLATION
Install the gasket with the protrusion in the position illustrated.

IN TA K E M A N IFO LD  <2.4L>

REMOVAL AND INSTALLATION

M1151003000147

AC001424

PROTRUSION

FRONT OF
VEHICLE

AB

Pre-removal Operation

•

Fuel Discharge Prevention [Refer to GROUP 13A, On-
vehicle Service

−

 Fuel Pump Relay Disconnection (How

to Reduce Pressurized Fuel Lines) .]

•

Engine Coolant Draining [Refer to GROUP 00,
Maintenance Service

−

 Engine Coolant (Change)

P.00-

52

.]

•

Air Cleaner Removal (Refer to

P.15-5

.)

•

Throttle Body Removal (Refer to GROUP 13A, Throttle
Body

P.13A-488

.)

•

Thermostat Case Assembly Removal (Refer to GROUP
14, Water Hose and Water Pipe

P.14-26

.)

Post-installation Operation

•

Thermostat Case Assembly Installation (Refer to GROUP
14, Water Hose and Water Pipe

P.14-26

.)

•

Throttle Body Installation (Refer to GROUP 13A, Throttle
Body

P.13A-488

.)

•

Air Cleaner Installation (Refer to

P.15-5

.)

•

Engine Coolant Supplying [Refer to GROUP 00,
Maintenance Service

−

 Engine Coolant (Change)

P.00-

52

.]

•

Fuel Leakage Inspection
